B4A Library [B4X] [XUI] AS Scheduler 📅 - MonthView, DayView (Week), AgendaView and CalendarView [Payware]

The AS Scheduler is a B4X library for displaying and interacting with appointments.

You want to try the views out? Then click here

This library is not free, because, it cost a lot of time and gray hair to create such views.
Minimum Donation Value: 25
Please write Scheduler in the order description, thanks.

Thanks for your understanding. :)
  1. Donate
  2. I will send you an e-mail or a direct message with the code to decrypt the .zip file
  3. Done




The project was divided into modules.
  • Views
    • ASScheduler_DayView
    • ASScheduler_MonthView
    • ASScheduler_AgendaView
    • ASScheduler_CalendarViewMonth
    • ASScheduler_CalendarViewWeek
  • Classes
    • ASSchedulerAPI
    • ASSchedulerInternShared
  • Modules
    • ASSchedulerUtils

B4j: jXUI,jDateUtils,xCustomListView,ASViewPager,jSQL
B4a: XUi,DateUtils,Reflection,xCustomListView,ASViewPager,SQL
B4i: iXUI,iDateUtils,xCustomListView,ASViewPager,iSQL
Make sure you are using ASViewPager V1.31+
On B4I you need GestureRecognizer Download the .bas file in the attachment No longer needed since 1.16+

ASScheduler
Author: Alexander Stolte
Version: 2.13

  • ASSchedulerAPI
    • Functions:
      • Class_Globals As String
      • ClearAppointments As String
        Deletes all Appointments
      • ClearBlackouts As String
        Deletes all Blackouts
      • CreateAppointment (Appointment As ASScheduler_Appointment) As ASScheduler_Appointment
        Creates a new Appointment
        <code>ASScheduler_DayView1.API.CreateAppointment(ASSchedulerUtils.CreateASScheduler_Appointment(0,"Test Item 1",xui.Color_ARGB(255,45, 136, 121),False,DateTime.now,DateTime.now+DateTime.TicksPerHour))</code>
        <code>ASScheduler_DayView1.API.CreateAppointment(ASSchedulerUtils.CreateASScheduler_AppointmentRecurring(0,"Test Item 1",xui.Color_ARGB(255,45, 136, 121),False,DateTime.now,DateTime.now+DateTime.TicksPerHour,True,"week",1))</code>
      • CreateBlackout (Blackout As ASScheduler_Blackout) As String
        Create a new Blackout
        <code>ASScheduler_DayView1.API.CreateBlackout(ASSchedulerUtils.CreateASScheduler_Blackout(0,DateTime.Now+(DateTime.TicksPerDay*2),DateTime.Now+(DateTime.TicksPerDay*2)))'2 days </code>
      • DeleteAppointment (Id As Int) As String
        Removes an Appointment
      • DeleteBlackout (Id As Int) As String
        Removes an Appointment
      • GetAppointment (Id As Int) As ASScheduler_Appointment
        Get a Appointment
      • GetAppointmentCount As Int
        Gets the count of all Appointments
      • GetAppointmentCountInRange (StartDate As Long, EndDate As Long, DurationLongerThanOneDay As Boolean) As Int
        Gets the Appointments count from StartDate to EndDate
        The time value is set to 0 o'clock on StartDate and at the EndDate to 23:59
        If DurationLongerThanOneDay = True then it counts only the appointments that go longer than 1 day
      • GetAppointmentCountOnOneDay (Date As Long) As Int
      • GetAppointments (Date As Long) As List
        Gets all appointments on that Date
        Returns a List of ASScheduler_Appointment objects
      • GetCustomQuery (Columns As String, Table As String, Where As String, Args As String()) As ResultSet
        The table structure you find here
        <code>https://www.b4x.com/android/forum/threads/b4x-xui-as-scheduler-📅-monthview-and-dayview-week-payware.138410/post-876274</code>
        If you dont need a where, just put a "" to the string
      • GetIsDayBlackout (Date As Long) As Boolean
        Checks if there is a blackout on that day
      • Initialize (sql As SQL) As String
        Initializes the object. You can add parameters to this method if needed.
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
  • ASSchedulerInternShared
    • Fields:
      • SQL As SQL
    • Functions:
      • CreateHeaderItem (Text As String, HeaderTextProperties As ASScheduler_MonthView_HeaderTextProperties) As B4XView
      • GetARGB (Color As Int) As Int()
      • GetDisplayDuration (StartTime As Long, EndTime As Long) As String
      • GetMonthNameByIndex (Index As Int, MonthNameShort As ASScheduler_MonthNameShort) As String
        1 = January
      • GetWeekNameByIndex (Index As Int, WeekNameShort As ASScheduler_WeekNameShort) As String
        1 = Sunday
      • Initialize As String
      • Process_Globals As String
  • ASSchedulerUtils
    • Functions:
      • API As ASSchedulerAPI
        Global Scheduler API Access
        First call InitializeAPI
      • ConvertSameDateTimeTicks2SameDateTicks (ticks As Long) As Long
      • CreateASScheduler_Appointment (Id As Int, Name As String, Description As String, Color As Int, isFullDay As Boolean, StartDate As Long, EndDate As Long) As ASScheduler_Appointment
        Id -The appointment ID, set this to 0 if you want to create an appointment
      • CreateASScheduler_AppointmentRecurring (Id As Int, Name As String, Description As String, Color As Int, isFullDay As Boolean, StartDate As Long, EndDate As Long, isRecurring As Boolean, RecurringUnit As String, RecurringInterval As Int) As ASScheduler_Appointment
        Id -The appointment ID, set this to 0 if you want to create an appointment
        isRecurring - If True then the appointment will be recurring
        RecurringUnit - day - week - month - year are valid
        Use ASSchedulerUtils.Recurring_Day for the RecurringUnits
      • CreateASScheduler_Blackout (Id As Int, StartDate As Long, EndDate As Long) As ASScheduler_Blackout
      • CreateASScheduler_HeatMapColor (Color As Int, Count As Int, TextColor As Int) As ASScheduler_HeatMapColor
      • CreateASScheduler_MonthNameShort (January As String, February As String, March As String, April As String, May As String, June As String, July As String, August As String, September As String, October As String, November As String, December As String) As ASScheduler_MonthNameShort
      • CreateASScheduler_WeekNameShort (Monday As String, Tuesday As String, Wednesday As String, Thursday As String, Friday As String, Saturday As String, Sunday As String) As ASScheduler_WeekNameShort
      • FillWithDiagonallyDrawnLines (Target As B4XView, Thickness As Float, Color As Int) As String
      • FillWithDiagonallyDrawnLines2 (Target As B4XView, Thickness As Float, GapBetween As Float, Color As Int) As String
      • GetARGB (Color As Int) As Int()
      • GetFirstDayOfWeek2 (Ticks As Long, FirstDayOfWeek As Int) As Long
        FirstDayOfWeek:
        Friday = 1
        Thursday = 2
        Wednesday = 3
        Tuesday = 4
        Monday = 5
        Sunday = 6
        Saturday = 7
      • GetWeekNumberStartingFromMonday (ticks As Long) As Int
      • InitializeAPI As String
      • NumberOfWeeksBetween (StartDate As Long, EndDate As Long) As Int
      • Process_Globals As String
      • Recurring_Day As String
      • Recurring_Month As String
      • Recurring_Week As String
      • Recurring_Year As String
      • TimeSystem_12h As String
      • TimeSystem_24h As String
      • WeekDay_Friday As Int
      • WeekDay_Monday As Int
      • WeekDay_Saturday As Int
      • WeekDay_Sunday As Int
      • WeekDay_Thursday As Int
      • WeekDay_Tuesday As Int
      • WeekDay_Wednesday As Int
  • ASScheduler_AgendaView
    • Events:
      • AppointmentClick (Appointment As ASScheduler_Appointment)
      • CustomDrawEmptyState (StartDate As Long, BackgroundPanel As B4XView)
      • CustomDrawMonth (StartDate As Long, BackgroundPanel As B4XView)
      • CustomDrawWeek (StartDate As Long, BackgroundPanel As B4XView)
      • MonthClick (StartDate As Long)
      • WeekClick (StartDate As Long)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • Class_Globals As String
      • CreateASScheduler_AgendaView_AppointmentDayOfMonthProperties (xFont As B4XFont, TextColor As Int) As ASScheduler_AgendaView_AppointmentDayOfMonthProperties
      • CreateASScheduler_AgendaView_AppointmentProperties (Height As Float, Gap As Float, CornerRadius As Float, xFont As B4XFont, TextColor As Int, ShowStartEndTime As Boolean, ShowDuration As Boolean) As ASScheduler_AgendaView_AppointmentProperties
      • CreateASScheduler_AgendaView_AppointmentWeekDayProperties (xFont As B4XFont, TextColor As Int) As ASScheduler_AgendaView_AppointmentWeekDayProperties
      • CreateASScheduler_AgendaView_EmptyStateProperties (xFont As B4XFont, TextColor As Int, Height As Float, BackgroundColor As Int, EmptyText As String) As ASScheduler_AgendaView_EmptyStateProperties
      • CreateASScheduler_AgendaView_MonthProperties (xFont As B4XFont, TextColor As Int, Height As Float, BackgroundColor As Int) As ASScheduler_AgendaView_MonthProperties
      • CreateASScheduler_AgendaView_TimelineProperties (Width As Float) As ASScheduler_AgendaView_TimelineProperties
      • CreateASScheduler_AgendaView_WeekProperties (xFont As B4XFont, TextColor As Int, Height As Float, BackgroundColor As Int) As ASScheduler_AgendaView_WeekProperties
      • CreateScheduler
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • getAEmptyStateProperties As ASScheduler_AgendaView_EmptyStateProperties
      • getAPI As ASSchedulerAPI
        Gets the API
      • getAppointmentDayOfMonthProperties As ASScheduler_AgendaView_AppointmentDayOfMonthProperties
      • getAppointmentProperties As ASScheduler_AgendaView_AppointmentProperties
      • getAppointmentWeekDayProperties As ASScheduler_AgendaView_AppointmentWeekDayProperties
      • getMonthNameShort As ASScheduler_MonthNameShort
      • getMonthProperties As ASScheduler_AgendaView_MonthProperties
      • getStartDate As Long
      • getTimelineProperties As ASScheduler_AgendaView_TimelineProperties
      • getWeekNameShort As ASScheduler_WeekNameShort
      • getWeekProperties As ASScheduler_AgendaView_WeekProperties
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • RefreshScheduler As String
      • Scroll2Date (Date As Long)
      • setStartDate (StartDate As Long) As String
    • Properties:
      • AEmptyStateProperties As ASScheduler_AgendaView_EmptyStateProperties [read only]
      • API As ASSchedulerAPI [read only]
        Gets the API
      • AppointmentDayOfMonthProperties As ASScheduler_AgendaView_AppointmentDayOfMonthProperties [read only]
      • AppointmentProperties As ASScheduler_AgendaView_AppointmentProperties [read only]
      • AppointmentWeekDayProperties As ASScheduler_AgendaView_AppointmentWeekDayProperties [read only]
      • MonthNameShort As ASScheduler_MonthNameShort [read only]
      • MonthProperties As ASScheduler_AgendaView_MonthProperties [read only]
      • StartDate As Long
      • TimelineProperties As ASScheduler_AgendaView_TimelineProperties [read only]
      • WeekNameShort As ASScheduler_WeekNameShort [read only]
      • WeekProperties As ASScheduler_AgendaView_WeekProperties [read only]
  • ASScheduler_AgendaView_AppointmentDayOfMonthProperties
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_AgendaView_AppointmentProperties
    • Fields:
      • CornerRadius As Float
      • Gap As Float
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • ShowDuration As Boolean
      • ShowStartEndTime As Boolean
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_AgendaView_AppointmentWeekDayProperties
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_AgendaView_EmptyStateProperties
    • Fields:
      • BackgroundColor As Int
      • EmptyText As String
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_AgendaView_MonthProperties
    • Fields:
      • BackgroundColor As Int
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_AgendaView_TimelineProperties
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Width As Float
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_AgendaView_WeekProperties
    • Fields:
      • BackgroundColor As Int
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_Appointment
    • Fields:
      • Color As Int
      • Description As String
      • EndDate As Long
      • Id As Int
      • isFullDay As Boolean
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • isRecurring As Boolean
      • Name As String
      • RecurringInterval As Int
      • RecurringUnit As String
      • StartDate As Long
      • Tag As String
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_Blackout
    • Fields:
      • EndDate As Long
      • Id As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • StartDate As Long
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView
    • Events:
      • AppointmentClick (Appointment As ASScheduler_Appointment)
      • AppointmentLongClick (Appointment As ASScheduler_Appointment)
      • TimeBlockClick (StartDate As Long, EndDate As Long)
      • TimeBlockLongClick (StartDate As Long, EndDate As Long)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • Back2CurrentDate As String
        Slides Back or Forward to the Current Date
      • Base_Resize (Width As Double, Height As Double)
      • Class_Globals As String
      • CreateASScheduler_DayView_AppointmentProperties (Height As Float, Gap As Float, CornerRadius As Float, xFont As B4XFont, TextColor As Int, OverviewGap As Boolean, ShowStartEndTime As Boolean, ShowDuration As Boolean) As ASScheduler_DayView_AppointmentProperties
      • CreateASScheduler_DayView_BlackoutProperties (Width As Float, Color As Int) As ASScheduler_DayView_BlackoutProperties
      • CreateASScheduler_DayView_CurrentTimeIndicatorProperties (Height As Float, Color As Int, FullWidth As Boolean) As ASScheduler_DayView_CurrentTimeIndicatorProperties
      • CreateASScheduler_DayView_HeaderTextProperties (TextColor As Int, TextFont As B4XFont) As ASScheduler_DayView_HeaderTextProperties
      • CreateASScheduler_DayView_TimelineProperties (Width As Float, BackgroundColor As Int, TextColor As Int, ShowGridLines As Boolean) As ASScheduler_DayView_TimelineProperties
      • CreateASScheduler_DayView_WeekNumberProperties (Width As Float, Height As Float, Color As Int, xFont As B4XFont, TextColor As Int, CornerRadius As Float) As ASScheduler_DayView_WeekNumberProperties
      • CreateASScheduler_DayView_WorkingProperties (StartHour As Int, EndHour As Int, NonWorkingDays As Int(), Color As Int, Active As Boolean) As ASScheduler_DayView_WorkingProperties
      • CreateScheduler As String
        Call this if you want to show the scheduler the user
        The Panel in the forderground is hiding smoothly
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • getAPI As ASSchedulerAPI
        Gets the API
      • getAppointmentProperties As ASScheduler_DayView_AppointmentProperties
        Call RefreshScheduler if you change something
        Default Values
        Height: <code>14dip</code>
        Gap: <code>2dip</code>
        CornerRadius: <code>3dip</code>
        xFont: <code>xui.CreateDefaultFont(IIf(xui.IsB4i,12,10))</code>
        TextColor: <code>xui.Color_White</code>
      • getBlackoutProperties As ASScheduler_DayView_BlackoutProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>2dip</code>
        Color: <code>xui.Color_ARGB(152,255,255,255)</code>
      • getBlockHeight As Float
      • getBodyColor As Int
      • getCurrentDateColor As Int
      • getCurrentTimeIndicatorLiveUpdate As Boolean
      • getCurrentTimeIndicatorProperties As ASScheduler_DayView_CurrentTimeIndicatorProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>2dip</code>
        Color: <code>xui.Color_ARGB(152,221, 95, 96)</code>
        FullWidth: <code>False</code>
      • getDayCount As String
      • getDayCount_FiveDays As String
      • getDayCount_OneDay As String
      • getDayCount_SevenDays As String
      • getDayCount_ThreeDays As String
        ThreeDays
      • getDayCount_WorkWeek As String
      • getGridLineColor As Int
      • getHeaderColor As Int
      • getHeaderHeight As Float
      • getHeaderTextProperties As ASScheduler_DayView_HeaderTextProperties
        Call RefreshScheduler if you change something
        Default Values
        TextColor: <code>xui.Color_White</code>
        TextFont: <code>xui.CreateDefaultBoldFont(15)</code>
      • getHeaderVisibility As Boolean
      • getMonthNameShort As ASScheduler_MonthNameShort
        Call RefreshScheduler if you change something
        <code>ASScheduler_DayView1.MonthNameShort = ASSchedulerUtils.CreateASScheduler_MonthNameShort("Jan","Feb","Mar","Apr","May","Jun","Jul","Aug","Sept","Oct","Nov","Dec")</code>
      • getSelectedBlockColor As Int
      • getShowMonthNames As Boolean
        Call RefreshScheduler if you change something
      • getShowWeekNumbers As Boolean
        Call RefreshScheduler if you change something
      • getTimelineProperties As ASScheduler_DayView_TimelineProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>40dip</code>
        BackgroundColor: <code>0xFF131416</code>
        TextColor: <code>xui.Color_White</code>
      • getTimelineVisibility As Boolean
      • getTimeSystem As String
        Call RefreshScheduler if you change something
        <code>ASSchedulerUtils.TimeSystem_24h</code>
      • getWeekNameShort As ASScheduler_WeekNameShort
        Call RefreshScheduler if you change something
        <code>ASScheduler_DayView1.WeekNameShort = ASSchedulerUtils.CreateASScheduler_WeekNameShort("Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday")</code>
      • getWeekNumberProperties As ASScheduler_DayView_WeekNumberProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>20dip</code>
        Color: <code>xui.Color_ARGB(255,32, 33, 37)</code>
        xFont: <code>xui.CreateDefaultFont(15)</code>
        TextColor: <code>xui.Color_White</code>
      • getWorkingProperties As ASScheduler_DayView_WorkingProperties
        Call RefreshScheduler if you change something
        Default Values
        StartHour: <code>8</code>
        EndHour: <code>17</code>
        NonWorkingDays: <code>Array As Int(ASSchedulerUtils.WeekDay_Saturday,ASSchedulerUtils.WeekDay_Sunday)</code>
        Color: <code>xui.Color_ARGB(255,60, 64, 67)</code>
        Active: <code>True</code>
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • isValueInArray (SourceArray As Int(), TargetValue As Int) As Boolean
      • Nextweek As String
      • PreviousWeek As String
      • RefreshScheduler
        Rebuilds the visible scheduler items
      • Scroll2Date (Date As Long) As String
        Scrolls to the date
        Builds the view new if the date was not in range
      • setAppointmentProperties (DayView_AppointmentProperties As ASScheduler_DayView_AppointmentProperties) As String
      • setBlackoutProperties (DayView_BlackoutProperties As ASScheduler_DayView_BlackoutProperties) As String
      • setBlockHeight (Height As Float) As String
        Call RefreshScheduler if you change something
        Default: 20dip
      • setBodyColor (Color As Int) As String
        Call RefreshScheduler if you change something
      • setCurrentDateColor (Color As Int) As String
        Call RefreshScheduler if you change something
      • setCurrentTimeIndicatorLiveUpdate (Enabled As Boolean) As String
        If True then indicator moves 1 time per minute to always show the most current time
      • setCurrentTimeIndicatorProperties (DayView_CurrentTimeIndicatorProperties As ASScheduler_DayView_CurrentTimeIndicatorProperties) As String
      • setDayCount (DayCount As String)
        Changes the number of days that are visible
        The view updates itself
        <code> ASScheduler_DayView1.DayCount = ASScheduler_DayView1.DayCount_FiveDays</code>
      • setGridLineColor (Color As Int) As String
        Call RefreshScheduler if you change something
      • setHeaderColor (Color As Int) As String
        Call RefreshScheduler if you change something
      • setHeaderHeight (Height As Float) As String
        Call RefreshScheduler if you change something
      • setHeaderTextProperties (DayView_HeaderTextProperties As ASScheduler_DayView_HeaderTextProperties) As String
      • setHeaderVisibility (Visibility As Boolean) As String
        Hides or Show the Header
        Call RefreshScheduler if you change something
      • setMonthNameShort (MonthNameShort As ASScheduler_MonthNameShort) As String
      • setSelectedBlockColor (Color As Int) As String
        Call RefreshScheduler if you change something
      • setShowMonthNames (Show As Boolean) As String
        Call RefreshScheduler if you change something
      • setShowWeekNumbers (Show As Boolean) As String
      • SetTheme (Theme As ASScheduler_Theme) As String
        DarkMode Example
        <code>
        Dim Theme As ASScheduler_Theme
        Theme.Initialize
        'Background Colors
        Theme.BackgroundColor_Body = 0xFF202125
        Theme.BackgroundColor_Header = 0xFF131416
        Theme.BackgroundColor_Timeline = 0xFF131416
        Theme.BackgroundColor_WeekNumber = xui.Color_ARGB(255,32, 33, 37)
        Theme.BackgroundColor_GridLine = 0x64FFFFFF
        Theme.BackgroundColor_Blackout = xui.Color_ARGB(152,255,255,255)
        'Text Colors
        Theme.TextColor_Header = xui.Color_White
        Theme.TextColor_Timeline = xui.Color_White
        Theme.TextColor_WeekNumber = xui.Color_White
        ASScheduler_DayView1.SetTheme(Theme)
        ASScheduler_DayView1.RefreshScheduler
        </code>
        LightMode Example
        <code>
        Dim Theme As ASScheduler_Theme
        Theme.Initialize
        'Background Colors
        Theme.BackgroundColor_Body = xui.Color_White
        Theme.BackgroundColor_Header = xui.Color_White
        Theme.BackgroundColor_Timeline = xui.Color_White
        Theme.BackgroundColor_WeekNumber = xui.Color_Gray
        Theme.BackgroundColor_GridLine = xui.Color_ARGB(100,0,0,0)
        Theme.BackgroundColor_Blackout = xui.Color_ARGB(152,0,0,0)
        'Text Colors
        Theme.TextColor_Header = xui.Color_Black
        Theme.TextColor_Timeline = xui.Color_Black
        Theme.TextColor_WeekNumber = xui.Color_Black
        ASScheduler_DayView1.SetTheme(Theme)
        ASScheduler_DayView1.RefreshScheduler
        </code>
      • setTimelineProperties (DayView_TimelineProperties As ASScheduler_DayView_TimelineProperties) As String
      • setTimelineVisibility (Visibility As Boolean) As String
        Hides or Show the Timeline
        Call RefreshScheduler if you change something
      • setTimeSystem (System As String) As String
      • setWeekNameShort (WeekNameShort As ASScheduler_WeekNameShort) As String
      • setWeekNumberProperties (DayView_WeekNumberProperties As ASScheduler_DayView_WeekNumberProperties) As String
    • Properties:
      • API As ASSchedulerAPI [read only]
        Gets the API
      • AppointmentProperties As ASScheduler_DayView_AppointmentProperties
        Call RefreshScheduler if you change something
        Default Values
        Height: <code>14dip</code>
        Gap: <code>2dip</code>
        CornerRadius: <code>3dip</code>
        xFont: <code>xui.CreateDefaultFont(IIf(xui.IsB4i,12,10))</code>
        TextColor: <code>xui.Color_White</code>
      • BlackoutProperties As ASScheduler_DayView_BlackoutProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>2dip</code>
        Color: <code>xui.Color_ARGB(152,255,255,255)</code>
      • BlockHeight As Float
        Call RefreshScheduler if you change something
        Default: 20dip
      • BodyColor As Int
        Call RefreshScheduler if you change something
      • CurrentDateColor As Int
        Call RefreshScheduler if you change something
      • CurrentTimeIndicatorLiveUpdate As Boolean
        If True then indicator moves 1 time per minute to always show the most current time
      • CurrentTimeIndicatorProperties As ASScheduler_DayView_CurrentTimeIndicatorProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>2dip</code>
        Color: <code>xui.Color_ARGB(152,221, 95, 96)</code>
        FullWidth: <code>False</code>
      • DayCount As String
        Changes the number of days that are visible
        The view updates itself
        <code> ASScheduler_DayView1.DayCount = ASScheduler_DayView1.DayCount_FiveDays</code>
      • DayCount_FiveDays As String [read only]
      • DayCount_OneDay As String [read only]
      • DayCount_SevenDays As String [read only]
      • DayCount_ThreeDays As String [read only]
        ThreeDays
      • DayCount_WorkWeek As String [read only]
      • GridLineColor As Int
        Call RefreshScheduler if you change something
      • HeaderColor As Int
        Call RefreshScheduler if you change something
      • HeaderHeight As Float
        Call RefreshScheduler if you change something
      • HeaderTextProperties As ASScheduler_DayView_HeaderTextProperties
        Call RefreshScheduler if you change something
        Default Values
        TextColor: <code>xui.Color_White</code>
        TextFont: <code>xui.CreateDefaultBoldFont(15)</code>
      • HeaderVisibility As Boolean
        Hides or Show the Header
        Call RefreshScheduler if you change something
      • MonthNameShort As ASScheduler_MonthNameShort
        Call RefreshScheduler if you change something
        <code>ASScheduler_DayView1.MonthNameShort = ASSchedulerUtils.CreateASScheduler_MonthNameShort("Jan","Feb","Mar","Apr","May","Jun","Jul","Aug","Sept","Oct","Nov","Dec")</code>
      • SelectedBlockColor As Int
        Call RefreshScheduler if you change something
      • ShowMonthNames As Boolean
        Call RefreshScheduler if you change something
      • ShowWeekNumbers As Boolean
        Call RefreshScheduler if you change something
      • TimelineProperties As ASScheduler_DayView_TimelineProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>40dip</code>
        BackgroundColor: <code>0xFF131416</code>
        TextColor: <code>xui.Color_White</code>
      • TimelineVisibility As Boolean
        Hides or Show the Timeline
        Call RefreshScheduler if you change something
      • TimeSystem As String
        Call RefreshScheduler if you change something
        <code>ASSchedulerUtils.TimeSystem_24h</code>
      • WeekNameShort As ASScheduler_WeekNameShort
        Call RefreshScheduler if you change something
        <code>ASScheduler_DayView1.WeekNameShort = ASSchedulerUtils.CreateASScheduler_WeekNameShort("Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday")</code>
      • WeekNumberProperties As ASScheduler_DayView_WeekNumberProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>20dip</code>
        Color: <code>xui.Color_ARGB(255,32, 33, 37)</code>
        xFont: <code>xui.CreateDefaultFont(15)</code>
        TextColor: <code>xui.Color_White</code>
      • WorkingProperties As ASScheduler_DayView_WorkingProperties [read only]
        Call RefreshScheduler if you change something
        Default Values
        StartHour: <code>8</code>
        EndHour: <code>17</code>
        NonWorkingDays: <code>Array As Int(ASSchedulerUtils.WeekDay_Saturday,ASSchedulerUtils.WeekDay_Sunday)</code>
        Color: <code>xui.Color_ARGB(255,60, 64, 67)</code>
        Active: <code>True</code>
  • ASScheduler_DayView_AppointmentProperties
    • Fields:
      • CornerRadius As Float
      • Gap As Float
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • OverviewGap As Boolean
      • ShowDuration As Boolean
      • ShowStartEndTime As Boolean
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView_BlackoutProperties
    • Fields:
      • Color As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Width As Float
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView_CurrentTimeIndicatorProperties
    • Fields:
      • Color As Int
      • FullWidth As Boolean
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView_HeaderTextProperties
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • TextFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView_TimelineProperties
    • Fields:
      • BackgroundColor As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • ShowGridLines As Boolean
      • TextColor As Int
      • Width As Float
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView_WeekNumberProperties
    • Fields:
      • Color As Int
      • CornerRadius As Float
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • Width As Float
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_DayView_WorkingProperties
    • Fields:
      • Active As Boolean
      • Color As Int
      • EndHour As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • NonWorkingDays As Int()
      • StartHour As Int
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_HeatMapColor
    • Fields:
      • Color As Int
      • Count As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthNameShort
    • Fields:
      • April As String
      • August As String
      • December As String
      • February As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • January As String
      • July As String
      • June As String
      • March As String
      • May As String
      • November As String
      • October As String
      • September As String
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView
    • Events:
      • AppointmentClick (Appointment As ASScheduler_Appointment)
      • AppointmentLongClick (Appointment As ASScheduler_Appointment)
      • DayClick (Date As Long)
      • DayLongClick (Date As Long)
      • HiddenAppointmentClick (ListOfAppointments As List)
      • HiddenAppointmentLongClick (ListOfAppointments As List)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • Back2CurrentDate As String
        Slides Back or Forward to the Current Date
      • Base_Resize (Width As Double, Height As Double)
      • Class_Globals As String
      • CreateASScheduler_MonthView_AppointmentProperties (Height As Float, Gap As Float, LeftRightGap As Float, CornerRadius As Float, xFont As B4XFont, TextColor As Int) As ASScheduler_MonthView_AppointmentProperties
      • CreateASScheduler_MonthView_BlackoutProperties (Width As Float, Color As Int, GapBetween As Float) As ASScheduler_MonthView_BlackoutProperties
      • CreateASScheduler_MonthView_DayProperties (TextColor As Int) As ASScheduler_MonthView_DayProperties
      • CreateASScheduler_MonthView_HeaderTextProperties (TextColor As Int, TextFont As B4XFont, TextAlignment_Vertical As String, TextAlignment_Horizontal As String, BackgroundColor As Int) As ASScheduler_MonthView_HeaderTextProperties
      • CreateASScheduler_MonthView_HeatMapProperties (xFont As B4XFont, ShowCounter As Boolean, ColorCountList As List) As ASScheduler_MonthView_HeatMapProperties
      • CreateASScheduler_MonthView_MinimalismProperties (Height As Float, Gap As Float, BottomGap As Float) As ASScheduler_MonthView_MinimalismProperties
      • CreateASScheduler_MonthView_WeekNumberProperties (Width As Float, Color As Int, xFont As B4XFont, TextColor As Int) As ASScheduler_MonthView_WeekNumberProperties
      • CreateScheduler As String
        Call this if you want to show the scheduler the user
        The Panel in the forderground is hiding smoothly
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • getAPI As ASSchedulerAPI
        Gets the API
      • getAppointmentProperties As ASScheduler_MonthView_AppointmentProperties
        Call RefreshScheduler if you change something
        Default Values
        Height: <code>14dip</code>
        Gap: <code>2dip</code>
        LeftRightGap: <code>2dip</code>
        CornerRadius: <code>3dip</code>
        xFont: <code>xui.CreateDefaultFont(IIf(xui.IsB4i,12,10))</code>
        TextColor: <code>xui.Color_White</code>
      • getBlackoutProperties As ASScheduler_MonthView_BlackoutProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>2dip</code>
        Color: <code>xui.Color_ARGB(152,255,255,255)</code>
      • getDayProperties As ASScheduler_MonthView_DayProperties
      • getHeaderTextProperties As ASScheduler_MonthView_HeaderTextProperties
        Call RefreshHeader if you change something
        Default Values
        TextColor: <code>xui.Color_White</code>
        TextFont: <code>xui.CreateDefaultBoldFont(15)</code>
        TextAlignment_Vertical: <code>"CENTER"e</code>
        TextAlignment_Horizontal: <code>"CENTER"</code>
        BackgroundColor: <code>m_HeaderColor</code>
      • getHeaderVisibility As Boolean
      • getHeatMapProperties As ASScheduler_MonthView_HeatMapProperties
        Call RefreshScheduler if you change something
        Default Values
        xFont: <code>xui.CreateDefaultBoldFont(15)</code>
        ColorCountList Example:
        <code>
        Dim HeatColor As List : HeatColor.Initialize
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,214, 230, 133),0,xui.Color_White))
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,140, 198, 101),2,xui.Color_White))
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,68, 163, 64),4,xui.Color_White))
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,30, 104, 35),7,xui.Color_White))
        </code>
      • getMinimalismProperties As ASScheduler_MonthView_MinimalismProperties
        Call RefreshScheduler if you change something
        Default Values
        Height: <code>8dip</code>
        Gap: <code>4dip</code>
        BottomGap: <code>16dip</code>
      • getMonthNameShort As ASScheduler_MonthNameShort
        Call RefreshScheduler if you change something
        <code>ASScheduler_MonthView1.MonthNameShort = ASSchedulerUtils.CreateASScheduler_MonthNameShort("Jan","Feb","Mar","Apr","May","Jun","Jul","Aug","Sept","Oct","Nov","Dec")</code>
      • getNumberOfWeeks As Int
        Gets or sets the number of visible weeks
      • getSchedulerFunction As String
      • getSchedulerFunction_Calendar As String
        Normal mode, Appointments and Blackout days are displayed
      • getSchedulerFunction_HeatMap As String
        A heatmap shows how the workload is on one day
        The more appointments in a day, the darker is the color
      • getSchedulerFunction_Minimalism As String
        Appointments are displayed as dots
      • getSelectedDate As Long
        gets or sets the selected date
      • getStartDate As Long
        Gets or sets the start date
      • getWeekNameShort As ASScheduler_WeekNameShort
        Call RefreshHeader if you change something
        <code>ASScheduler_MonthView1.WeekNameShort = ASSchedulerUtils.CreateASScheduler_WeekNameShort("Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday")</code>
      • getWeekNumberProperties As ASScheduler_MonthView_WeekNumberProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>20dip</code>
        Color: <code>xui.Color_ARGB(255,32, 33, 37)</code>
        xFont: <code>xui.CreateDefaultFont(15)</code>
        TextColor: <code>xui.Color_White</code>
      • HeaderTextProperties (MonthView_HeaderTextProperties As ASScheduler_MonthView_HeaderTextProperties) As String
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • RefreshHeader As String
        Rebuilds the header
      • RefreshScheduler
        Rebuilds the visible scheduler items
      • Scroll2Date (Date As Long) As String
        Scrolls to the date
        Builds the viw new if the date was not in range
      • setAppointmentProperties (MonthView_AppointmentProperties As ASScheduler_MonthView_AppointmentProperties) As String
      • setBlackoutProperties (MonthView_BlackoutProperties As ASScheduler_MonthView_BlackoutProperties) As String
      • setBodyColor (Color As Int) As String
        sets the body color
        Call RefreshScheduler to commit changes
      • setCurrentDateColor (Color As Int) As String
        Call RefreshScheduler to commit changes
      • setHeaderColor (Color As Int) As String
        sets the Header Color
      • setMonthNameShort (MonthNameShort As ASScheduler_MonthNameShort) As String
      • setNumberOfWeeks (Weeks As Int) As String
        Call RefreshScheduler to commit changes
      • setSchedulerFunction (Function As String) As String
        Changes the functionality of the scheduler
        <code>ASScheduler_MonthView1.SchedulerFunction = ASScheduler_MonthView1.SchedulerFunction_HeatMap</code>
      • setSelectedDate (date As Long) As String
        gets or sets the selected date
        Call RefreshScheduler to commit changes
      • setSelectedDateColor (Color As Int) As String
        Call RefreshScheduler to commit changes
      • setShowWeekNumbers (Show As Boolean) As String
        Gets or sets the number of visible weeks
        Call RefreshScheduler to commit changes
      • setStartDate (Date As Long) As String
        Gets or sets the start date
      • SetTheme (Theme As ASScheduler_Theme) As String
        DarkMode Example
        <code>
        Dim Theme As ASScheduler_Theme
        Theme.Initialize
        'Background Colors
        Theme.BackgroundColor_Body = 0xFF202125
        Theme.BackgroundColor_Header = 0xFF131416
        Theme.BackgroundColor_WeekNumber = xui.Color_ARGB(255,32, 33, 37)
        Theme.BackgroundColor_GridLine = 0x64FFFFFF
        Theme.BackgroundColor_Blackout = xui.Color_ARGB(152,255,255,255)
        'Text Colors
        Theme.TextColor_Header = xui.Color_White
        Theme.TextColor_WeekNumber = xui.Color_White
        Theme.TextColor_Day_MonthView = xui.Color_White
        ASScheduler_DayView1.SetTheme(Theme)
        ASScheduler_DayView1.RefreshScheduler
        </code>
        LightMode Example
        <code>
        Dim Theme As ASScheduler_Theme
        Theme.Initialize
        'Background Colors
        Theme.BackgroundColor_Body = xui.Color_White
        Theme.BackgroundColor_Header = xui.Color_White
        Theme.BackgroundColor_Timeline = xui.Color_White
        Theme.BackgroundColor_WeekNumber = xui.Color_Gray
        Theme.BackgroundColor_GridLine = xui.Color_ARGB(100,0,0,0)
        Theme.BackgroundColor_Blackout = xui.Color_ARGB(152,0,0,0)
        'Text Colors
        Theme.TextColor_Header = xui.Color_Black
        Theme.TextColor_Timeline = xui.Color_Black
        Theme.TextColor_WeekNumber = xui.Color_Black
        Theme.TextColor_Day_MonthView = xui.Color_Black
        ASScheduler_DayView1.SetTheme(Theme)
        ASScheduler_DayView1.RefreshScheduler
        </code>
      • setWeekNameShort (WeekNameShort As ASScheduler_WeekNameShort) As String
      • setWeekNumberProperties (MonthView_WeekNumberProperties As ASScheduler_MonthView_WeekNumberProperties) As String
    • Properties:
      • API As ASSchedulerAPI [read only]
        Gets the API
      • AppointmentProperties As ASScheduler_MonthView_AppointmentProperties
        Call RefreshScheduler if you change something
        Default Values
        Height: <code>14dip</code>
        Gap: <code>2dip</code>
        LeftRightGap: <code>2dip</code>
        CornerRadius: <code>3dip</code>
        xFont: <code>xui.CreateDefaultFont(IIf(xui.IsB4i,12,10))</code>
        TextColor: <code>xui.Color_White</code>
      • BlackoutProperties As ASScheduler_MonthView_BlackoutProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>2dip</code>
        Color: <code>xui.Color_ARGB(152,255,255,255)</code>
      • BodyColor
        sets the body color
        Call RefreshScheduler to commit changes
      • CurrentDateColor
        Call RefreshScheduler to commit changes
      • DayProperties As ASScheduler_MonthView_DayProperties [read only]
      • HeaderColor
        sets the Header Color
      • HeaderVisibility As Boolean [read only]
      • HeatMapProperties As ASScheduler_MonthView_HeatMapProperties [read only]
        Call RefreshScheduler if you change something
        Default Values
        xFont: <code>xui.CreateDefaultBoldFont(15)</code>
        ColorCountList Example:
        <code>
        Dim HeatColor As List : HeatColor.Initialize
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,214, 230, 133),0,xui.Color_White))
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,140, 198, 101),2,xui.Color_White))
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,68, 163, 64),4,xui.Color_White))
        HeatColor.Add(ASSchedulerUtils.CreateASScheduler_HeatMapColor(xui.Color_ARGB(255,30, 104, 35),7,xui.Color_White))
        </code>
      • MinimalismProperties As ASScheduler_MonthView_MinimalismProperties [read only]
        Call RefreshScheduler if you change something
        Default Values
        Height: <code>8dip</code>
        Gap: <code>4dip</code>
        BottomGap: <code>16dip</code>
      • MonthNameShort As ASScheduler_MonthNameShort
        Call RefreshScheduler if you change something
        <code>ASScheduler_MonthView1.MonthNameShort = ASSchedulerUtils.CreateASScheduler_MonthNameShort("Jan","Feb","Mar","Apr","May","Jun","Jul","Aug","Sept","Oct","Nov","Dec")</code>
      • NumberOfWeeks As Int
        Gets or sets the number of visible weeks
      • SchedulerFunction As String
        Changes the functionality of the scheduler
        <code>ASScheduler_MonthView1.SchedulerFunction = ASScheduler_MonthView1.SchedulerFunction_HeatMap</code>
      • SchedulerFunction_Calendar As String [read only]
        Normal mode, Appointments and Blackout days are displayed

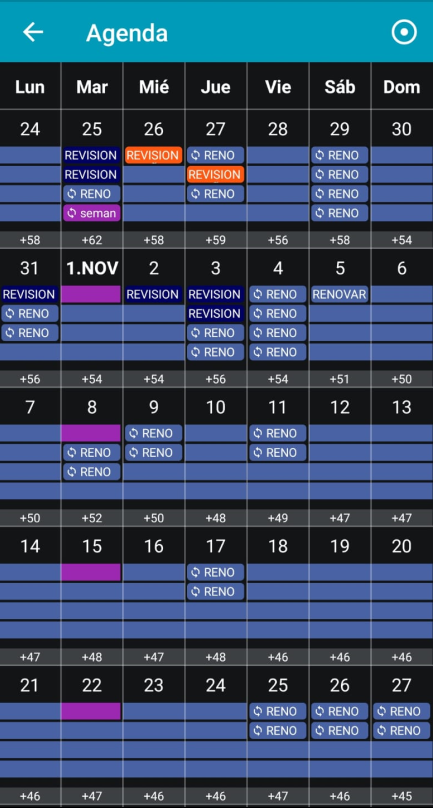

      • SchedulerFunction_HeatMap As String [read only]
        A heatmap shows how the workload is on one day
        The more appointments in a day, the darker is the color
      • SchedulerFunction_Minimalism As String [read only]
        Appointments are displayed as dots
      • SelectedDate As Long
        gets or sets the selected date
      • SelectedDateColor
        Call RefreshScheduler to commit changes

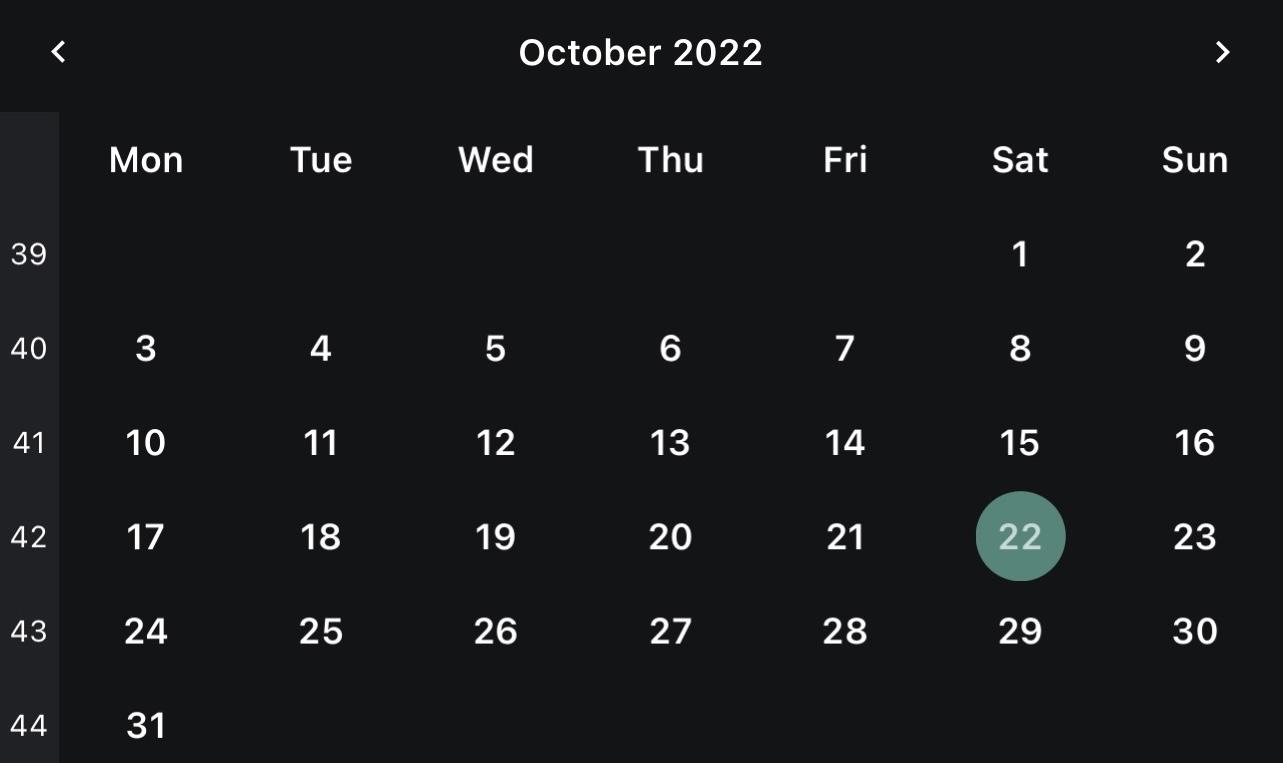

      • ShowWeekNumbers
        Gets or sets the number of visible weeks
        Call RefreshScheduler to commit changes
      • StartDate As Long
        Gets or sets the start date
      • WeekNameShort As ASScheduler_WeekNameShort
        Call RefreshHeader if you change something
        <code>ASScheduler_MonthView1.WeekNameShort = ASSchedulerUtils.CreateASScheduler_WeekNameShort("Monday","Tuesday","Wednesday","Thursday","Friday","Saturday","Sunday")</code>
      • WeekNumberProperties As ASScheduler_MonthView_WeekNumberProperties
        Call RefreshScheduler if you change something
        Default Values
        Width: <code>20dip</code>
        Color: <code>xui.Color_ARGB(255,32, 33, 37)</code>
        xFont: <code>xui.CreateDefaultFont(15)</code>
        TextColor: <code>xui.Color_White</code>
  • ASScheduler_MonthView_AppointmentProperties
    • Fields:
      • CornerRadius As Float
      • Gap As Float
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • LeftRightGap As Float
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView_BlackoutProperties
    • Fields:
      • Color As Int
      • GapBetween As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Width As Float
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView_DayProperties
    • Fields:
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView_HeaderTextProperties
    • Fields:
      • BackgroundColor As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextAlignment_Horizontal As String
      • TextAlignment_Vertical As String
      • TextColor As Int
      • TextFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView_HeatMapProperties
    • Fields:
      • ColorCountList As List
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • ShowCounter As Boolean
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView_MinimalismProperties
    • Fields:
      • BottomGap As Float
      • Gap As Float
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_MonthView_WeekNumberProperties
    • Fields:
      • Color As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor As Int
      • Width As Float
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_Theme
    • Fields:
      • BackgroundColor_Blackout As Int
      • BackgroundColor_Body As Int
      • BackgroundColor_CurrentDate As Int
      • BackgroundColor_GridLine As Int
      • BackgroundColor_Header As Int
      • BackgroundColor_SelectedBlock As Int
      • BackgroundColor_SelectedDateColor_MonthView As Int
      • BackgroundColor_Timeline As Int
      • BackgroundColor_WeekNumber As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • TextColor_Day_MonthView As Int
      • TextColor_Header As Int
      • TextColor_Timeline As Int
      • TextColor_WeekNumber As Int
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASScheduler_WeekNameShort
    • Fields:
      • Friday As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Monday As String
      • Saturday As String
      • Sunday As String
      • Thursday As String
      • Tuesday As String
      • Wednesday As String
    • Functions:
      • Initialize
        Initializes the fields to their default value.
If you have features or something is still missing, let me know.
Changelog
  • 1.00
    • Release
  • 1.01
    • MonthView
      • B4A BugFix for Debug mode
  • 1.02 (read more)
    • General
      • Add some descriptions
    • MonthView
      • Appointments that go longer than 1 day and are not the 1st event from the start are now sorted by length so that the overlapping bar is correct
      • Add LeftRightGap to ASScheduler_MonthView_AppointmentProperties
      • Appointments longer than 1 day now also have a side gap left and right, but only the start and end points are affected.
      • Add Back2CurrentDate
        • Scrolls back to the current date
      • Add Scroll2Date - Scrolls or Jumps to the given date
        • Build the view new if the date was not in range
    • DayView
      • SelectedDateColor renamed to SelectedBlockColor (Designer and Property)
      • When you click on a block, the block will now be colored with the SelectedBlockColor color
        • If you click on a block 2 times, it becomes transparent again
        • Click and LongClick affected
      • Add Back2CurrentDate
        • Scrolls back to the current date
      • Add Scroll2Date - Scrolls or Jumps to the given date
        • Build the view new if the date was not in range
  • 1.03
    • API
      • Add DeleteAppointment - Removes an Appointment
      • Add DeleteBlackout - Removes an Blackout
    • SchedulerUtils
      • Add Enumeration TimeSystem_24h and TimeSystem_12h
    • DayView
      • Add get and set HeaderVisibility - Hides or Show the Header
      • Add get and set TimelineVisibility - Hides or Show the Timeline
      • Add get and set HeaderHeight
      • Add Designer Property TimeSystem - 24h or 12h
        • Default: 24h
        • 12h Displays AM and PM besides the time
        • 12h need more space in the timeline
      • Add get and set TimeSystem
      • Properties have now in the description the default values that you can simply copy
      • Add FullWidth to CurrentTimeIndicatorProperties - If true then the Current Time Indicator is then visible in every day, even if it is not the current day
        • Default: False
      • BugFixes
  • 1.04
    • MonthView
      • Properties have now in the description the default values that you can simply copy
      • Add Designer Property HeaderVisibility - Hides or Show the Header
    • DayView
      • Add Designer Property HeaderVisibility - Hides or Show the Header
      • Add Designer Property TimelineVisibility - Hides or Show the Timeline
  • 1.05
    • DayView
      • BugFix
  • 1.06
    • DayView
      • BugFixes
    • MonthView
      • BugFixes
  • 1.07
    • MonthView
      • BugFixes
  • 1.08
    • DayView
      • Add ShowWeekNumbers
        • Default: False
      • Add Designer Property ShowWeekNumbers
      • ASViewPager Adaptations through updates
        • You need ASViewPager V1.29+
  • 1.09
    • DayView
      • Important performance improvements
      • You need ASViewPager V1.31+
  • 1.10
    • MonthView
      • Important performance improvements
  • 1.11
    • MonthView
      • BugFix
  • 1.12
    • MonthView
      • BugFixes
    • ASSchedulerAPI
      • CreateAppointment - Return Type is now ASScheduler_Appointment and returns the inserted ID with the all other infos from the object
    • ASSchedulerUtils
      • Add InitializeAPI - Initializes the scheduler API
      • Add API - Now you have access to the Scheduler API everywhere in your project, even if there is no MonthView or DayView available.
  • 1.13 (read more)
    • API
      • BugFixes
      • Add GetCustomQuery - Custom get query
        • Columns,Table,Where,Args
        • The Database structure you find here
    • DayView
      • BugFixes
      • Add Designer Property ShowMonthNames - Shows the Month name in the header
        • Default: False
        • As Value the MonthNameShort list is used
  • 1.14
    • API
      • GetAppointmentCountInRange if Parameter DurationLongerThanOneDay = True Then isFullDay = True are also returned
    • DayView
      • If Appointment isFullDay = True Then the appointment is displayed at the top
  • 1.15
    • DayView
      • BugFixes
      • Add get and set DayCount - Changes the number of days that are visible
  • 1.16
    • DayView
      • BugFixes
    • Genereal
      • B4I The GestureRecognizer is no longer needed
  • 1.17 (read more)
    • Utils
      • Add Type ASScheduler_Theme
    • DayView
      • BugFixes
      • A few properties added that were still missing
      • Add Designer Property GridLineColor - Color of the Grid lines
      • Add SetTheme - You can fast change the Appereance of the Scheduler
        • 2 Examples in the Description (DarkMode and LightMode)
        • Call RefreshScheduler if you want to commit the colors
  • 1.18 (read more)
    • MonthView
      • Add Type ASScheduler_MonthView_DayProperties
        • TextColor
      • Add Designer Property GridLineColor - Color of the Grid lines
      • Add SetTheme - You can fast change the Appereance of the Scheduler
        • 2 Examples in the Description (DarkMode and LightMode)
        • Call RefreshScheduler and RefreshHeader if you want to commit the colors
  • 1.19 (read more)
    • DayView
      • BugFixes
      • Add Designer Property FullHourGridLinesHighlighting - The full hour is highlighted in the grid
        • Default: False
      • Add ShowGridLines to TimelineProperties - shows the grid lines in the timeline
        • Default: False
  • 1.20 (read more)
    • MonthView
      • Add Designer Property SchedulerFunction - You can switch between the normal calendar or a HeatMap
        • Default: Calendar
      • Add HeatMap - The HeatMap shows graphically how the load is on a day
      • Add Minimalism - Appointments are displayed as dots
      • New Blackout day drawing
    • DayView
      • Add NextWeek - Scrolls to the next page
      • Add PreviousWeek - Scrolls to the previous page
      • New Blackout day drawing
      • Add OverviewGap Property to ASScheduler_DayView_AppointmentProperties - If True then the appointments have a gap to the next appointment the next day
        • Default: True
        • Helps clarity
    • Utils
      • Add Type ASScheduler_HeatMapColor
        • Color - Count Color
        • Count - From which number should this color be displayed
        • TextColor - The text color for this heat level
    • API
      • Add GetAppointmentCountOnOneDay
      • Add Appointments_Description to the table
        • is not yet used by the scheduler for displaying
        • CreateASScheduler_Appointment and CreateASScheduler_AppointmentRecurring have a breaking change to add this property
  • 1.21
    • MonthView
      • Minor adjustments
    • DayView
      • Minor adjustments
    • API
      • BugFixes
      • Recurring Appointments rework
  • 1.22
    • API
      • BugFixes
      • Add Appointments_Tag to dt_Appointments
        • Can contain json string or numbers
        • Datatype: TEXT
  • 1.23
    • BugFixes
  • 1.24 (read more)
    • DayView
      • ShowStartEndTime added to AppointmentProperties
        • Default: False
        • Displays the start and end time of the appointment
      • ShowDuration added to AppointmentProperties
        • Default: False
        • Displays the duration of the appointment
          • e.g.: 4h30m or 4h or 30m
      • Add get and set BlockHeight
        • Default: 20dip
  • 2.00 (read more)
    • DayView
      • The list now always scrolls automatically to the current time, so that it is always visible by default and the user does not have to scroll first
      • Add Type ASScheduler_DayView_WorkingProperties
        • StartHour - When to start work
          • 8
        • EndHour -When closing time
          • 17
        • NonWorkingDays
          • Array As Int(ASSchedulerUtils.WeekDay_Saturday,ASSchedulerUtils.WeekDay_Sunday)
        • Color - The color of the blocks that is not working time
        • Active
          • Default: False
    • MonthView
      • BugFixes
    • AgendaView
      • A new type of view
      • Lists all appointments
  • 2.01
    • AgendaView
      • B4J Resize BugFix
      • BugFixes
      • Add RebuildScheduler - Clears the list and rebuilds it
        • If you Delete Appointments, then call this function
        • The function does not remember which day the scheduler is currently on
          • So set the ASScheduler_AgendaView1.StartDate = DateTime.Now property if you want to spawn to a special date and not on the start date
    • Utils
      • InitializeAPI removed
        • The code is now in the getAPI function
    • API
      • Add UpdateAppointment - The function can be used to update an already existing appointment
        • Dont forget to call RefreshScheduler in the views to update it visual
  • 2.02
    • API
      • Add dt_SpecialDays
      • Add CRUD functions for the new table dt_SpecialDays
    • Utils
      • Add Type ASScheduler_SpecialDay
    • CalendarView
      • A new type of view
      • Divided into 2 new views
        • ASScheduler_CalendarViewMonth
          • Monthly overview
          • Fast navigation option if you click on the header
      • ASScheduler_CalendarViewWeek
        • Week overview
  • 2.03
    • CalendarView
      • B4A Debug mode BugFix
      • A "+" sign is now displayed next to the appointments if there are more appointments than there is space for
  • 2.04
    • DayView
      • BugFixes
  • 2.06
    • DayView
      • Add B4J only Event HoverOverAppointment
      • BugFixes
    • MonthView
      • Add B4J only Event HoverOverAppointment
      • Add Event CustomDrawDay
      • Add Type ASScheduler_MonthView_CustomDrawDay
    • AgendaView
      • Add B4J only Event HoverOverAppointment
    • General
      • Add B4J only Type ASScheduler_HoverOverInfos
  • 2.07
    • General
      • HoverOverAppointment have now better results
    • CalendarView
      • BugFixes
      • Add get and set HeaderProperties
      • Add get and set BodyProperties
      • Add get and set MonthNameShort
      • Add get and set WeekNameShort
      • Add get and set SpecialDayProperties
      • Add Event CustomDrawDay
      • Add Type ASScheduler_CalendarView_CustomDrawDay
    • MonthView
      • BugFixes
      • Add get and set HeaderHeight
      • Add Properties to Type ASScheduler_MonthView_DayProperties
        • TextFont
        • TextFontCurrentDay
    • Utils
      • Add AppointmentWidth and AppointmentHeight to type ASScheduler_HoverOverInfos
  • 2.08
    • CalendarView
      • Function "RefreshScheduler" is now even better
        • No visual flickering
        • Changes are instant
    • MonthView
      • Function "RefreshScheduler" is now even better
    • DayView
      • Function "RefreshScheduler" is now even better
  • 2.09 (read more)
    • MonthView
      • Add B4J only Event AppointmentRightClick
    • DayView
      • Add B4J only Event AppointmentRightClick
    • AgendaView
      • Add B4J only Event AppointmentRightClick
  • 2.10 (read more)
    • MonthView
      • BugFixes
      • Minor Improvments
      • Add AppointmentDoubleClick Event
      • Add DayDoubleClick Event
      • Add DayRightClick Event (B4J only)
    • DayView
      • BugFixes
      • Add TimeBlockRightClick Event (B4J only)
      • Add AppointmentDoubleClick Event
      • Add TimeBlockDoubleClick Event
    • AgendaView
      • BugFixes
      • Add AppointmentDoubleClick Event
    • CalendarView
      • BugFixes
    • API
      • Massive Performance improvements on the GetAppointments function
      • Massive Performance improvements on the GetAppointmentCountOnOneDay function
      • Add get SQL - gets the sql object, to make custom queries
  • 2.11
    • MonthView
      • BugFixes
    • AgendaView
      • BugFixes
  • 2.12 (read more)
    • CalendarView
      • Add ShowWeekNumbers - Shows the week number for each week
      • Add Type ASScheduler_CalendarView_WeekNumberProperties
    • API
      • BugFixes
    • MonthView
      • BugFixes
  • 2.13 (read more)
    • CalendarView
      • BugFixes
      • Add Designer Property ShowGridLines
      • Add Designer Property GridLineColor
    • MonthView
      • BugFixes
      • Add SelectDate - Marks the date as selected, without the need to call refresh
    • DayView
      • BugFixes
      • Add Jump2Date - Jumps to a date
Have Fun :)
Minimum Donation Value: 25
Please write Scheduler in the order description, thanks.


Attachments

  • DayView Example.zip
    181.1 KB · Views: 154
  • MonthView Example.zip
    180.4 KB · Views: 158
  • AgendaView Example.zip
    71.5 KB · Views: 146
  • CalendarView Example.zip
    71.8 KB · Views: 123
  • ASScheduler.zip
    55.7 KB · Views: 30
Last edited:

asales

Well-Known Member
Licensed User
Longtime User
The correct function is RefreshHeader.
It works to change the names, but I get this issue below in a Redmi 9A (Android 10) and in a Samsung A71 (Android 12). It work in a Moto G4 (Android 7).
The calendar is not update when I open the app:

The dates are in incorrect days and I don't see the appointments created in code.
Maybe could be the same issue face of the other lib (and you fix it)?


asales

Well-Known Member
Licensed User
Longtime User
Maybe longclick for appointment details ?
LongClick works, but the problem is the calendar is not updated when I open the app and I don't see the appointments (in Redmi 9A and A71), like this (in Moto G4):


Alexander Stolte

Expert
Licensed User
is this s question ? Or you’re confirming ?
This Event is already there.
LongClick works, but the problem is the calendar is not updated when I open the app and I don't see the appointments (in Redmi 9A and A71), like this (in Moto G4):
You use the heatmap?


asales

Well-Known Member
Licensed User
Longtime User
You use the heatmap?
If I just run the MonthView Example, without modification, I see this issues:
- today is Mon 22 and not Mon 20
- no appointments


Even if I enable this lines in code (edit: and the HeatMap Example Data), I don't get any changes:
B4X:
Sleep(4000)
ASScheduler_MonthView1.SchedulerFunction = ASScheduler_MonthView1.SchedulerFunction_HeatMap
ASScheduler_MonthView1.RefreshScheduler


scsjc

Well-Known Member
Licensed User
Longtime User
I have detected that version 2.10 when I create an annual recurring, they are repeated every day.
I put the same event with library v2.04 and it doesn't happen




scsjc

Well-Known Member
Licensed User
Longtime User
I'm still trying to figure out why that is. At first I thought it was due to tweaking 2 versions ago, but when I restore all the changes it still occurred, so I'm still looking.
OK great :)
If you need an example, put an annual recurrence on 15oct2022 and you will see what happens.

Thank you for your great work :)


scsjc

Well-Known Member
Licensed User
Longtime User
Hi friends :)
I found a little bug, sometimes in firebase get "Fatal Exception: java.lang.IllegalArgumentException: width and height must be > 0"

The problem is in the line 506 "xCV_Header.Initialize(xpnl_HeaderDrawings)" inside DesignerCreativeView module "ASScheduler_MonthView.bas"
¿Some easy solution to modify and correct this part of the module?




Thanks :)


Alexander Stolte

Expert
Licensed User
Update
  • 2.13
    • CalendarView
      • BugFixes
      • Add Designer Property ShowGridLines
      • Add Designer Property GridLineColor
    • MonthView
      • BugFixes
      • Add SelectDate - Marks the date as selected, without the need to call refresh
    • DayView
      • BugFixes
      • Add Jump2Date - Jumps to a date
In this update there are minor bug fixes and improvements under the hood.
(24) mage.png


yaqoob

Member
Licensed User
Longtime User
Hi Alexander,

I tried to get the date from the CalendarView Example using the following sub.


Get date:
Private Sub ASScheduler_CalendarViewMonth1_DayClick(Date As Long)
    Log(Date)
End Sub

Nothing happens when clicking on the date.

Can you please show how to get the clicked date from CalendarView Example

Top
