B4A Library [B4X] [XUI] AS SectionedSlider

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee. :)

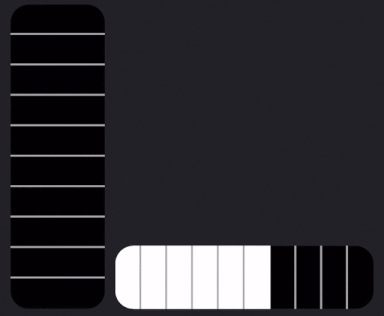

ezgif.com-gif-maker (2).gif

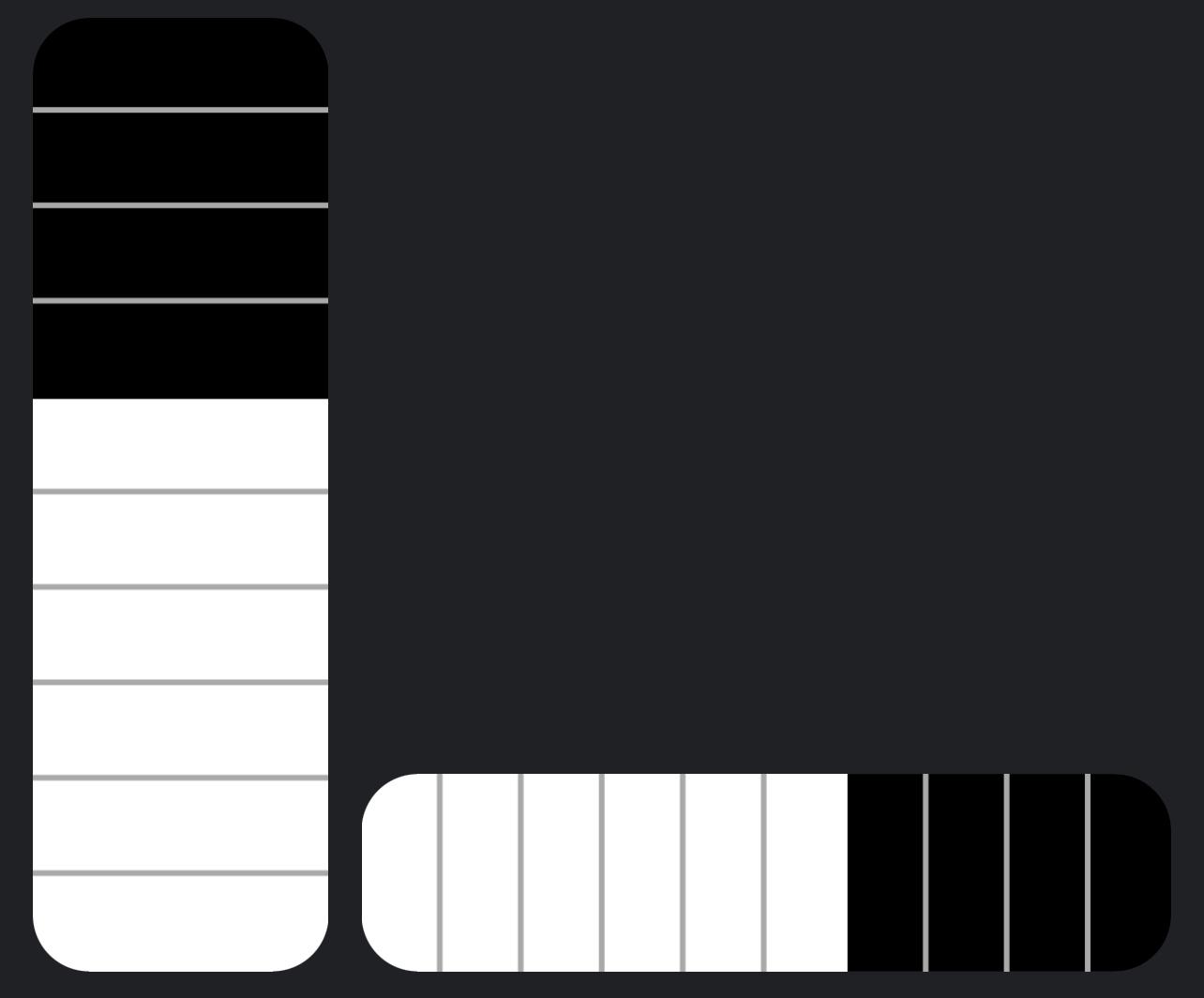

ASSectionedSlider
Author: Alexander Stolte
Version: 1.00

  • ASSectionedSlider
    • Events:
      • ValueChanged (Section As Int)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • Class_Globals As String
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • getBackgroundColor As Int
      • getCornerRadius As Float
      • getDividerColor As Int
      • getDividerHeight As Float
      • getSections As Int
      • getSelectedSection As Int
      • getSelectedSectionColor As Int
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • setBackgroundColor (Color As Int) As String
      • setCornerRadius (Radius As Float) As String
      • setDividerColor (Color As Int) As String
      • setDividerHeight (Height As Float) As String
      • setSections (SectionCount As Int) As String
      • setSelectedSection (Section As Int) As String
      • setSelectedSectionColor (Color As Int) As String
      • Update As String
        Redraws the control
    • Properties:
      • BackgroundColor As Int
      • CornerRadius As Float
      • DividerColor As Int
      • DividerHeight As Float
      • Sections As Int
      • SelectedSection As Int
      • SelectedSectionColor As Int
Changelog
  • 1.00
    • Release
Have Fun :)


Attachments

  • AS SectionedSlider Example.zip
    10.7 KB · Views: 125
  • ASSectionedSlider.b4xlib
    2.2 KB · Views: 134
