B4A Library [B4X] [XUI] AS SelectionList - Single or multiple selection

This view makes it easy to quickly provide a good looking single or multiple selection list.

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.

Examples

    For i = 0 To 80 -1
        AS_SelectionList1.AddItem("Test " & (i+1),Null,i)
    Next

Search
There is a built-in search that makes it easy to search for something while maintaining the selection.

AS_SelectionList1.SearchByText("Test")

Search with the value that was passed in the “Value” parameter when the item was added

AS_SelectionList1.SearchByValue(3)

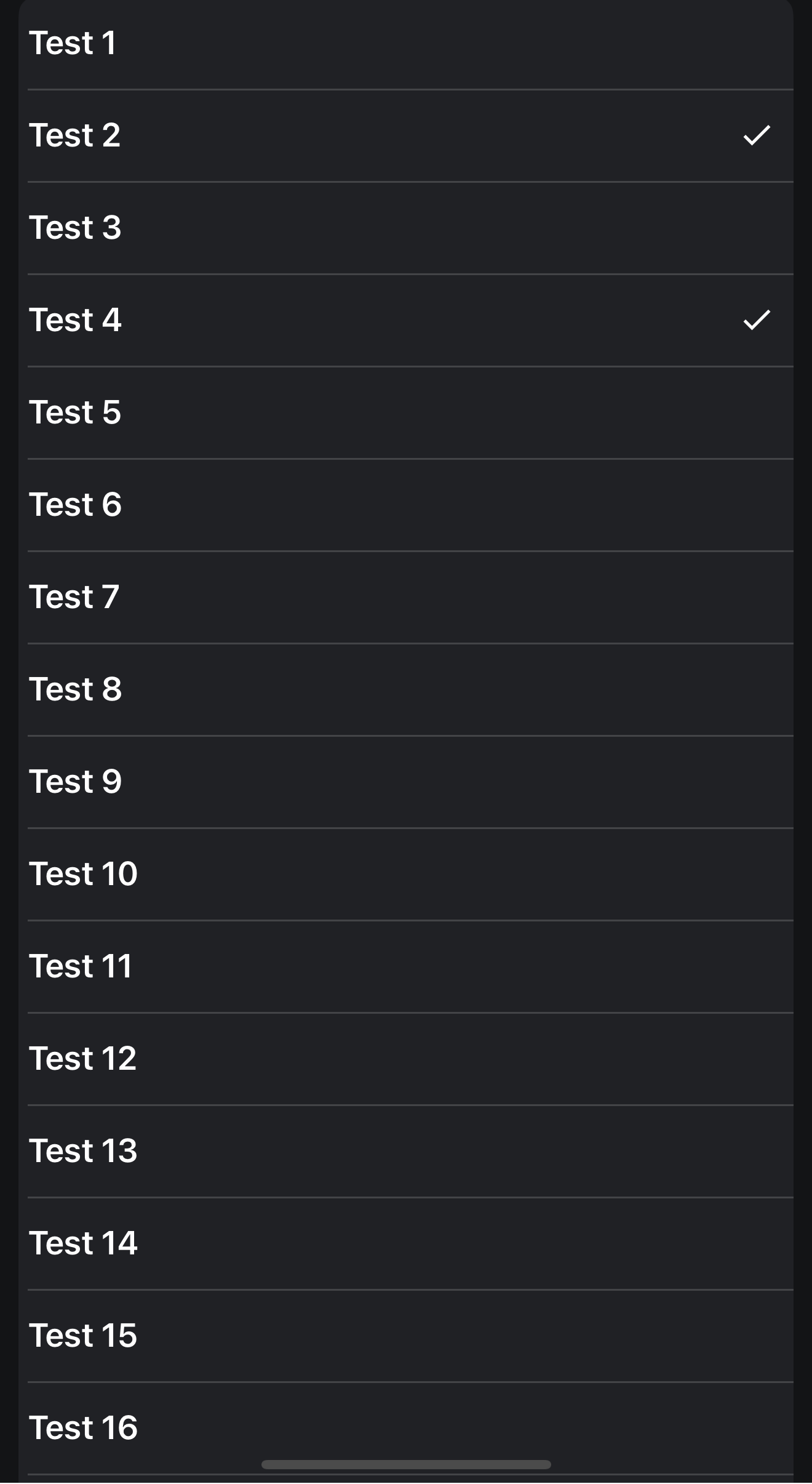

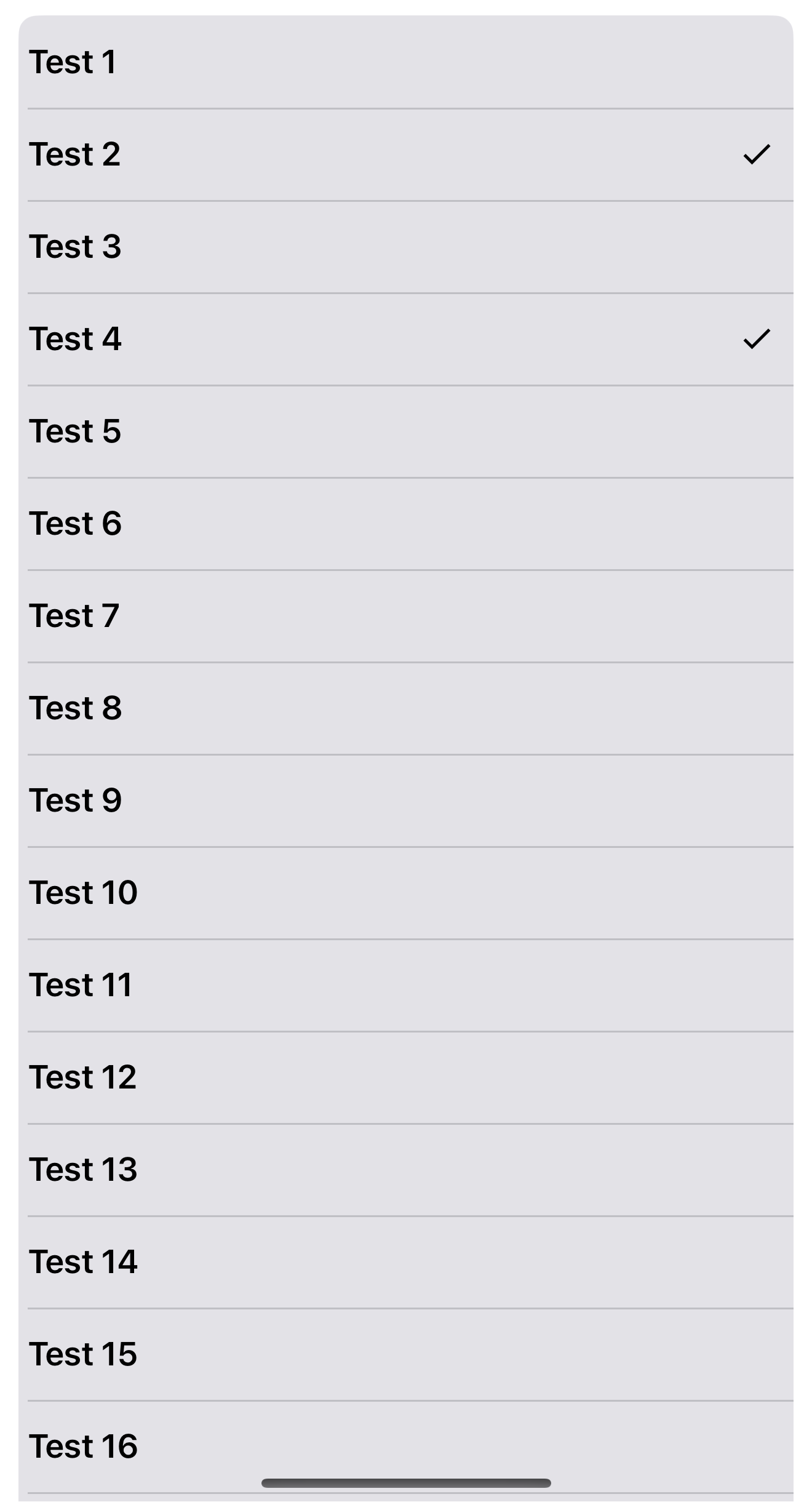

Theming

    AS_SelectionList1.Theme = AS_SelectionList1.Theme_Light
    AS_SelectionList1.Theme = AS_SelectionList1.Theme_Dark

Get Selection

Private Sub AS_SelectionList1_SelectionChanged

    For Each Item As AS_SelectionList_Item In AS_SelectionList1.GetSelections
        Log("Item selected: " & Item.Text)
    Next

End Sub

AS_SelectionList
Author: Alexander Stolte
Version: 2.00

Spoiler: Properties, Functions, Events, etc.

• AS_SelectionList
  • Events:
    • SelectionChanged
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • AddItem (Text As String, Icon As B4XBitmap, Value As Object) As AS_SelectionList_Item
    • AddSubItem (RootItem As AS_SelectionList_Item, Text As String, Icon As B4XBitmap, Value As Object) As AS_SelectionList_SubItem
    • Base_Resize (Width As Double, Height As Double)
    • Clear
    • ClearSearch
    • ClearSelections
    • CloseSubMenu
    • CreateViewPerCode (Parent As B4XView, Left As Float, Top As Float, Width As Float, Height As Float)
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • FontToBitmap (text As String, IsMaterialIcons As Boolean, FontSize As Float, color As Int) As B4XBitmap


      FontAwesome To Bitmap

      Unlike an older "TextToBitmap" sub that you can find in the forum, this code vertically centers the icon. It can also be used in B4J and B4i (only need to change the font line). Sub Activity_Create(FirstTime As Boolean) 'usage example Activity.AddMenuItem3("Android", "Test"...

      www.b4x.com
    • GetItems As List
      Get all items as list of AS_SelectionList_Item
    • GetSelections As List
      <code>
      For Each Item As Object In AS_SelectionList1.GetSelections
      Log("Item selected: " & Item.Text)
      Next
      </code>
    • Initialize (Callback As Object, EventName As String)
    • RebuildList
    • SearchByText (Text As String)
    • SearchByValue (Value As Object)
    • SetSelections (Values As Object)
      <code>AS_SelectionList1.SetSelections(Array As Object(1,3))</code>
    • SetSelections2 (Values As List)
      <code>
      Dim lst As List
      lst.Initialize
      lst.Add(1)
      lst.Add(3)
      AS_SelectionList1.SetSelections2(lst)
      </code>
  • Properties:
    • BackgroundColor As Int
    • CornerRadius As Float
    • HapticFeedback As Boolean
    • ItemProperties As AS_SelectionList_ItemProperties [read only]
      Height: Default: 50dip
    • MaxSelectionCount As Int
      Only in SelectionMode = Multi - Defines the maximum number of items that may be selected
      Default: 0
    • RootItemClickBehavior As String
      <code>AS_SelectionList1.RootItemClickBehavior = AS_SelectionList1.RootItemClickBehavior_CloseSubMenu</code>
    • RootItemClickBehavior_CloseSubMenu As String [read only]
    • RootItemClickBehavior_SelectAllSubItems As String [read only]
      Takes into account the SelectionMode and MaxSelectionCount
    • RootItemClickBehavior_SelectRootItem As String [read only]
    • SelectedItemProperties As AS_SelectionList_SelectedItemProperties [read only]
    • SelectedSubItemPropertiess As AS_SelectionList_SelectedSubItemProperties [read only]
    • SelectionMode As String
      Single or Multi
    • SelectionMode_Multi As String [read only]
    • SelectionMode_Single As String [read only]
    • SeperatorWidth_BeginWithIcon As String [read only]
    • SeperatorWidth_BeginWithText As String [read only]
    • SeperatorWidth_FullWidth As String [read only]
    • SideGap As Float
      Default: 10dip
    • Size As Int [read only]
    • SubItemProperties As AS_SelectionList_SubItemProperties [read only]
      Height: Default: 50dip
    • Theme As AS_SelectionList_Theme [write only]
    • Theme_Dark As AS_SelectionList_Theme [read only]
    • Theme_Light As AS_SelectionList_Theme [read only]
    • ThemeChangeTransition As String
      Fade or None
    • ThemeChangeTransition_Fade As String [read only]
    • ThemeChangeTransition_None As String [read only]

Changelog

Spoiler: Version 1.0-1.06

• 1.00
  • Release
• 1.01
  • BugFixes
  • Add get and set MaxSelectionCount - Only in SelectionMode = Multi - Defines the maximum number of items that may be selected
    • Default: 0
• 1.02
  • Add Designer Property HapticFeedback
    • Default: True
  • BugFix on SearchByText - No longer takes capitalization into account
• 1.03
  • BugFixes and Improvemets
  • Add Clear
  • Add RebuildList
  • Add CreateViewPerCode
  • Add "Height" to AS_SelectionList_ItemProperties Type
• 1.04
  • BugFixes
• 1.05
  • Add GetItems - Get all items as list of AS_SelectionList_Item
• 1.06 (read more)
  • Add SetSelections2 - Set the Selections via a list
  • Add Type AS_SelectionList_SelectedItemProperties
    • Per Default the same settings as the AS_SelectionList_ItemProperties
  • Add get and set SideGap
    • Default: 10dip
  • Add Desginer Property SeperatorWidth
    • Default: BeginWithText
    • BeginWithText - The separator begins where the text begins
    • FullWidth - Full width
    • BeginWithIcon - The separator starts where the icon begins, if there is no icon, then where the text begins

• 2.00 (read more)
  • BugFixes and Improvements
  • Add AddSubItem
  • Add Designer Property RootItemClickBehavior - What should happen if you click on the root item when the sub menu is open
    • Default: CloseSubMenu
  • Add Type AS_SelectionList_SubItem
  • Add Type AS_SelectionList_SubItemProperties
  • Add Type AS_SelectionList_SelectedSubItemProperties
  • Add get and set CornerRadius - First and Last Item corner radius
• 2.01
  • Search BugFix

Have Fun



[asales]

Another great lib to the list. Thanks!
A question: can I set the maximum items to select, like I do in AS_Chips?



[Alexander Stolte]

Update

• 1.01
  • BugFixes
  • Add get and set MaxSelectionCount - Only in SelectionMode = Multi - Defines the maximum number of items that may be selected
    • Default: 0

A question

please always open a new thread for such things, thank you



[Alexander Stolte]

Update

• 1.02
  • Add Designer Property HapticFeedback
    • Default: True
  • BugFix on SearchByText - No longer takes capitalization into account



[Alexander Stolte]

Update

• 1.03
  • BugFixes and Improvemets
  • Add Clear
  • Add RebuildList
  • Add CreateViewPerCode
  • Add "Height" to AS_SelectionList_ItemProperties Type



[Alexander Stolte]

Update

• 1.04
  • BugFixes



[Alexander Stolte]

Update

• 1.05
  • Add GetItems - Get all items as list of AS_SelectionList_Item



[Alexander Stolte]

Update

• 1.06
  • Add SetSelections2 - Set the Selections via a list
  • Add Type AS_SelectionList_SelectedItemProperties
    • Per Default the same settings as the AS_SelectionList_ItemProperties
  • Add get and set SideGap
    • Default: 10dip
  • Add Desginer Property SeperatorWidth
    • Default: BeginWithText
    • BeginWithText - The separator begins where the text begins
    • FullWidth - Full width
    • BeginWithIcon - The separator starts where the icon begins, if there is no icon, then where the text begins

SetSelections2

    Dim lst As List
    lst.Initialize
    lst.Add(1)
    lst.Add(3)
    AS_SelectionList1.SetSelections2(lst)

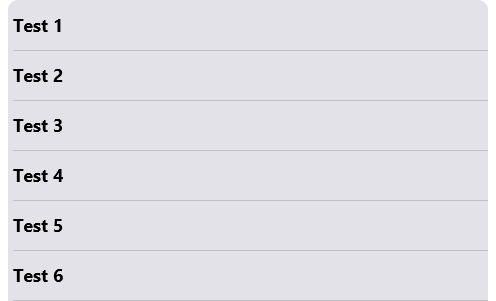

SelectedItemProperties

    AS_SelectionList1.SelectedItemProperties.xFont = xui.CreateDefaultBoldFont(24)
    AS_SelectionList1.SelectedItemProperties.BackgroundColor = xui.Color_Red

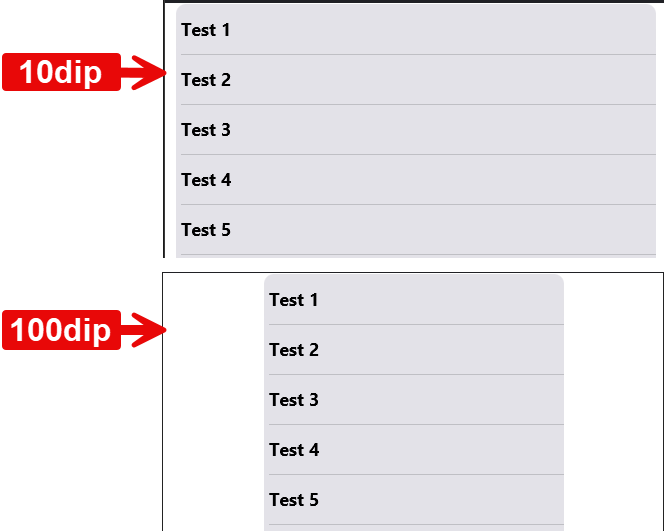

SideGap
The gap between the edge and the beginning of the list

AS_SelectionList1.SideGap = 100dip



[Alexander Stolte]

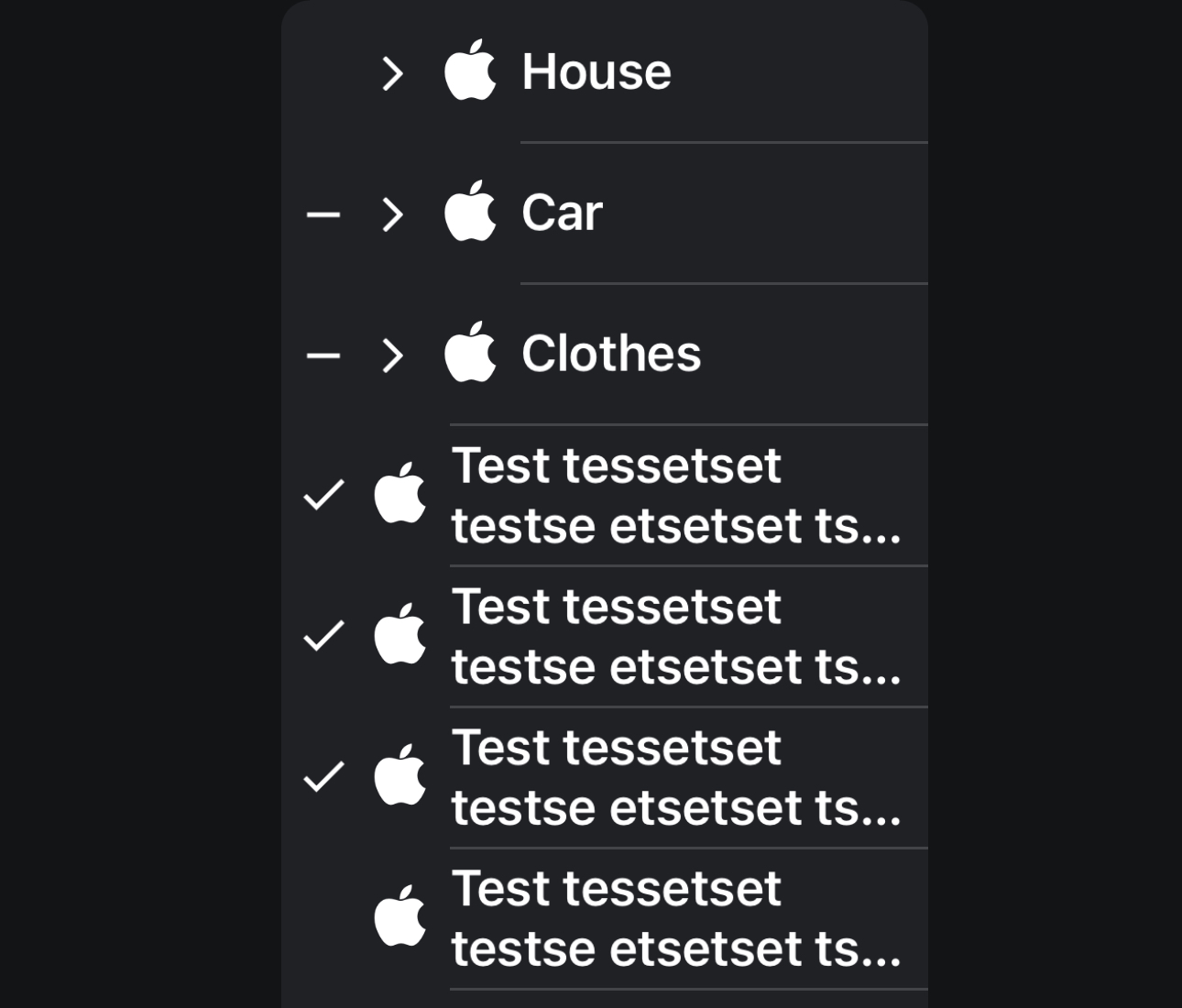

Sneak Preview for the next update:



[Alexander Stolte]

Update

• 2.00
  • BugFixes and Improvements
  • Add AddSubItem
  • Add Designer Property RootItemClickBehavior - What should happen if you click on the root item when the sub menu is open
    • Default: CloseSubMenu
  • Add Type AS_SelectionList_SubItem
  • Add Type AS_SelectionList_SubItemProperties
  • Add Type AS_SelectionList_SelectedSubItemProperties
  • Add get and set CornerRadius - First and Last Item corner radius

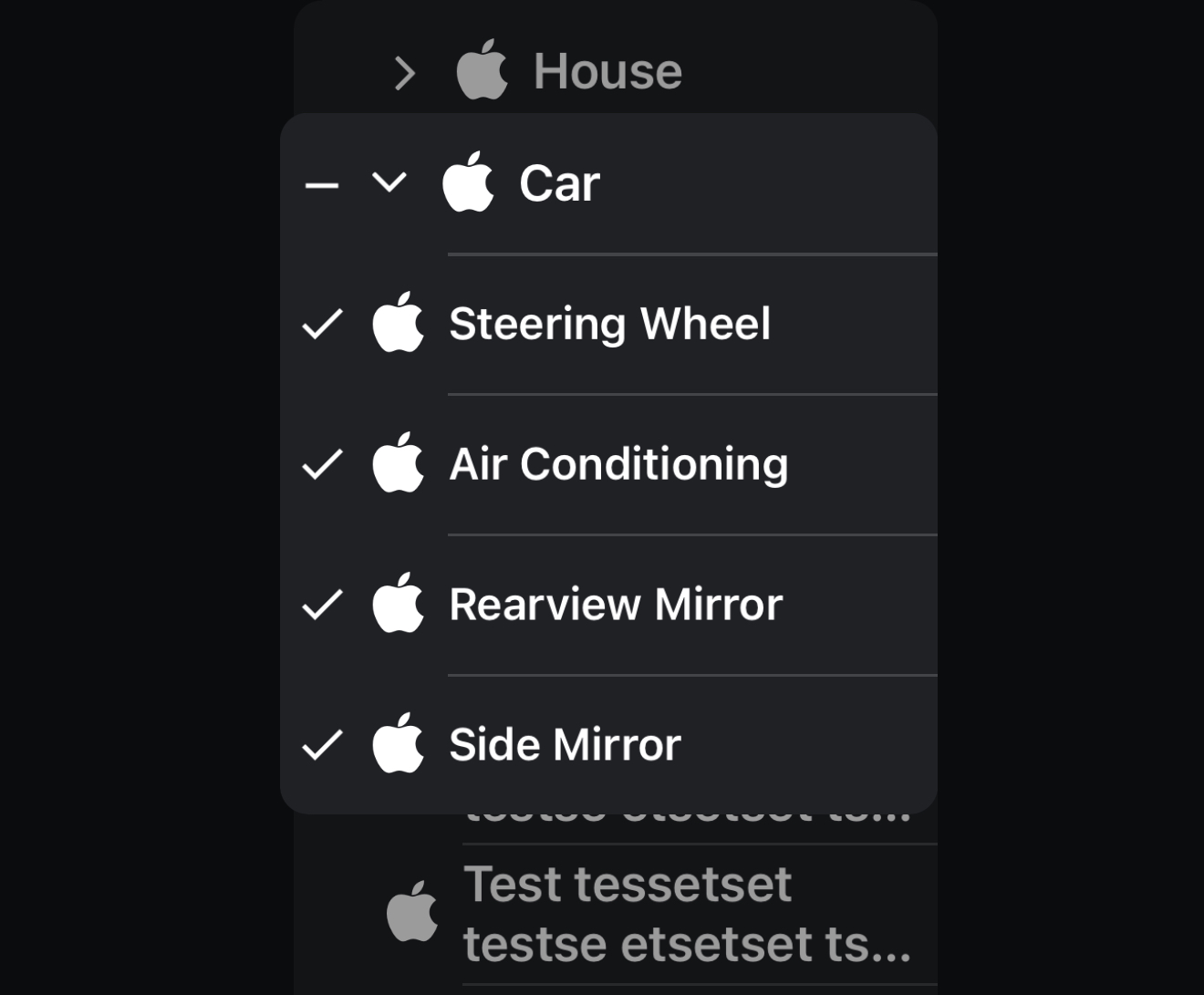

AddSubItem

    Dim NewRootItem As AS_SelectionList_Item = AS_SelectionList1.AddItem("New Test Root item",Null,"")
    AS_SelectionList1.AddSubItem(NewRootItem,"SubItem 1",Null,"")
    AS_SelectionList1.AddSubItem(NewRootItem,"SubItem 2",Null,"")
    AS_SelectionList1.AddSubItem(NewRootItem,"SubItem 3",Null,"")



[Alexander Stolte]

Update

• 2.01
  • Search BugFix
