Android Question B4XPages] jRDC2

[Timm]

Hello, thank you for your great job. Please can you implement clv with jrdc(instead of static listview) to populate the drawer item. Please i want such code idea Thanks​



[Timm]

I meant for b4xdrawer items



[aeric]

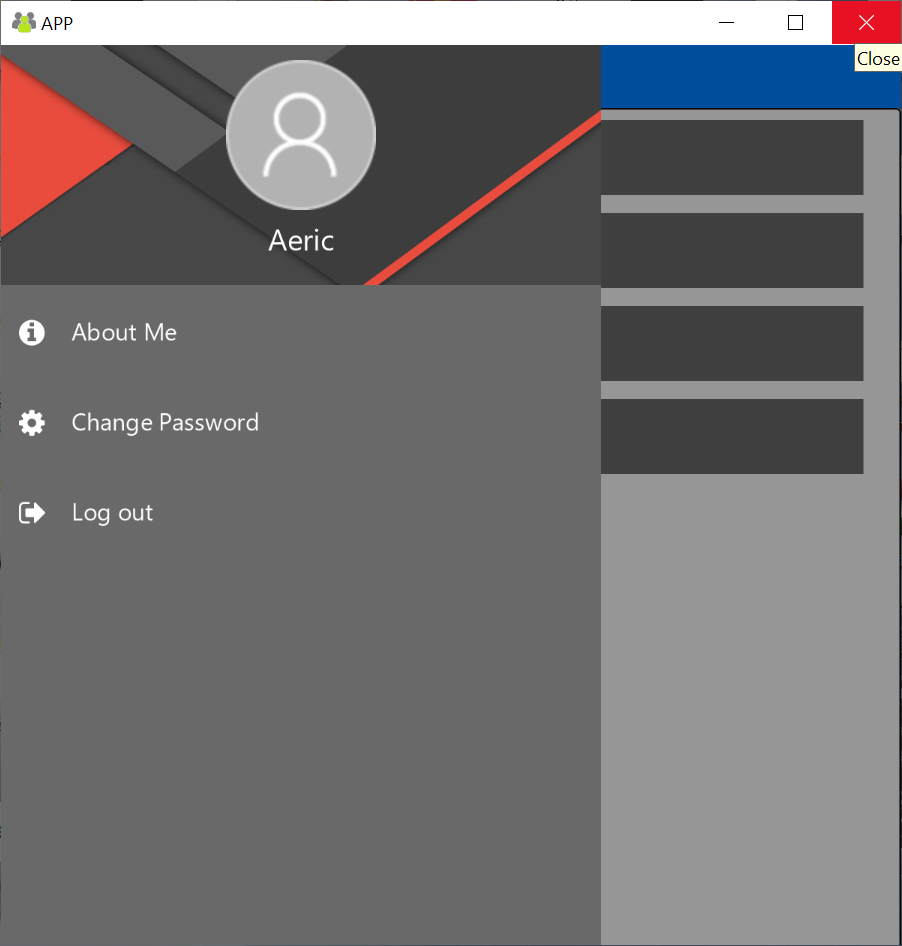

Something like this?

Sub LoadSlideMenu
    CLVL.Clear
    If Main.gLogin = 0 Then
        CLVL.Add(CreateMenu(Chr(0xF090), "Log in"), "Log in")
        CLVL.Add(CreateMenu(Chr(0xF234), "Register"), "Register")
    Else
        CLVL.Add(CreateMenu(Chr(0xF05A), "About Me"), "About Me")
        CLVL.Add(CreateMenu(Chr(0xF013), "Change Password"), "Change Password")
        CLVL.Add(CreateMenu(Chr(0xF08B), "Log out"), "Log out")
    End If
End Sub

Private Sub CreateMenu (MenuIcon As String, MenuText As String) As B4XView
    Dim Height As Int = 60dip
    Dim Width As Int = CLVL.AsView.Width
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, Width, Height)
    p.LoadLayout("MenuItem")
    lblMenuIcon.Text = MenuIcon
    lblMenuText.Text = MenuText
    Return p
End Sub

The example project is quite old but you can use it as a reference.

[B4J] [MySQL] [API] Server (Key + Token) and [B4X] User Login Apps

Updates: Latest B4XPages user login client apps (using B4J server): https://www.b4x.com/android/forum/threads/project-template-user-login-client-b4x.161914/ Finally I would like to share my B4J API server written in B4J. Compare to my previous PHP API, this API server implements user...

www.b4x.com



[Timm]

Thank you very much for your time. Am sorry, this is static drawer population I still desire it to come from jrdc that is, from mysql. Thanks



[Timm]

Am still very new to b4x. Although I know a little of vsbasic. Thanks



[aeric]

Thank you very much for your time. Am sorry, this is static drawer population I still desire it to come from jrdc that is, from mysql. Thanks

You just need to apply the same idea to populate the items. When you get the data from jrdc as resultset, use Do While loop to read the values.



[aeric]

I think in most cases the menu is fixed.

Why we need to load the items from a database?

I am not saying it is impossible or difficult to do.

Just not make sense to me in term of design.

If I am free later, I could write an example for you.



[aeric]

CREATE TABLE `menus` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `menu` varchar(50) NOT NULL,
  `islogin` tinyint(4) NOT NULL DEFAULT '0',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

INSERT INTO `menus` (`id`, `menu`, `islogin`) VALUES
(1,    'Log in',    0),
(2,    'Register',    0),
(3,    'About Me',    1),
(4,    'Change Password',    1),
(5,    'Log out',    1);

Add the query to jRDC2 config.properties

sql.getMenus= SELECT menu FROM B4X.menus WHERE islogin = ?

Client app

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    Drawer.Initialize(Me, "Drawer", Root, 400dip)
    Drawer.LeftPanel.LoadLayout("LeftMenu")
    LoadSlideMenu(1)
End Sub

Sub CreateRequest As DBRequestManager
    Dim req As DBRequestManager
    req.Initialize(Me, Main.rdcLink)
    Return req
End Sub

Sub CreateCommand (Name As String, Parameters() As Object) As DBCommand
    Dim command As DBCommand
    command.Initialize
    command.Name = Name
    If Parameters <> Null Then command.Parameters = Parameters
    Return command
End Sub

Private Sub CreateMenu(MenuText As String) As B4XView
    Dim Height As Int = 60dip
    Dim Width As Int = clvLeftMenu.AsView.Width
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, Width, Height)
    p.LoadLayout("MenuItem")
    lblMenu.Text = MenuText
    Return p
End Sub

Sub LoadSlideMenu (isLogin As Int)
    Dim req As DBRequestManager = CreateRequest
    Dim com As DBCommand = CreateCommand("getMenus", Array As Object(isLogin))
    Wait For (req.ExecuteQuery(com, 0, Null)) JobDone (job As HttpJob)
    If job.Success Then
        req.HandleJobAsync(job, "req")
        Wait For (req) req_Result (res As DBResult)
        'req.PrintTable(res)
        clvLeftMenu.Clear
        For Each row() As Object In res.Rows
            clvLeftMenu.Add(CreateMenu(row(0)), row(0))
        Next
    Else
        xui.MsgboxAsync(job.ErrorMessage, "Error")
    End If
    job.Release
    Log("Left Menu populated")
End Sub

Private Sub clvLeftMenu_ItemClick (Index As Int, Value As Object)
    Log(Value)
End Sub



[Timm]

Great. I will try this. Thank you immensely for giving time for my request



[Timm]

Sorry the below error pop up when compiling in debug mode



[Timm]

Please disregard the above issue as I have resolved it by myself. Thank you for always been there.



[Timm]

Good morning,,



[Timm]

I want to achieve the menuitem as above on the drawer but have nothing at all except the curly brazes,( please don't mind the test labels).
I want to achieve it inside Josejar crud+login code as below



[Timm]

Private Sub CreateSideMenu(MenuText As Object) As B4XView
    Dim Height As Int = 60dip
    Dim Width As Int = clvLeftMenu.AsView.Width
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, Width, Height)
    p.LoadLayout("MenuItemm")
    lblMenu.Text = MenuText
    Return p
End Sub

Sub LoadSlideMenu (isLogin As Int)
    clvLeftMenu.Clear
    Dim rs As DBResult
    '    B4XLoadingIndicator1.Show
    Dim Paremeters() As String = Array As String(isLogin) ', B4XPages.MainPage.KVS.Get("id_user"))
    Wait For(B4XPages.MainPage.jRDC.GetRecord("getMenus", Paremeters)) Complete (Answer As Map)
    If Answer.Get("Success") Then
        Dim mapData As Map
        '        Log(Answer)
        rs = Answer.Get("Data")
        Log(rs)
        For Each row() As Object In rs.Rows
'            Dim i As Int = 0
            mapData.Initialize
            '            For Each record As Object In row
            '                'We will make a map to pass to B4XPreferencesDialo. The map keys must suit to the db name fields
            '                'Construimos un mapa para pasarlo a B4XPreferencesDialog. Las claves del mapa deben coincidir con los nombres de las columnas de la bd
            '                mapData.Put(rs.Columns.GetKeyAt(i), record)
            '                i = i + 1
            '            Next
            Dim p As B4XView = CreateSideMenu(mapData)
            clvLeftMenu.Add(p, mapData)
            Log(p)
        Next
    Else
        xui.MsgboxAsync("There was an error getting the data. Check your server: " & Answer.Get("Error"), "Error")
        Log("No data")
    End If
'    Answer.Release
    Log("Left Menu populated")
End Sub



[aeric]

Your question is about Map.
You need to know row() is an array of object.
For menu, usually it is simple that you don't need to use Map.
Otherwise, you need to let us know how you want to build the menu.
Do you want to add fontawesome beside the label and return different value from the label?
You can add more columns to the table.
In the query, select the columns you want.
jRDC2 should return the item array according to the order.
Then construct the Map with key and value.



[Timm]

Thank you for your reply, yes I want to implement the kind of authorized menu for different users( like web menu coming from the server). I want to have edit and delete font awesome icon beside each drawer menuitems



[Timm]

But be integrated to josejad crud code since I have tried to understand the rest of the code how they fetch from the server. Thanks



[aeric]

You need to study the examples and combine the solutions.
Sorry I don't understand your question and can't help further.



[Timm]

Thank you for your time. Honestly, I need to get down and study the examples.
