B4J Library [B4XPages] PagesTransition

PagesTransiiton

Author: Solutions Development
Version: 1.07

• TransitionPage
  • Constant
    • AnimationBatMan
    • AnimationColumn
    • AnimationCircleExplode
    • AnimationCircleImplode
    • AnimationRotaded
    • AnimationSpotted
    • AnimationStrip
    • AnimationZoom
    • SlideFromLeft
    • SlideFromTop
    • SlideFromRight
    • SlideFromBottom
    • ShoveFromLeft
    • ShoveFromTop
    • ShoveFromRight
    • ShoveFromBottom
    • AnimationGuillotine
  • Functions:
    • Initialize (FromPageRoot As B4XView, ToPageRoot As B4XView)
      Initializes the object. You can add parameters to this method if needed.
    • Transition (Animation As Int, Durate As Int)

NOTE:

1. Make sure that the base panel of each page has a color. If it's transparent it won't work properly.
2. The root variable must be declared public
3. Preferably the duration of the page animations is set to zero

Log update

• (1.01) Add AnimationSpotted
• (1.02) Add SlideFromLeft, SlideFromTop, SlideFromRight, SlideFromBottom
• (1.03) Add AnimationLiquidUp, AnimationLiquidDown
• (1.04) Add AnimationBatMan
• (1.05) Add ShoveFromLeft, ShoveFromTop, ShoveFromRight, ShoveFromBottom
• (1.06) Fix ios Bug
• (1.07) Add AnimationGuillotine



[Solutions Development]

If you initialize with

Private Sub Button1_Click
    Dim T As TransitionPage
    T.Initialize(Root,P2.Root)
    B4XPages.ShowPage("P2")
    T.Transition(T.AnimationSpotted,1000)
End Sub



[giannimaione]

come al solito un plauso a @Star-Dust ?



[mcqueccu]

Nice one. Can you implement the basic transitions like Slide Left, right, up and down?



[Solutions Development]

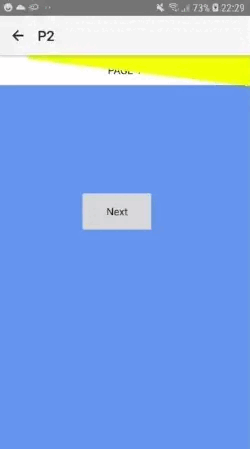

Update 1.04

• Add AnimationBatMan

Dedicated to Batman Fans



[tsteward]

Any chance of a B4A sample?



[Theera]

Private Sub Button1_Click
    Dim T As TransitionPage
    T.Initialize(Root,P2.Root)
    T.Transition(T.AnimationSpotted,1000)
    B4XPages.ShowPage("P2")
End Sub

View attachment 137680

If the pages isn't created as B4XView,how to do? I always use StartActivity(Activity As Object)

 T.Initialize(Root,P2.Root)



[Solutions Development]

If the pages isn't created as B4XView,how to do? I always use StartActivity(Activity As Object)

 T.Initialize(Root,P2.Root)

this library was created for B4XPages. If you want to use it for activities, perhaps you could use them if the two panels are anchored to the same base. You can set the starting panel and then the ending panel as parameters



[tsteward]

I've taken the 3 page sample and changed to the way my app references various pages and attempted to apply this lib but I get the following error.
Hoping someone can tell me what I have missed.

Spoiler: Error

Error occurred on line: 37 (TransitionPage)
java.lang.RuntimeException: Object should first be initialized (B4XView).
at anywheresoftware.b4a.AbsObjectWrapper.getObject(AbsObjectWrapper.java:67)
at anywheresoftware.b4a.objects.B4XViewWrapper.asViewWrapper(B4XViewWrapper.java:91)
at anywheresoftware.b4a.objects.B4XViewWrapper.Snapshot(B4XViewWrapper.java:345)
at b4a.example.transitionpage._initialize(transitionpage.java:77)
at b4a.example.b4xmainpage._btnlogin_click(b4xmainpage.java:117)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
at android.view.View.performClick(View.java:7881)
at android.widget.TextView.performClick(TextView.java:16201)
at android.view.View.performClickInternal(View.java:7858)
at android.view.View.-$$Nest$mperformClickInternal(Unknown Source:0)
at android.view.View$PerformClick.run(View.java:30863)
at android.os.Handler.handleCallback(Handler.java:942)
at android.os.Handler.dispatchMessage(Handler.java:99)
at android.os.Looper.loopOnce(Looper.java:226)
at android.os.Looper.loop(Looper.java:313)
at android.app.ActivityThread.main(ActivityThread.java:8741)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:571)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1067)



[Solutions Development]

Spoiler: Error

Error occurred on line: 37 (TransitionPage)
java.lang.RuntimeException: Object should first be initialized (B4XView).
at anywheresoftware.b4a.AbsObjectWrapper.getObject(AbsObjectWrapper.java:67)
at anywheresoftware.b4a.objects.B4XViewWrapper.asViewWrapper(B4XViewWrapper.java:91)
at anywheresoftware.b4a.objects.B4XViewWrapper.Snapshot(B4XViewWrapper.java:345)
at b4a.example.transitionpage._initialize(transitionpage.java:77)
at b4a.example.b4xmainpage._btnlogin_click(b4xmainpage.java:117)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:201)
at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
at android.view.View.performClick(View.java:7881)
at android.widget.TextView.performClick(TextView.java:16201)
at android.view.View.performClickInternal(View.java:7858)
at android.view.View.-$$Nest$mperformClickInternal(Unknown Source:0)
at android.view.View$PerformClick.run(View.java:30863)
at android.os.Handler.handleCallback(Handler.java:942)
at android.os.Handler.dispatchMessage(Handler.java:99)
at android.os.Looper.loopOnce(Looper.java:226)
at android.os.Looper.loop(Looper.java:313)
at android.app.ActivityThread.main(ActivityThread.java:8741)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:571)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1067)

Preferably use B4XPages.AddPageAndCreate rather than B4XPages.AddPage
But if you use AddPage you have to initialize after the show method like in this example

Dim T As TransitionPage
T.Initialize(Root,Pages.Page2.Root)
B4XPages.ShowPageAndRemovePreviousPages("Page 2")
T.Transition(T.AnimationSpotted,1000)

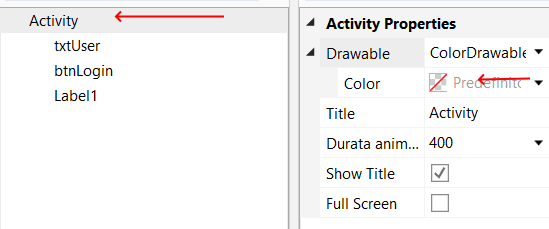

IMPORTANT
the background of the pages must be colored



[Solutions Development]

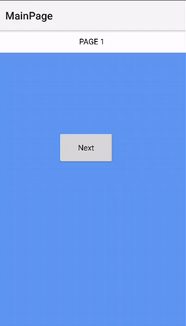

Update 1.05
Add ShoveFromLeft, ShoveFromTop, ShoveFromRight, ShoveFromBottom

Unlike the slide method, it does not scroll over the previous page, but shoves the previous page which moves while the current page scrolls and takes its place.



[Solutions Development]

Created an example of table strips with scrolling animation. (Requires version 1.06+)



[Solutions Development]

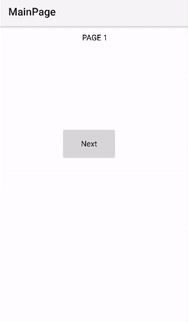

Update 1.07
Add AnimationGuillotine
