B4J Library [BANanoVueMaterial]: The first complete opensource VueJS UX based framework for BANano

*START OF NOTICE

As of 02 FEB 2021, this project is is no longer maintained as it has given birth to BVAD3.

This project was a joy to create, however like everything that has a start and an end, its time to move on and evolve. BVAD3 is faster, more simpler to implement and takes advantage of the Abstract Designer use.

Subscribe to Telegram Channel

[BANanoVuetifyAD] Vuetify WebSites & WebApps with BANano for Dummies

Ahoy!!!

*END OF NOTICE


UPDATE 24 October 2020: The recommended methodology to create BANanoVuetify WebApp is being discussed here:
MealPrep. This covers most of what VueJS + Vuetify is all about in terms of the internals.

Whilst you can use the designer to create your UX, you need to separate your concerns when creating the app just like its done on the MealPrep by using components and routers for the pages.

DO NOT FOLLOW THE APPROACH USED IN CREATING THE BANANOVUEMATERIALDEMO WHEN CREATING YOUR APPS. THAT METHOD IS NO LONGER FEASIBLE.


Download

BANanoVuetifyAD - Prelease Playlist on Youtube
BANanoVueMaterial (Vuetify) Playlist on Youtube

2020-05-20 Update: Important Update

BANanoVueMaterial Designer Usage - Mock.Compile.Publish

BANanoVueMaterialCore (pure vuetify without extensions)

Exploring Components & Router Basics

How to ask questions, request help, report bugs and request enhancements + Telegram Channel

Thanks to everyone who has been playing with this and highlighting issues and requesting features. You are stars!

*** IMPORTANT: Migrating to the new version

Word. Moving from VueMaterial to Vuetify was inevitable and whilst both are Vue Material based frameworks, Vuetify has more strengths. If if was going to be possible, we would not be having a migration guide, however things changed and enhancements happened and some code rewrites took place. When doing the transition from the VueMaterial to Vuetify codebases, we tried to make the code transition to be as smooth as possible, thus our migration guide is as small as possible. We did not want to dictate how to use the lib, so we removed some things that were hard coded and fixed. This was specific to the side drawer. To test the migration, the old examples were converted to new examples (see below) and all of them work.

BANanoVueMaterial is complete open source, so this means you can use it to your hearts content and adjust it and make it your own. If you enhance, send us word, we will merge. Make the code simple and comment it as much as you can. I cannot over-emphasize that Vuetify is LARGE, so check their website on how components are created and used to learn stuff. Do enjoy. TheMash. #IAmLovingThis

BANanoVuetify (recommended for new projects & migration notes attached)

You can track our progress from here. All the components that we got from VueMaterial exists in Vuetify and more!!!

  • Copy all the files in the 1. External Libraries folder to your B4J external libraries folder
  • If you want to explore the BANanoVuetify source code, open and run the project in 2. Library
  • If you want to explore all the components in this version, open and run the project in 3. Demo
  • You can also explore other specific examples from the 4. Examples folder
Live Preview



Tutorials (New)

Mock.Compile.Publish


NB: Download and Import the Project Components files for the Expense Tracker here.

1. Expense Tracker with BANanoSQL


Expense Tracker Part 1
Expense Tracker Part 2
Expense Tracker Part 3
Expense Tracker Part 4
Preparations for Part 5
Expense Tracker Part 5.1
Expense Tracker Part 5.2

2. Expense Tracker with SQLite (you need to understand all of 1. Expense Tracker with BANanoSQL first!)

Making your app use SQLite as a backend
Mock.Compile.Publish Expense Tracker with SQLite as BackEnd Full Implementation

3. Expenses Tracker with MSSQL (you need to understand all of 1. & 2. above first!)

Mock.Compile.Publish Expense Tracker with MSSQL as BackEnd

4. Expense Tracker with MySQL (you need to understand all of 1. - 3. above first)

Mock.Compile.Publish Expense Tracker with MySQL as BackEnd

NEW NEW NEW!!!! Handling Events

Developing a grid with the Designer
Developing forms with the Designer
Designing text field controls with the Designer
Designing text area controls with the Designer
Designing password controls with the Designer
Designing images with the Designer
Designing file input with the Designer
Designing buttons with the Designer
Designing checkboxes with the Designer
Designing switches with the Designer
Designing icons with Designer
Designing labels with Designer
Designing sliders with the Designer
Designing select, combo and autocomplete with the Designer
Designing radio boxes with the Designer
Designing date & time pickers with the Designer (NB: functionality works on your app)
Designing a parallax with the Designer
Designing a container with the Designer
Designing the appbar, toolbars and systembar with the Designer - Part 1
Designing the appbar, toolbars and systembar with the Designer - Part 2
Drag n Drop Menu - Part 1
Drag n Drop Menu - Part 2
Drag n Drop Carousel
Drag n Drop Dialog
Drag n Drop Rating
Drag n Drop SpeedDial
DataTable multi selects
SetFocus(?)
Invisible File Selector
DataTable GetItemKeys
Drag n Drop Chips
Drag n Drop Badges
Drag n Drop Avatars
Exporting Component Schemas (Multi Development Mode)
Importing Component Schemas (Multi Development Mode)
Drag n Drop Lists
Drag n Drop Tabs
Drag n Drop Stepper
Drag n Drop ExpansionPanels (Accordion)
Drag n Drop Page
Setting Project Properties
Reading Text files (without upload to server)
Reading Excel files (without upload to server)

Reporting (New)

Excel Client Side Reporting with OXML

Example Projects

Hello World
Navigation (1 or more pages using v-show directive)
Login Screen
User Registration Screen
Expenses.Show - MySQL+PHP+ChartKick CRUD
Form Utilities - BANanoSQL CRUD
Calculations - using watch directives

IMPORTANT: Asking Questions about BANanoVueMaterial

1. Please do not ask questions on this thread as this is about updates and new developments about BANanoVueMaterial.
2. When asking a question, please use the B4J Forum and prefix your question with [BANanoVueMaterial] Your Question
3. As the author of this lib, I would recommend that in the content of your question you also address it to myself with @Mashiane (this will also help me find and attend to your questions faster as it will show in my personal notifications)

Related Content

BANanoVue - a now updated CORE of BANanoVueMaterial
BANanoWired - a mockup framework build on BANanoVue (WIP)
BANanoPDFDesign - a creation based on BANanoVueMaterial for PDF reporting (WIP)
BANanoVMDesign - this intends to support BANanoVueMaterial design philosophy. (WIP)

Have fun and enjoy!

PS: BANanoVueMaterial uses an updated version of the BANanoPostProcessor library done by Kiffi.

Last edited:

Mashiane

Expert
Licensed User
Longtime User

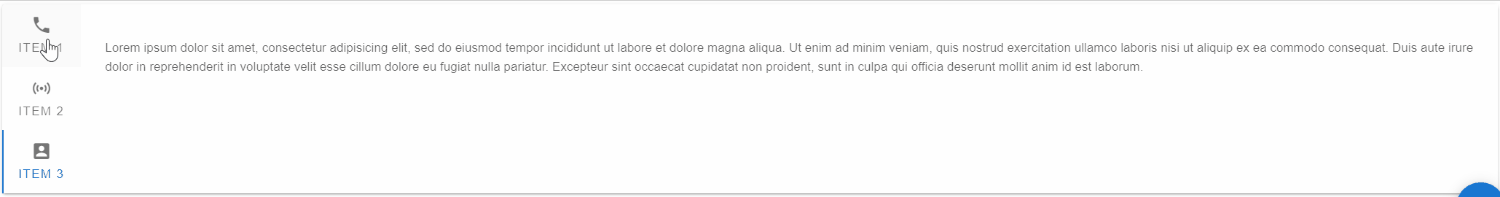

Vertical Tabs



B4X:
Dim lbla1 As VMLabel = vm.CreateLabel("").SetParagraph
    lbla1.SetText(vm.Rand_LoremIpsum(1))
    Dim contbtnaa As VMContainer
    contbtnaa = vm.CreateContainer("contxaa", Me)
    contbtnaa.AddControlS(lbla1.Label, lbla1.tostring, 1, 1, 12, 12, 12, 12)
    '
    Dim lbla2 As VMLabel = vm.CreateLabel("").SetParagraph
    lbla2.SetText(vm.Rand_LoremIpsum(1))
    Dim contbtnba As VMContainer
    contbtnba = vm.CreateContainer("contxba", Me)
    contbtnba.AddControlS(lbla2.Label, lbla2.tostring, 1, 1, 12, 12, 12, 12)
    '
    Dim lbla3 As VMLabel = vm.CreateLabel("").SetParagraph
    lbla3.SetText(vm.Rand_LoremIpsum(1))
    Dim contbtnca As VMContainer
    contbtnca = vm.CreateContainer("contxc", Me)
    contbtnca.AddControlS(lbla3.Label, lbla3.tostring, 1, 1, 12, 12, 12, 12)

    Dim b1 As VMTabs = vm.CreateTabs("b1", Me).SetVertical(True).SetIconsAndText(True)
    b1.AddTab("b1", "Item 1", "mdi-phone",contbtnaa)
    b1.AddTab("b2", "Item 2", "mdi-access-point",contbtnba)
    b1.AddTab("b3", "Item 3", "mdi-account-box", contbtnca)
    b1.AddToContainer(cont, 4, 1)

Ta!


Mashiane

Expert
Licensed User
Longtime User

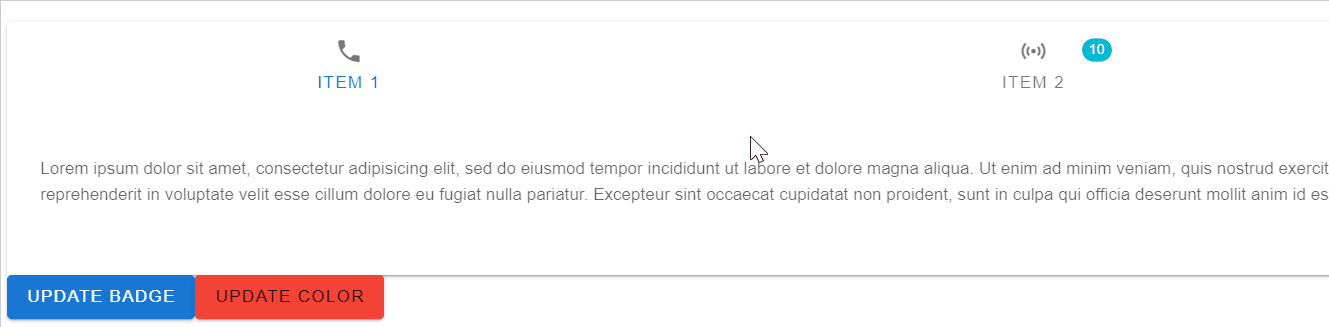

Updating Badge Value & Color



Add a tab with a badge and an initial value. The id of the badge is b2

B4X:
b.AddTabBadge("b2", "Item 2", "mdi-heart", contbtnb, "10")

Set the badge value to 15.

B4X:
Sub btnadd_click(e As BANanoEvent)
    vm.SetBadgeContent("b2", "15")
End Sub

Set the badge color to red

B4X:
Sub btncolor_click(e As BANanoEvent)
    vm.SetBadgeColor("b2", vm.COLOR_RED, vm.INTENSITY_NORMAL)
End Sub

Ta!


Mashiane

Expert
Licensed User
Longtime User

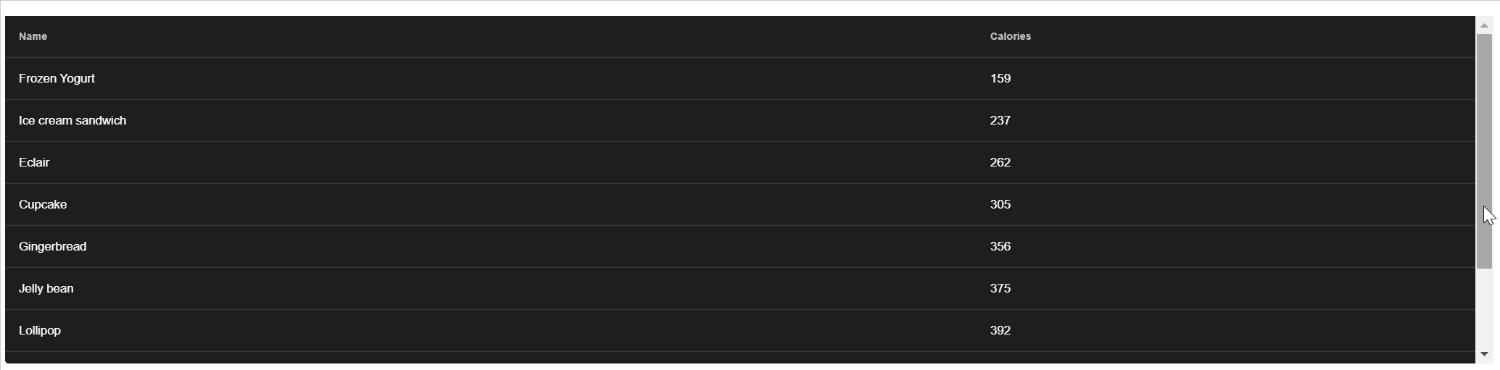

Simple Table

This is wrap around the <table> component



B4X:
st.Initialize(vue, "st1", "name", Me)
    st.SetFixedHeader(True)
    st.SetHeight("400px")
    st.AddColumn("name", "Name")
    st.AddColumn("calories", "Calories")
    st.SetDark(True)
    st.AddRow(CreateMap("name": "Frozen Yogurt", "calories": 159))
    st.AddRow(CreateMap("name": "Ice cream sandwich", "calories": 237))
    st.AddRow(CreateMap("name": "Eclair", "calories": 262))
    st.AddRow(CreateMap("name": "Cupcake", "calories": 305))
    st.AddRow(CreateMap("name": "Gingerbread", "calories": 356))
    st.AddRow(CreateMap("name": "Jelly bean", "calories": 375))
    st.AddRow(CreateMap("name": "Lollipop", "calories": 392))
    st.AddRow(CreateMap("name": "Honeycomb", "calories": 408))
    st.AddRow(CreateMap("name": "Donut", "calories": 452))
    st.AddRow(CreateMap("name": "KitKat", "calories": 518))
    cont.AddComponent(1,1, st.tostring)

Ta!


Mashiane

Expert
Licensed User
Longtime User

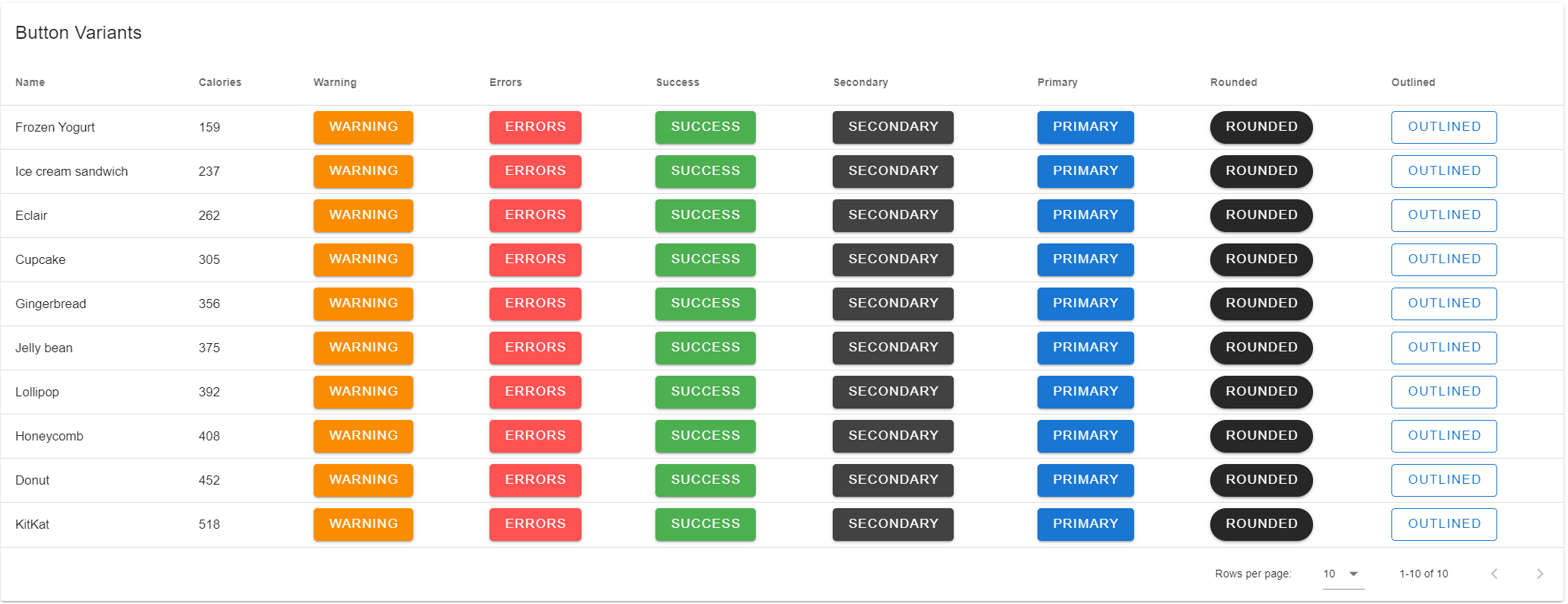

Button Variants in Data-Table




B4X:
dtButtons = vm.CreateDataTable("dtButtons", "name", Me)
    dtButtons.SetTitle("Button Variants")
    dtButtons.AddColumn("name", "Name")
    dtButtons.AddColumn("calories", "Calories")
    '
    dtButtons.AddButtonColumn("btnwarn", "Warning").SetButtonWarning("btnwarn")
    dtButtons.AddButtonColumn("btnerror", "Errors").SetButtonError("btnerror")
    dtButtons.AddButtonColumn("btnsuccess", "Success").SetButtonSuccess("btnsuccess")
    dtButtons.AddButtonColumn("btnsecondary", "Secondary").SetButtonSecondary("btnsecondary")
    dtButtons.AddButtonColumn("btnprimary", "Primary").SetButtonPrimary("btnprimary")
    dtButtons.AddButtonColumn("btnrounded", "Rounded").SetButtonRounded("btnrounded")
    dtButtons.AddButtonColumn("btnoutlined", "Outlined").SetButtonOutlined("btnoutlined").SetButtonPrimary("btnoutlined")
    '
    dtButtons.AddRow(CreateMap("name": "Frozen Yogurt", "calories": 159))
    dtButtons.AddRow(CreateMap("name": "Ice cream sandwich", "calories": 237))
    dtButtons.AddRow(CreateMap("name": "Eclair", "calories": 262))
    dtButtons.AddRow(CreateMap("name": "Cupcake", "calories": 305))
    dtButtons.AddRow(CreateMap("name": "Gingerbread", "calories": 356))
    dtButtons.AddRow(CreateMap("name": "Jelly bean", "calories": 375))
    dtButtons.AddRow(CreateMap("name": "Lollipop", "calories": 392))
    dtButtons.AddRow(CreateMap("name": "Honeycomb", "calories": 408))
    dtButtons.AddRow(CreateMap("name": "Donut", "calories": 452))
    dtButtons.AddRow(CreateMap("name": "KitKat", "calories": 518))
    dtButtons.AddToContainer(cont, 5, 1)

Trapping Events

B4X:
Sub dtButtons_btnoutlined(item As Map)
    vm.ShowSnackBarPrimary("Outlined...")
End Sub


Sub dtButtons_btnrounded(item As Map)
    vm.ShowSnackBarPrimary("Rounded...")
End Sub


Sub dtButtons_btnprimary(item As Map)
    vm.ShowSnackBarPrimary("Primary...")
End Sub


Sub dtButtons_btnsecondary(item As Map)
    vm.ShowSnackBarSecondary("Secondary...")
End Sub


Sub dtButtons_btnsuccess(item As Map)
    vm.ShowSnackBarSuccess("Success...")
End Sub


Sub dtButtons_btnwarn(item As Map)
    vm.ShowSnackBarWarning("Warning...")
End Sub

Sub dtButtons_btnerror(item As Map)
    vm.ShowSnackBarError("Error...")
End Sub

Ta!


Mashiane

Expert
Licensed User
Longtime User

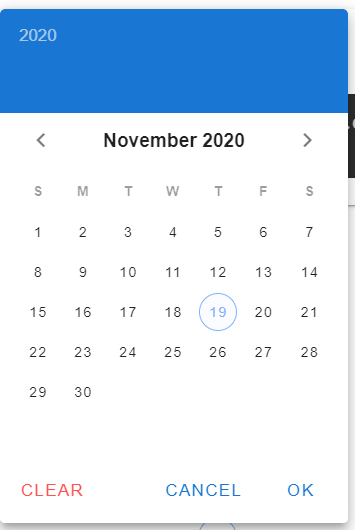

Version 4.52 comes with DatePicker & TimePicker that has buttons, to be uploaded soon.

  1. By default, when you select a date / time, the picker is closed and the selected date is stored.
  2. Clicking Clear does not close the picker, it just clears the date / time
  3. Clicking Ok will close the picker



Mashiane

Expert
Licensed User
Longtime User
Version 2.54, download it here

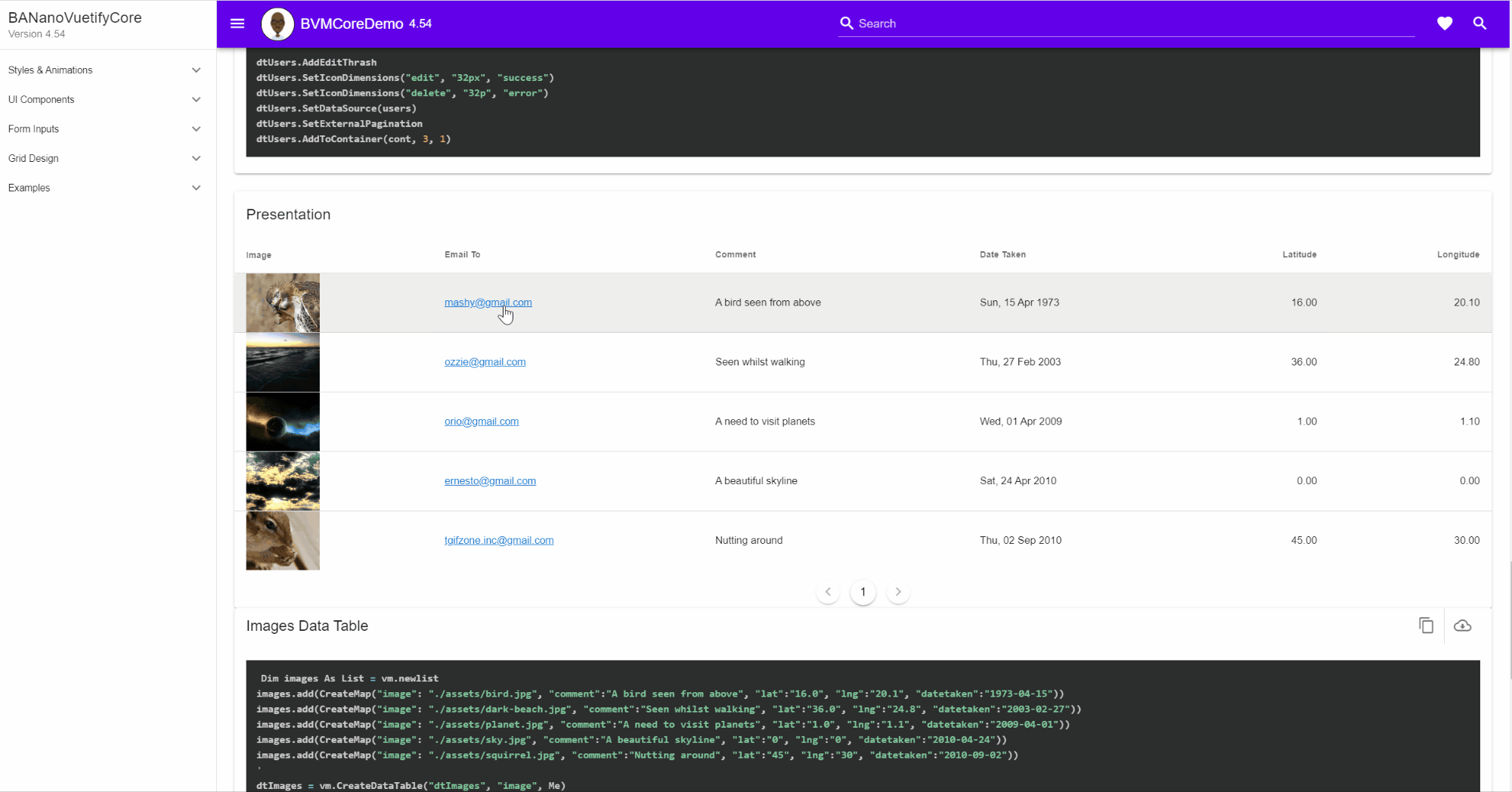

Adding links to the data-table (check the Tables demo)

1. Define your records

B4X:
Dim images As List = vm.newlist
    images.add(CreateMap("image": "./assets/bird.jpg", "sendto":"[email protected]", "comment":"A bird seen from above", "lat":"16.0", "lng":"20.1", "datetaken":"1973-04-15"))
    images.add(CreateMap("image": "./assets/dark-beach.jpg", "sendto":"[email protected]", "comment":"Seen whilst walking", "lat":"36.0", "lng":"24.8", "datetaken":"2003-02-27"))
    images.add(CreateMap("image": "./assets/planet.jpg", "sendto":"[email protected]", "comment":"A need to visit planets", "lat":"1.0", "lng":"1.1", "datetaken":"2009-04-01"))
    images.add(CreateMap("image": "./assets/sky.jpg", "sendto":"[email protected]", "comment":"A beautiful skyline", "lat":"0", "lng":"0", "datetaken":"2010-04-24"))
    images.add(CreateMap("image": "./assets/squirrel.jpg", "sendto":"[email protected]", "comment":"Nutting around", "lat":"45", "lng":"30", "datetaken":"2010-09-02"))

The anchor data-item in these records is the sendto field

2. Add columns to the data-table

B4X:
....
....
dtImages.AddLink("sendto", "Email To", "_blank")
dtImages.SetColumnPrefix("sendto", "mailto:")
....
....

We add the sendto field as a link, the target for it is _blank. This means you open a new blank browser tab.
However we want this link to activate the default mail sending application, so we set the prefix to be added to each href with mailto:

When the application is being ran...


Last edited:

Mashiane

Expert
Licensed User
Longtime User
BVAD3 is now out of BETA.

There are tutorials here on how to use it to create websites / webapps.


Remember, BVAD3 is MIT licensed. Do whatever it is with it to your hearts desire.

Please note for new projects, use BVAD3 and not this version. This is like a father to BVAD3.
