Android Question BLE Receiving/Send problem

chris_sung · Jan 29, 2019

Hi

I Running the "BLE_Example" example,
it appears on the phone that it appears to be connected to the MA3_623 (BC7602) module.

What should I do now? Can I receive(or Sens) Data from MA3_623?

f0raster0 · Jan 29, 2019

try add this:

Dim data1() As Byte = AdvertisingData.Get(-1)
Dim data2() As Byte = AdvertisingData.Get(0)
Dim bc As ByteConverter
Log(bc.HexFromBytes(data1))
Log(bc.HexFromBytes(data2))

maybe is -1 or 0 maybe no, then change it

also look for SetNotify
https://www.b4x.com/android/forum/threads/uart-ble-adafruit.99791/#post-629188

Erel · Jan 29, 2019

1. Please use [code]code here...[/code] tags when posting code.
2. You should post logs as text instead of screenshots.

chris_sung said:
Can I receive(or Sens) Data from MA3_623?

Yes. It will read the services and characteristics whenever you click on the Read Data button.

You should read this tutorial: https://www.b4x.com/android/forum/threads/ble-bluetooth-low-energy-library.46099/#content
It is about the B4i library however it behaves exactly like the B4A library.

chris_sung · Jan 29, 2019

Erel said:
1. Please use [code]code here...[/code] tags when posting code.
2. You should post logs as text instead of screenshots.
Yes. It will read the services and characteristics whenever you click on the Read Data button.

You should read this tutorial: https://www.b4x.com/android/forum/threads/ble-bluetooth-low-energy-library.46099/#content
It is about the B4i library however it behaves exactly like the B4A library.

Hi Erel
I tried to modify the two functions in the "BLE_Example".

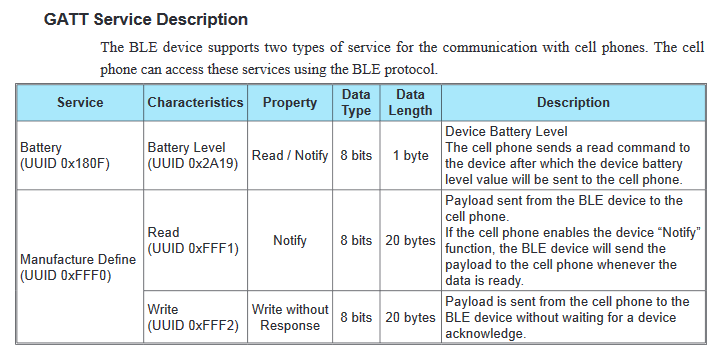

Have read the MA3_623(module) message

I still don't understand it very much. I need your guidance. Please.

Log:
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
** Activity (main) Resume **
Found: , F0:18:98:80:55:ED, RSSI = -90, (MyMap) {1=[[email protected], -1=[[email protected], 0=[[email protected]}
Found: , 77:AE:43:C4:C3:6F, RSSI = -89, (MyMap) {1=[[email protected], -1=[[email protected], 0=[[email protected]}
Found: , 70:66:63:15:94:99, RSSI = -51, (MyMap) {-1=[[email protected], 0=[[email protected]}
Found: , 61:54:F6:40:4E:3F, RSSI = -95, (MyMap) {1=[[email protected], -1=[[email protected], 0=[[email protected]}
Found: , 40:00:B7:ED:63:78, RSSI = -77, (MyMap) {-1=[[email protected], 0=[[email protected]}
Found: Mi Band 3, FA:60:BB:CB:52:CD, RSSI = -91, (MyMap) {1=[[email protected], -1=[[email protected], 9=[[email protected], 2=[[email protected], 0=[[email protected]}
Found: MA3_623, 37:38:36:31:30:32, RSSI = -42, (MyMap) {1=[[email protected], -1=[[email protected], 9=[[email protected], 0=[[email protected]}
Connect MA3_623
Discovering services.
Connected
0000180f-0000-1000-8000-00805f9b34fb
0000fff0-0000-1000-8000-00805f9b34fb
[email protected]
0000fff2-0000-1000-8000-00805f9b34fb:
0000fff1-0000-1000-8000-00805f9b34fb:
[email protected]
00002a19-0000-1000-8000-00805f9b34fb: 63

B4X:

Public Sub ReadData
    For Each s As String In ConnectedServices
        manager.ReadData(s)
        Log(s)

    Next


End Sub
=======
Sub Manager_DataAvailable (ServiceId As String, Characteristics As Map)
    Dim bc As ByteConverter
    Log(Characteristics.Keys)

    For Each key As String In Characteristics.Keys
        Dim b() As Byte = Characteristics.Get(key)
        Log((key) & ": " & (bc.HexFromBytes(b)))
    Next




    CallSub3(Main, "DataAvailable", ServiceId, Characteristics)
End Sub

Erel · Jan 29, 2019

What is the question?

chris_sung · Jan 30, 2019

Erel said:
What is the question?

This is the test app provided by the module manufacturer.
How can I receive module data like it?
Ex.
B1 01 01 B1
B1 01 02 B2
B1 00 03 B2

f0raster0 · Jan 30, 2019

chris_sung said:
Hi Erel
...................
Log:
.........................
Connected
0000180f-0000-1000-8000-00805f9b34fb
0000fff0-0000-1000-8000-00805f9b34fb
[email protected]
0000fff2-0000-1000-8000-00805f9b34fb:
0000fff1-0000-1000-8000-00805f9b34fb:
[email protected]
00002a19-0000-1000-8000-00805f9b34fb: 63

0000180f-0000-1000-8000-00805f9b34fb
it is battery service

2a19 = battery status
63 = percentage (if i'm right)

chris_sung · Jan 30, 2019

f0raster0 said:
0000180f-0000-1000-8000-00805f9b34fb
it is battery service

2a19 = battery status
63 = percentage (if i'm right)

yes

But I want to receive the Button value...

DonManfred · Jan 30, 2019

chris_sung said:
0000fff1-0000-1000-8000-00805f9b34fb:

For the FFF1 you need to register/setup an Notifier.

Something like

B4X:

Manager.SetCharacteristicNotification("0000fff1-0000-1000-8000-00805f9b34fb",True)

Also can also setup an Notifier for the Batterylevel. You´ll get notified if the level changes.

chris_sung said:
0000fff2-0000-1000-8000-00805f9b34fb

The FFF2 can be used to write to the Device (whatever you need to write i don´t know ;-))

PD: Sorry, i can´t help much more as i have not much experience with BLE... I just read a bit in the Documentation...

f0raster0 · Jan 30, 2019

chris_sung said:
yes

But I want to receive the Button value...

What do you need to read? What sensors?
have a look to this links:
https://www.b4x.com/android/forum/threads/ible-data.63754/#content
https://www.b4x.com/android/forum/threads/ible-healtthermometer-solved.64232/#post-407611
https://www.b4x.com/android/forum/threads/ble-heart-rate-monitor.64103/#content

the battery is 0000180f-0000-1000-8000-00805f9b34fb
The characteristics are described here: https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicsHome.aspx

try to activate setNotify true like that:
manager.SetNotify(0000180f-0000-1000-8000-00805f9b34fb, 00002a19-0000-1000-8000-00805f9b34fb, True)

EDIT: maybe is this

try
manager.SetNotify(0000fff0-0000-1000-8000-00805f9b34fb, 0000fff1-0000-1000-8000-00805f9b34fb, True)

chris_sung · Jan 30, 2019

f0raster0 said:
What do you need to read? What sensors?
have a look to this links:
https://www.b4x.com/android/forum/threads/ible-data.63754/#content
https://www.b4x.com/android/forum/threads/ible-healtthermometer-solved.64232/#post-407611
https://www.b4x.com/android/forum/threads/ble-heart-rate-monitor.64103/#content

the battery is 0000180f-0000-1000-8000-00805f9b34fb
The characteristics are described here: https://developer.bluetooth.org/gatt/characteristics/Pages/CharacteristicsHome.aspx

try to activate setNotify true like that:
manager.SetNotify(0000180f-0000-1000-8000-00805f9b34fb, 00002a19-0000-1000-8000-00805f9b34fb, True)

EDIT: maybe is this try
manager.SetNotify(0000fff0-0000-1000-8000-00805f9b34fb, 0000fff1-0000-1000-8000-00805f9b34fb, True)

Add manager.SetNotify, on line 63.
At the moment, press the button, "fff1" has not seen the value display yet.

Log:
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
** Activity (main) Resume **
Found: , 10:d7:AF:dD:49:C9, RSSI = -99, (MyMap) {-1=[[email protected], 0=[[email protected]}
Found: , 77:76:C9:0D:46:B2, RSSI = -72, (MyMap) {-1=[[email protected], 0=[[email protected]}
Found: , 7C:1C:22:3F:27:33, RSSI = -79, (MyMap) {1=[[email protected], -1=[[email protected], 0=[[email protected]}
Found: , 19:E7:7D:B6:dD:33, RSSI = -87, (MyMap) {-1=[[email protected], 0=[[email protected]}
Found: MA3_623, 37:38:36:31:30:32, RSSI = -52, (MyMap) {1=[[email protected], -1=[[email protected], 9=[[email protected], 0=[[email protected]}
Found: , 6A:d5:4C:7A:d0:76, RSSI = -55, (MyMap) {-1=[[email protected], 0=[[email protected]}
Discovering services.
Connected
Connect MA3_623
Setting descriptor. Success = true
writing descriptor: true
0000180f-0000-1000-8000-00805f9b34fb
0000fff0-0000-1000-8000-00805f9b34fb
0000fff2-0000-1000-8000-00805f9b34fb:
0000fff1-0000-1000-8000-00805f9b34fb:
00002a19-0000-1000-8000-00805f9b34fb: 63

B4X:

#Region  Service Attributes
    #StartAtBoot: False
    #ExcludeFromLibrary: True
#End Region

Sub Process_Globals
    Public manager As BleManager2
    Public currentStateText As String = "UNKNOWN"
    Public currentState As Int
    Public connected As Boolean = False
    Public ConnectedName As String
    Private ConnectedServices As List
    Public rp As RuntimePermissions
End Sub



Sub Service_Create
    manager.Initialize("manager")
End Sub

Sub Service_Start (StartingIntent As Intent)

End Sub

Public Sub ReadData

    For Each s As String In ConnectedServices
        manager.ReadData(s)
        Log(s)
    Next
End Sub

Public Sub Disconnect
    manager.Disconnect
    Manager_Disconnected
End Sub

Sub Manager_StateChanged (State As Int)
    Select State
        Case manager.STATE_POWERED_OFF
            currentStateText = "POWERED OFF"
        Case manager.STATE_POWERED_ON
            currentStateText = "POWERED ON"
        Case manager.STATE_UNSUPPORTED
            currentStateText = "UNSUPPORTED"
    End Select
    currentState = State
    CallSub(Main, "StateChanged")
End Sub

Sub Manager_DeviceFound (Name As String, Id As String, AdvertisingData As Map, RSSI As Double)
    Log("Found: " & Name & ", " & Id & ", RSSI = " & RSSI & ", " & AdvertisingData) 'ignore
    ConnectedName = Name

    If ConnectedName="MA3_623" Then
        manager.StopScan
        manager.Connect2(Id, False) 'disabling auto connect can make the connection quicker


        Sleep(2000)
        Log("Connect MA3_623")
        manager.SetNotify("0000fff0-0000-1000-8000-00805f9b34fb", "0000fff1-0000-1000-8000-00805f9b34fb", True)

    End If
End Sub

Public Sub StartScan
    If manager.State <> manager.STATE_POWERED_ON Then
        Log("Not powered on.")
    Else If rp.Check(rp.PERMISSION_ACCESS_COARSE_LOCATION) = False Then
        Log("No location permission.")
    Else
        manager.Scan2(Null, False)
    End If
End Sub

Sub Manager_DataAvailable (ServiceId As String, Characteristics As Map)
    Dim bc As ByteConverter

   CallSub3(Main, "DataAvailable", ServiceId, Characteristics)

    For Each key As String In Characteristics.Keys
        Dim b() As Byte = Characteristics.Get(key)
        Log((key) & ": " & (bc.HexFromBytes(b)))
    Next

End Sub

Sub Manager_Disconnected
    Log("Disconnected")
    connected = False
    CallSub(Main, "StateChanged")
End Sub

Sub Manager_Connected (services As List)
    Log("Connected")
    connected = True
    ConnectedServices = services
    CallSub(Main, "StateChanged")
End Sub

'Return true to allow the OS default exceptions handler to handle the uncaught exception.
Sub Application_Error (Error As Exception, StackTrace As String) As Boolean
    Return True
End Sub

Sub Service_Destroy

End Sub

f0raster0 · Jan 30, 2019

I have different modules,
using this code I can read the data..

try to change to that:

B4X:

Sub Manager_Connected (services As List)
    Log("Connected")
    connected = True
    ConnectedServices = services
    manager.SetNotify("0000fff0-0000-1000-8000-00805f9b34fb", "0000fff1-0000-1000-8000-00805f9b34fb", True)
    Log("Set Notify")
    CallSub(Main, "StateChanged")
End Sub

Sub Manager_DataAvailable (ServiceId As String, Characteristics As Map)
    Dim bc As ByteConverter
    For Each key As String In Characteristics.Keys
        Dim b() As Byte = Characteristics.Get(key)
        Log("Key: " & key &", value: " & bc.HexFromBytes(b))
        'Log(BytesToString(b, 0, b.Length, "utf8") 'useful if the data is actually a string
        If key = "" Then
        End If
    Next
End Sub

chris_sung · Jan 30, 2019

f0raster0 said:

I have different modules,
using this code I can read the data..

try to change to that:

B4X:

Sub Manager_Connected (services As List)
    Log("Connected")
    connected = True
    ConnectedServices = services
    manager.SetNotify("0000fff0-0000-1000-8000-00805f9b34fb", "0000fff1-0000-1000-8000-00805f9b34fb", True)
    Log("Set Notify")
    CallSub(Main, "StateChanged")
End Sub

Sub Manager_DataAvailable (ServiceId As String, Characteristics As Map)
    Dim bc As ByteConverter
    For Each key As String In Characteristics.Keys
        Dim b() As Byte = Characteristics.Get(key)
        Log("Key: " & key &", value: " & bc.HexFromBytes(b))
        'Log(BytesToString(b, 0, b.Length, "utf8") 'useful if the data is actually a string
        If key = "" Then
        End If
    Next
End Sub

Hi f0raster0

Now receiving data success!!
Thank you very much.

Erel、DonManfred
Thank you very much for your assistance.

lagmesh · Dec 20, 2021

i need help regard connecting my NXP kw 38 controller with b4a apk. have any examples related this?

DonManfred · Dec 20, 2021

lagmesh said:
i need help regard connecting my NXP kw 38 controller

1. rule: never post to existing threads. Always create a new thread for your question.
Did you checked the BLE Examples in the Forum? Did you get any error?

f0raster0 · Dec 20, 2021

lagmesh said:
i need help regard connecting my NXP kw 38 controller with b4a apk. have any examples related this?

Try the example:

[B4X] BLE 2 - Bluetooth Low Energy

This library replaces the previous BLE library. It is simpler to use and it is more powerful. Its API is based on B4i iBLE library which makes it easy to reuse B4i code. See the iBLE tutorial: https://www.b4x.com/android/forum/threads/ble-bluetooth-low-energy-library.46099/#content Tips &...

www.b4x.com

Create a new thread for your question, and post the errors that you are getting

Android Question BLE Receiving/Send problem

chris_sung

Member

f0raster0

Well-Known Member

Erel

B4X founder

chris_sung

Member

Erel

B4X founder

chris_sung

Member

f0raster0

Well-Known Member

chris_sung

Member

DonManfred

Expert

f0raster0

Well-Known Member

chris_sung

Member

f0raster0

Well-Known Member

chris_sung

Member

lagmesh

New Member

DonManfred

Expert

f0raster0

Well-Known Member

[B4X] BLE 2 - Bluetooth Low Energy

Similar Threads
