B4R Library BMP180 - Pressure and temperature

Example: https://www.b4x.com/android/forum/threads/wrapping-library-for-bmp180-sensor.67647/#post-429006

Based on this open source project: https://github.com/sparkfun/BMP180_Breakout
The connections are described in the above link.

Note that you need to connect it to 3.3v.

Network example: https://www.b4x.com/android/forum/threads/esp8266-udp-bmp180-simple-weather-station.70243/



[william235]

I cannot get this to run. I am new to B4R but not to programming. How do I add this library? I get a missing reference error related to the library. This is my first time using the product. Any help would be greatly appreciated.



[Erel]

Please post the exact error message.

How do I add this library?

1. Configure the additional libraries path under Tools - Configure Paths.
2. Extract the zip file and copy its content to that folder (keep the folders structure).



[william235]

Got past the issue I just posted but now I am hitting this issue.


In file included from C:\Users\William\Desktop\B4R Libraries\Objects\src\src.ino:1:0:
sketch\B4RDefines.h:24:25: fatal error: rSFE_BMP180.h: No such file or directory
#include "rSFE_BMP180.h"

And thanks very much for your previous reply.



[Erel]

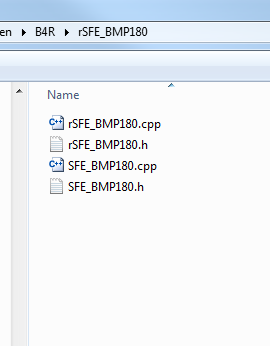

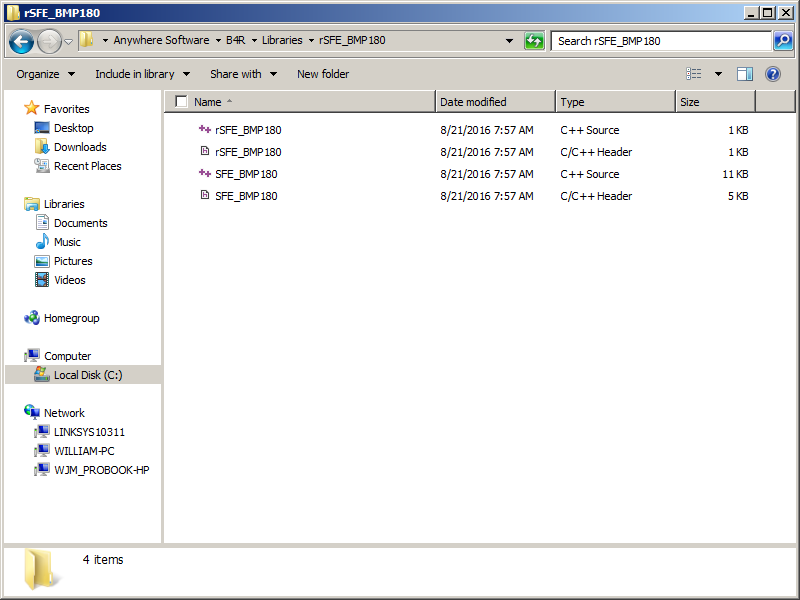

Do you see this file in the library folder:

?

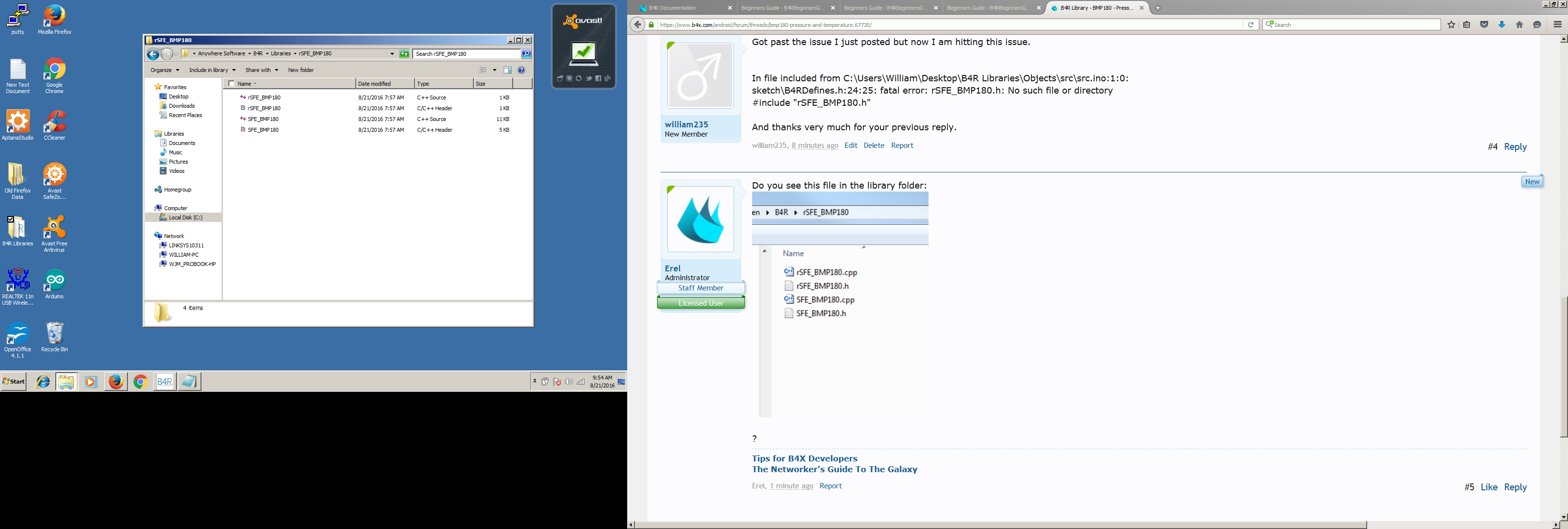

[william235]



[william235]

It looks like it might be one level down, not in the same place as your screen shot. Is that the case?



[Erel]

1. Delete these 4 files and the xml file.

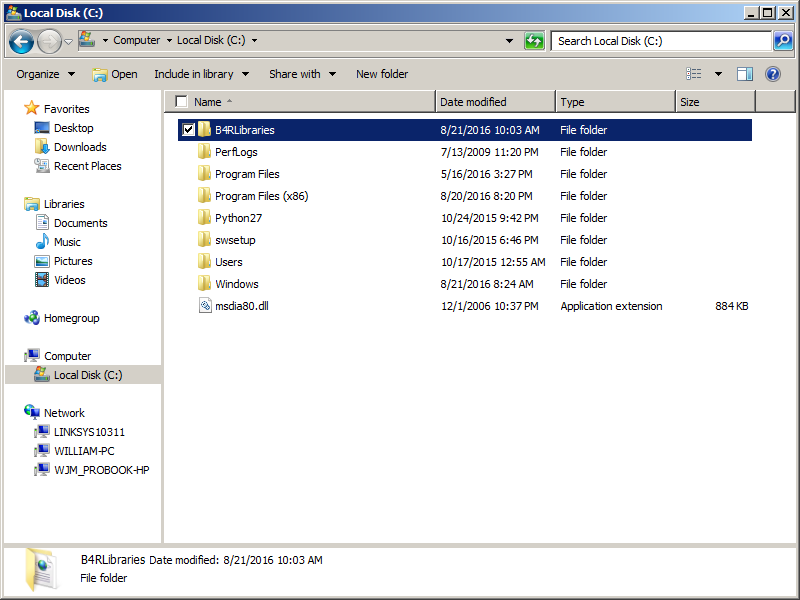

2. Create a new folder named c:\B4RLibraries
3. Configure the IDE to use it (Tools - Configure Paths).
4. Copy the xml file and the folder to c:\B4RLibraries.



[william235]

copied it to one level up and still same error



[william235]

Will do....doing now



[william235]

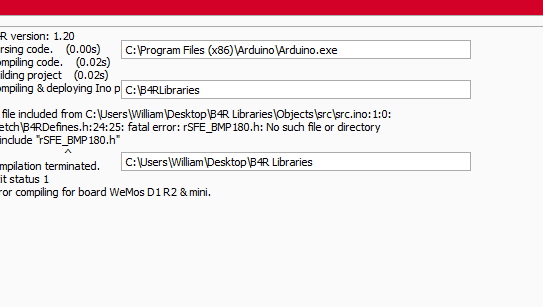

Did what was suggested and got the same Error:


B4R version: 1.20
Parsing code. (0.00s)
Compiling code. (0.02s)
Building project (0.02s)
Compiling & deploying Ino project (WeMos D1 R2 & mini - COM5) Error

In file included from C:\Users\William\Desktop\B4R Libraries\Objects\src\src.ino:1:0:
sketch\B4RDefines.h:24:25: fatal error: rSFE_BMP180.h: No such file or directory
#include "rSFE_BMP180.h"
^
compilation terminated.
exit status 1
Error compiling for board WeMos D1 R2 & mini.



[Erel]

Do you see this file under: C:\Users\William\Desktop\B4R Libraries\Objects\src\ ?

Try to clean the project by clicking on Ctrl + P.



[william235]

I apologize that I have wasted your time. I got it. Though I created the libraries as you suggest they were incorrectly configured. I got the code running. Thanks very much for your responses. I look forward to getting into this application.

Best regards,
Bill Miller



[Erel]

V1.10 is attached to the first post. It is based on the latest version of sparkfun library. It fixes the issue with incorrect values returned.



[william235]

V1.10 is attached to the first post. It is based on the latest version of sparkfun library. It fixes the issue with incorrect values returned.

Perfect!!!!!! Thanks so much. I was able to get the hardware running with the Arduino SFE library. Now this works as well. I much prefer this programming environment.
