B4A Library dgTextEffects - simple text effects

Discussion in 'Additional libraries, classes and official updates' started by udg, Feb 13, 2015.

  1. udg

    udg Expert Licensed User

    Hi all,

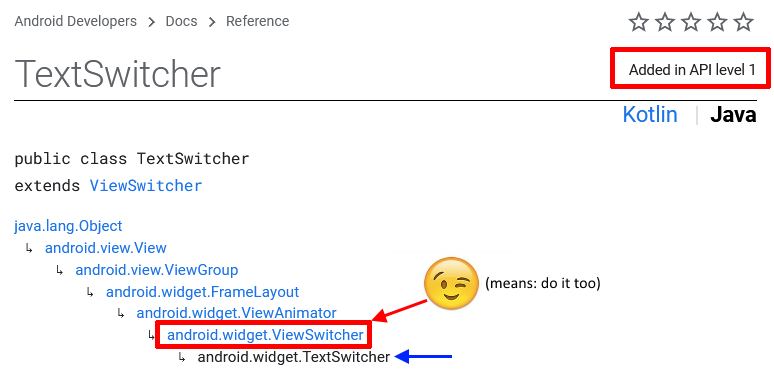

    today wandering around the Android Developer site I met component TextSwitcher that made me think about a quick and easy way to set a few text effects to enrich any basic (very basic) app.
    So, here it is dgTextEffects!
    It can be used both from the Designer or from code.

    Basically it consists of a TextSwitcher able to quicly alternate between its two labels (which are inner elements) and a few preset effects to choose from.
    Using published methods it should be easy to set more effects.

    Keep in mind this was a very quick job (less than two hours from first reading about the TextSwitcher to this post), so everything is undoubtedly a bit inaccurate.
    Anyway it's usable enough to have some fun.

    Please find attached both the library and a demo app.

    Enjoy.


    Attached Files:

    Last edited: Feb 13, 2015
    Mashiane, koaunglay, incendio and 2 others like this.
  2. udg

    udg Expert Licensed User

    Thanks to the excellent Martin Pearman's tool, here it is my library's current version documentation:

    Library name: dgTextEffects
    Author: UDG
    Version: 0.14
    • clTextEffects
      Methods:
      • initialize (TargetModule As Object, EventName As String) As String
        Initializes the object.
        Make sure that the Customview in designer is large enough to display the labels with the format you need.
        Required for both Designer and Manual setup
        TargetModule - calling module
        EventName - prefix name for events associated to this class (none at the moment)
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • designercreateview (Base As PanelWrapper, Lbl As LabelWrapper, Props As Map) As String
        Used by the designer when added there. Do not use manually. Use Initialize and Setup!
      • setup (Base As PanelWrapper) As String
        TextEffect setup - TE will take all panel Base space and be positione at 0,0 relative to Base
        Base - panel container for TextEffect
      • setup2 (Base As PanelWrapper, posX As Int, posY As Int, aWidth As Int, aHeight As Int) As String
        TextEffect alternate setup - TE will be positioned and dimensioned as specified
        Base - panel container for TextEffect
        posX, posY - coordinates to position TE relative to its container
        awidth, aHeight - TE dimensions
      • setautostart (auto As Boolean) As String
        set if animation should automatically start on calling an effect
      • setcolor (BkgColor As Int) As String
        Set the TextEffects background color
      • setinnertext (aText1 As String, aText2 As String) As String
        Set text for inner labels. First transition effect will go from aLabel1 to aLabel2
      • setinnertextcolors (T1color As Int, B1Color As Int, T2color As Int, B2Color As Int) As String
        Set Text and Background color to use for first (T1xxx) and second (T2xxx) label.
        Default values: Text = black and Backgroung = transparent for both labels
      • setinnertextproperties (FirstLabel As Boolean, aTextSize As Int, aTypeface As TypefaceWrapper, aGravity As Int) As String
        Set the Text related properties in a single shot
        FirstLabel = True : applies prop to first internal label; False: applies props to second internal label
      • setinterval (ms As Long) As String
        set animation interval in milliseconds
      • setvisible (Visible As Boolean) As String
        Set the visibility of the TextEffects object
      • starteffect (start As Boolean) As String
        manually start/stop an animation; start = True starts the selected animation
      • textalternate (txt1 As String, txt2 As String) As String
        Alternate between txt1 and txt2
      • textflashb (Txt As String, Color1 As Int, Color2 As Int) As String
        Flash text alternating two backgroud colors
      • textflasht (Txt As String, Color1 As Int, Color2 As Int) As String
        Flash text alternating two text colors
      • textgrow (Txt As String, Size1 As Int, Size2 As Int) As String
        Alternate Txt between size1 and size2
      • textrotate (txt As String) As String
        Circular rotation of text ( e.g. abc->bca->cab->abc )
      • textrotate2 (txt As String, maxSize As Int) As String
        Circular rotation of text limited to a substring maxSize in width
        Set maxSize to container's width in order to see as much text as possible
      Properties:
      • autostart As Void
        set if animation should automatically start on calling an effect
      • color As Void
        Set the TextEffects background color
      • interval As Void
        set animation interval in milliseconds
      • visible As Void
        Set the visibility of the TextEffects object

  3. ibra939

    ibra939 Active Member Licensed User

    thanks

    udg likes this.
