    For new games it is recommended to use libGDX. See these tutorials:
    How to make games
    Introduction to the libGDX library


    GameView is a view that allows you to draw hardware accelerated graphics. Compared to software accelerated graphics, hardware accelerated graphics are many times faster. Using hardware accelerated graphics it is possible to create smooth, real-time games.

    Note that the acceleration method used by GameView is only available from Android 3.0 and above. This also means that you need to reference android.jar from platform 11 or above (under Tools -> Configure paths).

    You should add this line to the manifest editor:
    Code:
    SetApplicationAttribute(android:hardwareAccelerated, "true")
    It is important to understand how GameView works.

    GameView holds a list of BitmapData objects. Each BitmapData object holds a reference to a bitmap and some parameters that tell GameView how to draw it.

    When GameView redraws itself, it goes over the list of BitmapData objects and draws each one of them. The important thing about GameView is that the drawings are hardware accelerated.

    In order to make GameView redraw itself you should call GameView.Invalidate.

    BitmapData

    Each BitmapData object represents a bitmap (or sprite) that will be drawn when GameView redraws itself.
    BitmapData properties are:
    • Bitmap - The bitmap that will be drawn.
    • DestRect - A rectangle that defines the location and size of the drawn bitmap. For example to move a sprite you change DestRect values.
    • SrcRect - A rectangle that defines the bitmap's region that will be drawn. You can pass an uninitialized rectangle if you want to draw the complete bitmap. SrcRect can be useful for drawing a sprite from a sprite sheet, or to create scrolling effects.
    • Delete - A boolean value. When set to True, GameView will remove this BitmapData from the list during the next drawing (the bitmap will not be drawn).
    • Rotate - Number of degrees to rotate the bitmap.
    • Flip - Flips the bitmap based on one of the FLIP constants.

    Typical game structure

    Usually your game should consist of a single main timer. All the movements and the logic should happen in this timer's tick event. Eventually you call GameView.Invalidate. This will cause GameView to redraw itself after your code execution completes.

    Simple bouncing smiley with a scrolling background

    [​IMG]

    The attached project is a simple example with two BitmapData objects. One is the background and the other is the moving smiley. The background is scrolling to the left each tick. This is done by playing with SrcRect values so each part of the wide background image is draw each time.

    The smiley DestRect is modified every tick to make it move.

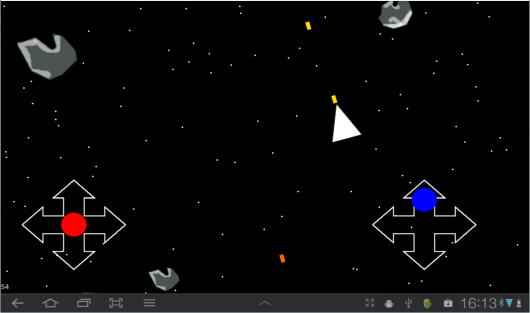

    The second part of this tutorial with a working "Asteroids" game is available here: http://www.basic4ppc.com/forum/basi...gameview-create-2d-android-games-part-ii.html

    [​IMG]

    Another example (jumping smiley): http://www.basic4ppc.com/forum/basi...ngsmiley-gameview-example-iii.html#post151177

    [​IMG]


    Attached Files:

    Last edited: Apr 3, 2014
    MarcoRome, Procesor, Phayao and 2 others like this.
  2. mc73

    mc73 Well-Known Member Licensed User

    Great job!

  3. bluejay

    bluejay Active Member Licensed User

    Erel,

    This project references a library called 'gameview'. Where to find this library?

    bluejay

  4. bluejay

    bluejay Active Member Licensed User

    Ok found it in library threads - not sure how I missed it the first time.

    bluejay

  5. MiniDemonic

    MiniDemonic Member Licensed User

    Cool, I am going to play around with this, experiment on a runescape game of mine.


    Code:
    >>>>>> AndroidRuntime START com.android.internal.os.RuntimeInit <<<<<<
    CheckJNI
    is OFF


    Calling main entry com.android.commands.pm.Pm
    No content provider found
    for permission revoke: file:///data/local/tmp/GameViewSmiley_DEBUG.apk
    No content provider found
    for permission revoke: file:///data/local/tmp/GameViewSmiley_DEBUG.apk
    Removing non-system package:anywheresoftware.b4a.samples.gameviewsmiley
    Force stopping package anywheresoftware.b4a.samples.gameviewsmiley uid=
    10046
    Running dexopt on: anywheresoftware.b4a.samples.gameviewsmiley
    Package anywheresoftware.b4a.samples.gameviewsmiley codePath changed from /data/app/anywheresoftware.b4a.samples.gameviewsmiley-
    2.apk to /data/app/anywheresoftware.b4a.samples.gameviewsmiley-1.apk; Retaining data and using new
    DexOpt: load 107ms, verify+opt 324ms
    Force stopping package anywheresoftware.b4a.samples.gameviewsmiley uid=
    10046
    Code
    path for pkg : anywheresoftware.b4a.samples.gameviewsmiley changing from /data/app/anywheresoftware.b4a.samples.gameviewsmiley-2.apk to /data/app/anywheresoftware.b4a.samples.gameviewsmiley-1.apk
    Resource
    path for pkg : anywheresoftware.b4a.samples.gameviewsmiley changing from /data/app/anywheresoftware.b4a.samples.gameviewsmiley-2.apk to /data/app/anywheresoftware.b4a.samples.gameviewsmiley-1.apk
    New package installed
    in /data/app/anywheresoftware.b4a.samples.gameviewsmiley-1.apk
    Force stopping package anywheresoftware.b4a.samples.gameviewsmiley uid=
    10046
    generateServicesMap(android.accounts.AccountAuthenticator):
    3 services unchanged
    generateServicesMap(android.content.SyncAdapter):
    10 services unchanged
    Received broadcast
    Intent { act=android.intent.action.PACKAGE_REMOVED dat=package:anywheresoftware.b4a.samples.gameviewsmiley flg=0x10000010 (has extras) }
    generateServicesMap(android.accounts.AccountAuthenticator): 3 services unchanged
    generateServicesMap(android.content.SyncAdapter): 10 services unchanged
    Received broadcast Intent { act=android.intent.action.PACKAGE_ADDED dat=package:anywheresoftware.b4a.samples.gameviewsmiley flg=0x10000010 (has extras) }
    updatePackageParticipantsLocked: #1
    Handling replaced theme package: anywheresoftware.b4a.samples.gameviewsmiley
    Received broadcast Intent { act=android.intent.action.PACKAGE_REPLACED dat=package:anywheresoftware.b4a.samples.gameviewsmiley flg=0x10000010 (has extras) }
    updatePackageParticipantsLocked: #1
    GC_EXPLICIT freed 1441K, 39% free 13311K/21703K, paused 10ms+22ms
    Shutting down VM
    NOTE: attach of thread 'Binder Thread #3' failed
    GC_CONCURRENT freed 98K, 83% free 455K/2560K, paused 1ms+3ms

    >>>>>> AndroidRuntime START com.android.internal.os.RuntimeInit <<<<<<
    CheckJNI is OFF
    Calling main entry com.android.commands.am.Am
    START {act=android.intent.action.MAIN cat=[android.intent.category.LAUNCHER] flg=0x10000000 cmp=anywheresoftware.b4a.samples.gameviewsmiley/.main} from pid 7393
    Shutting down VM
    NOTE: attach of thread 'Binder Thread #3' failed
    GC_CONCURRENT freed 100K, 82% free 486K/2560K, paused 1ms+1ms
    Start proc anywheresoftware.b4a.samples.gameviewsmiley for activity anywheresoftware.b4a.samples.gameviewsmiley/.main: pid=7404 uid=10046 gids={3003}
    Turning on JNI app bug workarounds for target SDK version 4...
    Reconfiguring input devices.  changes=0x00000004
    Device reconfigured: id=6, name='synaptics-rmi-touchscreen', surface size is now 480x800, mode is 1
    Config changed: {1.0 240mcc7mnc en_GB layoutdir=0 sw320dp w533dp h294dp nrml long land finger -keyb/v/h -nav/h s.61 themeResource=null}
    Flushing caches (mode 0)
    Flushing caches (mode 0)
    GC_EXPLICIT freed 38K, 75% free 2177K/8387K, paused 4ms+34ms
    GC_EXPLICIT freed <1K, 75% free 2177K/8387K, paused 4ms+5ms


    Sending signal. PID: 7404 SIG: 3


    threadid=3: reacting to signal 3
    GC_EXPLICIT freed <1K, 75% free 2177K/8387K, paused 4ms+45ms


    Wrote stack traces to '/data/anr/traces.txt'


    loaded /system/lib/egl/libGLES_android.so


    loaded /system/lib/egl/libEGL_adreno200.so


    loaded /system/lib/egl/libGLESv1_CM_adreno200.so
    loaded /system/lib/egl/libGLESv2_adreno200.so


    setLightsOn(true)


    Enabling debug mode 0


    Sending signal. PID: 7404 SIG: 3


    threadid=3: reacting to signal 3
    Wrote stack traces to '/data/anr/traces.txt'


    Flushing caches (mode 1)


    showStatusIcon on inactive InputConnection


    Displayed anywheresoftware.b4a.samples.gameviewsmiley/.main: +1s476ms


    ** Activity (main) Create, isFirst = true **


    Could not find method anywheresoftware.b4a.BA.raiseEventFromUI, referenced from method anywheresoftware.b4a.objects.GameViewWrapper$1.onTouch


    VFY: unable to resolve virtual method 512: Lanywheresoftware/b4a/BA;.raiseEventFromUI (Ljava/lang/Object;Ljava/lang/String;[Ljava/lang/Object;)V
    VFY: replacing opcode 0x6e at 0x0041
    ** Activity (main) Resume **


    Flushing caches (mode 0)
    Window already focused, ignoring focus gain of: com.android.internal.view.IInputMethodClient$Stub$Proxy@411ad9f8


    GC_EXPLICIT freed 1422K, 39% free 13239K/21703K, paused 23ms+41ms


    Shutting down VM


    threadid=1: thread exiting with uncaught exception (group=0x40a4a1f8)


    FATAL EXCEPTION: main
    java.lang.NoSuchMethodError: anywheresoftware.b4a.BA.raiseEventFromUI
       at anywheresoftware.b4a.objects.GameViewWrapper$1.onTouch(GameViewWrapper.java:49)
       at android.view.View.dispatchTouchEvent(View.java:5536)
       at android.view.ViewGroup.dispatchTransformedTouchEvent(ViewGroup.java:1957)
       at android.view.ViewGroup.dispatchTouchEvent(ViewGroup.java:1684)
       at android.view.ViewGroup.dispatchTransformedTouchEvent(ViewGroup.java:1957)
       at android.view.ViewGroup.dispatchTouchEvent(ViewGroup.java:1684)
       at android.view.ViewGroup.dispatchTransformedTouchEvent(ViewGroup.java:1957)
       at android.view.ViewGroup.dispatchTouchEvent(ViewGroup.java:1684)
       at android.view.ViewGroup.dispatchTransformedTouchEvent(ViewGroup.java:1957)
       at android.view.ViewGroup.dispatchTouchEvent(ViewGroup.java:1684)
       at com.android.internal.policy.impl.PhoneWindow$DecorView.superDispatchTouchEvent(PhoneWindow.java:1912)
       at com.android.internal.policy.impl.PhoneWindow.superDispatchTouchEvent(PhoneWindow.java:1371)
       at android.app.Activity.dispatchTouchEvent(Activity.java:2364)
       at com.android.internal.policy.impl.PhoneWindow$DecorView.dispatchTouchEvent(PhoneWindow.java:1860)
       at android.view.View.dispatchPointerEvent(View.java:5721)
       at android.view.ViewRootImpl.deliverPointerEvent(ViewRootImpl.java:2890)
       at android.view.ViewRootImpl.handleMessage(ViewRootImpl.java:2466)
       at android.view.ViewRootImpl.processInputEvents(ViewRootImpl.java:845)
       at android.view.ViewRootImpl.handleMessage(ViewRootImpl.java:2475)
       at android.os.Handler.dispatchMessage(Handler.java:99)
       at android.os.Looper.loop(Looper.java:137)
       at android.app.ActivityThread.main(ActivityThread.java:4575)
       at java.lang.reflect.Method.invokeNative(Native Method)
       at java.lang.reflect.Method.invoke(Method.java:511)
       at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:789)
       at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:556)
       at dalvik.system.NativeStart.main(Native Method)
      Force finishing activity anywheresoftware.b4a.samples.gameviewsmiley/.main
    Activity pause timeout for ActivityRecord{41121b38 anywheresoftware.b4a.samples.gameviewsmiley/.main}


    Sending signal. PID: 7404 SIG: 3


    threadid=3: reacting to signal 3
    Wrote stack traces to '/data/anr/traces.txt'


    Reconfiguring input devices.  changes=0x00000004


    Device reconfigured: id=6, name='synaptics-rmi-touchscreen', surface size is now 480x800, mode is 1


    Config changed: {1.0 240mcc7mnc en_GB layoutdir=0 sw320dp w320dp h508dp nrml long port finger -keyb/v/h -nav/h s.62 themeResource=null}


    Dropped event because the current application is not responding and the user has started interacting with a different application.


    Dropped event because the current application is not responding and the user has started interacting with a different application.
    Sending signal. PID: 7404 SIG: 9


    WIN DEATH: Window{41199b68 anywheresoftware.b4a.samples.gameviewsmiley/anywheresoftware.b4a.samples.gameviewsmiley.main paused=false}


    Process anywheresoftware.b4a.samples.gameviewsmiley (pid 7404) has died.


    WIN DEATH: Window{40e14e58 anywheresoftware.b4a.samples.gameviewsmiley/anywheresoftware.b4a.samples.gameviewsmiley.main paused=false}
    GC_EXPLICIT freed 225K, 39% free 13259K/21703K, paused 20ms+18ms


    [1] 5.onFinished: Installation state replication succeeded.


    Activity destroy timeout for ActivityRecord{41121b38 anywheresoftware.b4a.samples.gameviewsmiley/.main}

    Last edited: Jul 12, 2019
  6. Erel

    Erel Administrator Staff Member Licensed User

    Yes, it requires Basic4android v1.92 or higher.

  7. PaulR

    PaulR Active Member Licensed User

    Thanks for this GameView, it's very easy to use. :sign0188:

  8. Ricky D

    Ricky D Well-Known Member Licensed User

    Erel,

    I'm using B4A 2.02 and get this when I try to compile

    Code:
    Compiling code.                         0.05
    Compiling layouts code.
    0.00
    Generating R
    file.                      Error
    AndroidManifest.xml:
    17: error: No resource identifier found for attribute 'hardwareAccelerated' in package 'android'
    What do I need to do to get this working?

    I have a Samsung Galaxy S2 running Android 4.0.3

    regards, Ricky

  9. Tom Christman

    Tom Christman Active Member Licensed User

    Did you do the following accpording to Erel's post?

    You should add this line to the manifest editor:
    Code:

    SetApplicationAttribute(android:hardwareAccelerated, "true")

  10. Ricky D

    Ricky D Well-Known Member Licensed User

    Yes, that's in the manifest. It was there from the start.

    regards, Ricky

  11. Erel

    Erel Administrator Staff Member Licensed User

    "...the acceleration method used by GameView is only available from Android 3.0 and above. This also means that you need to reference android.jar from platform 11 or above (under Tools -> Configure paths)."

  12. wheretheidivides

    wheretheidivides Active Member Licensed User

    "You should add this line to the manifest editor:"
    SetApplicationAttribute(android:hardwareAccelerate d, "true")

    and what's the manifest editor again?

  13. Roger Garstang

    Roger Garstang Well-Known Member Licensed User

    Project Menu

  14. wheretheidivides

    wheretheidivides Active Member Licensed User

    ...................................
    1) copy code "SetApplicationAttribute(android:hardwareAccelerate d, "true")"
    2) Open b4a
    3) click on 'project' and then 'manifest editor' from the drop drown menu
    4) paste code at the bottom screen
    5) close window to save

    Last edited: Sep 11, 2012
  15. Erel

    Erel Administrator Staff Member Licensed User

  16. Vabzboy

    Vabzboy Member Licensed User

    Collision

    I'm looking to create a similar game but with more than one ball.
    How would I be able to collide these balls so they rebound off each other?

    Thankyou

  17. Erel

    Erel Administrator Staff Member Licensed User

  18. Pietervdbmag

    Pietervdbmag New Member Licensed User

    in v2.22 I am getting:

    Compiling code. 0.07
    Compiling layouts code. 0.02
    Generating R file. 0.29
    Compiling generated Java code. 1.15
    Convert byte code - optimized dex. 0.89
    Packaging files. 0.37
    Copying libraries resources 0.03
    Signing package file (debug key). 0.65
    ZipAlign file. 0.08
    Installing file to device. 0.97
    Installing with B4A-Bridge.
    Installation will fail if the signing key is different than the previous used key.
    In that case you will need to manually uninstall the existing application.

    Completed successfully.
    Code editor is in read-only mode during debugging.
    Press Debug - Stop (or on the Stop button at the bottom) to stop the debugger.

    All other samples work though.. Anyone has got a solution?

  19. Erel

    Erel Administrator Staff Member Licensed User

    This is not an error message. This message always appears when you compile with B4A-Bridge.

  20. aloof

    aloof Member Licensed User

    Really good, but beyond my capability.... i wish i could make games.... for me to learn this i would need every line commented on
