Android Question Help with B4XDialog (Create Button Event)

[Bladimir Silva Toro]

I need to create a dialog box with a custom design where I can modify the quantity of a product.

I'm using this code for B4A:

    Base=Activity
    Dialog.Initialize (Base)
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, 300dip, 300dip) 'set the content size
    p.LoadLayout("FrmFactDetEditarCant")
    Dialog.ShowCustom(p, "Ok", "", "Cancel")

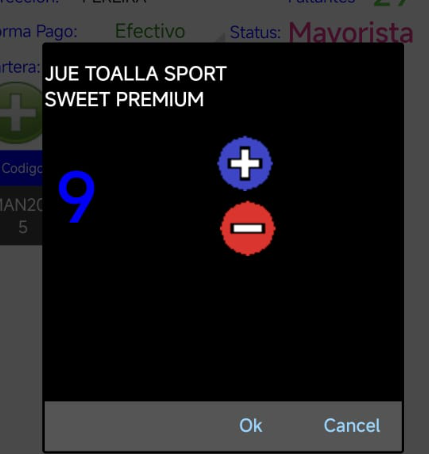

But I can't get the quantity to increase when I press the blue button, even though it's already coded within an activity module.

How can I code these button events in B4XDialog?

Thank you very much for your response.



[Alexander Stolte]

How can I code these button events in B4XDialog?

Just add the event to the module where you load the layout with the buttons.
If this dosent work, then provide an example projekct. what shows the problem.



[Bladimir Silva Toro]

@Alexander Stolte

I've already created the activity module, and it works fine when done with StartActivity(FrmFactDetEditarCant). The buttons work fine.

But the problem seems to be that B4XDialog only loads the layout, but not the events when the buttons are pressed.

Is there any way to do this?



[stevel05]

You would need to create a DialogTemplate and load the layout and handle the events in there. Example attached



[Bladimir Silva Toro]

Okay, now it's solved. Simply add the Button objects to the view. See the code in B4A.

The first thing is to use the XIU Views library. Declare the variables in Globals.

Private Dialog As B4XDialog
Private Base As B4XView
Private xui As XUI

Dim btn As Button
btn.Initialize("btnsumarcant")
btn.SetBackgroundImage(LoadBitmap(File.DirAssets, "MasAzul32.png"))
Dim btn1 As Button
btn1.Initialize("btnrestarcant")
btn1.SetBackgroundImage(LoadBitmap(File.DirAssets, "MenosRojo32.png"))
Base=Activity
Dialog.Initialize (Base)
Dim p As B4XView = xui.CreatePanel("")
'Add the Buttons in Dialog
p.AddView(btn, 200dip, 60dip, 50dip, 50dip)
p.AddView(btn1, 200dip, 120dip, 50dip,50dip)
p.SetLayoutAnimated(0, 0, 0, 300dip, 300dip) 'set the content size
Dialog.ShowCustom(p, "Edit", "", "Cancel")

Then add the events in the same activity module. See Code in B4A.

Sub btnsumarcant_Click
    lblcant.Text=NumberFormat(lblcant.Text+1, 0, 0)
End Sub
Sub btnrestarcant_Click
    lblcant.Text=NumberFormat(lblcant.Text-1, 0, 0)
    If lblcant.Text<=0 Then
        lblcant.Text=0
    End If
End Sub

Thank you very much. I learned a lot today.



[stevel05]

I feel the need to point out that while it obviously can be done in the class as you have proved, using templates that B4x provides will help keep your modules tidier and your project better structured and easier to maintain in the long run. You have added 20+ lines of code to your class, where as using a template would add considerably less. Do that on 2 or 3 occasions and you class will start looking a bit full. Just a suggestion, but worth considering.



[LucaMs]

O.T. ?

I would use a B4XPlusMinus.
