B4J Question How to clear previous loaded layout with transparent panes

[ThRuST]

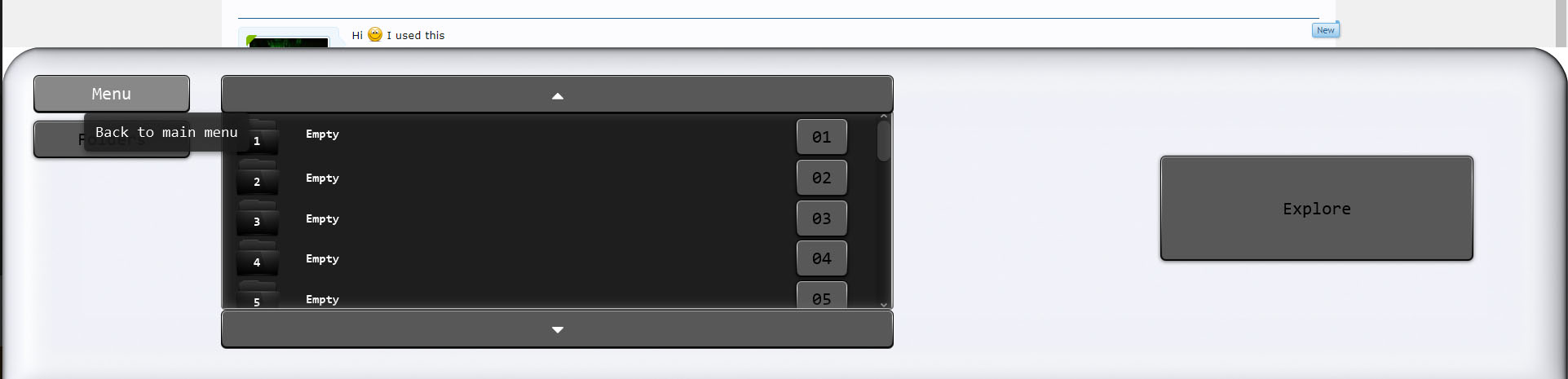

I need to clear previous loaded layout in the background when loading a new one since the previous layout leaves graphics garbage in the corners when loading a new layout that uses a rounded layout similar to a Surfpad.
How can I clear all previously loaded layouts to have the underlying graphics cleared? Cheers



[stevel05]

Well, that depends on where you loaded the layout in the first place. Either Form.RootPane.RemoveAllNodes, or Pane.RemoveAllNodes before loading the new layout. should do it.



[ThRuST]

Hi I used this

MainForm.RootPane.LoadLayout("Panel") 'Load the layout file.



[stevel05]

Then do
MainForm.RootPane.RemoveAllNodes, before loading a new layout.



[ThRuST]

Hmm it still leavs white corners. Might have to change the mainform style.

Strange it should work with this

MainForm = Form1
    MainForm.SetFormStyle("TRANSPARENT")
    MainForm.RootPane.LoadLayout("Panel_Menu") 'Load the layout file.
    MainForm.Show



[Daestrum]

It looks like you set the corner-radius, but not the background-radius.



[ThRuST]

How to do that?



[ThRuST]

CSS?



[Daestrum]

CSSUtils.SetStyleProperty(MainForm.RootPane,"-fx-background-radius","15px")



[ThRuST]

Hmm Thanks Daestrum I tried that after loading the new layout but it still got those white corners. Perhaps corner radius like Steve said.



[ThRuST]

No, still white
tried -fx-corner-radius as well.
Please attach a little sample project that solve it. Then I can make it work



[Daestrum]

Sorry my mistake (had a white background on screen so never saw corners properly)
This works for me

…
 asJO(MainForm).GetFieldJO("scene").RunMethod("setFill",Array(fx.Colors.Transparent))
End Sub
Sub asJO(o As JavaObject)As JavaObject
 Return o
End Sub



[ThRuST]

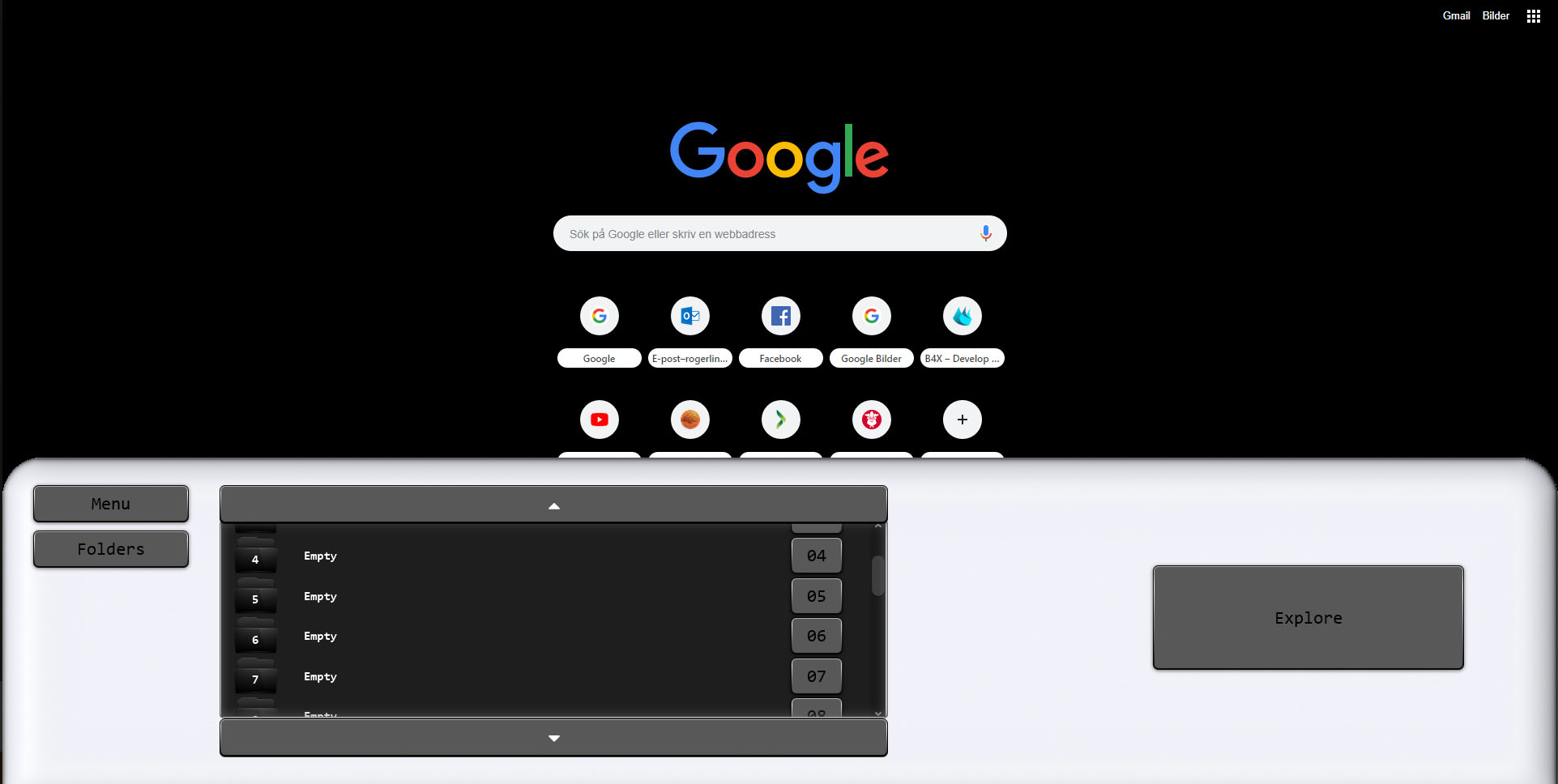

Damn I can't live without you guys See how beautiful it looks, even though I will add a dark gradient to make the edges less sharp. This looks promising indeed.
Every detail is important in a project, and I'm able to pass every step along the way because of this forum. Thank you so much Steve and Daestrum
