B4J Question jGoogleMaps - Array of LatLng - gmap.AddPolyline - array parameter produce an error

[amorosik]

On jGoogleMaps example i have insert extra code to display a path of veichle

Dim array_punti(1000) As LatLng
Dim count as long=0
Dim MyRs As ResultSet = MyDB.ExecQuery("select codice, latitudine, longitudine from LOGPERCORSI")

Do While MyRs.NextRow
    array_punti(count).Initialize(MyRs.GetDouble("latitudine"), MyRs.GetString("longitudine"))
    loop

gmap.AddPolyline( array_punti, 4, fx.Colors.Cyan)

When i start project, at runt time on ...AddPolyLine.... line, i get ths error
(AddPolyLine is ..... Errore nella linea: 374)
What I would like to do is load a LatLng array and then pass it to the AddPolyLine function
But not function correctly, why?
JGoogleMaps 1.82

Waiting for debugger to connect...
Program started.
2020 09 16 14 38 48 659 - avvio AppStart
Get setting...
set 16, 2020 2:38:48 PM org.firebirdsql.logging.JulLogger warn
AVVERTENZA: WARNING: No connection character set specified (property lc_ctype, encoding, charSet or localEncoding), defaulting to character set NONE
MainForm_Resize
Alert: loadMapLibrary
mapLibraryLoaded!
Alert: !!!mapLibraryLoaded!!!
Errore nella linea: 374
netscape.javascript.JSException: SyntaxError: Unexpected identifier 'lat'. Expected either a closing ']' or a ',' following an array element.
    at com.sun.webkit.dom.JSObject.fwkMakeException(JSObject.java:156)
    at com.sun.webkit.WebPage.twkExecuteScript(Native Method)
    at com.sun.webkit.WebPage.executeScript(WebPage.java:1519)
    at javafx.scene.web.WebEngine.executeScript(WebEngine.java:1005)
    at com.lynden.gmapsfx.javascript.JavaFxWebEngine.executeScript(JavaFxWebEngine.java:59)
    at com.lynden.gmapsfx.javascript.JavascriptRuntime.execute(JavascriptRuntime.java:63)
    at com.lynden.gmapsfx.javascript.JavascriptObject.<init>(JavascriptObject.java:91)
    at com.lynden.gmapsfx.javascript.object.MVCArray.<init>(MVCArray.java:34)
    at anywheresoftware.b4j.googlemaps.GoogleMapWrapper.AddPolyline(GoogleMapWrapper.java:501)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at anywheresoftware.b4a.shell.Shell.runVoidMethod(Shell.java:676)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:240)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:167)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
    at anywheresoftware.b4a.shell.ShellBA.raiseEvent2(ShellBA.java:98)
    at anywheresoftware.b4a.debug.Debug.delegate(Debug.java:64)
    at starchild.osm.test.main._visualizza_percorso_mezzo(main.java:300)
    at starchild.osm.test.main._chk5_checkedchange(main.java:1215)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:632)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:237)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:167)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:91)
    at anywheresoftware.b4a.shell.ShellBA.raiseEvent2(ShellBA.java:98)
    at anywheresoftware.b4a.BA$1.run(BA.java:216)
    at com.sun.javafx.application.PlatformImpl.lambda$null$5(PlatformImpl.java:295)
    at java.security.AccessController.doPrivileged(Native Method)
    at com.sun.javafx.application.PlatformImpl.lambda$runLater$6(PlatformImpl.java:294)
    at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
    at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
    at com.sun.glass.ui.win.WinApplication.lambda$null$4(WinApplication.java:186)
    at java.lang.Thread.run(Thread.java:748)



[LucaMs]

First, you are not increasing Count in the loop.

Second, I've never used this stuff; post the link to the project ("jGoogleMaps example") or better, if you can, attach yours.



[Star-Dust]

It must be a list not an array



[LucaMs]

Second, I've never used this stuff;

Anyway he made me want to try... tomorrow, maybe! ?



[amorosik]

It must be a list not an array

You can see

Point - A list or array of LatLng point

I believe the meanig is 'a list of LatLng' or 'an array of LatLng'



[amorosik]

First, you are not increasing Count in the loop.
Second, I've never used this stuff; post the link to the project ("jGoogleMaps example") or better, if you can, attach yours.

jGoogleMaps library with example

Obviously a count = count + 1 line is missing inside the loop

On example at link, there is an indication of how to add a path using the AddPolyline
But if you are loading a sequence of points from db, you don't know a priori how many they will be and so I thought of doing a loop to read the pairs of values inside a LatLng array
And then feed the arrary to the AddPolyline function
But it crashes the code, it shoots out the above error

Errore nella linea: 374
netscape.javascript.JSException: SyntaxError: Unexpected identifier 'lat'. Expected either a closing ']' or a ',' following an array element.
at com.sun.webkit.dom.JSObject.fwkMakeException(JSObject.java:156)
at com.sun.webkit.WebPage.twkExecuteScript(Native Method)



[LucaMs]

Make it clear.

Dim array_punti(1000) As LatLng
Dim count as Int = 0 '<--- why Long?

Dim MyRs As ResultSet = MyDB.ExecQuery("select codice, latitudine, longitudine from LOGPERCORSI")

Dim Lat, Lng As Double
Do While MyRs.NextRow
    Lat = MyRs.GetDouble("latitudine")
    Lng = MyRs.GetDouble("longitudine")
    array_punti(count).Initialize(Lat, Lng)
    Count = Count + 1
  Loop

gmap.AddPolyline( array_punti, 4, fx.Colors.Cyan)



[amorosik]

Make it clear.

Dim array_punti(1000) As LatLng
Dim count as Int = 0 '<--- why Long?

Because it costs the same
Also Int is ok



[LucaMs]

But if you are loading a sequence of points from db, you don't know a priori how many they will be

SELECT COUNT(*) FROM LOGPERCORSI



[LucaMs]

MyRs.GetString("longitudine")

It it correct? GetString?



[amorosik]

SELECT COUNT(*) FROM LOGPERCORSI

This is AFTER a select not prior ?



[LucaMs]

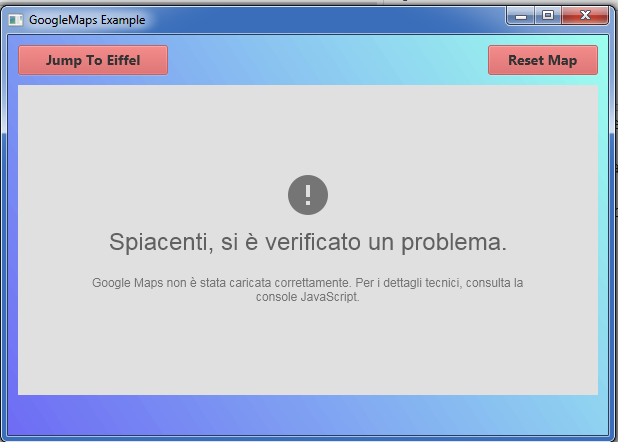

[Serve un'API key, per cui... non provo]
An API key is required, so I won't try.



[amorosik]

It it correct? GetString?

No is a mistake
GetDouble is correct



[amorosik]

[Serve un'API key, per cui... non provo]
An API key is required, so I won't try.

if you try Erel's example you will see that it works, do not investigate further



[LucaMs]

if you try Erel's example you will see that it works, do not investigate further

Then I just need your DB ?



[klaus]

Use a List!
You initialize it and add new values.
No matter how many items you have.



[LucaMs]

if you try Erel's example you will see that it works, do not investigate further

Just for one second I saw the map!



[Carlos marin]

Hi

Dim poligonos As List
poligonos.Initialize
Dim l1 As LatLng
l1.Initialize(Point.Latitude,Point.Longitude)
poligonos.Add(l1)

to add

gmap.AddPolygon(poligonos,1,fx.Colors.Cyan,fx.Colors.Black,0.10)



[LucaMs]

Hi

Dim poligonos As List
poligonos.Initialize
Dim l1 As LatLng
l1.Initialize(Point.Latitude,Point.Longitude)
poligonos.Add(l1)

to add

gmap.AddPolygon(poligonos,1,fx.Colors.Cyan,fx.Colors.Black,0.10)

Belen ?


(I chose a very chaste photo)
(Edit by Erel: I removed this image. Not appropriate for this forum).



[TILogistic]

Hi

Dim poligonos As List
poligonos.Initialize
Dim l1 As LatLng
l1.Initialize(Point.Latitude,Point.Longitude)
poligonos.Add(l1)

to add

gmap.AddPolygon(poligonos,1,fx.Colors.Cyan,fx.Colors.Black,0.10)

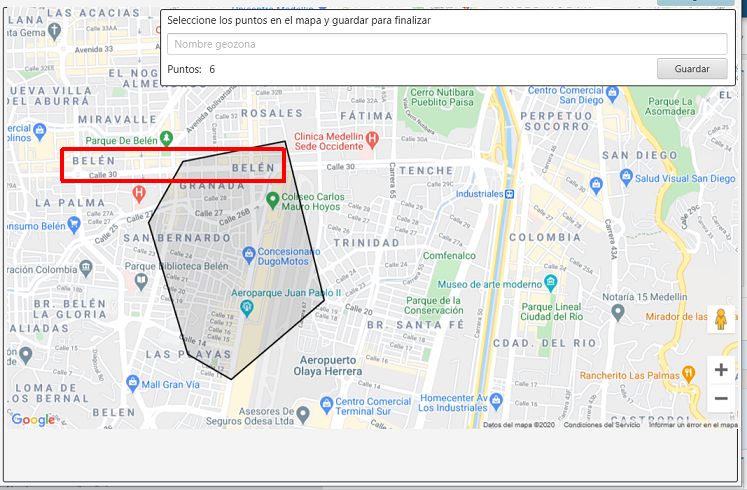

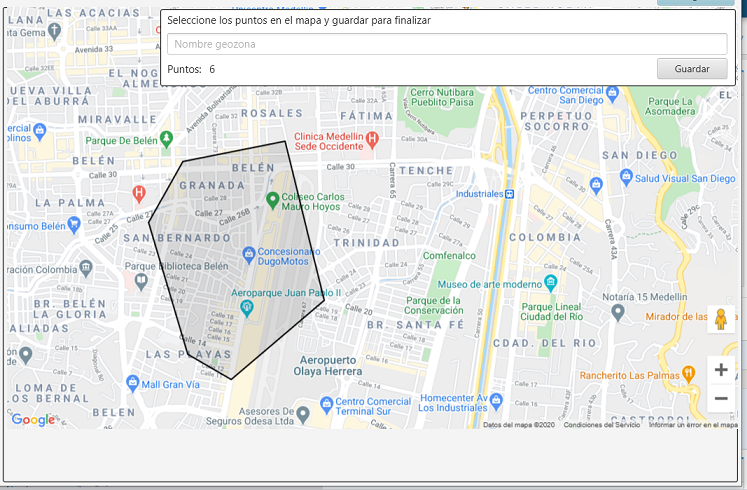

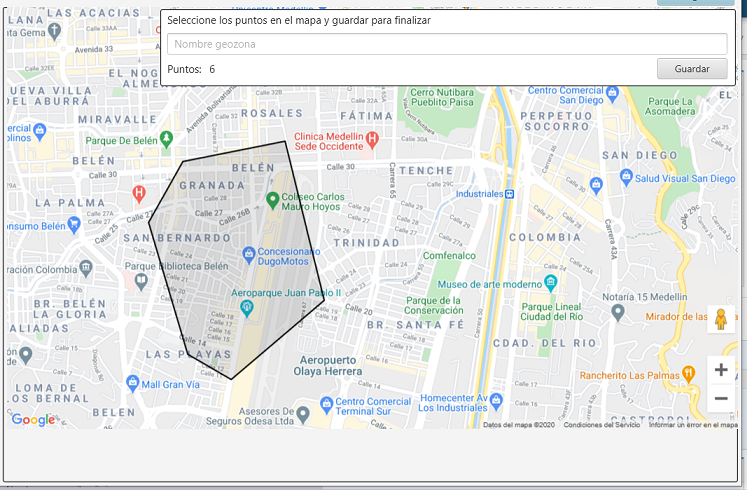

sample AddPolygon figure. 7 points

latitude and longitude

the start point is equal to the end point, to close the polygon
