Android Question MQTT Connection on Android Problem

[ciapw]

Hi . I have ran this code and the mqtt connection is connected ( i know this because my logger shows "Berhasil Konek" and "Connected". Then it will subscribe to mytopic. I am trying to send data as publisher from MyMQTT app on another phone, and get the data by using serializator then i will show the data through label.
I think there is problem in mqtt_MessageArrived because there is an error in logger showing :

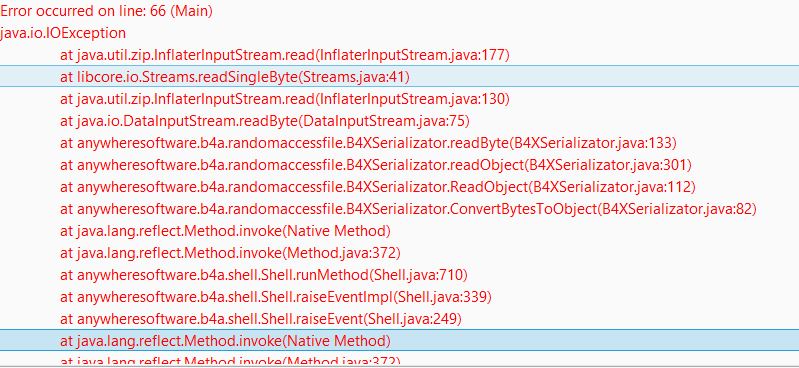

I am sorry i couldnt find a way to copy the logger error, so i capture it

Please comment. I do appreciate any given comments and feedbacks . Thanks a lot

Sub Process_Globals
   'These global variables will be declared once when the application starts.
   'These variables can be accessed from all modules.
   Private Mqtt As MqttClient
   Private MQTTServerURI As String = "tcp://37.187.106.16:1883"
   Private MQTTConnected As Boolean = False
   Private mytopic As String = "cynthia/status"
   Private serializator As B4XSerializator
End Sub

Sub Globals
   'These global variables will be redeclared each time the activity is created.
   'These variables can only be accessed from this module.
   Private Label1 As Label
   Private tampung As String
End Sub

Sub Activity_Create(FirstTime As Boolean)
   'Do not forget to load the layout file created with the visual designer. For example:
   'Activity.LoadLayout("Layout1")
   Activity.LoadLayout("satu.bal")
   mqtt_Connect

End Sub

Sub mqtt_Connect
   Dim clientId As String = "bed1"
   Mqtt.Initialize("mqtt",MQTTServerURI,clientId)
   Mqtt.Connect
   Log("Berhasil Konek")
End Sub

Private Sub mqtt_Connected (Success As Boolean)
   If Success Then
     MQTTConnected = Success
     Log("Connected")
     'Mqtt.Publish(mytopic,"Berhasil".GetBytes("UTF8"))
     Mqtt.Subscribe(mytopic,0)
   Else
     MQTTConnected = False
     Log("Failed")
   End If
End Sub

Private Sub mqtt_Disconnected
   Log("Disconnected")
End Sub

Private Sub mqtt_MessageArrived (Topic As String, Payload() As Byte)
   Log("Message Arrive: ")
   Log(BytesToString(Payload,0,Payload.Length,"UTF-8"))
   Dim aku As Object = serializator.ConvertBytesToObject(Payload)
   Dim s As String = aku
   Label1.Text= s
End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

[/CODE



[Erel]

I am sorry i couldnt find a way to copy the logger error, so i capture it

Right click on the logs.

Where is the code that sends the data?

What is the output of
Log(BytesToString(Payload,0,Payload.Length,"UTF-8")) ?



[ciapw]

hi .. i use MyMqtt app to send the data. I sent haiiiiii to cynthia/status and through the logs i find out that the message was received.

Logger connected to: Meizu m2
--------- beginning of main
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create, isFirst = true **
Berhasil Konek
** Activity (main) Resume **
Connected
done
Message Arrive:
haiiiiii

the value of Payload are :
0 104 (0x68)
1 97 (0x61)
2 105 (0x69)
3 105 (0x69)
4 105 (0x69)
5 105 (0x69)
6 105 (0x69)
7 105 (0x69)



[Erel]

What is MyMqtt app? Unless it is a B4X app that uses B4XSerializator then you cannot use serializator.ConvertBytesToObject(Payload) to deserialize the payload.



[DonManfred]

the logs i find out that the message was received

so it is working i guess

ETA

So this should work...

Private Sub mqtt_MessageArrived (Topic As String, Payload() As Byte)
   Log("Message Arrive: ")
   Dim s As String = BytesToString(Payload,0,Payload.Length,"UTF-8")
   Label1.Text= s
End Sub



[ciapw]

yes.. it's working till there, but when i continue the code.. it crash and show the error in the pic

so it is working i guess



[ciapw]

MyMqtt app is an app that I found on google playstore which can simplify the publish and the subscribe events. So i just need to enter the topic with the message and publish it with a simple touch. I don't know whether it use B4XSerializator or not ..

What is MyMqtt app? Unless it is a B4X app that uses B4XSerializator then you cannot use serializator.ConvertBytesToObject(Payload) to deserialize the payload.



[DonManfred]

it crash and show the error in the pic

check edited #5 again.....



[DonManfred]

I don't know whether it use B4XSerializator or not

most probably not.



[ciapw]

Thanks a lot brother. It is working

so it is working i guess

ETA

So this should work...

Private Sub mqtt_MessageArrived (Topic As String, Payload() As Byte)
   Log("Message Arrive: ")
   Dim s As String = BytesToString(Payload,0,Payload.Length,"UTF-8")
   Label1.Text= s
End Sub
