Android Example My Audit (Intent Based Camera and Expandable list based on CustomListView)

Johan Schoeman

Expert
Licensed User
Have combined Expandable List Based on CustomListView and Intent Based Camera to create attached project. The plan is to use this for auditing purposes. Once I am done with this project it will create a PDF from the audit (thinking of using iText with some inline java code. Have already created a sample project with iText - see image at the end of this posting.

1. Questions for the audit is in the /Files folder of the attached project (myaudit.txt) - the questions are populated from this file.

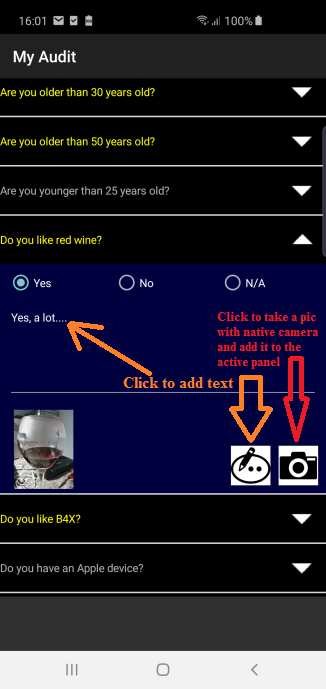

2. Once an item of the list has been expanded, click on the camera icon. Take a snapshot and click "OK". The image will be loaded into the open expandable list
3. Click on the icon to the left of the camera icon. It will enable an edittext box so that you can add a comment(s) - multi line
4. If one of the check boxes has been set and the expandable listview is collapsed, the "title" text color will change from white to yellow so that one knows that the question has been answered.

Sample code:
B4X:
#Region  Project Attributes
    #ApplicationLabel: B4A Expandable List
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

#AdditionalJar: itextg-5.5.10.jar

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals

    Private ion As Object
    Private const tempImageFile As String = "tempimage.jpg"
    Private lastPicture As Bitmap

    Dim activityname As String = "My Audit"


End Sub

Sub Globals
    Private clv1 As CustomListView
    Private lblTitle As B4XView
    Private pnlTitle As B4XView
    Private pnlExpanded As B4XView
    Private xui As XUI
    Private expandable As CLVExpandable
    Dim List1 As List
    Private ImageView1 As ImageView

    Private ImageView2 As ImageView


    Private EditText1 As EditText
End Sub

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("1")
    expandable.Initialize(clv1)

    Log(File.DirRootExternal)
    Log(File.DirAssets)

    ReadListExample

    For i = 0 To List1.Size - 1
        Dim p As B4XView = CreateItem(0xFF000000, List1.Get(i), 350dip)
        clv1.Add(p, expandable.CreateValue(p, "some value"))
    Next


End Sub

Sub CreateItem(clr As Int, Title As String, ExpandedHeight As Int) As B4XView
    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, clv1.AsView.Width, ExpandedHeight)
    p.LoadLayout("Item")
    p.SetLayoutAnimated(0, 0, 0, p.Width, p.GetView(0).Height) 'resize it to the collapsed height
    lblTitle.Text = Title
    pnlTitle.Color = clr
    pnlExpanded.Color = ShadeColor(0x33000055)
    Return p
End Sub

Sub ShadeColor(clr As Int) As Int
    Dim argb() As Int = GetARGB(clr)
    Dim factor As Float = 0.75
    Return xui.Color_RGB(argb(1) * factor, argb(2) * factor, argb(3) * factor)
End Sub

Sub GetARGB(Color As Int) As Int()
    Private res(4) As Int
    res(0) = Bit.UnsignedShiftRight(Bit.And(Color, 0xff000000), 24)
    res(1) = Bit.UnsignedShiftRight(Bit.And(Color, 0xff0000), 16)
    res(2) = Bit.UnsignedShiftRight(Bit.And(Color, 0xff00), 8)
    res(3) = Bit.And(Color, 0xff)
    Return res
End Sub


Sub clv1_ItemClick (Index As Int, Value As Object)
    expandable.ToggleItem(Index)
'    Log("value = " & Value)

    Sleep(400)  ' stops error
    Dim pnlItems As B4XView = clv1.GetPanel(Index).GetView(1)   'pnlExpanded is Second Item on Item layout
'    Dim mbm As B4XBitmap = pnlItems.GetView(0).GetBitmap        'the imageview that holds the pic is at index = 1

    Dim pnlItems As B4XView = clv1.GetPanel(Index).GetView(1)
    Dim rbYes As RadioButton = pnlItems.GetView(1)
    Dim rbNo As RadioButton = pnlItems.GetView(2)
    Dim rbNA As RadioButton = pnlItems.GetView(3)

    If rbYes.Checked = True Or rbNo.Checked = True Or rbNA.Checked = True Then    'mbm.IsInitialized = True Or
        Dim pnlTitle As B4XView = clv1.GetPanel(Index).GetView(0)   'pnlTitle is First Item on Item layout
        pnlTitle.GetView(0).TextColor = Colors.Yellow
    End If


'    'Title Panel ...
'    Dim pnlTitle As B4XView = clv1.GetPanel(Index).GetView(0)   'pnlTitle is First Item on Item layout
'    pnlTitle.GetView(0).Text = "This is a New Title"            'lblTitle is first pnlTitle View
'
'    'Items Panel ...
'    Dim pnlItems As B4XView = clv1.GetPanel(Index).GetView(1)   'pnlExpanded is Second Item on Item layout
'    pnlItems.GetView(0).Text = "ABC"      '1st panel view
'    pnlItems.GetView(1).Text = "123"      '2nd panel view

End Sub


Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub


Sub ReadListExample

    'We are not initializing the list because it just holds the list that returns from File.ReadList
    List1 = File.ReadList(File.DirAssets, "myaudit.txt")
    'Msgbox("List1.Size = " & List1.Size & CRLF & "The third item is: " & List1.Get(2), "")
End Sub


'Sub Button1_Click
'    Log("clicked")
'    Dim index As Int
'    index=clv1.GetItemFromView(Sender)
'    handlepicture(index)
'
'End Sub


Sub handlepicture(index As Int)

    Activity.LoadLayout("2")
    If lastPicture.IsInitialized Then ImageView1.Bitmap = lastPicture
    TakePicture
    Activity.RemoveViewAt(1)                                         'remove the imageview that displays the captured image
    Sleep(400)
    Activity.RemoveViewAt(1)                                         'remove the button TAKE PICTURE

    Dim pnlItems As B4XView = clv1.GetPanel(index).GetView(1)        'pnlExpanded is Second Item on Item layout
    Sleep(400)
    lastPicture = lastPicture.Resize(100dip, 100dip, True).Rotate(90)
    pnlItems.GetView(0).SetBitmap(lastPicture)                       'the imageview that holds the pic is at index = 1
    pnlItems.GetView(0).Visible = True

End Sub


Sub TakePicture
    Dim i As Intent
    i.Initialize("android.media.action.IMAGE_CAPTURE", "")
    File.Delete(Starter.provider.SharedFolder, tempImageFile)
    Dim u As Object = Starter.provider.GetFileUri(tempImageFile)
    i.PutExtra("output", u) 'the image will be saved to this path
    Try
        StartActivityForResult(i)
    Catch
        ToastMessageShow("Camera is not available.", True)
        Log(LastException)
    End Try
    Activity.Title = activityname
End Sub

'result arrives here
Sub ion_Event (MethodName As String, Args() As Object) As Object

    If Args(0) = -1 Then
        Try
            Dim in As Intent = Args(1)
            If File.Exists(Starter.provider.SharedFolder, tempImageFile) Then
                lastPicture = LoadBitmapSample(Starter.provider.SharedFolder, tempImageFile, ImageView1.Width, ImageView1.Height)
                ImageView1.Bitmap = lastPicture

            Else If in.HasExtra("data") Then 'try to get thumbnail instead
                Dim jo As JavaObject = in
                lastPicture = jo.RunMethodJO("getExtras", Null).RunMethod("get", Array("data"))
            End If
        Catch
            Log(LastException)
        End Try
    End If
    If lastPicture.IsInitialized Then ImageView1.Bitmap = lastPicture
    Return Null
End Sub


Sub StartActivityForResult(i As Intent)
    Dim jo As JavaObject = GetBA
    ion = jo.CreateEvent("anywheresoftware.b4a.IOnActivityResult", "ion", Null)
    jo.RunMethod("startActivityForResult", Array As Object(ion, i))
End Sub

Sub GetBA As Object
    Dim jo As JavaObject
    Dim cls As String = Me
    cls = cls.SubString("class ".Length)
    jo.InitializeStatic(cls)
    Return jo.GetField("processBA")
End Sub



Sub ImageView3_Click

    Log("clicked")
    Dim index As Int
    index=clv1.GetItemFromView(Sender)
    handlepicture(index)

End Sub

Sub ImageView4_Click

    EditText1.SingleLine = False

    Dim index As Int
    index=clv1.GetItemFromView(Sender)
    Dim pnlItems As B4XView = clv1.GetPanel(index).GetView(1)        'pnlExpanded is Second Item on Item layout
    Sleep(400)
    pnlItems.GetView(6).Visible = True

End Sub
Take note of the Manifest!



2.

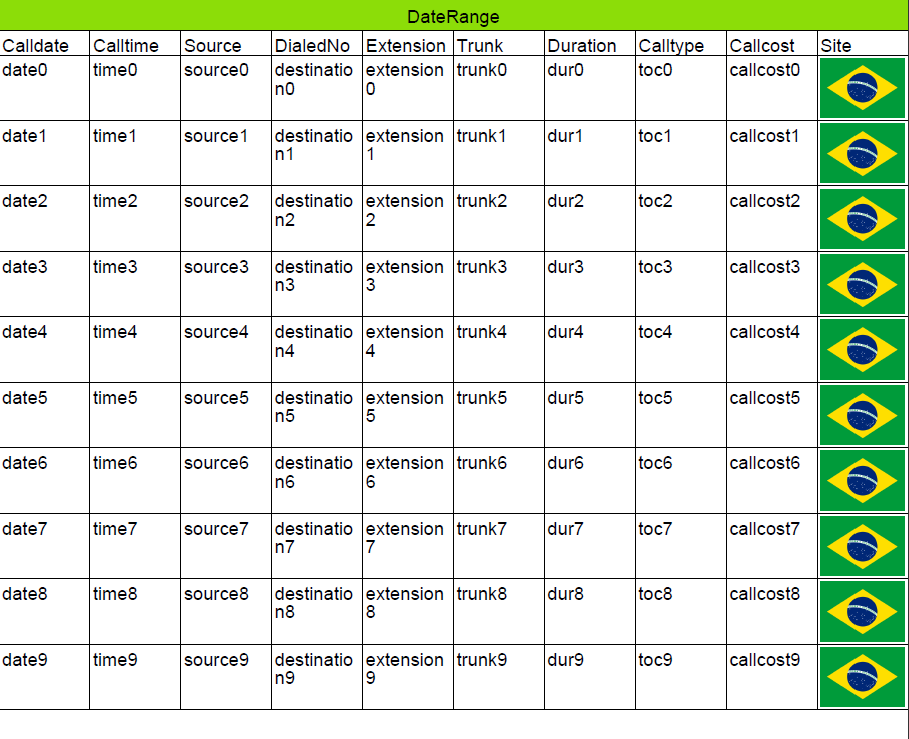

Created PDF with iText and inline Java code.


Attachments

Johan Schoeman

Expert
Licensed User

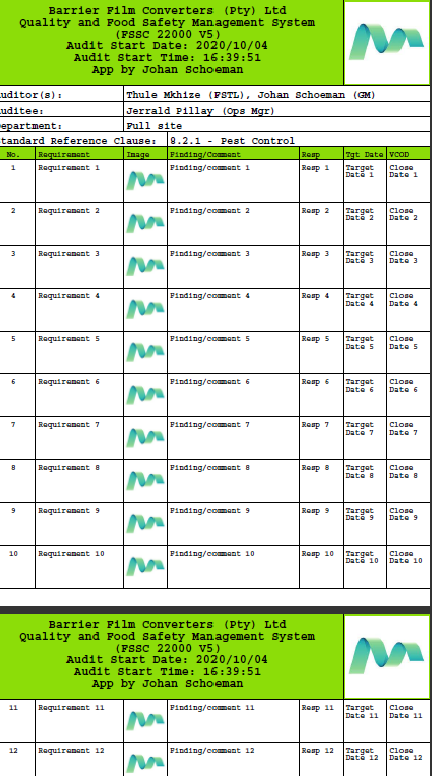

PDF created with iText (using inline Java code in the B4A project) - now need to populate it with the info and images captured in the Expandable List / CustomeListView.....
