Share My Creation Pen&Paper: PWCT for Basic ABMaterial WebApps

Discussion in 'B4J Share Your Creations' started by Mashiane, Aug 22, 2016.

  1. Mashiane

    Mashiane Expert Licensed User

    Pen&Paper Explained.png


    The intension of Pen & Paper is the creation of ABMaterial WebApps as depicted in the drawing above. This was developed as a pet project out of a personal need to create ABMaterial WebApps. So far everything has gone well with the outputs.

    1. The ABMaterial Library comes out with an XML file that has vast information about the components (depicted as classed) including their properties (attributes), events and methods. Any Library viewer is able to access these too.
    2. These classes are represented as property bags in Pen & Paper so that I can create any component by just changing the various attributes, whether true/false, specifying text etc. The way the components are built, initialized and added to pages/containers/modal sheets has been explained in detail in the ABMaterial Demo, where all of this started.
    3&4. On creating an ABM project with Pen & Paper, two databases are created, one to store the project definition (pages and component structures i.e. propertybags) and the other a production one that the data will be stored in. These are both in SQLite. Pen & Paper has functionality to perform a DAO (Data Access Object) link for each backend table and fields you want to link a component to. This is essence creates a CRUD code base. This was inspired by the ABMCRUD generator that produces a structure of ones ABMTable and ABMModal sheet with the specific input components.
    5. On Project Build, Pen & Paper produces a complete B4J application including the source code that can be compiled to generate a working version of an ABM Web Application.
    6. Pen & Paper does not come bundled with ABMaterial, is not affiliated with ABMaterial and to compile any Pen & Paper project to a fully fledged working ABM Webapp, you need the ABM Libraries. It is just a helper tool to elimitate the repetitive nature of creating projects, pages, containers, modalsheets, etc, in a programming without coding technology fashion. It does NOT in anyway replace ABM or intends to replicate its functionality as it just generates B4J code for your ABM application, this being achieved by use of property bags to create your components and generate the respective source code based on your options, eliminating the need to type code and what anyone gets out is the basic stuff to make ones project work. Not everything ABM is here anyway.

    As everything that has a beginning has an end. This personal enjoyment project will stop being maintained as other things will evolve. As on 31 March 2018, there is no intention to advance this any further than what it is. Thanks for B4J this project was possible.

    Steps in using Pen & Paper
    • Get everything related to Pen&Paper from this DropBox Link. Get executable from jar folder.
    • See videos below on usage and related articles
    • Please note that not all ABM components are covered with Pen&Paper as yet.

    2018 Tutorials

    Creating a Sign In Modal Dialog with Options

    Interesting Tutorials
    2017-12-20

    Creating a simple 'Contacts' ABMaterial WebApp - Part 1
    Creating a simple 'Contacts' ABMaterial WebApp - Part 2
    Creating a simple 'Contacts' ABMaterial WebApp - Part 3

    Below are some of the articles touching on code generated by Pen&Paper.

    ABMaterial WebApps created with Pen&Paper

    Bible.Show

    CodeProject Article

    Creating the Bible.Show WebApp with ABMaterial

    Some YouTube Links







    Pen&Paper is built using B4J and distributed with jMashProjectProfile.

    NB: You will need the ABMaterial Framework to compile the generated source code.


    Attached Files:

    Last edited: May 24, 2018
  2. Harris

    Harris Well-Known Member Licensed User

    Very interesting....
    I wish you well in your development as this could be extremely useful in building webapp projects with ABMaterial.

  3. Mashiane

    Mashiane Expert Licensed User

    Thanks for the vote of confidence. I'm sure I will be able to figure most of it out bit by bit as I go along.

    BillMeyer and joulongleu like this.
  4. Harris

    Harris Well-Known Member Licensed User

    Judging by your other contributions, you shall have no problem with this en-devour. You also have the master to consult - alwaysbusy.

    You are right, it is mostly repetitive. Duplicate methods appear in each page. With any luck, we can move these to a code module (shared), yet I am pretty sure ABM has already attempted this. Initialize, WebSocket_Connected, WebSocket_Disconnected, Page_ParseEvent (and others) need to be methods of each page. However, I am sure we could compact other methods into a shared code mod to help reduce the repetitiveness.

    After 2.5 years of trying to master the technologies required to build web stuff (apps / front ends) - to no satisfactory avail, I stumbled upon ABM. It is a God Send. I never knew what I would use B4J for until this came along. ABM has taught me alot about B4J, since it is built on top of. All of what I know from B4A is easily transferred to the other B4X platforms. I could expend many more years to master Java, but why should I? B4X has already taken care of this for me...

    I could go on and on about the virtues of B4X, yet I have already done so elsewhere and we already know these. Suffice to say that whatever anyone does to enhance this platform is a bonus for us all.

    I look forward to your en devours and thanks for supporting this framework. I am the biggest benefactor.

    Harris

    joulongleu, hibrid0 and Erel like this.
  5. Mashiane

    Mashiane Expert Licensed User

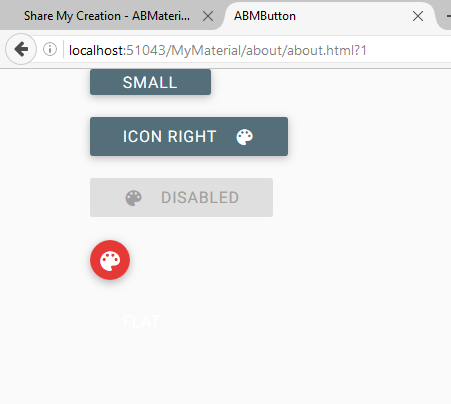

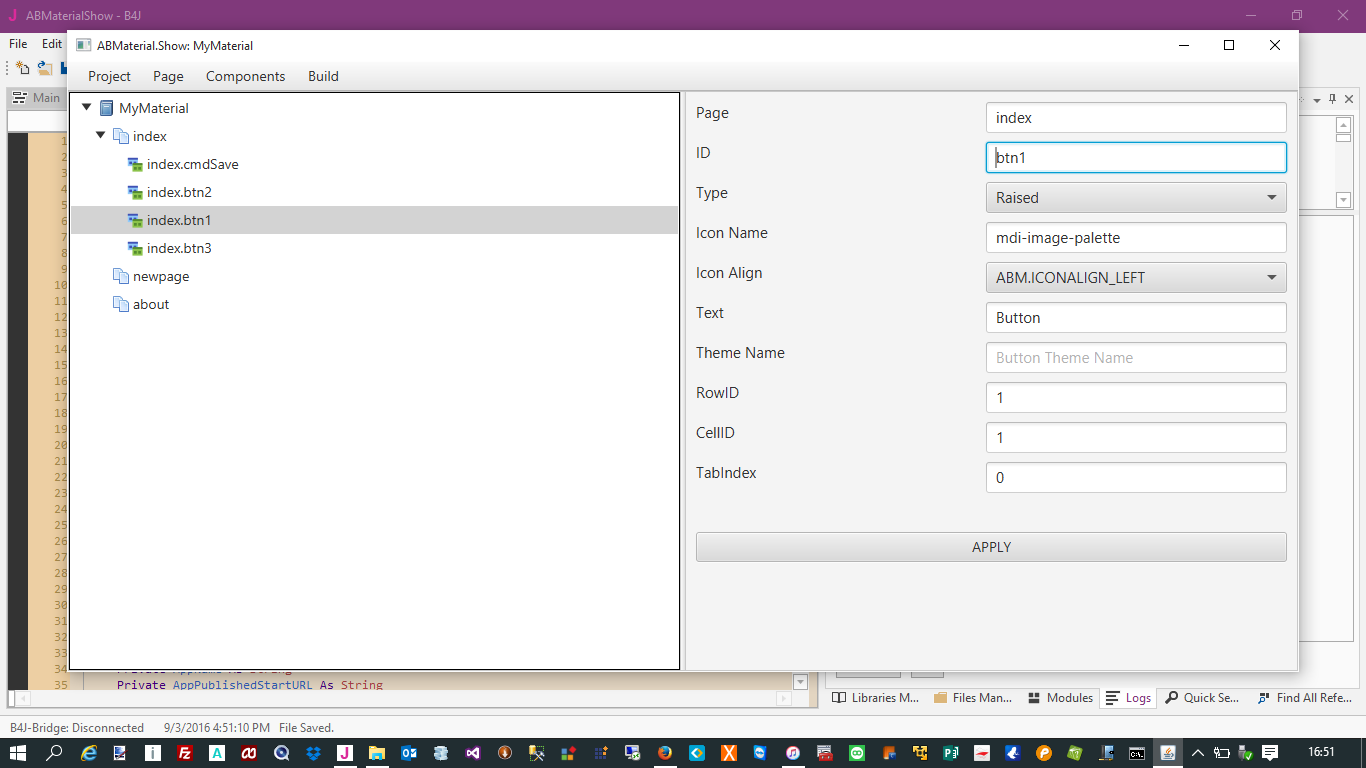

    ABMaterial.Show: ABMButton (incomplete but working)

    I have been trying to work with components and started with a button, its simple but took a while to get around. There is a Connected/Disconnected issue when it runs in the browser. Perhaps someone with good eyes can point me to what I'm missing.

    Reproduction:

    1. Extract the attached zip and run the project. I have included my own exploration project here i.e MyMaterial.db.
    2. Open the attached b4j project i.e. ABMaterialShow.b4j and run it.
    3. File > Open, select MyMaterial.db as the project.
    4. File > Compile, this now opens the web localhost location of the app and opens the generated project in b4j, this case MyMaterial.b4j
    5. Run MyMaterial.bj4

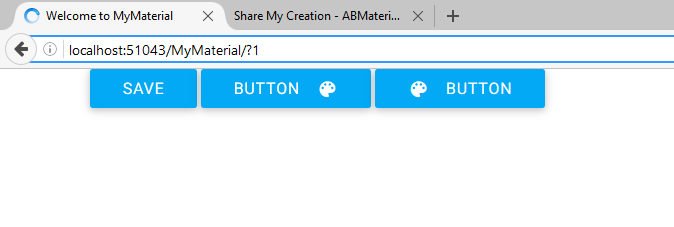

    6. Refresh the browser i.e http://localhost:51043/MyMaterial. See the attached image of what should be displayed if all works well.

    Adding your own buttons to a page.

    1. Select the page to add ABMButton to.
    2. Components > ABMButton
    3. Specify the ABButton properties in the provided section
    4. Click Apply
    5. File > Compile

    Your project might not compile if its already running. You will need to open the task manager to kill java related processes and rerun the app.

    Known Issues

    1. In the web browser, the generated project in this case MyMaterial refreshes in a loop. I dont know what on earth is causing that.
    2. Build > Build Application will compile your project to a jar file however on the second step where it asks you to Execute the generated jar file, for some reason I'm getting a Java Virtual Machine Error. I would like a way to compile, build, execute the app so that a user can just refresh the webbrowser to run the app.
    3. I will master the grid soon enough, so for now, I'm using Row 1 and column 1 for the buttons.

    Distribution

    This project has been distributed with jMashProjectProfile


    Attached Files:

    joulongleu, Johan Schoeman and Erel like this.
  6. alwaysbusy

    alwaysbusy Expert Licensed User

    Hi Mashiane,

    I couple of things I noticed:

    1. You have not set the InitialPage variable in ABMApplication (e.g. Dim InitialPage as String = "about/about.html". This causes your loop because it keeps reloading itself. (case sensitive!)
    2. Do not add components to ABMApplication, add them to the about page. Besides properties like Title or Description, you should not make any changes to ABMApplication.bas. ABMApplication is just the entry point to the App and has to navigate to a page you've created yourself (like about.html).
    3. Since a couple of versions, ABMaterial is dynamic so you should create components in ConnectPage(), not BuildPage(). See the source code of the demo app.
    4. Isn't it possible you get the JVM error because you can't run two B4J projects in debug mode? It mentiones something like can't open port, looking for alternative.

    joulongleu, JakeBullet70 and Mashiane like this.
  7. Mashiane

    Mashiane Expert Licensed User

    Wow, thanks for the advice, will surely follow it up and update this.

    The version 1.20 i have "template folder" structure then is old and needs to be updated to include the ConnectPage method.
    I have also noted that the Large property of the ABMButton is no longer available. This also means the current DemoDynamic examples need to be updated to reflect the new changes where such exists, or perhaps for backward compatibility keep old properties intact.

    I really appreciate your feedback. :)

    Last edited: Sep 4, 2016
    joulongleu likes this.
  8. alwaysbusy

    alwaysbusy Expert Licensed User

    I'll check the template, but you may be looking at a wrong version of the DemoDynamic project as according to my records, this is updated to the latest specs. (it is running on my abmaterial.com server)

    joulongleu, JakeBullet70 and Mashiane like this.
  9. Mashiane

    Mashiane Expert Licensed User

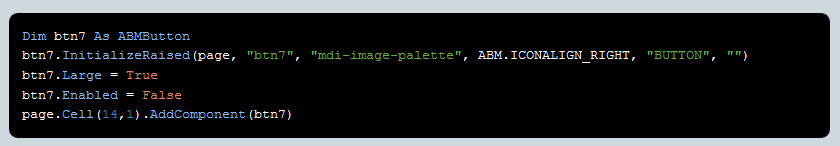

    On the "examples code" of the buttons, some have a Large property which does not exist anymore, thus the example code needs to be updated as most of us will use such as a base reference. That's what I meant.


    Attached Files:

    joulongleu likes this.
  10. Mashiane

    Mashiane Expert Licensed User

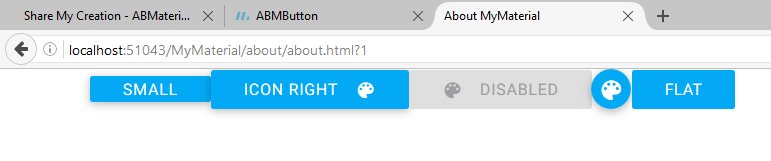

    ABMaterial.Show: ABMButton

    This is a followup of post #5 above including advice received on post #8.

    What's New:

    • The ABMApplication and ABMTemplate modules have been updated to reflect the ConnectPage methods.
    • On the menu of ABMaterial.Show there is now a Maintainance menu. This enables one to Cut, Copy, Paste and Delete components.
    • The page now has ShowLoaderType and Initial Page property. Check Initial Page if you want the page to be the initial page of the app. This automatically updates the App initial page property.

    How to Cut/Copy a Component?

    1. Select component to cut/copy
    2. Select Maintainance > Cut / Copy
    3. Select the page to copy/cut to
    4. Select Maintaince > Paste

    How to Delete a Component?

    1. Select component to delete
    2. Select Maintainance > Delete
    3. Confirm on page

    Will add functionality to remove the component from the tree later for cut and delete.

    The Build functionality of the app will be attended to later. Here we go again...


    Attached Files:

    joulongleu likes this.
  11. alwaysbusy

    alwaysbusy Expert Licensed User

    You are absolutly right! :)

    joulongleu and JakeBullet70 like this.
  12. Cableguy

    Cableguy Expert Licensed User

    hi @Mashiane , do you intent do make it "visual"? almost like a WYSIWYG RAD tool?
    since I discovered ABM I starting brewing the Idea of a "place and try" kind of thing...
    what do you think?

    joulongleu, JakeBullet70 and Mashiane like this.
  13. Mashiane

    Mashiane Expert Licensed User

    Hi Cableguy, currently this tool is for building your UI and the coding thereof you can add. Have you played around with the project?

    joulongleu likes this.
  14. Mashiane

    Mashiane Expert Licensed User

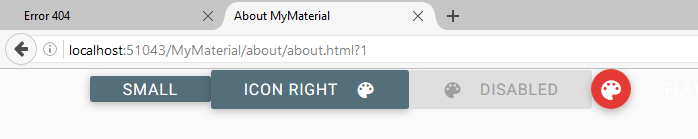

    ABMaterial.Show: Themes & Pages

    What's New

    1. Functionality to add SIMPLE 'shared' themes has been completed for the basic themes. Table themes, chart themes etc will be added soon.
    2. BackColor and BackColorIntensity has been added for each page.
    3. Theme selection for ABMButton is from a selection of added themes to the project. You need to create the themes first to theme the button.

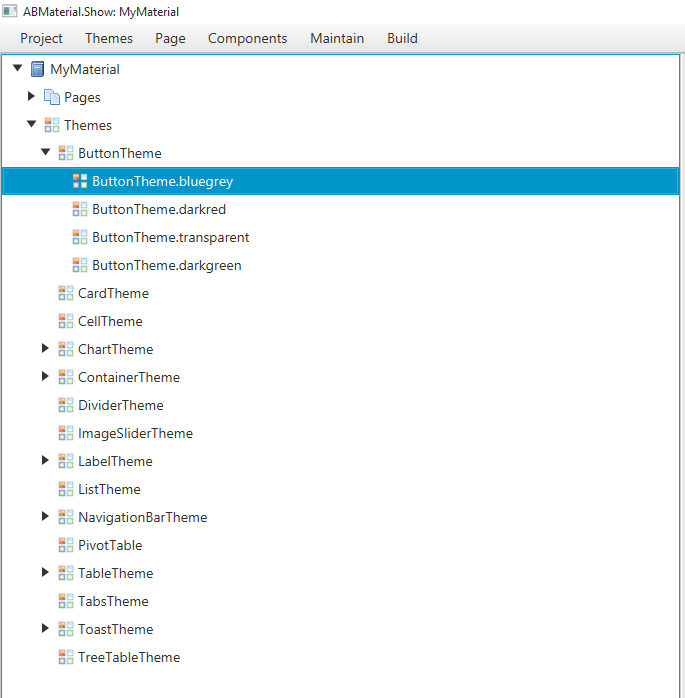

    4. The Project Tree is now categories to Themes and Pages. Selecting 'Themes', 'Pages' items gives a small guide.
    5. A new menu for Themes has been added to add and delete themes.
    6. Templates files have been updated to include the BackColor and BackColorIntensity properties

    To Do:
    Add functionality to cut/copy/paste/delete themes.
    Finalize the more complex themes e.g. table, chart etc.

    Enjoy...


    Attached Files:

  15. Mashiane

    Mashiane Expert Licensed User

    ABMaterial.Show: Themes & Pages continuation from post #14 above

    What's New

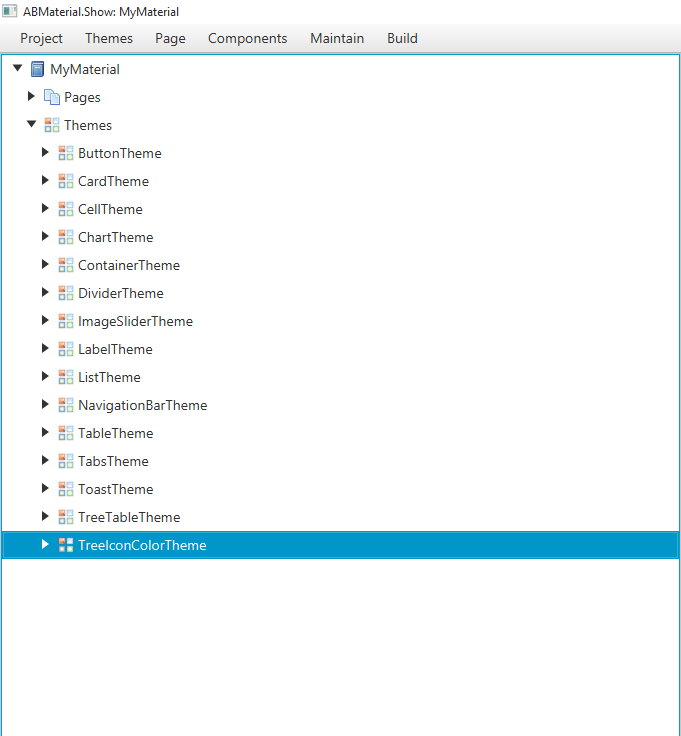

    1. All themes have been completed with the exception of the ChartTheme, the "series" properties have been left out.
    2. An updated menu for Themes has been done, this includes, Copy, Cut, Paste and Delete for each theme.
    3. The Maintain > Delete (for components) is working.
    4. The Theme adding/editing screen has been updated to include most properties for each theme.
    5. You can now rename the theme and component name from the properties screen.

    As an example, the source code below that is generated for the ABMShared module has been generated by ABMShow for MyMaterial Project.

    Code:
    ' add any shared themes
        MyTheme.AddButtonTheme("bluegrey")
    MyTheme.Button(
    "bluegrey").BackColor = ABM.COLOR_BLUEGREY
    MyTheme.Button(
    "bluegrey").BackColorIntensity = ABM.INTENSITY_DARKEN1

    MyTheme.AddButtonTheme(
    "darkred")
    MyTheme.Button(
    "darkred").BackColor = ABM.COLOR_RED
    MyTheme.Button(
    "darkred").BackColorIntensity = ABM.INTENSITY_DARKEN1

    MyTheme.AddButtonTheme(
    "transparent")
    MyTheme.Button(
    "transparent").BackColor = ABM.COLOR_TRANSPARENT

    MyTheme.AddButtonTheme(
    "darkgreen")
    MyTheme.Button(
    "darkgreen").BackColor = ABM.COLOR_GREEN
    MyTheme.Button(
    "darkgreen").BackColorIntensity = ABM.INTENSITY_DARKEN1

    MyTheme.AddCardTheme(
    "whitetitle")
    MyTheme.Card(
    "whitetitle").TitleForeColor = ABM.COLOR_WHITE

    MyTheme.AddCardTheme(
    "basiccard")
    MyTheme.Card(
    "basiccard").BackColor = ABM.COLOR_BLUEGREY
    MyTheme.Card(
    "basiccard").ActionForeColor = ABM.COLOR_ORANGE
    MyTheme.Card(
    "basiccard").TitleForeColor = ABM.COLOR_WHITE
    MyTheme.Card(
    "basiccard").ContentForeColor = ABM.COLOR_WHITE

    MyTheme.AddCardTheme(
    "redpanel")
    MyTheme.Card(
    "redpanel").BackColor = ABM.COLOR_RED
    MyTheme.Card(
    "redpanel").ContentForeColor = ABM.COLOR_WHITE

    MyTheme.AddCellTheme(
    "cellLB")
    MyTheme.Cell(
    "cellLB").BackColor = ABM.COLOR_LIGHTBLUE
    MyTheme.Cell(
    "cellLB").BorderColor = ABM.COLOR_WHITE
    MyTheme.Cell(
    "cellLB").BorderWidth = 1

    MyTheme.AddCellTheme(
    "aligncenter")
    MyTheme.Cell(
    "aligncenter").Align = ABM.CELL_ALIGN_CENTER

    MyTheme.AddChartTheme(
    "chartsidebar")
    MyTheme.Chart(
    "chartsidebar").BackColor = ABM.COLOR_WHITE
    MyTheme.Chart(
    "chartsidebar").ZDepth = ABM.ZDEPTH_2
    MyTheme.Chart(
    "chartsidebar").BackColorIntensity = ABM.INTENSITY_LIGHTEN5

    MyTheme.AddChartTheme(
    "chart1theme")

    MyTheme.AddChartTheme(
    "chart2theme")
    MyTheme.Chart(
    "chart2theme").BackColor = ABM.COLOR_WHITE
    MyTheme.Chart(
    "chart2theme").ZDepth = ABM.ZDEPTH_1

    MyTheme.AddChartTheme(
    "chart4theme")
    MyTheme.Chart(
    "chart4theme").BackColor = ABM.COLOR_WHITE
    MyTheme.Chart(
    "chart4theme").ZDepth = ABM.ZDEPTH_1

    MyTheme.AddChartTheme(
    "chart5theme")
    MyTheme.Chart(
    "chart5theme").LabelColor = ABM.COLOR_WHITE

    MyTheme.AddContainerTheme(
    "footertheme")
    MyTheme.Container(
    "footertheme").BackColor = ABM.COLOR_LIGHTBLUE
    MyTheme.Container(
    "footertheme").BackColorIntensity = ABM.INTENSITY_DARKEN3

    MyTheme.AddContainerTheme(
    "lightblue")
    MyTheme.Container(
    "lightblue").BackColor = ABM.COLOR_LIGHTBLUE
    MyTheme.Container(
    "lightblue").BackColorIntensity = ABM.INTENSITY_DARKEN2

    MyTheme.AddContainerTheme(
    "darkblue")
    MyTheme.Container(
    "darkblue").BackColor = ABM.COLOR_LIGHTBLUE
    MyTheme.Container(
    "darkblue").BackColorIntensity = ABM.INTENSITY_DARKEN3

    MyTheme.AddContainerTheme(
    "modalcontent")
    MyTheme.Container(
    "modalcontent").BackColor = ABM.COLOR_WHITE

    MyTheme.AddDividerTheme(
    "white")
    MyTheme.Divider(
    "white").ForeColor = ABM.COLOR_WHITE

    MyTheme.AddImageSliderTheme(
    "myslider")
    MyTheme.ImageSlider(
    "myslider").ZDepth = ABM.ZDEPTH_1
    MyTheme.ImageSlider(
    "myslider").ActiveBulletColor = ABM.COLOR_LIGHTBLUE
    MyTheme.ImageSlider(
    "myslider").InactiveBulletColor = ABM.COLOR_BLUEGREY
    MyTheme.ImageSlider(
    "myslider").InactiveBulletColorIntensity = ABM.INTENSITY_LIGHTEN4
    MyTheme.ImageSlider(
    "myslider").Interval = 3000

    MyTheme.AddLabelTheme(
    "whitefc")
    MyTheme.Label(
    "whitefc").ForeColor = ABM.COLOR_WHITE

    MyTheme.AddLabelTheme(
    "justify")
    MyTheme.Label(
    "justify").Align = ABM.TEXTALIGN_JUSTIFY

    MyTheme.AddLabelTheme(
    "lightblue")
    MyTheme.Label(
    "lightblue").ForeColor = ABM.COLOR_LIGHTBLUE
    MyTheme.Label(
    "lightblue").ForeColorIntensity = ABM.INTENSITY_DARKEN2

    MyTheme.AddLabelTheme(
    "white")
    MyTheme.Label(
    "white").Align = ABM.CELL_ALIGN_CENTER
    MyTheme.Label(
    "white").IconColor = ABM.COLOR_WHITE
    MyTheme.Label(
    "white").ForeColor = ABM.COLOR_WHITE

    MyTheme.AddListTheme(
    "list1theme")
    MyTheme.List(
    "list1theme").BackColor = ABM.COLOR_WHITE
    MyTheme.List(
    "list1theme").ItemBackColor = ABM.COLOR_BLUEGREY
    MyTheme.List(
    "list1theme").SubItemBackColor = ABM.COLOR_WHITE

    MyTheme.AddListTheme(
    "list3theme")
    MyTheme.List(
    "list3theme").BackColor = ABM.COLOR_WHITE
    MyTheme.List(
    "list3theme").ItemBackColor = ABM.COLOR_LIME
    MyTheme.List(
    "list3theme").SubItemBackColor = ABM.COLOR_WHITE
    MyTheme.List(
    "list3theme").SubItemDividerColor = ABM.COLOR_WHITE

    MyTheme.AddNavigationBarTheme(
    "nav1theme")
    MyTheme.NavigationBar(
    "nav1theme").TopBarBackColor = ABM.COLOR_LIGHTBLUE

    MyTheme.AddNavigationBarTheme(
    "nav2theme")
    MyTheme.NavigationBar(
    "nav2theme").TopBarBackColor = ABM.COLOR_RED

    MyTheme.AddTableTheme(
    "params")
    MyTheme.Table(
    "params").ZDepth = ABM.ZDEPTH_2

    MyTheme.AddTableTheme(
    "tbl1theme")
    MyTheme.Table(
    "tbl1theme").ZDepth = ABM.ZDEPTH_1

    MyTheme.AddTabsTheme(
    "tabsgreen")
    MyTheme.Tabs(
    "tabsgreen").ForeColor = ABM.COLOR_AMBER
    MyTheme.Tabs(
    "tabsgreen").HoverForeColor = ABM.COLOR_GREEN
    MyTheme.Tabs(
    "tabsgreen").IndicatorColor = ABM.COLOR_GREEN

    MyTheme.AddToastTheme(
    "toast")
    MyTheme.Toast(
    "toast").Rounded = False
    MyTheme.Toast(
    "toast").ActionForeColor = ABM.COLOR_ORANGE

    MyTheme.AddToastTheme(
    "toastred")
    MyTheme.Toast(
    "toastred").Rounded = False
    MyTheme.Toast(
    "toastred").BackColor = ABM.COLOR_RED
    MyTheme.Toast(
    "toastred").ActionForeColor = ABM.COLOR_BLACK

    MyTheme.AddTreeTableTheme(
    "view1")

    MyTheme.Table(
    "params").AddCellTheme("header")
    MyTheme.Table(
    "params").Cell("header").BackColor = ABM.COLOR_BLUEGREY
    MyTheme.Table(
    "params").Cell("header").BackColorIntensity = ABM.INTENSITY_DARKEN2
    MyTheme.Table(
    "params").Cell("header").ForeColor = ABM.COLOR_WHITE

    MyTheme.Table(
    "params").AddCellTheme("name")
    MyTheme.Table(
    "params").Cell("name").VerticalAlign = ABM.TABLECELL_VERTICALALIGN_TOP
    MyTheme.Table(
    "params").Cell("name").BackColor = ABM.COLOR_BLUEGREY
    MyTheme.Table(
    "params").Cell("name").BackColorIntensity = ABM.INTENSITY_LIGHTEN2

    MyTheme.Table(
    "params").AddCellTheme("description")
    MyTheme.Table(
    "params").Cell("description").VerticalAlign = ABM.TABLECELL_VERTICALALIGN_TOP
    MyTheme.Table(
    "params").Cell("description").BackColor = ABM.COLOR_WHITE

    MyTheme.Table(
    "tbl1theme").AddCellTheme("headerfooter")
    MyTheme.Table(
    "tbl1theme").Cell("headerfooter").BackColor = ABM.COLOR_BLUEGREY
    MyTheme.Table(
    "tbl1theme").Cell("headerfooter").ForeColor = ABM.COLOR_WHITE

    MyTheme.Table(
    "tbl1theme").AddCellTheme("headerfooterright")
    MyTheme.Table(
    "tbl1theme").Cell("headerfooterright").Align = ABM.TABLECELL_HORIZONTALALIGN_RIGHT
    MyTheme.Table(
    "tbl1theme").Cell("headerfooterright").BackColor = ABM.COLOR_BLUEGREY
    MyTheme.Table(
    "tbl1theme").Cell("headerfooterright").ForeColor = ABM.COLOR_WHITE

    MyTheme.Table(
    "tbl1theme").AddCellTheme("nocoloredit")
    MyTheme.Table(
    "tbl1theme").Cell("nocoloredit").IsEditable = True
    MyTheme.Table(
    "tbl1theme").Cell("nocoloredit").ActiveBackColor = ABM.COLOR_BLUEGREY
    MyTheme.Table(
    "tbl1theme").Cell("nocoloredit").ActiveBackColorIntensity = ABM.INTENSITY_LIGHTEN2
    MyTheme.Table(
    "tbl1theme").Cell("nocoloredit").InputMask = "'alias':'decimal', 'digits': 2"

    MyTheme.Table(
    "tbl1theme").AddCellTheme("positive")
    MyTheme.Table(
    "tbl1theme").Cell("positive").Align = ABM.TABLECELL_HORIZONTALALIGN_RIGHT
    MyTheme.Table(
    "tbl1theme").Cell("positive").ActiveBackColor = ABM.COLOR_GREEN
    MyTheme.Table(
    "tbl1theme").Cell("positive").BackColor = ABM.COLOR_GREEN
    MyTheme.Table(
    "tbl1theme").Cell("positive").BackColorIntensity = ABM.INTENSITY_LIGHTEN3
    MyTheme.Table(
    "tbl1theme").Cell("positive").ActiveBackColorIntensity = ABM.INTENSITY_LIGHTEN1

    MyTheme.Table(
    "tbl1theme").AddCellTheme("negative")
    MyTheme.Table(
    "tbl1theme").Cell("negative").Align = ABM.TABLECELL_HORIZONTALALIGN_RIGHT
    MyTheme.Table(
    "tbl1theme").Cell("negative").ActiveBackColor = ABM.COLOR_RED
    MyTheme.Table(
    "tbl1theme").Cell("negative").BackColor = ABM.COLOR_RED
    MyTheme.Table(
    "tbl1theme").Cell("negative").BackColorIntensity = ABM.INTENSITY_LIGHTEN3
    MyTheme.Table(
    "tbl1theme").Cell("negative").ActiveBackColorIntensity = ABM.INTENSITY_LIGHTEN1

    MyTheme.Table(
    "tbl1theme").AddCellTheme("aligntop")
    MyTheme.Table(
    "tbl1theme").Cell("aligntop").VerticalAlign = ABM.TABLECELL_VERTICALALIGN_TOP

    MyTheme.TreeTable(
    "view1").AddCellTheme("lev1default")
    MyTheme.TreeTable(
    "view1").Cell("lev1default").IsEditable = True
    MyTheme.TreeTable(
    "view1").Cell("lev1default").BackColor = ABM.COLOR_LIGHTBLUE
    MyTheme.TreeTable(
    "view1").Cell("lev1default").BackColorIntensity = ABM.INTENSITY_DARKEN3
    MyTheme.TreeTable(
    "view1").Cell("lev1default").ForeColor = ABM.COLOR_WHITE

    MyTheme.TreeTable(
    "view1").AddTreeIconColorTheme("white")
    MyTheme.TreeTable(
    "view1").TreeIconColor("white").ForeColor = ABM.COLOR_WHITE


    Attached Files:

    joulongleu likes this.
  16. Mashiane

    Mashiane Expert Licensed User

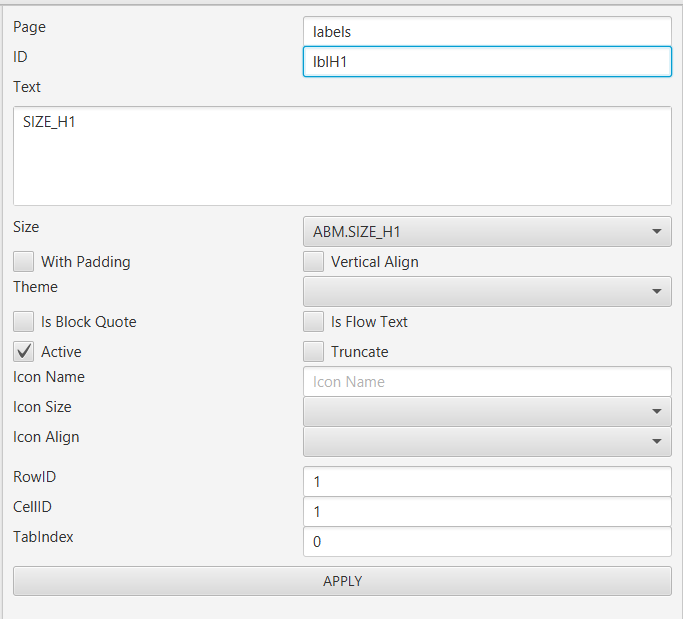

    ABMaterial.Show: ABMLabel

    What's New

    1. ABMaterial.Show has functionality to add the ABMLabel component now.
    2. The App runs in full screen mode, used JavaObject to do that.
    3. To add this new components, goto Components > ABMLabel after selecting the page to add it in.

    Known Issues:

    The components added to my page are not displaying as only the last component does. I would appreciate some help with that please.

    This is my code before BuildGrid

    Code:
    page.AddRows(12,True"").AddCells12(1,"")
    My ConnectPage code...

    Code:
    Dim lblH1 As ABMLabel
    lblH1.Initialize(
    page"lblH1""SIZE_H1", ABM.SIZE_H1, False"")
    page.Cell(11).AddComponent(lblH1)

    Dim lblH2 As ABMLabel
    lblH1.Initialize(
    page"lblH2""SIZE_H2", ABM.SIZE_H2, False"")
    page.Cell(21).AddComponent(lblH2)

    Dim lblH3 As ABMLabel
    lblH1.Initialize(
    page"lblH3""SIZE_H3", ABM.SIZE_H3, False"")
    page.Cell(31).AddComponent(lblH3)

    Dim lblH4 As ABMLabel
    lblH1.Initialize(
    page"lblH4""SIZE_H4", ABM.SIZE_H4, False"")
    page.Cell(41).AddComponent(lblH4)

    Dim lblH5 As ABMLabel
    lblH1.Initialize(
    page"lblH5""SIZE_H5", ABM.SIZE_H5, False"")
    page.Cell(51).AddComponent(lblH5)

    Dim lblH6 As ABMLabel
    lblH1.Initialize(
    page"lblH6""SIZE_H6", ABM.SIZE_H6, False"")
    page.Cell(61).AddComponent(lblH6)


    Attached Files:

    joulongleu likes this.
  17. alwaysbusy

    alwaysbusy Expert Licensed User

    You always initialize the same lblh1 instead of lblh2, lblh3, etc

    joulongleu and Mashiane like this.
  18. Mashiane

    Mashiane Expert Licensed User

    Thank you so much... tired eyes... you are a star.

    joulongleu likes this.
  19. Mashiane

    Mashiane Expert Licensed User

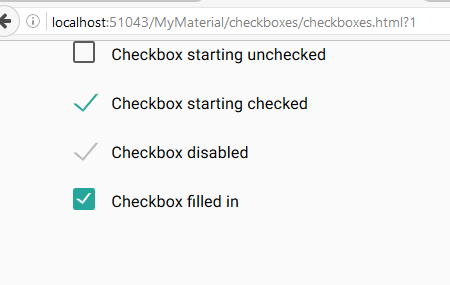

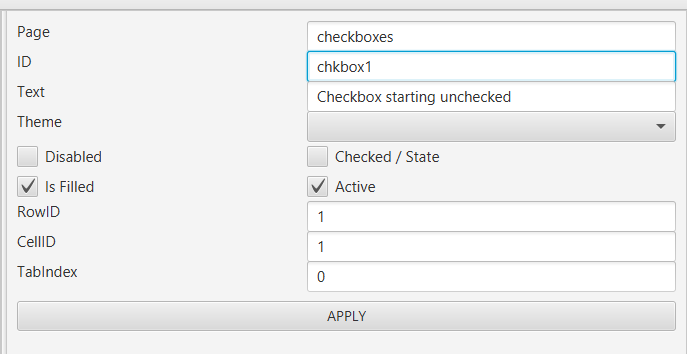

    ABMaterial.Show : ABMCheckbox

    What's New

    1. The ABMCheckBox component has now been added
    2. The ABMLabel bug in the previous post has been fixed, thanks to alwaysbusy..

    Enjoy..


    Attached Files:

    joulongleu likes this.
  20. Mashiane

    Mashiane Expert Licensed User

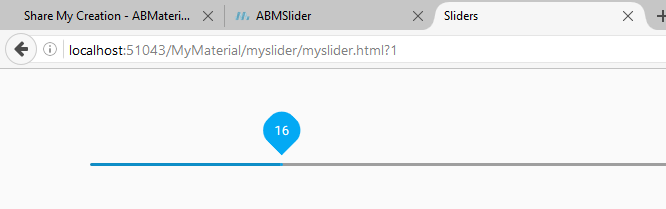

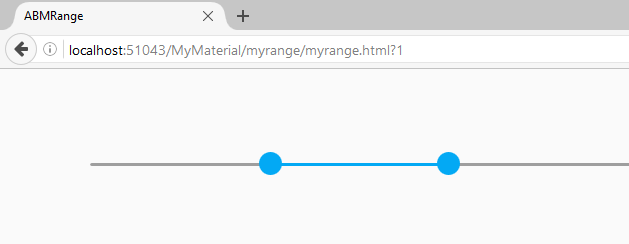

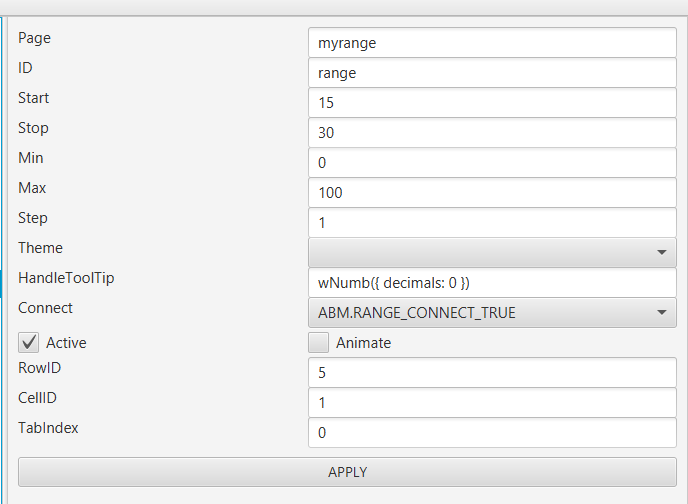

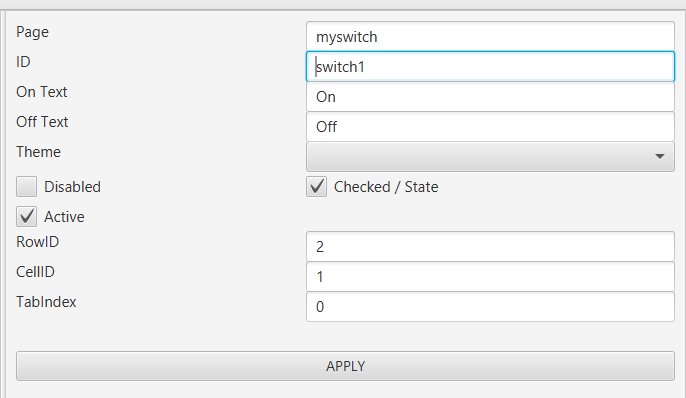

    ABMaterial.Show: ABMSwitch, ABMSlider and ABMRange

    What's New

    1. The ABMSwitch, ABMSlider and ABMRange have now been added to the components
    2. Now you are able to Delete a Page with its components
    3. You can also Rename a page name on the properties screen.


    Attached Files:

    joulongleu likes this.
Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
