Android Question Programatically setting Label height, width, position?

Discussion in 'Android Questions' started by Roger Daley, Jun 26, 2015.

  1. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Hi All

    A question about somethimg which I thought should not be a problem.
    In the following code I try to specify the labels Height/Width/Left/Top all of which cause a crash. I can't see the issue.

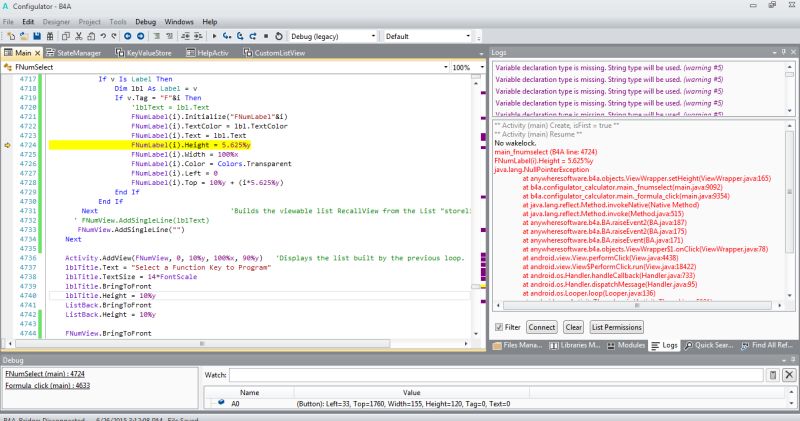

    The line "FNumLabel(i).Height = 5.625%y" is the first to throw an error.
    I am sure it is something simple but I usually do all this in the designer.

    Code:
    Sub Globals

    Dim FNumLabel(16As Label
    End Sub

    Sub FNumSelect
    'Brings up ListView to allow selection of F0-F15 as assigned function.
    'Called by Formula_click
        ListFlag = 1
        FNumView.SingleLineLayout.ItemHeight =
    5.625%y
        FNumView.Color =
    Colors.DarkGray                'ListView color matches Label color
        FNumView.Clear


    For i = 0 To 15

    For Each v As View In Activity.GetAllViewsRecursive

    If v Is Label Then

    If v.Tag = "F"&i Then
                        FNumLabel(i).Initialize(
    "FNumLabel"&i)
                        FNumLabel(i).TextColor = lbl.TextColor
                        FNumLabel(i).Text = lbl.Text
                        FNumLabel(i).Height =
    5.625%y
                        FNumLabel(i).Width =
    100%x
                        FNumLabel(i).Color =
    Colors.Transparent
                        FNumLabel(i).Left =
    0
                        FNumLabel(i).Top =
    10%y + (i*5.625%y)

    End If

    End If

    Next
            FNumView.AddSingleLine(
    "")

    Next


    Activity.AddView(FNumView, 010%y100%x90%y)   'Displays the list built by the previous loop.
        lblTitle.Text = "Select a Function Key to Program"
        lblTitle.TextSize =
    14*FontScale
        lblTitle.BringToFront
        lblTitle.Height =
    10%y
        ListBack.BringToFront
        ListBack.Height =
    10%y
        FNumView.BringToFront
    End Sub

    Thanks in advance
    Roger

  2. LucaMs

    LucaMs Expert Licensed User

    I have a suspect, so, can you try to set a variable before the cycle "i" like:

    Dim FNumLabelHeight As Float = 5.625%y

    and then use:

    FNumLabel(i).Height = FNumLabelHeight

  3. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Hi LucaMs,

    Thanks for the idea but no success.

    Regards Roger

  4. LucaMs

    LucaMs Expert Licensed User

    Forget it. You received a "NullPointerException", then the label was not created.

  5. LucaMs

    LucaMs Expert Licensed User

    Insert a Log(i)

  6. LucaMs

    LucaMs Expert Licensed User

    Code:
    Dim LblID as Int

    For Each v As View In Activity.GetAllViewsRecursive

    If v Is Label Then

    If v.Tag = "F"&LblID Then
                        FNumLabel(LblID).Initialize(
    "FNumLabel"&i)
                        FNumLabel(LblID).TextColor = lbl.TextColor
                        FNumLabel(LblID).Text = lbl.Text
                        FNumLabel(LblID).Height =
    5.625%y
                        FNumLabel(LblID).Width =
    100%x
                        FNumLabel(LblID).Color =
    Colors.Transparent
                        FNumLabel(LblID).Left =
    0
                        FNumLabel(LblID).Top =
    10%y + (i*5.625%y)    ' <--- ?
                        LblID = LblID + 1

    End If

    End If

    Next
    I'm not sure, of course, because I don't know your code, but can it be right?

  7. RandomCoder

    RandomCoder Well-Known Member Licensed User

    I believe the problem will be that you cannot set the height or other properties becuse you have not added the view to anything yet. It essentially doesn't exist yet.

    Roger Daley likes this.
  8. sorex

    sorex Expert Licensed User

    that should work, but you can't read out unless it's added to a parent.

  9. sorex

    sorex Expert Licensed User

    the approach of that for loop with nested getallviews doesn't make sense.

    you should add the view to an map with the tag as key, then you can call it easily.

    what is it that you are trying to do, @Roger Daley ?

    LucaMs likes this.
  10. Roger Daley

    Roger Daley Well-Known Member Licensed User

    LucaMs

    Still baffling.

    The "NullPointerException" can't be because the label is not created as the code handle the Label.text, label.textcolor OK
    The Log(i) shows the error occurs first time through the loop.
    Using the LblID code produces the same error at the "FNumLabel(LblID).Height = 5.625%y" line

    Roger

  11. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Sorex/RandomCoder

    Long sad story in summary.
    I have 16 Labels [F0-F15] initially labelled F0-F15 in white text.
    The user in operation changes the text of a label and the program changes the text colour.
    When the user operates the appropriate key a list view is built F0-F15

    I thought it would be good to have the ListView show the current label text and in in the text colour. not possible with ListView
    I tried and even with Erels help could not master CustomListView.

    Realizing that the ListView in this case does not scroll I thought I would be clever and produce labels to stick on each item of the ListView.
    It seems I have now dug myself in to a deeper hole. I thought this would be a quick and minor asthetics upgrade, wrong.

    I have tried inserting this line Activity.AddView(FNumLabel(i), 0, 10%y, 100%x, 5.625%y) after this line FNumLabel(i).Initialize("FNumLabel"&i).
    The result is an error occurs at this line If v.Tag = "F"&i Then on the second pass of the i loop. It means something.


    Just for completness the full code is HERE the PGM button is the button that brings up the ListView.

    Any help much appreciated

    Regards Roger

  12. sorex

    sorex Expert Licensed User

    I added a design with 2 labels (F0 & F1) and this works without errors

    Code:
    Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("main")
    Dim FNumLabel(16As Label

    For i = 0 To 15

    For Each v As View In Activity.GetAllViewsRecursive

    If v Is Label Then

    If v.Tag = "F"&i Then
                        FNumLabel(i).Initialize(
    "FNumLabel"&i)

    Activity.AddView(FNumLabel(i),0,0,100,100)
                        FNumLabel(i).TextColor =
    Colors.Yellow
                        FNumLabel(i).Text = i &
    " label"
                        FNumLabel(i).Height =
    5.625%y
                        FNumLabel(i).Width =
    100%x
                        FNumLabel(i).Color =
    Colors.Transparent
                        FNumLabel(i).Left =
    0
                        FNumLabel(i).Top =
    10%y + (i*5.625%y)

    End If

    End If

    Next

    Next
    End Sub

    I don't know why you need extra labels when using the add single line later tho.

  13. klaus

    klaus Expert Licensed User

    Sorry, but I still don't understand what exactly you want to do.
    What is the ListView supposed to do and what are the labels supposed to do ?
    If you want scrolling labels you could use a ScrollView for this.

    I had a look at the project, but I can't test it, I get an error in line 324 Recording(FNM,STEPS,DATA2) = Recording2(FNM,STEPS,DATA2) because Recording2 is empty when the program is run the first time.

    The labels are defined in the Designer, so you could simply define an array of labels.
    Dim FNumLabel() As Label
    FNumLabel = Array As Label (lblF0, lblF1, lblF2, lblF3, lblF4, lblF5, lblF6, lblF7, lblF8, lblF9, lblF10, lblF11, lblF12, lblF13, lblF14, lblF15)

    Then you can access each Label with FNumLabel(i).
    And your code would look like this:
    Code:
    For i = 0 To 15
        FNumLabel(i).TextColor =
    Colors.Yellow
        FNumLabel(i).Text = i &
    " label"
        FNumLabel(i).Height =
    5.625%y
        FNumLabel(i).Width =
    100%x
        FNumLabel(i).Color =
    Colors.Transparent
        FNumLabel(i).Left =
    0
        FNumLabel(i).Top =
    10%y + (i*5.625%y)
    Next

    Last edited: Jun 26, 2015
  14. sorex

    sorex Expert Licensed User

    @klaus , I think he wants to create duplicates of the labels to appear in the listbox or scrollview.

  15. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Klaus/Sorex

    Firstly Klaus I don't understand why you couldn't run the project, I have just downloaded it and run it on an emulator I have never used before. All worked.
    DownLoad from PlayStore might help explanation.

    F0-F15 represent programmed functions, when a position is programmed the text and text colour change. When the user wishes to program another position the FNumselect module is called and a list of the function positions is generated using listview. Currently this list shows F0-F15 in the default white text.

    I want the list to show the actual text and text colour on the labels. A listview cannot different coloured text in different items. To do this CustomListView would work I am told. I have failed to come to grips with CustomListView. To bypass this I thought to produce 16 labels with the corect text and text colour, then position them over the corresponding item on the listview.

    Calculator showing labels where keys have been programmed. Calc.jpg

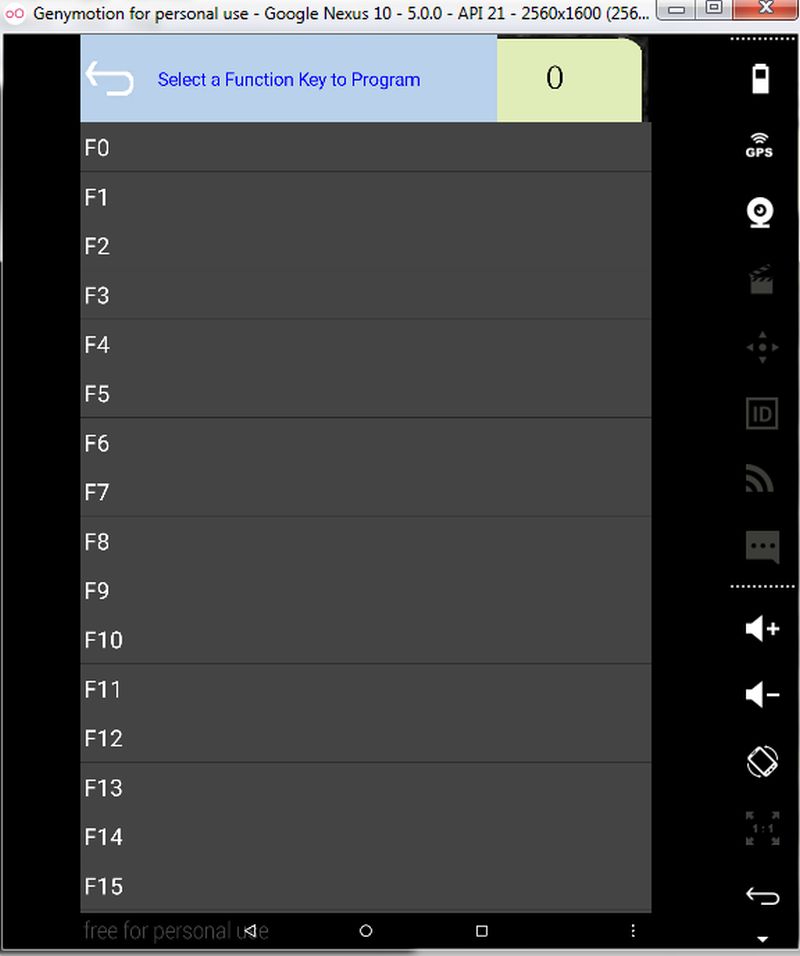

    List of positions to be selection to be programmed Select.jpg would be better if F7 and F10 showed the text on the calculator in Gold.
    This is what I am trying to do.

    The code that you have both shown in posts #12 & #13 is basically what I have done and does not work for me. If you can spot where the following code goes wrong please throw a brick at me. I can't see it.

    Code:
    For i = 0 To 15

    Log(i)

    For Each v As View In Activity.GetAllViewsRecursive

    If v Is Label Then

    Dim lbl As Label = v

    If lbl.Tag = "F"&i Then

    'lblText = lbl.Text
                        FNumLabel(i).Initialize("FNumLabel"&i)

    Activity.AddView(FNumLabel(i), 010%y100%x5.625%y)
                        FNumLabel(i).TextColor = lbl.TextColor
                        FNumLabel(i).Text = lbl.Text
                        FNumLabel(i).TextSize =
    18*FontScale
                        FNumLabel(i).Height =
    5.625%y
                        FNumLabel(i).Width =
    100%x
                        FNumLabel(i).Color =
    Colors.Transparent
                        FNumLabel(i).Left =
    0
                        FNumLabel(i).Top =
    10%y + (i*5.625%y)

    End If

    End If

    Next                                'Builds the viewable list RecallView from the List "storelist"


    'FNumView.AddSingleLine("")
          Next
    Thanks for your continuing help.
    Roger

  16. klaus

    klaus Expert Licensed User

    Instead of using a ListView and the Labels you should use a ScrollView with the 16 Labels on it.
    You define an array of Labels and add those onto the ScrollView and then you can access each Label with its index and change whatever you need.

  17. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Thanks Klaus
    I will give it a try. Tomorrow's job.

    Roger

  18. Roger Daley

    Roger Daley Well-Known Member Licensed User

    Thanks to all of the above for your help.

    I have finally nailed it. The core of the probblem was as RandomCoder said in post #7, but had a number of other bad coding issues so it was hard to reveal as the villian.
    All came good after I put everthing in some sort of logical order and plugged a few holes.

    Again thanks to everyone for the help.

    Regards Roger


    Code:
    Sub FNumSelect
    'Brings up ListView to allow selection of F0-F15 as assigned function.
    'Called by Formula_click
        ListFlag = 1

    Activity.AddView(FNumView, 010%y100%x90%y)   'Displays the list built by the previous loop.
        FNumView.SingleLineLayout.ItemHeight = FNumView.SingleLineLayout.Label.Height
        FNumView.SingleLineLayout.ItemHeight =
    5.625%y
        FNumView.Color =
    Colors.DarkGray                'ListView color matches Label color as labels don't fill ListView
        FNumView.Clear
        FNumView.BringToFront

    For i = 0 To 15
            FNumView.AddSingleLine(
    "")

    If FNumLabel(i).IsInitialized = False Then
                FNumLabel(i).Initialize(
    "FNumLabel"&i)

    End If

    Activity.AddView(FNumLabel(i), 010%y100%x5.625%y)
            FNumLabel(i).TextSize =
    18*FontScale
            FNumLabel(i).Height =
    5.625%y
            FNumLabel(i).Width =
    100%x
            FNumLabel(i).Color =
    Colors.Transparent
            FNumLabel(i).Left =
    0
            FNumLabel(i).Top =
    10%y + (i*5.625%y)
            FNumLabel(i).BringToFront
            FNumLabel(i).Gravity =
    Bit.Or(Gravity.CENTER_VERTICAL, Gravity.LEFT)
            FNumLabel(i).Tag =
    "FNL"&i

    For Each v As View In Activity.GetAllViewsRecursive

    If v Is Label Then

    Dim lbl As Label = v

    If lbl.Tag = Null Then lbl.Tag = ""

    If lbl.Tag = "F"&i Then
                        FNumLabel(i).TextColor = lbl.TextColor
                        FNumLabel(i).Text = lbl.Text

    End If

    End If

    Next

    Next
        lblTitle.Text =
    "Select a Function Key to Program"
        lblTitle.TextSize =
    14*FontScale
        lblTitle.BringToFront
        lblTitle.Height =
    10%y
        lblTitle.Width =
    100%x
        ListBack.BringToFront
        ListBack.Height =
    10%y
    End Sub

    Sub FNumView_ItemClick (Position As Int, Value As Object)
    'Completes/Saves the selection of F0-F15 to be the assigned function.
    'Returns to Formula_click
        FNum = Position
        FNumV =
    "F"&FNum 'Value
        FNum_flag = 1
        FNumView.RemoveView
    'Exit ListView.
        For i = 0 To 15
            FNumLabel(i).RemoveView

    Next
        lblTitle.TextSize =
    28*FontScale
        lblTitle.SendToBack
        ListBack.SendToBack
        listclear.SendToBack
        ListFlag =
    0
        Formula_click
    End Sub

    RandomCoder likes this.
