Android Question Question about navigation bar height

[Scantech]

Public Sub getNavigationBarHeight(pbolPortrait As Boolean) As Int
    Dim intHeight As Int

    #If B4a
    Dim strIdentifier As String
    Dim intRessourceId As Int
    Dim ctxt As JavaObject
    Dim res As JavaObject
    Dim ph As Phone

    ctxt.InitializeContext
    intHeight = 0

    If ph.SdkVersion < 14 Then
        Return 0
    End If

    If hasPermanentMenuKey Or Not(hasNavigationBar) Then
        Return 0
    End If

    If pbolPortrait Then
        strIdentifier = "navigation_bar_height"
    Else
        strIdentifier = "navigation_bar_width" ' Or navigation_bar_height_landscape?
    End If

    res = ctxt.RunMethodJO("getResources", Null)
    If Not(res = Null) Then
        intRessourceId = res.RunMethod("getIdentifier", Array(strIdentifier, "dimen", "android"))
        If intRessourceId > 0 Then
            intHeight = res.RunMethod("getDimensionPixelSize", Array(intRessourceId))
        End If
    End If
    #Else
    intHeight = 0
    #End If

    Return intHeight
End Sub

Public Sub hasNavigationBar() As Boolean
    Dim bolHasNavBar As Boolean

    #If B4a
    Dim intRessourceId As Int
    Dim ctxt As JavaObject
    Dim res As JavaObject
    ctxt.InitializeContext
    res = ctxt.RunMethodJO("getResources", Null)
    intRessourceId = res.RunMethod("getIdentifier", Array("config_showNavigationBar", "bool", "android"))
    If intRessourceId > 0 Then
        bolHasNavBar = res.RunMethod("getBoolean", Array(intRessourceId))
    End If

    #Else
    bolHasNavBar = False
    #End If

    Return bolHasNavBar
End Sub

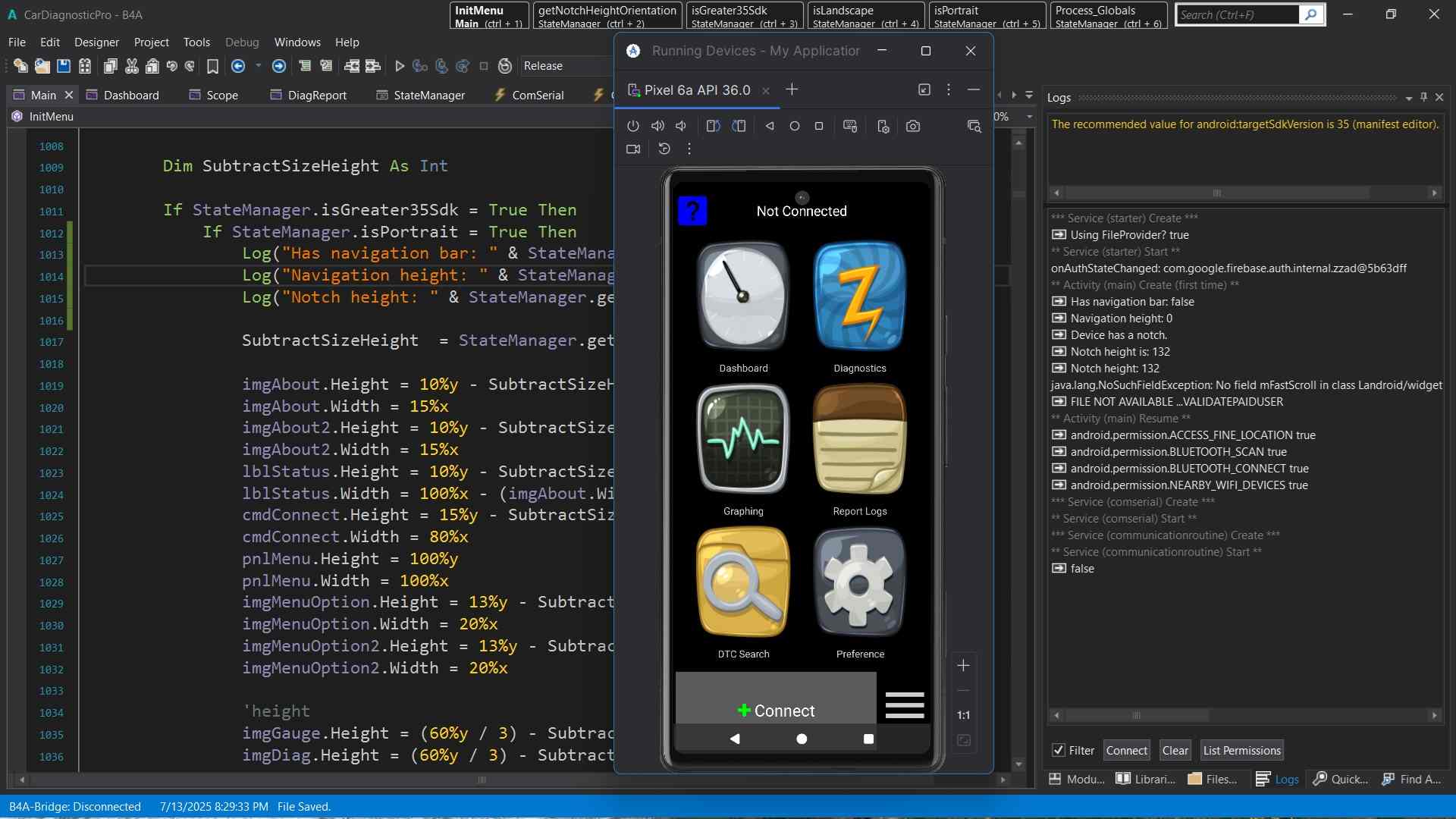

I have no clue what is notch? Is notch at the very top of screen? I have 132 height for notch. I do have navigation bar as seen attached. Why is navigation bar at 0 height? this code was from the other thread. I do want the height of navigation bar.



[Erel]

Notch is the space reserved for the embedded camera.

What is the targetSdkVersion set to?
Test it with B4A v13.4.



[Scantech]

Notch is the space reserved for the embedded camera.

What is the targetSdkVersion set to?
Test it with B4A v13.4.

Targetsdk at 36 was used. Ver 13.4 was used



[Scantech]

I tried TargetSdk at 35. Bad results. notch and nav bar at 0 height. Emulator issue??

Has navigation bar: false
Navigation height: 0
Device has no notch. Returning 0.
Notch height: 0



[Scantech]

It may be issue with emulator. With TargetSdk 36.

Pixel 6a Emulator: Nav Bar = 0, Notch = 132
Pixel 4 Emulator: Nav bar = 0, Notch = 0
S21 Ultra Real device: Nav bar = 192, Notch = 100



[Erel]

Don't use targetSdkVersion 36 for now.

Use 35 and disable edge to edge feature.
