B4R Question rAdafruitSSD1306 display icon

Mostez · Jan 20, 2021

I need to display blue tooth icon to indicate the BT connection status for ESP32S board, I use the rAdafruitSSD306 lib to display other text info. it there any method to display the BT icon as bitmap or user defined char or ASCII symbol?

Erel · Jan 20, 2021

Moved to the questions forum.

Cableguy · Jan 20, 2021

I know this is not a 1306 disply, but maybe the same principle can apply...
I also recall seeing a "custom font" article somewhere "on the net"

Experimenting with an Arduino and a ST7735R TFT Display

Hi guys, @Erel asked for a picture of my display after having so promptly created a Library for my TFT 1.8" ST7735R display. So after a few successful tests, I decided to create something worthy of EREL's eyes. So here I give you a small video of what can be achieved in a very few lines of...

www.b4x.com

Cableguy · Jan 20, 2021

Maybe this can help further...

How to edit font for OLED display SD1306 – Georgik.Rocks

www.google.com

Mark Read · Jan 20, 2021

No idea if this helps but I defined the Wlan symbol in the Arduino IDE as follows:

B4X:

//wlan logo
// delete PROGMEM if required
// LCD Assistant - output horizontal!!
const unsigned char PROGMEM wlan [] = {
0x7F, 0xC0, 0x20, 0x84, 0x11, 0x04, 0x0A, 0x14, 0x04, 0x14, 0x04, 0x54, 0x04, 0x54, 0x05, 0x54
};

and called it with:

B4X:

 //draw Wlan symbol
  display.drawBitmap(112,0, wlan, 16, 8, WHITE);

With the help of this link. you should be able to use inline C: Link

Regards
Mark

Mark Read · Jan 20, 2021

Does this help?

B4X:

byte name0x0[] = { B10110, B01101, B00101, B00110, B00110, B00101, B01101, B10110 };

void setup() {
  lcd.begin(16, 2);

  lcd.createChar(0, name0x0);
  lcd.write(0);

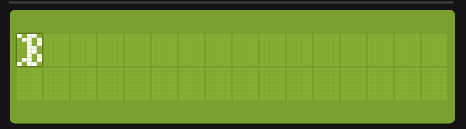

Should give this:

Made here: Link

And called via inline C, have to leave something for you

Cableguy · Jan 20, 2021

Since the 1306 is a graphic display, the "icon" can be better drawn, but this is pointing in the right direction for the OP.

Mostez · Jan 21, 2021

Thank you so much all, your help is appreciated

moty22 · Jan 24, 2021

Mostez said:
it there any method to display the BT icon as bitmap or user defined char or ASCII symbol?

I have a project that shows how to add bitmap on oled SSD1306, you don't need any library but it's written in Arduino and C http://www.moty22.co.uk/egg_timer.php
Edited:
To convert image to code:
On a PC (MS Paint) resize image to 48x48 pixels and save as monochrom bmp.
Download LCD Assistant app from http://en.radzio.dxp.pl/bitmap_converter/
Set it to Byte Orientation - Vertical, Pixels/byte - 8. Save file as text file and copy the bitmap array to the code page.

This is how it looks on B4R

B4X:

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    'Public Serial1 As Serial
End Sub

Private Sub AppStart
    RunNative ("start_oled",Null)
End Sub

#if C
#include <Wire.h>

void start_oled(B4R::Object* o)
{
    Wire.begin();        // init i2c bus
    Wire.setClock(400000);  //400khz

    //oled init.
     unsigned char addr=0x3C;

    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0xAE);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x8D);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x14);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x20);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x00);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0xA1);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0xC8);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0xDA);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x12);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x81);
    Wire.endTransmission();
    Wire.beginTransmission(addr);
    Wire.write(0x00);
    Wire.write(0x9F);
    Wire.endTransmission();

    Wire.beginTransmission(addr);     //on
    Wire.write(0x00);
    Wire.write(0xAF);
    Wire.endTransmission();

    //clear scrn
    unsigned char y, x;

    for ( y = 0; y < 8; y++ ) {
      for (x = 0; x < 17; x++){
        Wire.beginTransmission(addr);
        Wire.write(0x00);
        Wire.write(0x21);
        Wire.endTransmission();
        Wire.beginTransmission(addr);
        Wire.write(0x00);
        Wire.write(8*x);
        Wire.endTransmission();
        Wire.beginTransmission(addr);
        Wire.write(0x00);
        Wire.write(8*x+7);
        Wire.endTransmission();
        Wire.beginTransmission(addr);
        Wire.write(0x00);
        Wire.write(0x22);
        Wire.endTransmission();
        Wire.beginTransmission(addr);
        Wire.write(0x00);
        Wire.write(y);
        Wire.endTransmission();
        Wire.beginTransmission(addr);
        Wire.write(0x00);
        Wire.write(y);
        Wire.endTransmission();

          Wire.beginTransmission(addr);
          Wire.write(0x40);
          for (unsigned char i = 0; i < 8; i++){
               Wire.write(0x00);
          }
          Wire.endTransmission();
      }

    }
    //draw bitmap

    const unsigned char bmp[] = {  //toothwheel
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00, 0x00, 0x00, 0xFC, 0xFE,
    0xFE, 0xFE, 0xFF, 0xFF, 0xFC, 0xF8, 0xF0, 0xE0, 0xF0, 0xF8, 0xFE, 0xFF, 0xFF, 0xFF, 0xFF, 0xFE,
    0xFE, 0x80, 0x80, 0x80, 0x80, 0xC0, 0xE0, 0xE0, 0xE0, 0xC0, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x0E, 0x3F, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x7F, 0x3F, 0x1F,
    0x1F, 0x0F, 0x07, 0x07, 0x07, 0x03, 0x03, 0x03, 0x03, 0x03, 0x03, 0x07, 0x07, 0x07, 0x0F, 0x0F,
    0x1F, 0x3F, 0x7F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x9F, 0x07, 0x02, 0x00, 0x00, 0x00, 0x00,
    0xF8, 0xFC, 0xFC, 0xFC, 0xFC, 0xFC, 0xFF, 0xFF, 0xFF, 0xFF, 0x3F, 0x07, 0x01, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x01, 0x0F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x7F, 0x7F, 0x3F,
    0x00, 0x01, 0x81, 0xC1, 0xC3, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFC, 0xE0, 0x80, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x00, 0xC0, 0xF0, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xF8, 0xF8, 0xF0, 0xE0,
    0x00, 0x00, 0x07, 0x1F, 0x1F, 0x1F, 0x1F, 0x1F, 0x0F, 0x0F, 0x3F, 0xFF, 0xFF, 0xFE, 0xFC, 0xF8,
    0xF8, 0xF0, 0xF0, 0xE0, 0xE0, 0xE0, 0xC0, 0xC0, 0xC0, 0xC0, 0xC0, 0xE0, 0xE0, 0xE0, 0xF0, 0xF0,
    0xF8, 0xFC, 0xFE, 0xFF, 0xFF, 0xFF, 0xFF, 0xEF, 0x87, 0x03, 0x03, 0x07, 0x07, 0x07, 0x07, 0x00,
    0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0C, 0x1F, 0x1F, 0x3F, 0x3F, 0x3F,
    0x1F, 0x0F, 0x07, 0x07, 0x07, 0x07, 0x3F, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x0F, 0x03, 0x03,
    0x03, 0x03, 0x07, 0x0F, 0x1F, 0x1F, 0x0F, 0x07, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
    };

        unsigned char v, h, c;

        for (h = 0; h < 6;++h){
           for (c = 0; c < 3;++c){
                Wire.beginTransmission(addr);
                Wire.write(0x00);
                Wire.write(0x21);
                Wire.endTransmission();
                Wire.beginTransmission(addr);
                Wire.write(0x00);
                Wire.write(c*16);
                Wire.endTransmission();
                Wire.beginTransmission(addr);
                Wire.write(0x00);
                Wire.write(16+c*16);
                Wire.endTransmission();
                Wire.beginTransmission(addr);
                Wire.write(0x00);
                Wire.write(0x22);
                Wire.endTransmission();
                Wire.beginTransmission(addr);
                Wire.write(0x00);
                Wire.write(h);
                Wire.endTransmission();
                Wire.beginTransmission(addr);
                Wire.write(0x00);
                Wire.write(h+1);
                Wire.endTransmission();

              Wire.beginTransmission(addr);
              Wire.write(0x40);
              for (v = 0+c*16; v < 16+c*16; ++v){
                 Wire.write(bmp[v+48*h]);
              }
              Wire.endTransmission();
           }
        }

}
#End if

Mostez · Jan 25, 2021

thanks so much @moty22

Mostez · Jan 25, 2021

I tried your example it works OK, but the image flickers!
EDIT: it works ok now

moty22 · Jan 25, 2021

Mostez said:
I tried your example it works OK, but the image flickers!
EDIT: it works ok now

I missed somehow that you also need text. Have you looked at https://www.b4x.com/android/forum/threads/gfx-and-bitmaps.79937/#content it shows how to add a bitmap using adafruit lib.
