Android Question Second page - [B4X] [XUI] AS Settings

[wimpie3]

When using a second page (for instance with a selection list):
- is there a way to remove the separator (PropertySeperator=false only works on the main screen)?
- is there a way to change the font of the list items?
- is there a way to change the icon of the close button?

Ah, and now that I'm here ;-) Is there a possibility to change the font indicated with the red arrow? Perhaps I'm overlooking something. I thought this would be possible with CustomDrawProperty.PropertySettingViews.ActionValueLabel.Font= MYFONT, but it's not...

Thanks!



[Alexander Stolte]

- is there a way to remove the separator (PropertySeperator=false only works on the main screen)?

AS_Settings1.SelectionListItemProperties.SeperatorsVisible = False

- is there a way to change the font of the list items?

AS_Settings1.SelectionListItemProperties.xFont = xui.CreateDefaultBoldFont(20)

- is there a way to change the icon of the close button?

SettingPage2.ExitIconImageView.SetBitmap(AS_Settings1.FontToBitmap(Chr(0xE5CD),True,45,xui.Color_White))

Ah, and now that I'm here ;-) Is there a possibility to change the font indicated with the red arrow? Perhaps I'm overlooking something. I thought this would be possible with CustomDrawProperty.PropertySettingViews.ActionValueLabel.Font= MYFONT, but it's not...

Private Sub AS_Settings1_CustomDrawActionProperty(ActionProperty As AS_Settings_CustomDrawActionProperty)
    ActionProperty.ActionValueLabel.Font = xui.CreateDefaultBoldFont(20)
End Sub



[wimpie3]

Happy happy! Thanks!



[wimpie3]

Two more things...
1. would it be possible to add a parameter with a padding value for the second page (red arrows, like it already exists for the main settings screen with the PADDING parameter)? In that way the look and feel of the main page can be identical to the one of the second page.

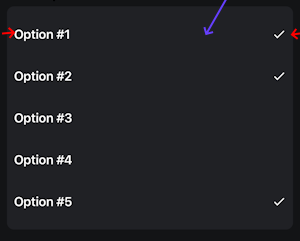

2. is there a way to change the background color (blue arrow) on the second page? can't seem to find that... there's SelectionItemSelectionColor and SelectionListItemProperties but not SelectionBackgroundColor or something similar... perhaps I'm overlooking?



[Alexander Stolte]

would it be possible to add a parameter with a padding value for the second page (red arrows, like it already exists for the main settings screen with the PADDING parameter)? In that way the look and feel of the main page can be identical to the one of the second page.

Now uses the padding property like all others. For whatever reason I had hardcoded it to 5dip.

2. is there a way to change the background color (blue arrow) on the second page? can't seem to find that... there's SelectionItemSelectionColor and SelectionListItemProperties but not SelectionBackgroundColor or something similar... perhaps I'm overlooking?

It use the same AS_Settings1.PropertyProperties.BackgroundColor like all other properties too.

Generally the MainPage and the other pages are the same, they all use the same class and therefore all the same properties. The only difference is the display method. The MainPage is displayed as a whole page and the other pages are displayed in a BottomSheet. So if something looks different, it is due to the property type.



[wimpie3]

Thanks! I'd love it though if the padding property would be a separated setting from the main page - it looks cool if the popup that appears is a bit smaller (like a window). But I know I've been asking so much already ;-)
