Android Question .SetColorAndBorder: why one panel is not visible ?

[peacemaker]

HI, All

The test project is here: https://www.b4x.com/android/forum/t...bject-moving-dragging-by-_touch-event.160800/

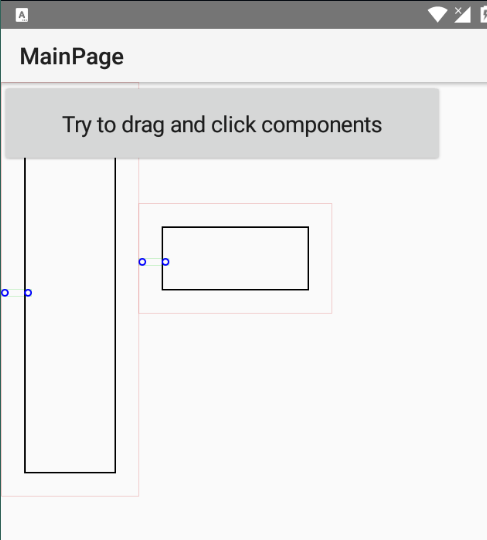

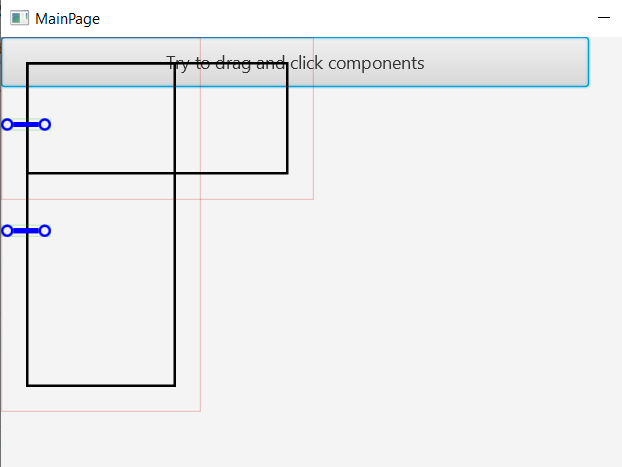

In B4J - the blue horizontal line is visible, but in B4A - no.

    mLine = xui.CreatePanel("")
    mRoot.AddView(mLine, PointSizePx , PointSizePx / 2 - LineThinknessPx, LineLenghtPx, LineThinknessPx)
    mLine.SetColorAndBorder(LineColor, LineThinknessPx, LineColor, 0)    'line as rectangle between Points

Any ideas ?



[klaus]

You should use dip values here:

    Public LineThinknessPx As Int = 2dip
    Public LineLenghtPx As Int = 20dip
    Public LineColor As Int = xui.Color_Blue
    Private PointSizePx As Int = 10dip



[peacemaker]

dip values

Actually, did not help, Klaus



[klaus]

And change these two lines:

    mRoot.AddView(mLine, PointSizePx , (PointSizePx  - LineThinknessPx) / 2, LineLenghtPx, LineThinknessPx)
    mLine.SetColorAndBorder(LineColor, 0, LineColor, 0)    'line as rectangle between Points



[peacemaker]

change these two lines

Yes, thanks, Klaus.
But also such changes helps to make the pin of correct size:

    Public mLine, mPoint1, mPoint2 As B4XView, mRoot As B4XView
    Public LineThinknessPx As Int = 2dip
    Public LineLenghtPx As Int = 20dip
    Public LineColor As Int = xui.Color_Blue
    Private PointSizePx As Int = LineThinknessPx * 5   'here is important
