Android Question [SOLVED] Set Equal Position of Views in Panel

Discussion in 'Android Questions' started by konradwalsh, Apr 12, 2018.

  1. konradwalsh

    konradwalsh Active Member Licensed User

    Hi
    I have searched and search and cannot find a specific answer to my question;

    I have a panel. It may have 1 checkbox or up to 8.
    I add the checkbox dynamically.

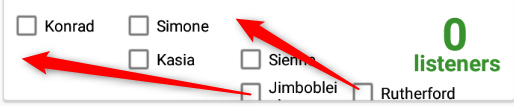

    How can I position them so that it goes
    1 2 5 6
    3 4 7 8

    This is the code I have used to achieve this:
    Code:
    If i Mod 2 <> 1 Then
             panLive_ListedUsers.AddView(userCheckBox,posLeft +
    5dip, posTop + 10dip , 100dip30dip)
             posLeft = posLeft +
    100dip

    Else
              panLive_ListedUsers.AddView(userCheckBox,posLeft +
    5dip, posTop + 10dip100dip30dip)
               posTop = posTop +
    30dip


    End If
    [​IMG]


    Attached Files:

  2. klaus

    klaus Expert Licensed User

    This is one possibility:
    To add the texts, use an array of string.
    Code:
    Private Space As Int = 5dip
    Private Width As Int = Min(100dip, (panLive_ListedUsers.Width - 5 * Space) / 4)
    Private Height As Int = 30dip
    Private posLeft As Int
    Private i, j, k As Int
    For i = 0 To 1

    For j = 0 To 1
            k =
    2 * i + j
            posLeft = Space

    Private userCheckBox As CheckBox
            userCheckBox.Initialize(
    "userCheckBox")
            userCheckBox.Tag = k
            userCheckBox.Text = k +
    1
            panLive_ListedUsers.AddView(userCheckBox, posLeft + j * (Width + Space), Space + i * (Height + Space), Width, Height)

            k = k +
    4
            posLeft =
    3 * Space + 2 * Width

    Private userCheckBox As CheckBox
            userCheckBox.Initialize(
    "userCheckBox")
            userCheckBox.Tag = k
            userCheckBox.Text = k +
    1
            panLive_ListedUsers.AddView(userCheckBox, posLeft + j * (Width + Space), Space + i * (Height + Space), Width, Height)

    Next
    Next

    DonManfred, konradwalsh and Erel like this.
  3. konradwalsh

    konradwalsh Active Member Licensed User

    Perfect Solution.. Thanks for your help
