iOS Question Table Library

fishwolf · Sep 12, 2015

I use this library
http://www.b4x.com/android/forum/threads/class-table.46567/

i have notice if i have a table with orizontal scrolling and i execute a update and reload the data

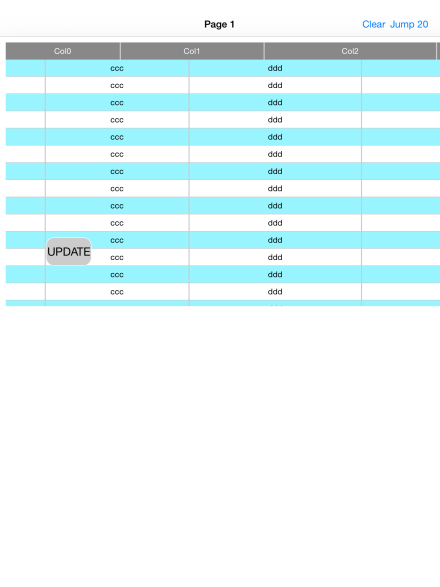

the columns of header are not aligned with colums data. (see screen-shot)

How i can fix ?

Thanks

Erel · Sep 13, 2015

Moved to the questions forum.

You need to call SetColumnsWidths again.

fishwolf · Sep 16, 2015

doesnt'n work, i have try to set in 3 positions

Code:

Sub ButtonLive_Click

   Log("ButtonLive_Click")

    ' Test1
   Table1.SetColumnsWidths(Array As Int(200, 250, 300, 350))

   Table1.ClearAll

   ' Test2
   Table1.SetColumnsWidths(Array As Int(200, 250, 300, 350))

   For i = 0 To 100
     Table1.AddRow(Array As String("Row: " & i, "ccc", "ddd", "eee"))
   Next

    ' Test3
   Table1.SetColumnsWidths(Array As Int(200, 250, 300, 350))

End Sub

Erel · Sep 16, 2015

Change Table.innerClearAll to:

Code:

Private Sub innerClearAll(vNumberOfColumns As Int)
   SV.Panel.RemoveAllViews
   NumberOfColumns = vNumberOfColumns
   SV.ContentHeight = 0
   SelectedRow = -1
   minVisibleRow = -1
   maxVisibleRow = 0
   Data.Initialize
   LabelsCache.Initialize
   visibleRows.Initialize
   SV.ScrollOffsetY = 0
   For i = 1 To 80 'fill the cache to avoid delay on the first touch
     LabelsCache.Add(CreateNewLabels)
   Next
   If cVisible Then
     SV.ScrollOffsetX = 0
     SV.ScrollOffsetY = 0
   End If
End Sub

fishwolf · Oct 11, 2015

sorry, i have discovery that with this function, the columns problem is resolved,

but when is scrool down the table, it don't show immediately the new rows, it's show a hole of rows.

Erel · Oct 11, 2015

Do the rows eventually show? Test it in release mode. It should be very quick.

fishwolf · Oct 11, 2015

in release mode is equal

Erel · Oct 13, 2015

The problem is in the modifications done to the Table class. I switched to the unmodified Table class and it works properly.

fishwolf · Oct 13, 2015

Erel said: ↑

The problem is in the modifications done to the Table class. I switched to the unmodified Table class and it works properly.
Click to expand...

i know, you have suggest the modifications (new innerClearAll) for resolve the initial bug on alignement from title and rows columns

Erel · Oct 13, 2015

I've tested it with the original code: http://www.b4x.com/android/forum/threads/class-table.46567/#content

It seems like you will need to further test Klaus modifications and see how to fix those issues. I previously missed the fact that you are using a modified version of this class.

klaus · Oct 13, 2015

I amended the column alignment in the class.
You didn't use the latest version which was 1.11
Added new version 1.12 HERE.
Try this one.

fishwolf · Oct 15, 2015

Thanks now work fine all features
