B4A Library Wrapper to zxing QRCode, EAN-13 & EAN-8 Generator

Discussion in 'Additional libraries, classes and official updates' started by vpires, Feb 4, 2014.

  1. vpires

    vpires Member Licensed User

    Hello group.

    This wrapper will allow easy offline creation of QR codes and EAN-13 & EAN-8 barcodes, using the opensource zxing library.

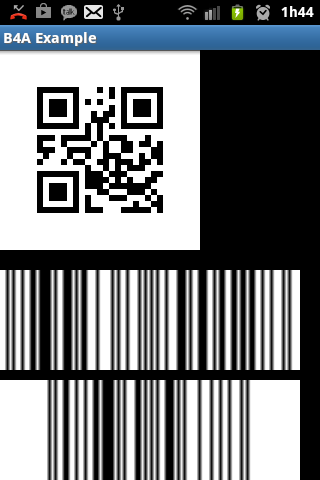

    Sample project :
    Code:
    #Region  Project Attributes

    #ApplicationLabel: B4A Example

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: unspecified

    #CanInstallToExternalStorage: False
    #End Region

    #Region  Activity Attributes

    #FullScreen: False

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.
        Dim b,b1,b2 As ImageView


    Dim qr As QRCode

    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        'Activity.LoadLayout("Layout1")

        b.Initialize(
    "")
        b1.Initialize(
    "")
        b1.Gravity=
    Gravity.FILL
        b2.Initialize(
    "")
        b2.Gravity=
    Gravity.FILL


    Activity.AddView(b,0,0,200dip,200dip)

    Activity.AddView(b1,0,220dip,300dip,100dip)

    Activity.AddView(b2,0,330dip,300dip,100dip)

        qr.initialize
        b.Bitmap = qr.QR_Encode(
    "TESTING QR CODES",200dip)
        b1.Bitmap = qr.Ean13_Encode(calc_ean_checksum(
    "123456789012"),100dip)
        b2.Bitmap = qr.Ean8_Encode(calc_ean_checksum(
    "1234567"),100dip)




    End Sub

    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub calc_ean_checksum(number As StringAs String

    Dim i As Int

    Dim c As Char

    Dim soma As Int

    Dim n As Int

    Dim digit As Float

        soma =
    0

    For i=0 To number.Length - 1
            digit = number.SubString2(i,i+
    1)
            n= digit * ((i
    Mod 2) * 2 + 1)
            soma=soma+n

    Next

    Return number & ( ( 10 - ( soma Mod 10 )) Mod 10 )
    End Sub
    full wrapper source code, as it's based in a open source project, and someone needs to improve it :

    Code:
    package com.inforpires.baQRCode;

    import anywheresoftware.b4a.BA;
    import anywheresoftware.b4a.BA.*;
    import anywheresoftware.b4a.BA.ActivityObject;
    import anywheresoftware.b4a.BA.DontInheritEvents;
    import anywheresoftware.b4a.BA.Events;
    import anywheresoftware.b4a.BA.Hide;
    import anywheresoftware.b4a.BA.Permissions;
    import anywheresoftware.b4a.BA.ShortName;
    import anywheresoftware.b4a.BA.Version;
    import anywheresoftware.b4a.BA.DependsOn;
    import anywheresoftware.b4a.objects.ViewWrapper;
    import anywheresoftware.b4a.AbsObjectWrapper;

    import android.provider.ContactsContract;
    import android.graphics.Bitmap;
    import android.os.Bundle;
    import android.telephony.PhoneNumberUtils;

    import java.util.Collection;
    import java.util.EnumMap;
    import java.util.HashSet;
    import java.util.Map;

    import com.google.zxing.BarcodeFormat;
    import com.google.zxing.EncodeHintType;
    import com.google.zxing.MultiFormatWriter;
    import com.google.zxing.WriterException;
    import com.google.zxing.common.BitMatrix;

    import android.provider.ContactsContract;

    @Version(
    1.0f)
    @Author(
    "Nelson Pires")
    @ShortName(
    "QRCode")
    @DontInheritEvents
    @DependsOn(values={
    "core-zxing"})

    public class baQRCode {

        public void initialize() {
            // WHAT ???
        };

        public Bitmap QR_Encode(String qrData,int qrCodeDimention) {

            Bitmap bitmap= Bitmap.createBitmap(1, 1, Bitmap.Config.ARGB_8888);

            QRCodeEncoder qrCodeEncoder = new QRCodeEncoder(qrData, null,
            Contents.Type.TEXT, BarcodeFormat.QR_CODE.toString(), qrCodeDimention);
            try {
                bitmap = qrCodeEncoder.encodeAsBitmap();
            } catch (WriterException e) {
                e.printStackTrace();
            };
            return bitmap;
        };

        public Bitmap Ean13_Encode(String qrData,int qrCodeDimention) {

            Bitmap bitmap= Bitmap.createBitmap(1, 1, Bitmap.Config.ARGB_8888);

            QRCodeEncoder qrCodeEncoder = new QRCodeEncoder(qrData, null,
            Contents.Type.TEXT, BarcodeFormat.EAN_13.toString(), qrCodeDimention);
            try {
                bitmap = qrCodeEncoder.encodeAsBitmap();
            } catch (WriterException e) {
                e.printStackTrace();
            };
            return bitmap;
        };

        public Bitmap Ean8_Encode(String qrData,int qrCodeDimention) {

            Bitmap bitmap= Bitmap.createBitmap(1, 1, Bitmap.Config.ARGB_8888);

            QRCodeEncoder qrCodeEncoder = new QRCodeEncoder(qrData, null,
            Contents.Type.TEXT, BarcodeFormat.EAN_8.toString(), qrCodeDimention);
            try {
                bitmap = qrCodeEncoder.encodeAsBitmap();
            } catch (WriterException e) {
                e.printStackTrace();
            };
            return bitmap;
        };



        private static class Contents {
        private Contents() {
        }

        private class Type {

        // Plain text. Use Intent.putExtra(DATA, string). This can be used for URLs too, but string
        // must include "http://" or "https://".
            public static final String TEXT = "TEXT_TYPE";

            // An email type. Use Intent.putExtra(DATA, string) where string is the email address.
            public static final String EMAIL = "EMAIL_TYPE";

            // Use Intent.putExtra(DATA, string) where string is the phone number to call.
            public static final String PHONE = "PHONE_TYPE";

            // An SMS type. Use Intent.putExtra(DATA, string) where string is the number to SMS.
            public static final String SMS = "SMS_TYPE";

            public static final String CONTACT = "CONTACT_TYPE";

            public static final String LOCATION = "LOCATION_TYPE";

            private Type() {
            }
        }

        public static final String URL_KEY = "URL_KEY";

        public static final String NOTE_KEY = "NOTE_KEY";

        // When using Type.CONTACT, these arrays provide the keys for adding or retrieving multiple phone numbers and addresses.
        public static final String[] PHONE_KEYS = {
                ContactsContract.Intents.Insert.PHONE, ContactsContract.Intents.Insert.SECONDARY_PHONE,
                ContactsContract.Intents.Insert.TERTIARY_PHONE
        };

        public static final String[] PHONE_TYPE_KEYS = {
                ContactsContract.Intents.Insert.PHONE_TYPE,
                ContactsContract.Intents.Insert.SECONDARY_PHONE_TYPE,
                ContactsContract.Intents.Insert.TERTIARY_PHONE_TYPE
        };

        public static final String[] EMAIL_KEYS = {
                ContactsContract.Intents.Insert.EMAIL, ContactsContract.Intents.Insert.SECONDARY_EMAIL,
                ContactsContract.Intents.Insert.TERTIARY_EMAIL
        };

        public static final String[] EMAIL_TYPE_KEYS = {
                ContactsContract.Intents.Insert.EMAIL_TYPE,
                ContactsContract.Intents.Insert.SECONDARY_EMAIL_TYPE,
                ContactsContract.Intents.Insert.TERTIARY_EMAIL_TYPE
        };
    }
    // -------------------------------------------- Fim
    public final class QRCodeEncoder {
        private static final int WHITE = 0xFFFFFFFF;
        private static final int BLACK = 0xFF000000;

        private int dimension = Integer.MIN_VALUE;
        private String contents = null;
        private String displayContents = null;
        private String title = null;
        private BarcodeFormat format = null;
        private boolean encoded = false;

        public QRCodeEncoder(String data, Bundle bundle, String type, String format, int dimension) {
            this.dimension = dimension;
            encoded = encodeContents(data, bundle, type, format);
        }

        public String getContents() {
            return contents;
        }

        public String getDisplayContents() {
            return displayContents;
        }

        public String getTitle() {
            return title;
        }

        private boolean encodeContents(String data, Bundle bundle, String type, String formatString) {
            // Default to QR_CODE if no format given.
            format = null;
            if (formatString != null) {
                try {
                    format = BarcodeFormat.valueOf(formatString);
                } catch (IllegalArgumentException iae) {
                    // Ignore it then
                }
            }
            if (format == null || format == BarcodeFormat.QR_CODE) {
                this.format = BarcodeFormat.QR_CODE;
                encodeQRCodeContents(data, bundle, type);
            } else if (data != null && data.length() > 0) {
                contents = data;
                displayContents = data;
                title = "Text";
            }
            return contents != null && contents.length() > 0;
        }

        private void encodeQRCodeContents(String data, Bundle bundle, String type) {
            if (type.equals(Contents.Type.TEXT)) {
                if (data != null && data.length() > 0) {
                    contents = data;
                    displayContents = data;
                    title = "Text";
                }
            } else if (type.equals(Contents.Type.EMAIL)) {
                data = trim(data);
                if (data != null) {
                    contents = "mailto:" + data;
                    displayContents = data;
                    title = "E-Mail";
                }
            } else if (type.equals(Contents.Type.PHONE)) {
                data = trim(data);
                if (data != null) {
                    contents = "tel:" + data;
                    displayContents = PhoneNumberUtils.formatNumber(data);
                    title = "Phone";
                }
            } else if (type.equals(Contents.Type.SMS)) {
                data = trim(data);
                if (data != null) {
                    contents = "sms:" + data;
                    displayContents = PhoneNumberUtils.formatNumber(data);
                    title = "SMS";
                }
            } else if (type.equals(Contents.Type.CONTACT)) {
                if (bundle != null) {
                    StringBuilder newContents = new StringBuilder(100);
                    StringBuilder newDisplayContents = new StringBuilder(100);

                    newContents.append("MECARD:");

                    String name = trim(bundle.getString(ContactsContract.Intents.Insert.NAME));
                    if (name != null) {
                        newContents.append("N:").append(escapeMECARD(name)).append(';');
                        newDisplayContents.append(name);
                    }

                    String address = trim(bundle.getString(ContactsContract.Intents.Insert.POSTAL));
                    if (address != null) {
                        newContents.append("ADR:").append(escapeMECARD(address)).append(';');
                        newDisplayContents.append('\n').append(address);
                    }

                    Collection<String> uniquePhones = new HashSet<String>(Contents.PHONE_KEYS.length);
                    for (int x = 0; x < Contents.PHONE_KEYS.length; x++) {
                        String phone = trim(bundle.getString(Contents.PHONE_KEYS[x]));
                        if (phone != null) {
                            uniquePhones.add(phone);
                        }
                    }
                    for (String phone : uniquePhones) {
                        newContents.append("TEL:").append(escapeMECARD(phone)).append(';');
                        newDisplayContents.append('\n').append(PhoneNumberUtils.formatNumber(phone));
                    }

                    Collection<String> uniqueEmails = new HashSet<String>(Contents.EMAIL_KEYS.length);
                    for (int x = 0; x < Contents.EMAIL_KEYS.length; x++) {
                        String email = trim(bundle.getString(Contents.EMAIL_KEYS[x]));
                        if (email != null) {
                            uniqueEmails.add(email);
                        }
                    }
                    for (String email : uniqueEmails) {
                        newContents.append("EMAIL:").append(escapeMECARD(email)).append(';');
                        newDisplayContents.append('\n').append(email);
                    }

                    String url = trim(bundle.getString(Contents.URL_KEY));
                    if (url != null) {
                        // escapeMECARD(url) -> wrong escape e.g. http\://zxing.google.com
                        newContents.append("URL:").append(url).append(';');
                        newDisplayContents.append('\n').append(url);
                    }

                    String note = trim(bundle.getString(Contents.NOTE_KEY));
                    if (note != null) {
                        newContents.append("NOTE:").append(escapeMECARD(note)).append(';');
                        newDisplayContents.append('\n').append(note);
                    }

                    // Make sure we've encoded at least one field.
                    if (newDisplayContents.length() > 0) {
                        newContents.append(';');
                        contents = newContents.toString();
                        displayContents = newDisplayContents.toString();
                        title = "Contact";
                    } else {
                        contents = null;
                        displayContents = null;
                    }

                }
            } else if (type.equals(Contents.Type.LOCATION)) {
                if (bundle != null) {
                    // These must use Bundle.getFloat(), not getDouble(), it's part of the API.
                    float latitude = bundle.getFloat("LAT", Float.MAX_VALUE);
                    float longitude = bundle.getFloat("LONG", Float.MAX_VALUE);
                    if (latitude != Float.MAX_VALUE && longitude != Float.MAX_VALUE) {
                        contents = "geo:" + latitude + ',' + longitude;
                        displayContents = latitude + "," + longitude;
                        title = "Location";
                    }
                }
            }
        }

        public Bitmap encodeAsBitmap() throws WriterException {
            if (!encoded) return null;

            Map<EncodeHintType, Object> hints = null;
            String encoding = guessAppropriateEncoding(contents);
            if (encoding != null) {
                hints = new EnumMap<EncodeHintType, Object>(EncodeHintType.class);
                hints.put(EncodeHintType.CHARACTER_SET, encoding);
            }
            MultiFormatWriter writer = new MultiFormatWriter();
            BitMatrix result = writer.encode(contents, format, dimension, dimension, hints);
            int width = result.getWidth();
            int height = result.getHeight();
            int[] pixels = new int[width * height];
            // All are 0, or black, by default
            for (int y = 0; y < height; y++) {
                int offset = y * width;
                for (int x = 0; x < width; x++) {
                    pixels[offset + x] = result.get(x, y) ? BLACK : WHITE;
                }
            }

            Bitmap bitmap = Bitmap.createBitmap(width, height, Bitmap.Config.ARGB_8888);
            bitmap.setPixels(pixels, 0, width, 0, 0, width, height);
            return bitmap;
        }

        private String guessAppropriateEncoding(CharSequence contents) {
            // Very crude at the moment
            for (int i = 0; i < contents.length(); i++) {
                if (contents.charAt(i) > 0xFF) { return "UTF-8"; }
            }
            return null;
        }

        private  String trim(String s) {
            if (s == null) { return null; }
            String result = s.trim();
            return result.length() == 0 ? null : result;
        }

        private String escapeMECARD(String input) {
            if (input == null || (input.indexOf(':') < 0 && input.indexOf(';') < 0)) { return input; }
            int length = input.length();
            StringBuilder result = new StringBuilder(length);
            for (int i = 0; i < length; i++) {
                char c = input.charAt(i);
                if (c == ':' || c == ';') {
                    result.append('\\');
                }
                result.append(c);
            }
            return result.toString();
        }
    }
    }
    Decompress the zip to your ExtraLibs folder.

    In the zip there is core zxing lib, renamed to zxing-core.jar. This is git pull from 20-08-2013, that i had in my computer. I think that it would be save to get a more recent one, but my home crappy internet would take hours to do a git refresh.

    Nelson

    Find it usefull ? paypal me a beer. (valeria_pires_@hotmail.com)


    Attached Files:

    MarcoRome, ellpopeb4a and Erel like this.
  2. urikupfer

    urikupfer Member Licensed User

    vpires
    thanks for the library . I have a problem when trying to combine it with ZXingLib(integration version)by icefairy333 (http://www.basic4ppc.com/android/fo...gration-version-by-icefairy333.24233/#content)

    I get this error:
    Parsing code. 0.11
    Compiling code. 1.07
    Compiling layouts code. 0.06
    Generating R file. 0.70
    Compiling generated Java code. 9.30
    Convert byte code - optimized dex. Error
    UNEXPECTED TOP-LEVEL EXCEPTION:
    java.lang.IllegalArgumentException: already added: Lcom/google/zxing/ReaderException;
    at com.android.dx.dex.file.ClassDefsSection.add(ClassDefsSection.java:123)
    at com.android.dx.dex.file.DexFile.add(DexFile.java:163)
    at com.android.dx.command.dexer.Main.processClass(Main.java:490)
    at com.android.dx.command.dexer.Main.processFileBytes(Main.java:459)
    at com.android.dx.command.dexer.Main.access$400(Main.java:67)
    at com.android.dx.command.dexer.Main$1.processFileBytes(Main.java:398)
    at com.android.dx.cf.direct.ClassPathOpener.processArchive(ClassPathOpener.java:245)
    at com.android.dx.cf.direct.ClassPathOpener.processOne(ClassPathOpener.java:131)
    at com.android.dx.cf.direct.ClassPathOpener.process(ClassPathOpener.java:109)
    at com.android.dx.command.dexer.Main.processOne(Main.java:422)
    at com.android.dx.command.dexer.Main.processAllFiles(Main.java:333)
    at com.android.dx.command.dexer.Main.run(Main.java:209)
    at com.android.dx.command.dexer.Main.main(Main.java:174)
    at com.android.dx.command.Main.main(Main.java:91)
    1 error; aborting
    Optimized dexer failed. Switching to Standard dexer.

    uri

  3. Erel

    Erel Administrator Staff Member Licensed User

    Open the xml file of this library and remove the DependsOn node. It will prevent the compiler from adding core-zxing.jar during compilation (the classes are also added by the other library).

  4. urikupfer

    urikupfer Member Licensed User

    hi erel
    it is still not working, now i get:
    java.lang.NoClassDefFoundError: com.google.zxing.MultiFormatWriter
    at com.inforpires.baQRCode.baQRCode$QRCodeEncoder.encodeAsBitmap(baQRCode.java:313)
    at com.inforpires.baQRCode.baQRCode.QR_Encode(baQRCode.java:53)
    at b4a.example.main._activity_create(main.java:298)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:515)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:170)
    at b4a.example.main.afterFirstLayout(main.java:98)
    at b4a.example.main.access$100(main.java:16)
    at b4a.example.main$WaitForLayout.run(main.java:76)
    at android.os.Handler.handleCallback(Handler.java:733)
    at android.os.Handler.dispatchMessage(Handler.java:95)
    at android.os.Looper.loop(Looper.java:136)
    at android.app.ActivityThread.main(ActivityThread.java:5017)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:515)
    at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:779)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:595)
    at dalvik.system.NativeStart.main(Native Method)


    Attached Files:

    • qr.zip
      File size:
      1.6 KB
      Views:
      202
  5. Erel

    Erel Administrator Staff Member Licensed User

    Seems like the referenced classes are not identical. One of the libraries creators will need to answer whether it is possible or not to use both libraries.

  6. vpires

    vpires Member Licensed User

    Hi.
    Had a quick look at it. My wrapper uses a newer version of zxing with some differences in the java classes...

    Here is a quick & dirty hack that gets scanning & generating codes working together.

    *************************************************************************
    THIS IS BASED ON THE PUBLISHED SOURCE OF IceFairy333.
    If by any chance you don't agree with it, please say so.
    *************************************************************************

    The sample project, updated with a button to do a scan & generate a QR of the result :

    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.
        Dim b,b1,b2 As ImageView

    Dim bt As Button


    Dim qr As QRCode

    Dim sc As Zxing_scanner

    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:
        'Activity.LoadLayout("Layout1")

        b.Initialize(
    "")
        b1.Initialize(
    "")
        b1.Gravity=
    Gravity.FILL
        b2.Initialize(
    "")
        b2.Gravity=
    Gravity.FILL


    Activity.AddView(b,0,0,100dip,100dip)

    Activity.AddView(b1,0,110dip,300dip,100dip)

    Activity.AddView(b2,0,220dip,300dip,100dip)

        qr.initialize
        b.Bitmap = qr.QR_Encode(
    "TESTING QR CODES",100dip)
        b1.Bitmap = qr.Ean13_Encode(calc_ean_checksum(
    "123456789012"),100dip)
        b2.Bitmap = qr.Ean8_Encode(calc_ean_checksum(
    "1234567"),100dip)

        bt.Initialize(
    "bt")
        bt.Text=
    "SCAN"

    Activity.AddView(bt,0,330dip,100dip,50dip)

    End Sub

    Sub Activity_Resume

    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub
    Sub bt_click
        sc.BeginScan(
    "sc","OJO: Put the code in the small window and have a steady hand")
    End Sub
    Sub sc_result(atype As String,Values As String)

    Log("Type : " & atype)

    Log("Value : " & Values)
        b.Bitmap = qr.QR_Encode(Values,
    100dip)
    End Sub
    Sub sc_noScan

    Log("nothing returned from the scan !!!!!")
    End Sub
    Sub calc_ean_checksum(number As StringAs String

    Dim i As Int

    Dim c As Char

    Dim soma As Int

    Dim n As Int

    Dim digit As Float

        soma =
    0

    For i=0 To number.Length - 1
            digit = number.SubString2(i,i+
    1)
            n= digit * ((i
    Mod 2) * 2 + 1)
            soma=soma+n

    Next

    Return number & ( ( 10 - ( soma Mod 10 )) Mod 10 )
    End Sub
    Next we have the published version of IceFairy333 lib with some minor changes :
    (Note to the original author : changed package & lib name, hope that's ok with you, if not say so and we will work it out. Just don't beat me with a stick :) )
    Code:
    /*
           Based on the original work of IceFairy333

    */
    package com.inforpires.barcodescanner;

    import android.content.Intent;
    import android.util.Log;
    import anywheresoftware.b4a.BA;
    import anywheresoftware.b4a.BA.ActivityObject;
    import anywheresoftware.b4a.BA.Author;
    import anywheresoftware.b4a.BA.Events;
    import anywheresoftware.b4a.BA.Hide;
    import anywheresoftware.b4a.BA.Permissions;
    import anywheresoftware.b4a.BA.ShortName;
    import anywheresoftware.b4a.BA.Version;
    import anywheresoftware.b4a.IOnActivityResult;
    import anywheresoftware.b4a.BA.DependsOn;

    import com.google.zxing.client.android.*;


    @ShortName(
    "Zxing_scanner")
    @Version(
    1.0F)
    @Author(
    "Nelson Pires")
    @Events(values={
    "result(atype as String,Values as String)","noScan"})
    @ActivityObject
    @Permissions(values={"android.permission.CAMERA","android.permission.WRITE_EXTERNAL_STORAGE","android.hardware.camera","android.hardware.camera.autofocus","android.permission.VIBRATE","android.permission.FLASHLIGHT"})
    @DependsOn(values={"core-zxing","zxingscanner"})


    public class barcodescanner {
        @Hide
        public static BA myba;
        private IOnActivityResult ion;
        @Hide
        public static String en;

    public void BeginScan(BA ba,String EventName, String msg) {
        myba=ba;
        en=EventName.toLowerCase();
        Intent izx;


        izx=new Intent(BA.applicationContext, CaptureActivity.class);
        izx.setAction("com.google.zxing.client.android.SCAN");
        izx.putExtra("PROMPT_MESSAGE",msg);

        ion=new IOnActivityResult() {

            @Override
            public void ResultArrived(int arg0, Intent arg1) {
                // TODO Auto-generated method stub
                if (arg0==-1){
                String atype;
                String Value;
                atype=arg1.getStringExtra("SCAN_RESULT_FORMAT");
                Value=arg1.getStringExtra("SCAN_RESULT");
                myba.raiseEvent2(null, false, en+"_result", true, new Object[]{atype,Value});
                Log.i("B4A", "Got result code:"+Value);
                }else{
                    myba.raiseEvent(null,en+"_noscan");
                    Log.i("B4A", "Got other result code:"+arg0);
                }
            }
        };
        ba.startActivityForResult(ion, izx);
    }

    }
    Finally, we have the 20.08.2013 ORIGINAL android version of the zxing app with only the CreateMenu commented out.
    (attached)

    to use it this way, you need to :

    1) add this in the manifest editor
    AddApplicationText(<activity android:name="com.google.zxing.client.android.CaptureActivity"
    android:screenOrientation="landscape" android:configChanges="orientation|keyboardHidden"
    android:theme="@android:style/Theme.NoTitleBar.Fullscreen"
    android:windowSoftInputMode="stateAlwaysHidden">
    </activity>
    )
    2) decompress res.zip into res folder (inside Objects folder) and set them ReadOnly

    3) decompress libs.zip into extralibs of B4A


    Attached Files:

    • res.zip
      File size:
      155.5 KB
      Views:
      360
    • libs.zip
      File size:
      126.1 KB
      Views:
      462
  7. urikupfer

    urikupfer Member Licensed User

    vpires and Erel, thanks a lot , it solved the problem.
    uri

  8. Douglas Farias

    Douglas Farias Expert Licensed User

    how to save this
    b.Bitmap = qr.QR_Encode("TESTING QR CODES",200dip)

    to a png or jpg file?

  9. vpires

    vpires Member Licensed User

    Code:
    Dim oS As OutputStream
    oS =
    File.OpenOutput(File.DirDefaultExternal,"myfile.png",False)
    b.WriteToStream(oS,
    100,"PNG")

    DonManfred likes this.
  10. Douglas Farias

    Douglas Farias Expert Licensed User

    thx man this works ;)

  11. Douglas Farias

    Douglas Farias Expert Licensed User

    and the correct way to open a web site when finish scan?

    Code:
    Sub sc_result(atype As String,Values As String)
    Dim p As PhoneIntents
        ImageView1.Bitmap = qr.QR_Encode(Values,
    100dip)

    StartActivity(p.OpenBrowser("http://" & Values))

    End Sub
    this is correct?

    how can i make to open a site when the code is a url
    or open a search google when is a simple text the scan result?

    Last edited: Mar 4, 2014
  12. juanomoran

    juanomoran Member Licensed User

    Thanks vpires for your library. I have a few questions. I decompressed the lib in the additional libraries folder. I unloaded the old zxing lib and refreshed the project to load new libraries.

    I have 2 libs: zxingscan.jar (with its xml file) and zxingscanner.jar alone. What should I do? Replace old b4AZxing.jar lib? What about the "missing" zxingscanner.xml?

    None of these two libs load on refresh!!! I think that the xml is corrupt since I can open the zxingscanner.jar outside b4a, but when trying to open the zxingscan.jar, it says that the file is corrupt.

    I'm sorry, but I'm a little bit confused with so many similar files being in the additional libs folder

    Thanks again

    Last edited: Mar 29, 2014
  13. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Last edited: Nov 15, 2014
    chaiwatt likes this.
  14. chaiwatt

    chaiwatt Member Licensed User

    Hi Johan, I have separated post about QR code reader that have no solution yet. I run now on 'NELSON SOLUTION' example and work like a charm. But I have problem that my project require a front camera instead back camera. Is is possible that I can swap to use front camera for the scaning?.
    I downloaded some QR code reader app seem they can use both camera (I don't know what they created from which platform). Apologize that I may ark in wrong place, anyway it will be appreciated if you can add this function in next the lib update.

  15. Johan Schoeman

    Johan Schoeman Expert Licensed User


    I think you will have to ask the doctors to help you solve this issue and not ask the nurse... Doctors such as Dr Erel and Dr Klaus. :)

    chaiwatt likes this.
  16. chaiwatt

    chaiwatt Member Licensed User

    Hi Johan, thanks a lot. I like your joke but I beleive that you're expert enought, 55555.

  17. Gaver Powers

    Gaver Powers Member Licensed User

    Hello Johan,

    Thanks for your help in producing this library.
    Will this code / scanner work without downloading and installing the zxing barcode scanner app from Google Play on the android device?

    I tried the version created by IceFairy - there are some differences in the scanning process - my images are distorted (trapezoidal) when viewed by the scanner and there's no target dots (green) being displayed on the qr code in the viewfinder while it's trying to find the corners of the code - like the more recent version of zxing (from google play).

    GP

Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
