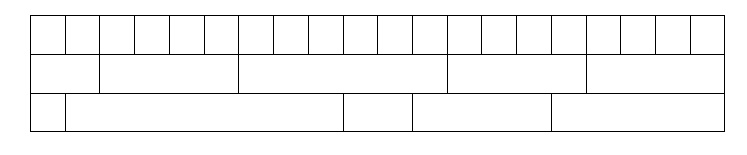

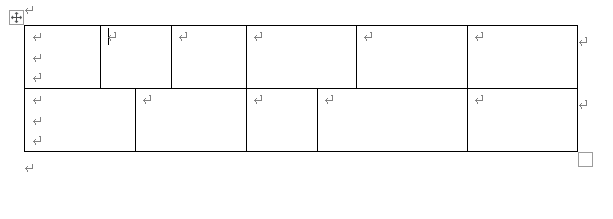

B4J Question [XLUtils] It can draw a table(word) like this?

[liulifeng77]

hi,
I came to ask for your help again.
can each cell have a different width?



[EnriqueGonzalez]

An strict table, as excel defines it, no.

But you could draw such layout with borders. whether that's useful to you its another issue.



[Erel]

    doc.Append($"[p]lksadjfklasdjflksdjflksdjkflsdf
    sd
    fsdf klsdfjlksdkfljsdjfklsd[/p]
[table rows=3 cols=20]
    [row]
        ${FirstRow}
    [/row]
    [row]
        [cell ColSpan=2][p Alignment=Center] [/p][/cell]
        [cell ColSpan=4][p Alignment=Center] [/p][/cell]
        [cell ColSpan=6][p Alignment=Center] [/p][/cell]
        [cell ColSpan=4 ][p Alignment=Center] [/p][/cell]
        [cell ColSpan=4 ][p Alignment=Center] [/p][/cell]
    [/row]
    [row]
        [cell ColSpan=1][p Alignment=Center] [/p][/cell]
        [cell ColSpan=8][p Alignment=Center] [/p][/cell]
        [cell ColSpan=2][p Alignment=Center] [/p][/cell]
        [cell ColSpan=4][p Alignment=Center] [/p][/cell]
        [cell ColSpan=5][p Alignment=Center] [/p][/cell]
    [/row]
[/table]
    "$)

Sub FirstRow As String
    Dim sb As StringBuilder
    sb.Initialize
    For i = 1 To 20
        sb.Append("[cell Width=20][p Alignment=Center] [/p][/cell]")
    Next
    Return sb.ToString
End Sub

It might be possible without the first row. The few tests I did without it, didn't work.



[liulifeng77]

thank you for your quick reply. first row must be preserved, otherwise the table format is very strange.but if can't removed the first row, the table is not what I want. ????, Is there a way to hide the first row?



[Sandman]

Perhaps one could simply set the height of the first row to zero? Or remove the border lines that makes it visible? (Yeah, I know, it's dirty hacks. ?)



[liulifeng77]

height cannot be set to 0, It doesn't work. I tested.
