B4J Tutorial A* Search Algorithm

It is based on this web posting.

"......To approximate the shortest path in real-life situations, like- in maps, games where there can be many hindrances......"

It is done with some modified inline Java code to adapt it for use in B4J.
1. Run the attached project
2. Click on any cell to be your Starting Point - the cell color will turn RED
3. Click on any other cell to be your End Point. the cell color will turn Green
4. Then click on any other cells other than you start or end point cells. They will turn Black as are considered as obstacles between the start and end cells. Keep on clicking on more cells to add more obstacles
5. Once you have selected your obstacle cells, Click on Button Solve. The A* model will then find the shortest route between your Start and End cells and make the cells color of the shortest path yellow.

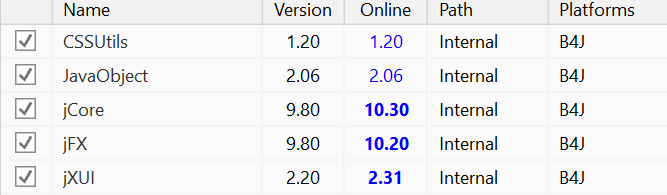

No other libs or jars required other that standard B4J libs

I have not added a "reset" or clicking on the same cell to enable/disable it as an obstacle or Start /End cell - leaving it up to you to do so.

For testing purposes I have used the following Matrix from the original Java code on the link above:

{ 1, 0, 1, 1, 1, 1, 0, 1, 1, 1 },
                         { 1, 1, 1, 0, 1, 1, 1, 0, 1, 1 },
                         { 1, 1, 1, 0, 1, 1, 0, 1, 0, 1 },
                         { 0, 0, 1, 0, 1, 0, 0, 0, 0, 1 },
                         { 1, 1, 1, 0, 1, 1, 1, 0, 1, 0 },
                         { 1, 0, 1, 1, 1, 1, 0, 1, 0, 0 },
                         { 1, 0, 0, 0, 0, 1, 0, 0, 0, 1 },
                         { 1, 0, 1, 1, 1, 1, 0, 1, 1, 1 },
                         { 1, 1, 1, 0, 0, 0, 1, 0, 0, 1 } }

I have selected cell (8,0) as start and cell (0,0) as the end.
All cells are originally set to 1 in the code matrix. Start and End cells will have a value of 1 and only change color when you select your start and end cells.
When you add an obstacle the cell will be set to 0 in the grid array (you wont see it - it is in the code)

So, setting up the above matric with start at 8,0, end at 0,0, and obstacles for each 0 in the matric above looks as follows:

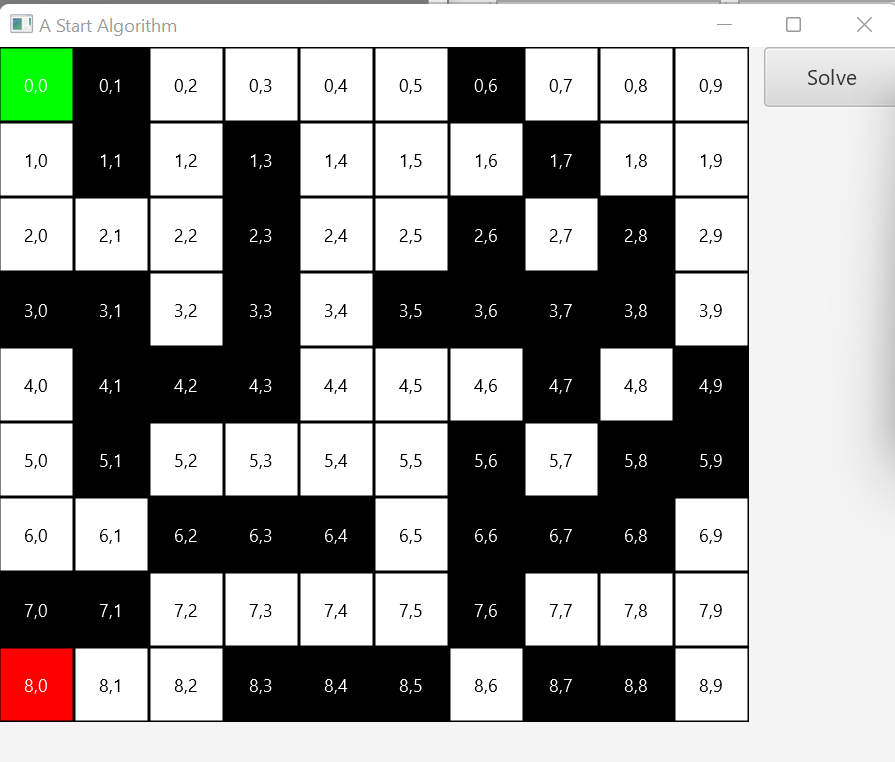

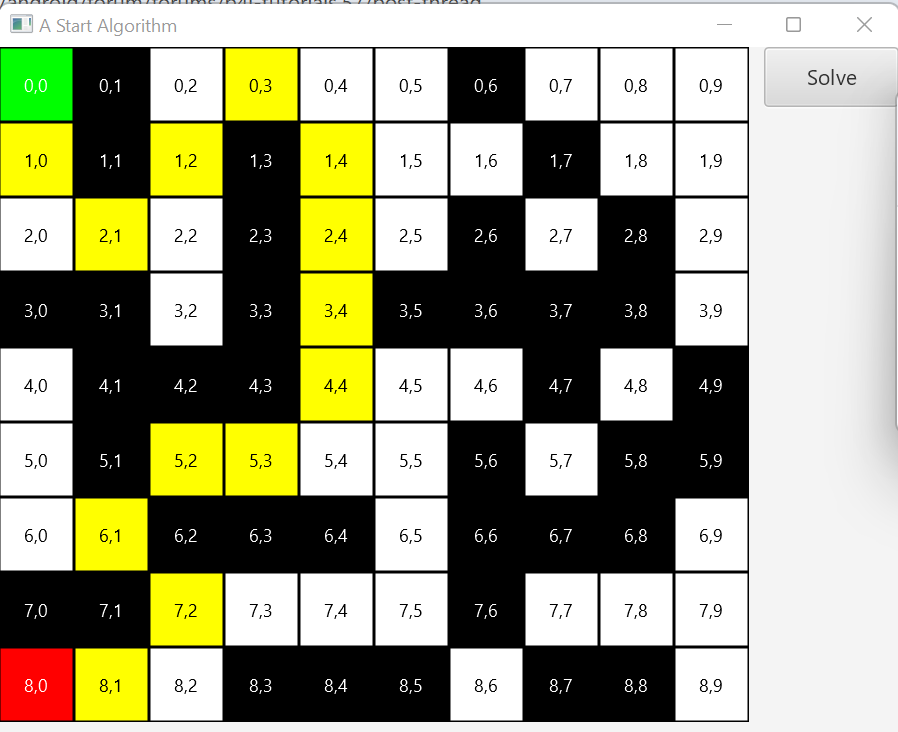

Once set up, click on button "Solve". The result will be (where the yellow cells indicate the shortest path between you selected start and end cells taking your obstacles into consideration :

See the B4J log:

The destination cell is found
The Path is
-> (8, 0)-> (8, 1)-> (7, 2)-> (6, 1)-> (5, 2)-> (5, 3)-> (4, 4)-> (3, 4)-> (2, 4)-> (1, 4)-> (0, 3)-> (1, 2)-> (2, 1)-> (1, 0)-> (0, 0)
here
,(8,0),(8,1),(7,2),(6,1),(5,2),(5,3),(4,4),(3,4),(2,4),(1,4),(0,3),(1,2),(2,1),(1,0),(0,0)
8,0;8,1;7,2;6,1;5,2;5,3;4,4;3,4;2,4;1,4;0,3;1,2;2,1;1,0;0,0

The result of the path calculation comes back to the B4J project via an Event - from here the UI is updated with the path result using various string manipulations.

Sample code:

#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600
#End Region
'https://www.geeksforgeeks.org/dsa/a-search-algorithm/

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI
    Dim nativeMe As JavaObject

    Dim lbl(9,10) As Label
    Dim grid(9,10) As Int

    Dim startSelected As Boolean
    Dim endSelected As Boolean

    Private Button1 As Button

    Dim startTag, endTag As String

End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.RootPane.LoadLayout("Layout1")
    MainForm.Show

    startTag = ""
    endTag = ""

    For i = 0 To 8
        For j = 0 To 9
            grid(i,j) = 1
        Next
    Next

    startSelected = False
    endSelected = False

    For i = 0 To 8
        For j = 0 To 9
            lbl(i,j).Initialize("label")
            lbl(i,j).Text = i & "," & j
            lbl(i,j).TextColor = fx.Colors.black
            lbl(i,j).Alignment = "CENTER"
            lbl(i,j).Tag = i & "," & j
            CSSUtils.SetBackgroundColor(lbl(i,j), fx.Colors.White)
            CSSUtils.SetBorder(lbl(i,j), 1dip, fx.Colors.Black, 0)
            MainForm.RootPane.AddNode(lbl(i,j), j*50, i*50, 50dip, 50dip)
        Next
    Next

    nativeMe = Me
'    Dim start() As Int = Array As Int(8,0)
'    nativeMe.RunMethod("setStart", Array(start))
'
'    Dim fin() As Int = Array As Int(0,0)
'    nativeMe.RunMethod("setEnd", Array(fin))


End Sub

Sub label_MouseClicked (EventData As MouseEvent)
    Dim l As Label
    l = Sender

    'Log(l.TextColor)
    If startSelected = False And endSelected = False Then
        startTag = l.Tag
        startSelected = True
        Dim s(2) As String = Regex.Split(",", l.Tag)
        Dim row As Int = s(0)
        Dim col As Int = s(1)
        grid(row, col) = 1
        l.TextColor = fx.Colors.White
        CSSUtils.SetBackgroundColor(l, fx.Colors.Red)
        Dim aa() As Int = Array As Int(row, col)
        nativeMe.RunMethod("setStart", Array(aa))
    else if startSelected = True And endSelected = False Then
        endTag = l.Tag
        endSelected = True
        Dim s(2) As String = Regex.Split(",", l.Tag)
        Dim row As Int = s(0)
        Dim col As Int = s(1)
        grid(row, col) = 1
        l.TextColor = fx.Colors.White
        CSSUtils.SetBackgroundColor(l, fx.Colors.Green)
        Dim aa() As Int = Array As Int(row, col)
        nativeMe.RunMethod("setEnd", Array(aa))
    else if startSelected = True And endSelected = True Then
        l.TextColor = fx.Colors.White
        CSSUtils.SetBackgroundColor(l, fx.Colors.Black)
        Dim s(2) As String = Regex.Split(",", l.Tag)
        Dim row As Int = s(0)
        Dim col As Int = s(1)
        grid(row, col) = 0
    End If
'    l.TextColor = fx.Colors.Red
'    CSSUtils.SetBackgroundColor(l, fx.Colors.Black)
'    Log("Label :" & l.Tag)
End Sub


Private Sub Button1_Click
    nativeMe.RunMethod("main1", Array(grid))
End Sub

Sub path_result(comp As Boolean, result As String)
    Log("")
    Log("here")
    result = result.Replace("->", ",")
    result = result.Replace(" ", "")
    Log(result)

    result = result.SubString2(1, result.Length)
    result = result.Replace("),(", ";")
    result = result.Replace("(", "")
    result = result.Replace(")", "")

    Dim split() As String = Regex.Split(";", result)

    For i = 0 To 8
        For j = 0 To 9
            For k = 0 To split.Length - 1
                If lbl(i,j).Tag = split(k) Then
                    If lbl(i,j).Tag <> startTag And lbl(i,j).Tag <> endTag Then
                        CSSUtils.SetBackgroundColor(lbl(i,j), fx.Colors.Yellow)
                    End If
                End If
            Next
        Next
    Next

    Log(result)


End Sub


#if Java

import java.util.ArrayList;
import java.util.Collections;
import java.util.HashMap;
import java.util.LinkedHashMap;
import java.util.List;
import java.util.Map;

static class Cell {
    int parent_i, parent_j;
    double f, g, h;

    Cell()
    {
        this.parent_i = 0;
        this.parent_j = 0;
        this.f = 0;
        this.g = 0;
        this.h = 0;
    }
}



    private static final int ROW = 9;
    private static final int COL = 10;
    static int[] src;
    static int[] dest;
    static int[][] grid;
    static String pad = "";

    public static void main1(int[][] myIntArray) {   //

        // Description of the Grid-
        // 1--> The cell is not blocked
        // 0--> The cell is blocked
/*        int[][] grid = { { 1, 0, 1, 1, 1, 1, 0, 1, 1, 1 },
                         { 1, 0, 1, 0, 1, 1, 1, 0, 1, 1 },
                         { 1, 1, 1, 0, 1, 1, 0, 1, 0, 1 },
                         { 0, 0, 1, 0, 1, 0, 0, 0, 0, 1 },
                         { 1, 0, 0, 0, 1, 1, 1, 0, 1, 0 },
                         { 1, 0, 1, 1, 1, 1, 0, 1, 0, 0 },
                         { 1, 1, 0, 0, 0, 1, 0, 0, 0, 1 },
                         { 0, 0, 1, 1, 1, 1, 0, 1, 1, 1 },
                         { 1, 1, 1, 0, 0, 0, 1, 0, 0, 1 } }; */

            grid = myIntArray;


        // Source is the left-most bottom-most corner
        //int[] src = { 8, 0 };

        // Destination is the left-most top-most corner
        //int[] dest = { 0, 0 };

        aStarSearch(grid, src, dest);
    }


    public static void setStart(int[] mysrc) {
        src = mysrc;
    }

    public static void setEnd(int[] mydest) {
        dest = mydest;
    }

    private static boolean isValid(int row, int col)
    {
        return (row >= 0) && (row < ROW) && (col >= 0)
            && (col < COL);
    }

    private static boolean isUnBlocked(int[][] grid,
                                       int row, int col)
    {
        return grid[row][col] == 1;
    }

    private static boolean isDestination(int row, int col,
                                         int[] dest)
    {
        return row == dest[0] && col == dest[1];
    }

    private static double calculateHValue(int row, int col,
                                          int[] dest)
    {
        return Math.sqrt((row - dest[0]) * (row - dest[0])
                         + (col - dest[1])
                               * (col - dest[1]));
    }

    private static void tracePath(Cell[][] cellDetails,
                                  int[] dest)
    {
        System.out.println("The Path is ");
        int row = dest[0];
        int col = dest[1];

        Map<int[], Boolean> path = new LinkedHashMap<>();

        while (
            !(cellDetails[row][col].parent_i == row
              && cellDetails[row][col].parent_j == col)) {
            path.put(new int[] { row, col }, true);
            int temp_row = cellDetails[row][col].parent_i;
            int temp_col = cellDetails[row][col].parent_j;
            row = temp_row;
            col = temp_col;
        }

        path.put(new int[] { row, col }, true);
        List<int[]> pathList
            = new ArrayList<>(path.keySet());
        Collections.reverse(pathList);

        pathList.forEach(p -> {
            if (p[0] == 2 || p[0] == 1) {
                System.out.print("-> (" + p[0] + ", "
                                 + (p[1]) + ")");
                                 pad = pad + "-> (" + p[0] + ", "
                                 + (p[1]) + ")";
            }
            else {
                System.out.print("-> (" + p[0] + ", " + p[1]
                                 + ")");
                                 pad = pad + "-> (" + p[0] + ", " + p[1]
                                 + ")";
            }
        });
        ba.raiseEvent(null, "path_result", true, pad);
        System.out.println();
    }

    private static void aStarSearch(int[][] grid, int[] src,
                                    int[] dest)
    {
        if (!isValid(src[0], src[1])
            || !isValid(dest[0], dest[1])) {
            System.out.println(
                "Source or destination is invalid");
            return;
        }

        if (!isUnBlocked(grid, src[0], src[1])
            || !isUnBlocked(grid, dest[0], dest[1])) {
            System.out.println(
                "Source or the destination is blocked");
            return;
        }

        if (isDestination(src[0], src[1], dest)) {
            System.out.println(
                "We are already at the destination");
            return;
        }

        boolean[][] closedList = new boolean[ROW][COL];
        Cell[][] cellDetails = new Cell[ROW][COL];

        for (int i = 0; i < ROW; i++) {
            for (int j = 0; j < COL; j++) {
                cellDetails[i][j] = new Cell();
                cellDetails[i][j].f
                    = Double.POSITIVE_INFINITY;
                cellDetails[i][j].g
                    = Double.POSITIVE_INFINITY;
                cellDetails[i][j].h
                    = Double.POSITIVE_INFINITY;
                cellDetails[i][j].parent_i = -1;
                cellDetails[i][j].parent_j = -1;
            }
        }

        int i = src[0], j = src[1];
        cellDetails[i][j].f = 0;
        cellDetails[i][j].g = 0;
        cellDetails[i][j].h = 0;
        cellDetails[i][j].parent_i = i;
        cellDetails[i][j].parent_j = j;

        Map<Double, int[]> openList = new HashMap<>();
        openList.put(0.0, new int[] { i, j });

        boolean foundDest = false;

        while (!openList.isEmpty()) {
            Map.Entry<Double, int[]> p
                = openList.entrySet().iterator().next();
            for (Map.Entry<Double, int[]> q :
                 openList.entrySet()) {
                if (q.getKey() < p.getKey()) {
                    p = q;
                }
            }

            openList.remove(p.getKey());

            i = p.getValue()[0];
            j = p.getValue()[1];
            closedList[i][j] = true;

            double gNew, hNew, fNew;

            // 1st Successor (North)
            if (isValid(i - 1, j)) {
                if (isDestination(i - 1, j, dest)) {
                    cellDetails[i - 1][j].parent_i = i;
                    cellDetails[i - 1][j].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i - 1][j]
                         && isUnBlocked(grid, i - 1, j)) {
                    gNew = cellDetails[i][j].g + 1;
                    hNew = calculateHValue(i - 1, j, dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i - 1][j].f
                            == Double.POSITIVE_INFINITY

                        || cellDetails[i - 1][j].f > fNew) {
                        openList.put(
                            fNew, new int[] { i - 1, j });

                        cellDetails[i - 1][j].f = fNew;
                        cellDetails[i - 1][j].g = gNew;
                        cellDetails[i - 1][j].h = hNew;
                        cellDetails[i - 1][j].parent_i = i;
                        cellDetails[i - 1][j].parent_j = j;
                    }
                }
            }

            // 2nd Successor (South)
            if (isValid(i + 1, j)) {
                if (isDestination(i + 1, j, dest)) {
                    cellDetails[i + 1][j].parent_i = i;
                    cellDetails[i + 1][j].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i + 1][j]
                         && isUnBlocked(grid, i + 1, j)) {
                    gNew = cellDetails[i][j].g + 1;
                    hNew = calculateHValue(i + 1, j, dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i + 1][j].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i + 1][j].f > fNew) {
                        openList.put(
                            fNew, new int[] { i + 1, j });

                        cellDetails[i + 1][j].f = fNew;
                        cellDetails[i + 1][j].g = gNew;
                        cellDetails[i + 1][j].h = hNew;
                        cellDetails[i + 1][j].parent_i = i;
                        cellDetails[i + 1][j].parent_j = j;
                    }
                }
            }

            // 3rd Successor (East)
            if (isValid(i, j + 1)) {
                if (isDestination(i, j + 1, dest)) {
                    cellDetails[i][j + 1].parent_i = i;
                    cellDetails[i][j + 1].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i][j + 1]
                         && isUnBlocked(grid, i, j + 1)) {
                    gNew = cellDetails[i][j].g + 1;
                    hNew = calculateHValue(i, j + 1, dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i][j + 1].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i][j + 1].f > fNew) {
                        openList.put(
                            fNew, new int[] { i, j + 1 });

                        cellDetails[i][j + 1].f = fNew;
                        cellDetails[i][j + 1].g = gNew;
                        cellDetails[i][j + 1].h = hNew;
                        cellDetails[i][j + 1].parent_i = i;
                        cellDetails[i][j + 1].parent_j = j;
                    }
                }
            }

            // 4th Successor (West)
            if (isValid(i, j - 1)) {
                if (isDestination(i, j - 1, dest)) {
                    cellDetails[i][j - 1].parent_i = i;
                    cellDetails[i][j - 1].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i][j - 1]
                         && isUnBlocked(grid, i, j - 1)) {
                    gNew = cellDetails[i][j].g + 1;
                    hNew = calculateHValue(i, j - 1, dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i][j - 1].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i][j - 1].f > fNew) {
                        openList.put(
                            fNew, new int[] { i, j - 1 });

                        cellDetails[i][j - 1].f = fNew;
                        cellDetails[i][j - 1].g = gNew;
                        cellDetails[i][j - 1].h = hNew;
                        cellDetails[i][j - 1].parent_i = i;
                        cellDetails[i][j - 1].parent_j = j;
                    }
                }
            }

            // 5th Successor (North-East)
            if (isValid(i - 1, j + 1)) {
                if (isDestination(i - 1, j + 1, dest)) {
                    cellDetails[i - 1][j + 1].parent_i = i;
                    cellDetails[i - 1][j + 1].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i - 1][j + 1]
                         && isUnBlocked(grid, i - 1,
                                        j + 1)) {
                    gNew = cellDetails[i][j].g + 1.414;
                    hNew = calculateHValue(i - 1, j + 1,
                                           dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i - 1][j + 1].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i - 1][j + 1].f
                               > fNew) {
                        openList.put(
                            fNew,
                            new int[] { i - 1, j + 1 });

                        cellDetails[i - 1][j + 1].f = fNew;
                        cellDetails[i - 1][j + 1].g = gNew;
                        cellDetails[i - 1][j + 1].h = hNew;
                        cellDetails[i - 1][j + 1].parent_i
                            = i;
                        cellDetails[i - 1][j + 1].parent_j
                            = j;
                    }
                }
            }

            // 6th Successor (North-West)
            if (isValid(i - 1, j - 1)) {
                if (isDestination(i - 1, j - 1, dest)) {
                    cellDetails[i - 1][j - 1].parent_i = i;
                    cellDetails[i - 1][j - 1].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i - 1][j - 1]
                         && isUnBlocked(grid, i - 1,
                                        j - 1)) {
                    gNew = cellDetails[i][j].g + 1.414;
                    hNew = calculateHValue(i - 1, j - 1,
                                           dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i - 1][j - 1].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i - 1][j - 1].f
                               > fNew) {
                        openList.put(
                            fNew,
                            new int[] { i - 1, j - 1 });

                        cellDetails[i - 1][j - 1].f = fNew;
                        cellDetails[i - 1][j - 1].g = gNew;
                        cellDetails[i - 1][j - 1].h = hNew;
                        cellDetails[i - 1][j - 1].parent_i
                            = i;
                        cellDetails[i - 1][j - 1].parent_j
                            = j;
                    }
                }
            }

            // 7th Successor (South-East)
            if (isValid(i + 1, j + 1)) {
                if (isDestination(i + 1, j + 1, dest)) {
                    cellDetails[i + 1][j + 1].parent_i = i;
                    cellDetails[i + 1][j + 1].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i + 1][j + 1]
                         && isUnBlocked(grid, i + 1,
                                        j + 1)) {
                    gNew = cellDetails[i][j].g + 1.414;
                    hNew = calculateHValue(i + 1, j + 1,
                                           dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i + 1][j + 1].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i + 1][j + 1].f
                               > fNew) {
                        openList.put(
                            fNew,
                            new int[] { i + 1, j + 1 });

                        cellDetails[i + 1][j + 1].f = fNew;
                        cellDetails[i + 1][j + 1].g = gNew;
                        cellDetails[i + 1][j + 1].h = hNew;
                        cellDetails[i + 1][j + 1].parent_i
                            = i;
                        cellDetails[i + 1][j + 1].parent_j
                            = j;
                    }
                }
            }

            // 8th Successor (South-West)
            if (isValid(i + 1, j - 1)) {
                if (isDestination(i + 1, j - 1, dest)) {
                    cellDetails[i + 1][j - 1].parent_i = i;
                    cellDetails[i + 1][j - 1].parent_j = j;
                    System.out.println(
                        "The destination cell is found");
                    tracePath(cellDetails, dest);
                    foundDest = true;
                    return;
                }
                else if (!closedList[i + 1][j - 1]
                         && isUnBlocked(grid, i + 1,
                                        j - 1)) {
                    gNew = cellDetails[i][j].g + 1.414;
                    hNew = calculateHValue(i + 1, j - 1,
                                           dest);
                    fNew = gNew + hNew;

                    if (cellDetails[i + 1][j - 1].f
                            == Double.POSITIVE_INFINITY
                        || cellDetails[i + 1][j - 1].f
                               > fNew) {
                        openList.put(
                            fNew,
                            new int[] { i + 1, j - 1 });

                        cellDetails[i + 1][j - 1].f = fNew;
                        cellDetails[i + 1][j - 1].g = gNew;
                        cellDetails[i + 1][j - 1].h = hNew;
                        cellDetails[i + 1][j - 1].parent_i
                            = i;
                        cellDetails[i + 1][j - 1].parent_j
                            = j;
                    }
                }
            }
        }

        if (!foundDest)
            System.out.println(
                "Failed to find the destination cell");
    }


#End If



[Johan Schoeman]

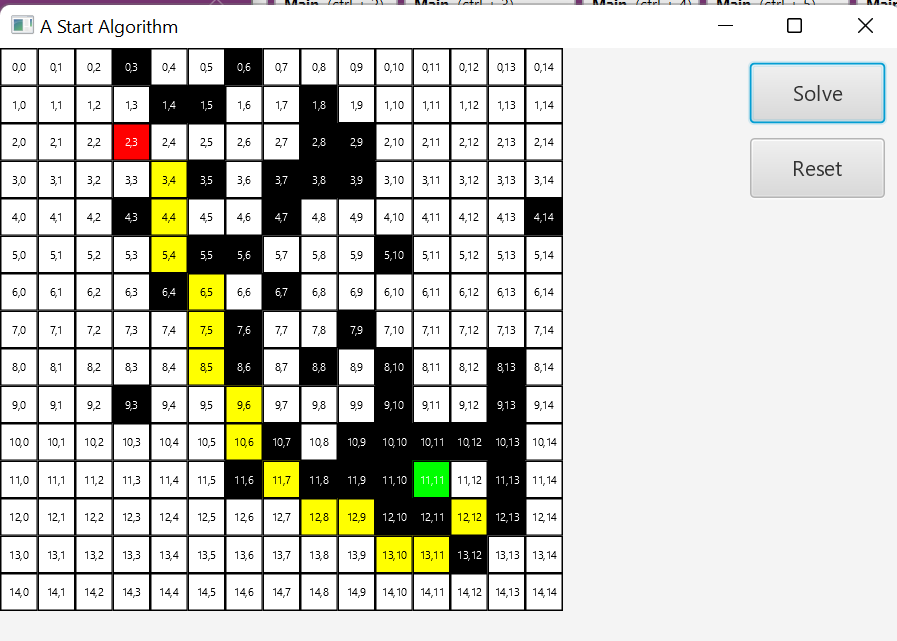

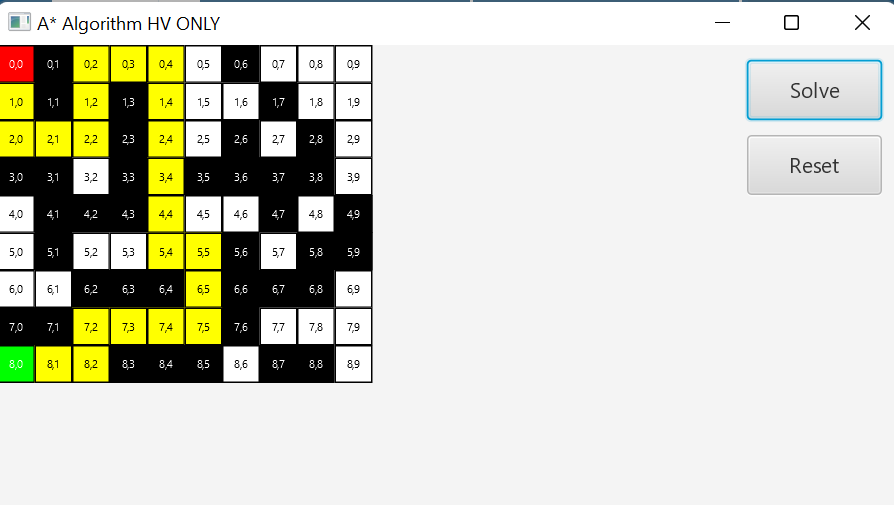

Have added a Reset Button so that you don't have to recompile it every time you want to build a new start, end, and obstacles.



[Johan Schoeman]

See this posting by @madru where he use the A* algorithm before I even posted this thread.

Another Game from the past… Sokoban

Another Game from the Past… I’ve always liked Sokoban — simple, yet challenging :) This B4J version isn’t bug-free — there are a few small issues here and there. Unfortunately, I won’t have time over the next few weeks to debug everything, so I’m posting the code here in case someone feels like...

www.b4x.com



[PaulMeuris]

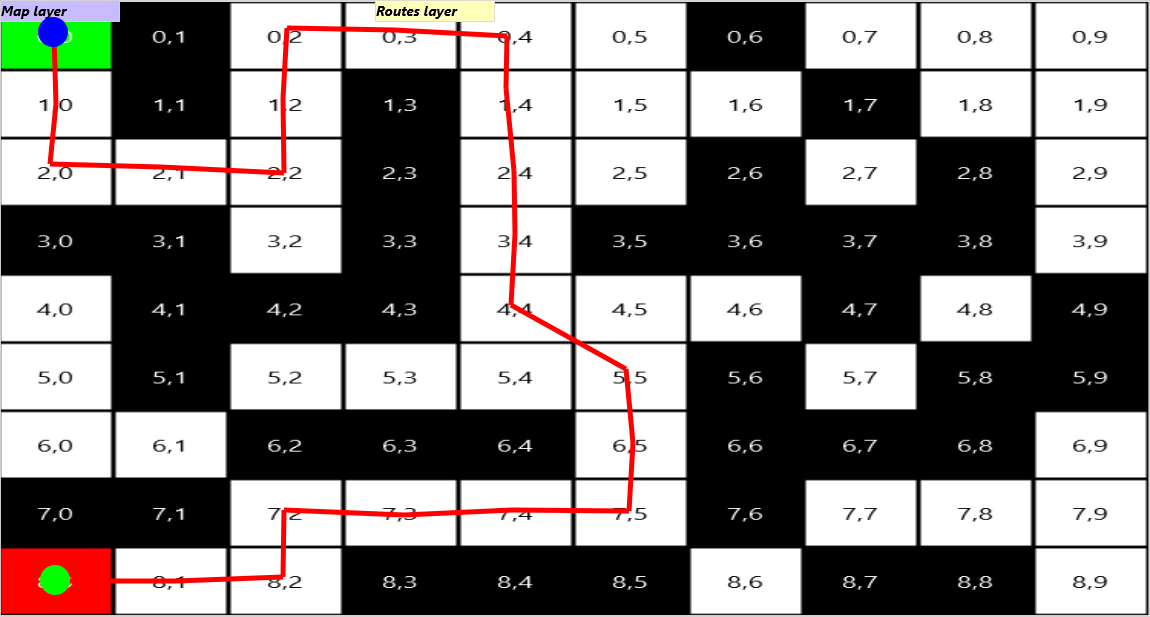

If you have a real maze (as described in previous threads) then you can't go diagonal in some cases (no cutting corners on obstacles)
So the solution below would be the correct one (using my shortest distance application).
It would also mean that most parts of the grid are not accessible from other parts of the grid.



[Johan Schoeman]

If you have a real maze (as described in previous threads) then you can't go diagonal in some cases (no cutting corners on obstacles)
So the solution below would be the correct one (using my shortest distance application).
It would also mean that most parts of the grid are not accessible from other parts of the grid.
View attachment 167631

Like this one.....you need to copy the attached JAR to your additional library folder. I have done it with some inline Java code (including making use of the attached JAR) but can easily do away with the inline Java code and make use of JavaObject only to make use of the JAR.



[derez]

See this from 2015 ... and also the note from Informatix there about his version.

A* (Astar) Library (B4J also)

This library can be used to find the shortest route between two point in a net of nodes (like a matrix in a game or net of roads). The library needs a public sub in the calling module named [Eventname]_Neighbors(x As Double, y As Double) As List This sub should provide a list of all neighbor...

www.b4x.com
