Android Code Snippet [B4X] [BitmapCreator] Find Minimum Bounding Rectangle

Discussion in 'Code Snippets' started by Erel, Jul 5, 2018.

  1. Erel

    Erel Administrator Staff Member Licensed User

    Input: A Bitmap or B4XBitmap.

    Output: A rectangle with the boundaries of the non-transparent area.

    Code:
    Sub FindMinRect (bmp As B4XBitmap) As B4XRect

    Dim bc As BitmapCreator
       bc.Initialize(bmp.Width, bmp.Height)
       bc.CopyPixelsFromBitmap(bmp)

    Dim r As B4XRect
       r.Initialize(bc.mWidth /
    2, -1, bc.mWidth / 20)

    For y = 0 To bc.mHeight - 1

    For x = 0 To bc.mWidth - 1

    If bc.IsTransparent(x, y) = False Then
                   r.Left =
    Min(r.Left, x)

    Exit

    End If

    Next

    If x < bc.mWidth Then

    If r.Top = -1 Then
                   r.Top = y

    Else
                   r.Bottom = y +
    1

    End If

    For x = bc.mWidth - 1 To 0 Step -1

    If bc.IsTransparent(x, y) = False Then
                       r.Right =
    Max(r.Right, x + 1)

    Exit

    End If

    Next

    End If

    Next

    Return r
    End Sub
    Usage:
    Code:
    Dim r As B4XRect = FindMinRect(bmp)
    ImageView2.SetBitmap(bmp.Crop(r.Left, r.Top, r.Width, r.Height))
    Depends on: XUI and BitmapCreator libraries.

    Last edited: Jul 8, 2018
  2. asales

    asales Well-Known Member Licensed User

    I don't understand what this function do.
    I tried to use it, but I don't saw an image in output.
    Can you put an image of output to ilustrate?

    Peter Simpson likes this.
  3. Erel

    Erel Administrator Staff Member Licensed User

    1. I've updated the code. There was a bug in the previous code.

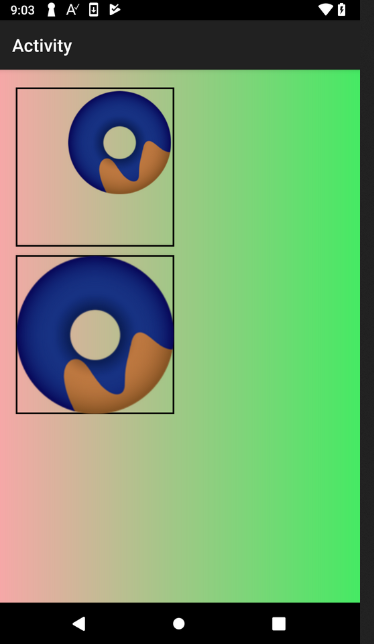

    2. See this screenshot:

    [​IMG]

    The top ImageView shows the original image. The bottom ImageView shows the cropped image based on this code.

    Gunther, angel_, asales and 1 other person like this.
