B4A Library [B4X] [XUI] AS Confetti

Blast some confetti all over the screen and celebrate user achievements!

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.


Effects
The respective effects can be viewed here, or in the video above me

AS_Confetti1.DropConfetti

AS_Confetti1.ConfettiExplosion(Root.Width/2,Root.Height/2)

AS_Confetti1.SideBurst(False) 'True for Left and False for Right

AS_Confetti1.PulseBurst(Root.Width/2,Root.Height/2,5,250)

ParticleCount
Number of shapes that are generated and fall down

Gravity
The value determines how fast an object accelerates when falling.
The Default Value is 0.2

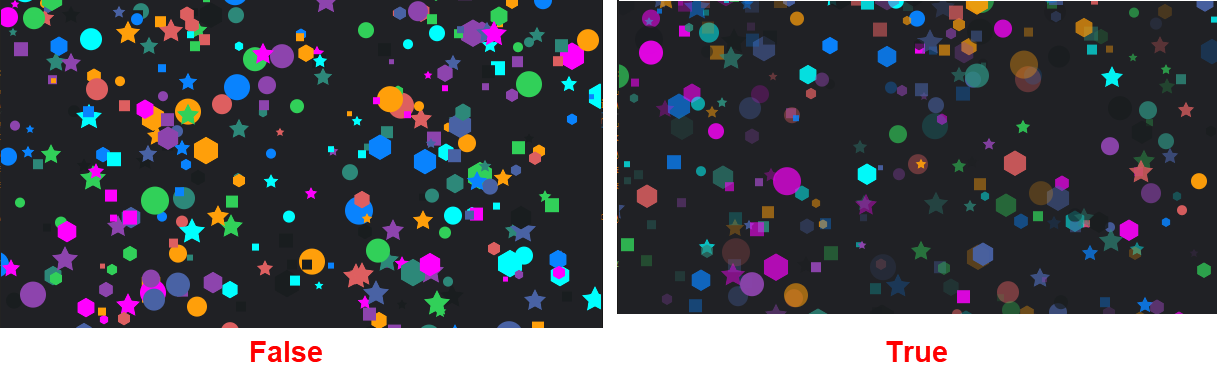

SemiTransparentShapes
The alpha value is determined randomly

SetColors

    Dim lst_Colors As List
    lst_Colors.Initialize
    lst_Colors.Add(xui.Color_ARGB(255, 49, 208, 89))
    lst_Colors.Add(xui.Color_ARGB(255, 25, 29, 31))
    lst_Colors.Add(xui.Color_ARGB(255, 9, 131, 254))
    lst_Colors.Add(xui.Color_ARGB(255, 255, 159, 10))
    lst_Colors.Add(xui.Color_ARGB(255, 45, 136, 121))
    lst_Colors.Add(xui.Color_ARGB(255, 73, 98, 164))
    lst_Colors.Add(xui.Color_ARGB(255, 221, 95, 96))
    lst_Colors.Add(xui.Color_ARGB(255, 141, 68, 173))
    lst_Colors.Add(xui.Color_Magenta)
    lst_Colors.Add(xui.Color_Cyan)
    AS_Confetti1.SetColors(lst_Colors)

Particles

Events

'Is triggered when all particles are on the ground or the animation has been stopped
Private Sub AS_Confetti1_Finished
    Log("Finished")
End Sub

AS_Confetti
Author: Alexander Stolte
Version: 1.00

Spoiler: Properties, Functions, Events, etc.

• AS_Confetti
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • Base_Resize (Width As Double, Height As Double)
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • GenerateConfetti
    • Initialize (Callback As Object, EventName As String)
    • SetColors (ColorList As List)
      <code>
      Dim lst_Colors As List
      lst_Colors.Initialize
      lst_Colors.Add(xui.Color_ARGB(255, 49, 208, 89))
      lst_Colors.Add(xui.Color_ARGB(255, 25, 29, 31))
      lst_Colors.Add(xui.Color_ARGB(255, 9, 131, 254))
      lst_Colors.Add(xui.Color_ARGB(255, 255, 159, 10))
      lst_Colors.Add(xui.Color_ARGB(255, 45, 136, 121))
      lst_Colors.Add(xui.Color_ARGB(255, 73, 98, 164))
      lst_Colors.Add(xui.Color_ARGB(255, 221, 95, 96))
      lst_Colors.Add(xui.Color_ARGB(255, 141, 68, 173))
      lst_Colors.Add(xui.Color_Magenta)
      lst_Colors.Add(xui.Color_Cyan)
      AS_Confetti1.SetColors(lst_Colors)
      </code>

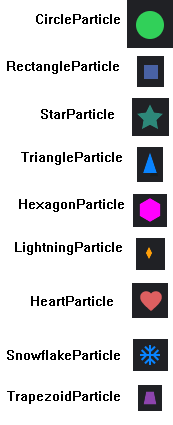

  • Properties:
    • BackgroundColor As Int
    • CircleParticle As Boolean
    • Gravity As Double
      The value determines how fast an object accelerates when falling
      Default: 0.2
    • HexagonParticle As Boolean
    • LightningParticle As Boolean
      A zigzag shape can have a dynamic effect and brings movement into play
    • ParticleCount As Int
    • RectangleParticle As Boolean
    • SemiTransparentShapes As Boolean
      The alpha value is determined randomly
    • StarParticle As Boolean
    • TriangleParticle As Boolean

Changelog

• 1.00
  • Release
• 1.01
  • Add new particle "HeartParticle"
    • Default: True
  • Add new particle "SnowflakeParticle"
    • Default: False
• 1.02
  • BugFixes and Improvements
  • New CreateViewPerCode
  • New ConfettiExplosion - Creates a confetti explosion from the point (StartX, StartY) with random direction and speed for each particle
  • New SideBurst - Blasts confetti from the left or right side horizontally across the view
  • New PulseBurst - Creates a series of mini explosions from the center
  • New "TrapezoidParticle"
    • Default: False
  • New Event "Finished" - Is triggered when all particles are on the ground or the animation has been stopped
  • Change GenerateConfetti renamed to DropConfetti

Have Fun



[Alexander Stolte]

Update

• 1.01
  • Add new particle "HeartParticle"
    • Default: True
  • Add new particle "SnowflakeParticle"
    • Default: False



[Alexander Stolte]

Update

• 1.02
  • BugFixes and Improvements
  • New CreateViewPerCode
  • New ConfettiExplosion - Creates a confetti explosion from the point (StartX, StartY) with random direction and speed for each particle
  • New SideBurst - Blasts confetti from the left or right side horizontally across the view
  • New PulseBurst - Creates a series of mini explosions from the center
  • New "TrapezoidParticle"
    • Default: False
  • New Event "Finished" - Is triggered when all particles are on the ground or the animation has been stopped
  • Change GenerateConfetti renamed to DropConfetti

Example project updated

New effects:
