B4A Class [B4X] [XUI] AS Popup Menu

This is a simple cross platform Popup Menu.

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee. :)

Left: B4J Right: B4A


Fast example:
aspm_MoreOptions.Initialize(Root,Me,"aspm_MoreOptions")

aspm_MoreOptions.ItemLabelProperties.ItemBackgroundColor = xui.Color_ARGB(255,19, 20, 22) 'Change the Background Color of the item
aspm_MoreOptions.AddMenuItem("Share location",1)'Add item
aspm_MoreOptions.AddMenuItem("Settings",2)'Add item

aspm_MoreOptions.OrientationHorizontal = aspm_MoreOptions.OrientationHorizontal_RIGHT
aspm_MoreOptions.OrientationVertical = aspm_MoreOptions.OrientationVertical_BOTTOM

aspm_MoreOptions.ItemLabelProperties.BackgroundColor = xui.Color_ARGB(200,0,0,0)'black

aspm_MoreOptions.OpenMenu(xlbl_MoreOptions,150dip)
ASPopupMenu
Author: Alexander Stolte
Version: 1.08

  • ASPM_ItemLabelProperties
    • Fields:
      • BackgroundColor As Int
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • ItemBackgroundColor As Int
      • LeftRightPadding As Float
      • TextAlignment_Horizontal As String
      • TextAlignment_Vertical As String
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASPM_TitleLabelProperties
    • Fields:
      • BackgroundColor As Int
      • Height As Float
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • ItemBackgroundColor As Int
      • LeftRightPadding As Float
      • TextAlignment_Horizontal As String
      • TextAlignment_Vertical As String
      • TextColor As Int
      • xFont As B4XFont
    • Functions:
      • Initialize
        Initializes the fields to their default value.
  • ASPopupMenu
    • Events:
      • ItemClicked (Index As Int, Tag As Object)
    • Fields:
      • AutoHideMs As Int
      • CloseDurationMs As Int
      • OpenDurationMs As Int
    • Functions:
      • AddMenuItem (text As String, tag As Object) As String
      • AddTitle (Text As String, height As Float) As String
      • Class_Globals As String
      • Clear As String
        clears the list
      • CloseMenu As String
      • CreateASPM_ItemLabelProperties (TextColor As Int, xFont As B4XFont, TextAlignment_Vertical As String, TextAlignment_Horizontal As String, BackgroundColor As Int, ItemBackgroundColor As Int, LeftRightPadding As Float) As ASPM_ItemLabelProperties
      • CreateASPM_TitleLabelProperties (TextColor As Int, xFont As B4XFont, TextAlignment_Vertical As String, TextAlignment_Horizontal As String, BackgroundColor As Int, ItemBackgroundColor As Int, LeftRightPadding As Float, Height As Float) As ASPM_TitleLabelProperties
      • getBase As B4XView
      • getisOpen As Boolean
        checks if the menu is open
      • getItemLabelProperties As ASPM_ItemLabelProperties
        change the label properties, call it before you add items
        <code>ASScrollingTags1.LabelProperties.xFont = xui.CreateDefaultBoldFont(15)</code>
      • GetMenuItemAt_Background (index As Int) As B4XView
        gets a menu item background (parent of label)
      • GetMenuItemAt_Label (index As Int) As B4XView
        gets a menu item label - the label with the text
      • getOrientationHorizontal_LEFT As String
      • getOrientationHorizontal_MIDDLE As String
      • getOrientationHorizontal_RIGHT As String
      • getOrientationVertical_BOTTOM As String
      • getOrientationVertical_TOP As String
        Vertical = Top,Bottom
        Horizontal = Left,Middle,Right
      • getSize As Int
        gets the list size
      • getTitleLabelProperties As ASPM_TitleLabelProperties
        change the label properties, call it before you add the title
        <code>ASScrollingTags1.TitleLabelProperties.xFont = xui.CreateDefaultBoldFont(20)</code>
      • Initialize (Parent As B4XView, CallBack As Object, EventName As String) As String
        Initializes the object. You can add parameters to this method if needed.
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • OpenMenu (view As B4XView, width As Float)
        Opens the menu on a view
      • OpenMenu2 (parent As B4XView, width As Float)
        Open the menu on center of parent/view
      • RemoveTitle As String
        Removes the title if exists
      • Resize (parent_width As Float, parent_height As Float) As String
      • setActivityHasActionBar (value As Boolean) As String
      • setCloseAfterItemClick (enabled As Boolean) As String
        closes the menu automatically after clicking on an item
        standard is True
      • setDividerColor (color As Int) As String
        the color of the dividers
      • setDividerEnabled (enable As Boolean) As String
        Adds or Removes the dividers
      • setDividerHeight (height As Float) As String
        the height of the dividers
      • setIsInSpecialContainer (value As Boolean) As String
        set it true if the target is on a listview or as a child on a panel where the left and top values differ from the form
      • setItemBackgroundColor (crl As Int) As String
        sets the item background color for all items
      • setMenuCornerRadius (radius As Int) As String
      • setOrientationHorizontal (orientation As String) As String
      • setOrientationVertical (orientation As String) As String
      • ViewScreenPosition (view As B4XView) As Int()
    • Properties:
      • ActivityHasActionBar
      • Base As B4XView [read only]
      • CloseAfterItemClick
        closes the menu automatically after clicking on an item
        standard is True
      • DividerColor
        the color of the dividers
      • DividerEnabled
        Adds or Removes the dividers
      • DividerHeight
        the height of the dividers
      • IsInSpecialContainer
        set it true if the target is on a listview or as a child on a panel where the left and top values differ from the form
      • isOpen As Boolean [read only]
        checks if the menu is open
      • ItemBackgroundColor
        sets the item background color for all items
      • ItemLabelProperties As ASPM_ItemLabelProperties [read only]
        change the label properties, call it before you add items
        <code>ASScrollingTags1.LabelProperties.xFont = xui.CreateDefaultBoldFont(15)</code>
      • MenuCornerRadius
      • OrientationHorizontal
      • OrientationHorizontal_LEFT As String [read only]
      • OrientationHorizontal_MIDDLE As String [read only]
      • OrientationHorizontal_RIGHT As String [read only]
      • OrientationVertical
      • OrientationVertical_BOTTOM As String [read only]
      • OrientationVertical_TOP As String [read only]
        Vertical = Top,Bottom
        Horizontal = Left,Middle,Right
      • Size As Int [read only]
        gets the list size
      • TitleLabelProperties As ASPM_TitleLabelProperties [read only]
        change the label properties, call it before you add the title
        <code>ASScrollingTags1.TitleLabelProperties.xFont = xui.CreateDefaultBoldFont(20)</code>
Changelog
  • 1.00
    • Release
  • 1.01
    • Adds background_color global variable - the background color of the parent view during the menu is open
    • Adds setItemBackgroundColor - change the items background color
    • Better Handling in "Nested Layouts"
    • Add ActivityHasActionBar - set to true if you have a ActionBar enabled
    • Add IsInSpecialContainer - set it true if the target is on a listview or as a child on a panel where the left and top values differ from the form
    • Add setOrientationVertical
    • Add setOrientationHorizontal
    • Adds "Enums" for Orientations -TOP,BOTTOM -LEFT,MIDDLE,RIGHT
  • 1.02
    • Add OpenMenu2 - Opens the menu in center of the parent view
    • Add Clear - clear all
    • Add getBase - gets the base view to customize it
    • Add getLabelProperties - customize it if you want, before you add a new menu item

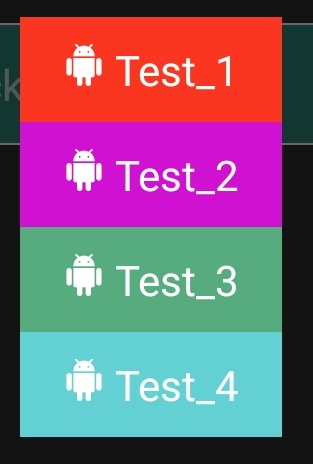

      • Screenshot_20201124-134749.jpg
      • this is now possible
        • aspm_main.LabelProperties.ItemBackgroundColor = xui.Color_ARGB(255,Rnd(1,256), Rnd(1,256), Rnd(1,256))
    • Remove background_color and itembackground_color
      • Added to getLabelProperties
    • Add GetMenuItemAt_Label
    • Add GetMenuItemAt_Background
    • Add getSize
    • Add setMenuCornerRadius - sets the corner radius for the menu (works only in B4A and B4I)
      • Screenshot_20201124-140900.jpg
  • 1.03
    • Add LeftRightPadding to ASPM_LabelProperties - label padding to have more space left and right for example HorizontalCenter = LEFT
    • OpenMenu the background is now smoother on show
    • setMenuCornerRadius is now available on B4J (thanks @Erel)
  • 1.04
    • getLabelProperties is renamed to getItemLabelProperties

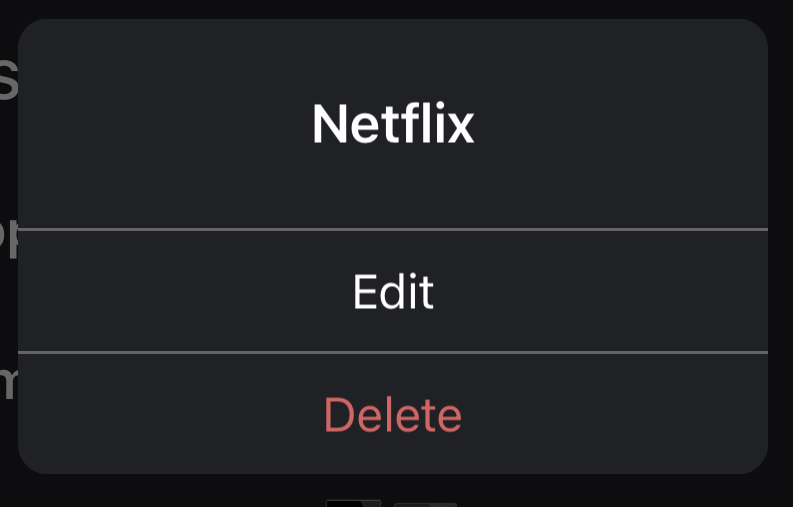

    • Add AddTitle - you can now add a title to the menu
      • Add TitleLabelProperties - you can change the title properties with it
    • Add RemoveTitle - Removes the title if exists
    • Add AutoHideMs
    • Add DividerEnabled - you can now show dividers between the items
      • Add DividerHeight - the height of the dividers
      • Add DividerColor - the color of the dividers
  • 1.05
    • OpenMenu Show Animation with the background is now animated
    • BugFixes
  • 1.06
    • BugFixes
  • 1.07
    • Add get isOpen - checks if the menu is open
    • BugFix - if you called OpenMenu several times without closing the menu, then the menu was added several times
    • Add set CloseAfterItemClick - closes the menu automatically after clicking on an item
      • standard is True
    • Add set and get CloseDurationMs - the duration it takes for the menu to be completely closed
    • Add set and get OpenDurationMs - the duration it takes for the menu to be fully visible
  • 1.08
    • Intern Function IIF renamed to iif2
  • 1.09
    • Add set MenuViewGap - sets the gap between the menu and the attached view
    • Add get TriangleProperties
    • Add set ShowTriangle - only visible if you open the menu with OpenMenu
      • Default: False
  • 1.10
    • BugFix
  • 1.11
    • Add OpenMenuAdvanced - You can set the Left, Top and Width value to show the menu on the parent
    • Add MenuHeight - gets the MenuHeight even if the menu is not yet visible
    • BugFixes
  • 1.12 (read more)
    • Add get and set ClickColor
    • Add get and set BackgroundPanelColor
    • B4J Only - Hover Over Item with color
Have Fun :)


Attachments

  • AS PopupMenu Example.zip
    10.5 KB · Views: 450
  • ASPopupMenu.b4xlib
    6.3 KB · Views: 235
Last edited:

Xfood

Expert
Licensed User
Nice, could you add the background color, the text color, and an image? would be great


Alexander Stolte

Expert
Licensed User
Update
  • 1.01
    • Adds background_color global variable - the background color of the parent view during the menu is open
    • Adds setItemBackgroundColor - change the items background color
    • Better Handling in "Nested Layouts"
    • Add ActivityHasActionBar - set to true if you have a ActionBar enabled
    • Add IsInSpecialContainer - set it true if the target is on a listview or as a child on a panel where the left and top values differ from the form
    • Add setOrientationVertical
    • Add setOrientationHorizontal
    • Adds "Enums" for Orientations -TOP,BOTTOM -LEFT,MIDDLE,RIGHT
"Nested Layouts" are a challenging task... 😅


Alexander Stolte

Expert
Licensed User
Update
  • 1.02
    • Add OpenMenu2 - Opens the menu in center of the parent view
    • Add Clear - clear all
    • Add getBase - gets the base view to customize it
    • Add getLabelProperties - customize it if you want, before you add a new menu item
      • Screenshot_20201124-134749.jpg
      • this is now possible
        • aspm_main.LabelProperties.ItemBackgroundColor = xui.Color_ARGB(255,Rnd(1,256), Rnd(1,256), Rnd(1,256))
    • Remove background_color and itembackground_color
      • Added to getLabelProperties
      • Add GetMenuItemAt_Label
      • Add GetMenuItemAt_Background
      • Add getSize
    • Add setMenuCornerRadius - sets the corner radius for the menu (works only in B4A and B4I)

      • Screenshot_20201124-140900.jpg


Erel

B4X founder
Staff member
Licensed User
Longtime User
Add setMenuCornerRadius - sets the corner radius for the menu (works only in B4A and B4I)

This is the relevant code from B4XImageView:
B4X:
#if B4J
    Dim jo As JavaObject = mBase
    Dim shape As JavaObject
    If mRound Then
        Dim radius As Double = Min(mBase.Width / 2, mBase.Height / 2)
        Dim cx As Double = mBase.Width / 2
        Dim cy As Double = mBase.Height / 2
        shape.InitializeNewInstance("javafx.scene.shape.Circle", Array(cx, cy, radius))
    Else
        Dim cx As Double = mBase.Width
        Dim cy As Double = mBase.Height
        shape.InitializeNewInstance("javafx.scene.shape.Rectangle", Array(cx, cy))
        If mCornersRadius > 0 Then
            Dim d As Double = mCornersRadius
            shape.RunMethod("setArcHeight", Array(d))
            shape.RunMethod("setArcWidth", Array(d))
        End If
    End If
    jo.RunMethod("setClip", Array(shape))
#else if B4A


Alexander Stolte

Expert
Licensed User
This is the relevant code from B4XImageView:
Thanks @Erel :)

Update
  • 1.03
    • Add LeftRightPadding to ASPM_LabelProperties - label padding to have more space left and right for example HorizontalCenter = LEFT
    • OpenMenu the background is now smoother on show
    • setMenuCornerRadius is now available on B4J (thanks @Erel)


angel_

Well-Known Member
Licensed User
Longtime User
Is it possible to include symbols with Material Icons or FontAwesome?


Alexander Stolte

Expert
Licensed User
Is it possible to include symbols with Material Icons or FontAwesome?
sure, but the result is not so good:
B4X:
    For i = 0 To 4 -1
        aspm_main.LabelProperties.ItemBackgroundColor = xui.Color_ARGB(255,Rnd(1,256), Rnd(1,256), Rnd(1,256))
        aspm_main.LabelProperties.xFont = xui.CreateMaterialIcons(15)
        aspm_main.AddMenuItem(Chr(0xE859) &  " Test_" & (i +1),"item_" & i)
    Next


Alexander Stolte

Expert
Licensed User
Does it support CSBuilder?
Yes, but only on B4A and B4I.
B4X:
    For i = 0 To 4 -1
        aspm_main.LabelProperties.ItemBackgroundColor = xui.Color_ARGB(255,Rnd(1,256), Rnd(1,256), Rnd(1,256))
        Dim cs As CSBuilder
        'aspm_main.AddMenuItem(Chr(0xE859) &  " Test_" & (i +1),"item_" & i)
        aspm_main.AddMenuItem("","item_" & i)
        aspm_main.GetMenuItemAt_Label(i).Text = cs.Initialize.Typeface(Typeface.MATERIALICONS).Append(Chr(0xE859)).Typeface(Typeface.DEFAULT).Append(" Test_" & (i +1)).PopAll
    Next


Andrew (Digitwell)

Well-Known Member
Licensed User
Longtime User
Found it. :)

B4X:
'Note that we vertically align the material icon character.
cs.Initialize.Append("Text with MaterialIcons: ").Typeface(Typeface.MATERIALICONS).VerticalAlign(5dip).Append(Chr(0xE531)).PopAll


Alexander Stolte

Expert
Licensed User
Update
1.04

  • getLabelProperties is renamed to getItemLabelProperties
  • Add AddTitle - you can now add a title to the menu
    • Add TitleLabelProperties - you can change the title properties with it
  • Add RemoveTitle - Removes the title if exists
  • Add AutoHideMs
  • Add DividerEnabled - you can now show dividers between the items
    • Add DividerHeight - the height of the dividers
    • Add DividerColor - the color of the dividers
The update in one picture:

Examples:
show dividers:
aspm_main.DividerEnabled = True
aspm_main.DividerHeight = 2dip
aspm_main.DividerColor = xui.Color_White
add title:
aspm_main.AddTitle("Title",60dip)

Last edited:

Rubsanpe

Active Member
Licensed User
Hi. I am trying to change the background color of the title with no luck so far.

Change background title color:
aspm_main.TitleLabelProperties.BackgroundColor = xui.color_White
aspm_main.AddTitle("Title",60dip)

But the background color is still black. It doesn't matter what color I put on it.

Rubén


Rubsanpe

Active Member
Licensed User
Thank you. Background is changed, but a black border continues to surround it.



Solved assigning color to ItemBackgroundColor

B4X:
aspm_main.TitleLabelProperties.BackgroundColor = xui.Color_Gray
aspm_main.TitleLabelProperties.ItemBackgroundColor = xui.Color_Gray
aspm_main.AddTitle("Title",60dip)



Rubén

Last edited:
Top
