AS Onboarding is a view you can use to attract first-time users when they land on your app. Or to present new features after a major update, with pictures and descriptions. Or to collect user data at the 1st start of the app, many things are possible.
The View is modular and can also be equipped with your own views, everything can be customized.
Features
You can buy the view here:
payhip.com
With the purchase you will receive a text file containing the password for the b4xlib. , so that later updates can be easily downloaded here in the forum.
If you have any questions or problems, I am available here in the forum, thanks for your support.
Thanks for your understanding.

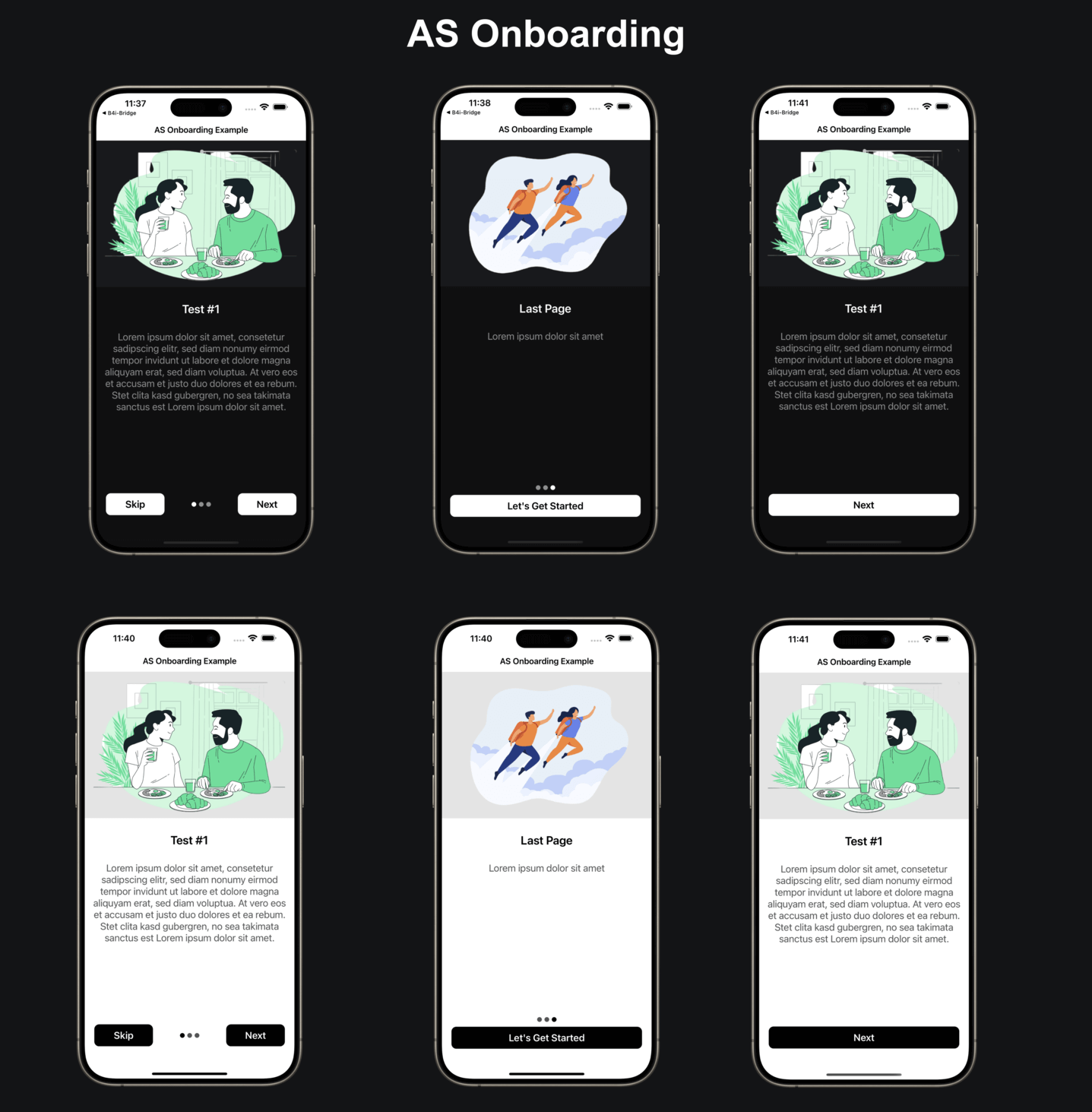

Examples
AS_Onboarding
Author: Alexander Stolte
Version: 1.00
Changelog
payhip.com
Have Fun
You need AS_ViewPager V2.08+ and for B4J jPager V1.03+
The View is modular and can also be equipped with your own views, everything can be customized.
Features
- Modular
- Add Images, Titles, Description, BBCode and Customviews
- Control what the user may and may not do
- AllowNext, AllowBack, AllowSkip and AllowFinish
- Add and Remove Pages on the fly
- Dark/Light Mode with fluid transition
- and more
You can buy the view here:
AS Onboarding
AS Onboarding is a view you can use to attract first-time users when they land on your app. Or to present new features after a major update, with pictures and descriptions. Or to collect user data at the 1st start of the app, many things are possible...
payhip.com
If you have any questions or problems, I am available here in the forum, thanks for your support.
Thanks for your understanding.
Examples
B4X:
'******* 1. Page ************
Dim OnboardingPage1 As AS_OnboardingPage = AS_Onboarding1.AddPage
Dim OnboardingImage As B4XImageView = OnboardingPage1.AddImage(xui.LoadBitmap(File.DirAssets,"Image1.png"),300dip)
OnboardingImage.mBackgroundColor = xui.Color_ARGB(255,32, 33, 37)
OnboardingImage.Update
OnboardingPage1.AddPlaceholder(20dip)
OnboardingPage1.AddTitle("Test #1")
OnboardingPage1.AddPlaceholder(20dip)
OnboardingPage1.AddDescription("Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit amet.")
'******* 2. Page ************
Dim OnboardingPage2 As AS_OnboardingPage = AS_Onboarding1.AddPage
Dim OnboardingImage As B4XImageView = OnboardingPage2.AddImage(xui.LoadBitmap(File.DirAssets,"Image2.png"),300dip)
OnboardingImage.mBackgroundColor = xui.Color_ARGB(255,32, 33, 37)
OnboardingImage.Update
OnboardingPage2.AddPlaceholder(20dip)
OnboardingPage2.AddTitle("Test #2")
OnboardingPage2.AddPlaceholder(20dip)
OnboardingPage2.AddDescription("Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.")
'******* Last Page ************
Dim OnboardingPage3 As AS_OnboardingPage = AS_Onboarding1.AddPage
OnboardingPage3.Name = "LastPage"
Dim OnboardingImage As B4XImageView = OnboardingPage3.AddImage(xui.LoadBitmap(File.DirAssets,"Image3.png"),300dip)
OnboardingImage.mBackgroundColor = xui.Color_ARGB(255,32, 33, 37)
OnboardingImage.Update
OnboardingPage3.AddPlaceholder(20dip)
OnboardingPage3.AddTitle("Last Page")
OnboardingPage3.AddPlaceholder(20dip)
OnboardingPage3.AddDescription("Lorem ipsum dolor sit amet")
#If B4I
AS_Onboarding1.BottomOffset = B4XPages.GetNativeParent(Me).SafeAreaInsets.Bottom 'Set a custom bottom offset for the items in the bottom sheet
#Else
AS_Onboarding1.BottomOffset = 0dip 'Set a custom bottom offset for the items in the bottom sheet
#End If
AS_Onboarding1.CreateB4j: jXUI,ASViewPager,xCustomListView,BCTextEngine,XUI Views
B4a: XUI,ASViewPager,xCustomListView,BCTextEngine,XUI Views
B4i: iXUI,ASViewPager,xCustomListView,BCTextEngine,XUI Views
B4a: XUI,ASViewPager,xCustomListView,BCTextEngine,XUI Views
B4i: iXUI,ASViewPager,xCustomListView,BCTextEngine,XUI Views
Author: Alexander Stolte
Version: 1.00
- AS_Onboarding
- Events:
- PageChange (Index As Int, Page As AS_OnboardingPage)
- PageChanged (Index As Int, Page As AS_OnboardingPage)
- StartButtonClicked
- ThemeChanging
- Fields:
- mBase As B4XView
- Tag As Object
- Functions:
- AddPage As AS_OnboardingPage
- AllowBack (Allow As Boolean) As String
If False then user cannot return to the previous page - AllowFinish (Allow As Boolean) As String
If False then the start button is deactivated - AllowNext (Allow As Boolean) As String
If False the user cannot go to the next page and the next button is deactivated - AllowSkip (Allow As Boolean) As String
If False then the skip button is deactivated - Class_Globals As String
- ClearPages As String
Clears the pages - Create
Must be called after all pages have been added - CreateAS_Onboarding_DescriptioneProperties (TextColor As Int, xFont As B4XFont, HorizontalTextAlignment As String) As AS_Onboarding_DescriptioneProperties
- CreateAS_Onboarding_TitleProperties (TextColor As Int, xFont As B4XFont, HorizontalTextAlignment As String) As AS_Onboarding_TitleProperties
- DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
Base type must be Object - getBackgroundColor As Int
- getBottomBackgroundColor As Int
Call Refresh if you change something - getBottomHeight As Float
Call Refresh if you change something - getBottomOffset As Float
Set a custom bottom offset for the items in the bottom sheet - getBottomPanel As B4XView
Gets the bottom background panel - getDescriptioneProperties As AS_Onboarding_DescriptioneProperties
- getDescriptionTextColor As Int
- getIndicator As Boolean
Show or Hide the Indicator
Call Refresh if you change something - getIndicatorActiveColor As Int
Call Refresh if you change something - getIndicatorInactiveColor As Int
Call Refresh if you change something - getItemType_BBText As String
- getItemType_Custom As String
- getItemType_Description As String
- getItemType_Image As String
- getItemType_Placeholder As String
- getItemType_Title As String
- getNextButtonDisabledColor As Int
- getNextButtonDisabledTextColor As Int
- getNextButtonEnabledColor As Int
- getNextButtonEnabledTextColor As Int
- getNextButtonLabel As B4XView
- getNextButtonStyle As String
Call Refresh if you change something
<code>AS_Onboarding1.NextButtonStyle = AS_Onboarding1.NextButtonStyle_Big</code> - getNextButtonStyle_Big As String
- getNextButtonStyle_Small As String
- GetPageAt (Index As Int) As AS_OnboardingPage
Gets a page at the specified index - getPages As List
Gets a list of AS_Onboarding_Item
Example:
<code>
For Each Page As AS_OnboardingPage In AS_Onboarding1.Pages
For Each Item As AS_Onboarding_Item In Page.ItemList
If Item.ItemType = AS_Onboarding1.ItemType_Image Then
Dim OnboardingImage As B4XImageView = Item.View
OnboardingImage.mBackgroundColor = xui.Color_ARGB(255,233, 233, 233)
OnboardingImage.Update
End If
Next
Next
</code> - getSize As Int
Gets the number of pages - getSkipButtonDisabledColor As Int
- getSkipButtonDisabledTextColor As Int
- getSkipButtonEnabledColor As Int
- getSkipButtonEnabledTextColor As Int
- getSkipButtonLabel As B4XView
- getStartButtonDisabledColor As Int
- getStartButtonDisabledTextColor As Int
- getStartButtonEnabledColor As Int
- getStartButtonEnabledTextColor As Int
- getTextSideGap As Float
Used for the title, description and BBText - getTheme_Dark As AS_Onboarding_Theme
- getTheme_Light As AS_Onboarding_Theme
- getTitleProperties As AS_Onboarding_TitleProperties
- getTitleTextColor As Int
- getViewPager As com.stoltex.onboarding.asviewpager
- Initialize (Callback As Object, EventName As String) As String
- IsInitialized As Boolean
Tests whether the object has been initialized. - Refresh As String
- RemovePageAt (Index As Int) As String
Removes a page at the specified index - setBackgroundColor (BackgroundColor As Int) As String
- setBottomBackgroundColor (BottomBackgroundColor As Int) As String
- setBottomHeight (BottomHeight As Float) As String
- setBottomOffset (Offset As Float) As String
- setDescriptioneProperties (DescriptioneProperties As AS_Onboarding_DescriptioneProperties) As String
- setDescriptionTextColor (DescriptionTextColor As Int) As String
- setIndicator (Indicator As Boolean) As String
- setIndicatorActiveColor (IndicatorActiveColor As Int) As String
- setIndicatorInactiveColor (IndicatorInactiveColor As Int) As String
- setNextButtonDisabledColor (NextButtonDisabledColor As Int) As String
- setNextButtonDisabledTextColor (NextButtonDisabledTextColor As Int) As String
- setNextButtonEnabledColor (NextButtonEnabledColor As Int) As String
- setNextButtonEnabledTextColor (NextButtonEnabledTextColor As Int) As String
- setNextButtonStyle (NextButtonStyle As String) As String
- setSkipButtonDisabledColor (SkipButtonDisabledColor As Int) As String
- setSkipButtonDisabledTextColor (SkipButtonDisabledTextColor As Int) As String
- setSkipButtonEnabledColor (SkipButtonEnabledColor As Int) As String
- setSkipButtonEnabledTextColor (SkipButtonEnabledTextColor As Int) As String
- setStartButtonDisabledColor (StartButtonDisabledColor As Int) As String
- setStartButtonDisabledTextColor (StartButtonDisabledTextColor As Int) As String
- setStartButtonEnabledColor (StartButtonEnabledColor As Int) As String
- setStartButtonEnabledTextColor (StartButtonEnabledTextColor As Int) As String
- setTextSideGap (TextSideGap As Float) As String
- setTheme (Theme As AS_Onboarding_Theme)
The ThemeChanging event is triggered - setTitleProperties (TitleProperties As AS_Onboarding_TitleProperties) As String
- setTitleTextColor (TitleTextColor As Int) As String
- Properties:
- BackgroundColor As Int
- BottomBackgroundColor As Int
Call Refresh if you change something - BottomHeight As Float
Call Refresh if you change something - BottomOffset As Float
Set a custom bottom offset for the items in the bottom sheet - BottomPanel As B4XView [read only]
Gets the bottom background panel - DescriptioneProperties As AS_Onboarding_DescriptioneProperties
- DescriptionTextColor As Int
- Indicator As Boolean
Show or Hide the Indicator
Call Refresh if you change something - IndicatorActiveColor As Int
Call Refresh if you change something - IndicatorInactiveColor As Int
Call Refresh if you change something - ItemType_BBText As String [read only]
- ItemType_Custom As String [read only]
- ItemType_Description As String [read only]
- ItemType_Image As String [read only]
- ItemType_Placeholder As String [read only]
- ItemType_Title As String [read only]
- NextButtonDisabledColor As Int
- NextButtonDisabledTextColor As Int
- NextButtonEnabledColor As Int
- NextButtonEnabledTextColor As Int
- NextButtonLabel As B4XView [read only]
- NextButtonStyle As String
Call Refresh if you change something
<code>AS_Onboarding1.NextButtonStyle = AS_Onboarding1.NextButtonStyle_Big</code> - NextButtonStyle_Big As String [read only]
- NextButtonStyle_Small As String [read only]
- Pages As List [read only]
Gets a list of AS_Onboarding_Item
Example:
<code>
For Each Page As AS_OnboardingPage In AS_Onboarding1.Pages
For Each Item As AS_Onboarding_Item In Page.ItemList
If Item.ItemType = AS_Onboarding1.ItemType_Image Then
Dim OnboardingImage As B4XImageView = Item.View
OnboardingImage.mBackgroundColor = xui.Color_ARGB(255,233, 233, 233)
OnboardingImage.Update
End If
Next
Next
</code> - Size As Int [read only]
Gets the number of pages - SkipButtonDisabledColor As Int
- SkipButtonDisabledTextColor As Int
- SkipButtonEnabledColor As Int
- SkipButtonEnabledTextColor As Int
- SkipButtonLabel As B4XView [read only]
- StartButtonDisabledColor As Int
- StartButtonDisabledTextColor As Int
- StartButtonEnabledColor As Int
- StartButtonEnabledTextColor As Int
- TextSideGap As Float
Used for the title, description and BBText - Theme
The ThemeChanging event is triggered - Theme_Dark As AS_Onboarding_Theme [read only]
- Theme_Light As AS_Onboarding_Theme [read only]
- TitleProperties As AS_Onboarding_TitleProperties
- TitleTextColor As Int
- ViewPager As com.stoltex.onboarding.asviewpager [read only]
- Events:
- AS_OnboardingPage
- Functions:
- AddBBText (Text As String) As com.stoltex.onboarding.bbcodeview
- AddCustom (Height As Float) As B4XView
- AddDescription (Text As String) As B4XView
- AddImage (Image As B4XBitmap, Height As Float) As com.stoltex.onboarding.b4ximageview
- AddPlaceholder (Height As Float) As String
- AddTitle (Text As String) As String
- Class_Globals As String
- CreateAS_Onboarding_Item (ItemType As String, View As Object) As AS_Onboarding_Item
- getItemList As List
- getName As String
- getPageBackgroundColor As Int
- Initialize (MainOnboarding As AS_Onboarding, BackgroundPanel As B4XView) As String
Initializes the object. You can add parameters to this method if needed. - IsInitialized As Boolean
Tests whether the object has been initialized. - setName (Name As String) As String
Set a Name for a better identification of pages - setPageBackgroundColor (PageBackgroundColor As Int) As String
- Properties:
- ItemList As List [read only]
- Name As String
Set a Name for a better identification of pages - PageBackgroundColor As Int
- Functions:
- AS_OnboardingPageIndicator
- Fields:
- mBase As B4XView
- Functions:
- Class_Globals As String
- Create (Base As B4XView, ActiveColor As Int, InactiveColor As Int) As String
- getActiveColor As Int
- getCount As Int
- getCurrentPage As Int
- getInactiveColor As Int
- Initialize (Callback As Object, EventName As String) As String
Initializes the object. You can add parameters to this method if needed. - IsInitialized As Boolean
Tests whether the object has been initialized. - setActiveColor (ActiveColor As Int) As String
- setCount (c As Int) As String
- setCurrentPage (i As Int) As String
- setInactiveColor (InactiveColor As Int) As String
- Properties:
- ActiveColor As Int
- Count As Int
- CurrentPage As Int
- InactiveColor As Int
- Fields:
- AS_Onboarding_DescriptioneProperties
- Fields:
- HorizontalTextAlignment As String
- IsInitialized As Boolean
Tests whether the object has been initialized. - TextColor As Int
- xFont As B4XFont
- Functions:
- Initialize
Initializes the fields to their default value.
- Initialize
- Fields:
- AS_Onboarding_Item
- Fields:
- IsInitialized As Boolean
Tests whether the object has been initialized. - ItemType As String
- View As Object
- IsInitialized As Boolean
- Functions:
- Initialize
Initializes the fields to their default value.
- Initialize
- Fields:
- AS_Onboarding_Theme
- Fields:
- BackgroundColor As Int
- BottomBackgroundColor As Int
- DescriptionTextColor As Int
- IndicatorActiveColor As Int
- IndicatorInactiveColor As Int
- IsInitialized As Boolean
Tests whether the object has been initialized. - NextButtonDisabledColor As Int
- NextButtonDisabledTextColor As Int
- NextButtonEnabledColor As Int
- NextButtonEnabledTextColor As Int
- SkipButtonDisabledColor As Int
- SkipButtonDisabledTextColor As Int
- SkipButtonEnabledColor As Int
- SkipButtonEnabledTextColor As Int
- StartButtonDisabledColor As Int
- StartButtonDisabledTextColor As Int
- StartButtonEnabledColor As Int
- StartButtonEnabledTextColor As Int
- TitleTextColor As Int
- Functions:
- Initialize
Initializes the fields to their default value.
- Initialize
- Fields:
- AS_Onboarding_TitleProperties
- Fields:
- HorizontalTextAlignment As String
- IsInitialized As Boolean
Tests whether the object has been initialized. - TextColor As Int
- xFont As B4XFont
- Functions:
- Initialize
Initializes the fields to their default value.
- Initialize
- Fields:
- B4XMainPage
- Functions:
- Class_Globals As String
- Initialize As String
- IsInitialized As Boolean
Tests whether the object has been initialized.
- Functions:
- 1.00
- Release
- 1.01
- Improvements
- Add get StartButtonLabel
AS Onboarding
AS Onboarding is a view you can use to attract first-time users when they land on your app. Or to present new features after a major update, with pictures and descriptions. Or to collect user data at the 1st start of the app, many things are possible...
payhip.com
You need AS_ViewPager V2.08+ and for B4J jPager V1.03+
Last edited:
