B4A Library [B4X] [XUI] XQ TitleBar

A simple view, that is used as a Title/Action Bar, with icons and adjustable title.

Features:
  • Up to 5 icons on the right side
  • Left/Burger icon (visible or not)
  • Change background and text color
  • Each element (burger, title, icons) has each own click event
  • Title label adjusts its width, depending the icons visible
  • Can adjust icon spacing/padding
  • All default sizes are compatible with the Material Design


View: xq_titlebar
Author: xqtr
Version: 1.00
Depends: XUI
  • Fields
    • Background As Int
    • ShowBurgerIcon As Boolean
    • IconSpacing As Int
    • IconPadding As Int
    • IconSize As Int
    • IconCount As Int
    • Icons(5) As B4XView*
    • TitleLabel As B4XView*
    • BurgerIcon As B4XView*
    • ShowBurgerIcon As Boolean
  • Events
    • IconClick(Index As Int)
    • TitleClick
    • BurgerClick
  • Functions
    • Refresh 'Applies changes like color/size
    • Redraw 'Complete redraw of view, used when changing icon count
    • Clear 'Resets the view
    • AddIcon 'Adds an icon in the right size
*The B4XView is Label


Releases
  • v1.00// 2024-03-28
    • Initial Release

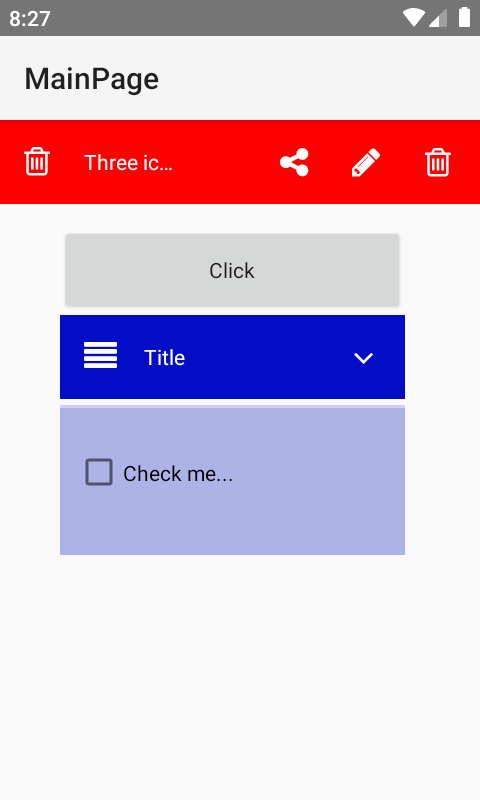

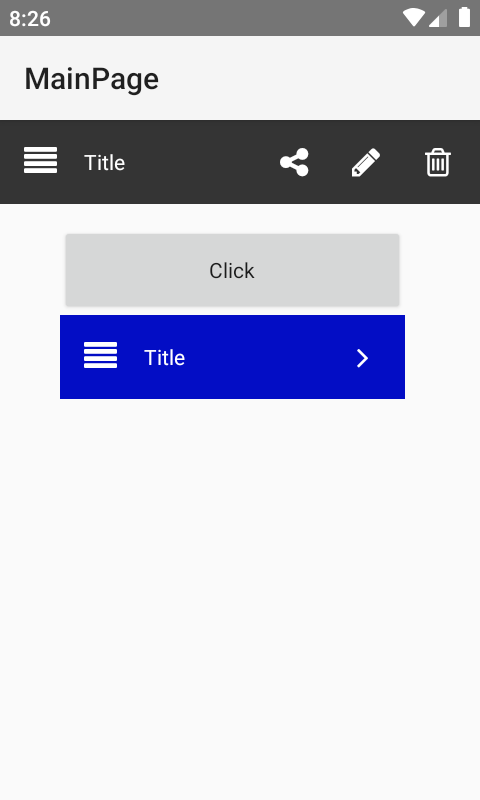

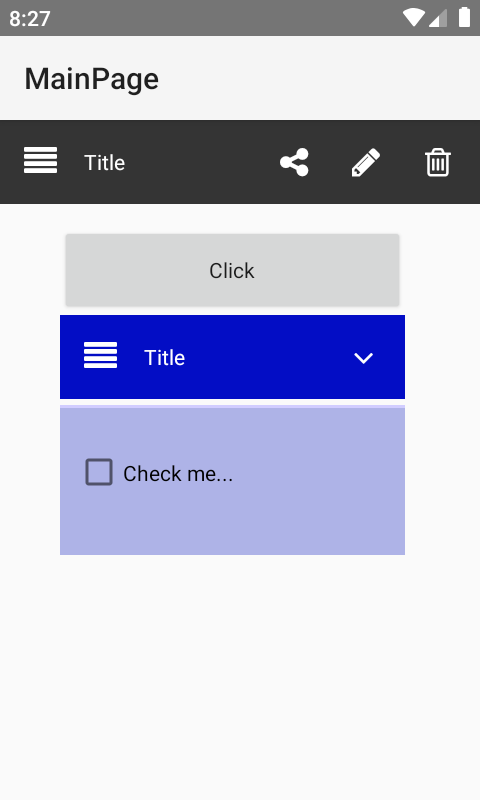

Screenshots







Attachments

  • xq_titlebar_example.zip
    15 KB · Views: 41
  • xq_titlebar.b4xlib
    2.4 KB · Views: 40
