Android Question B4XDrawer sliding menu issue

[Nick McCulloch]

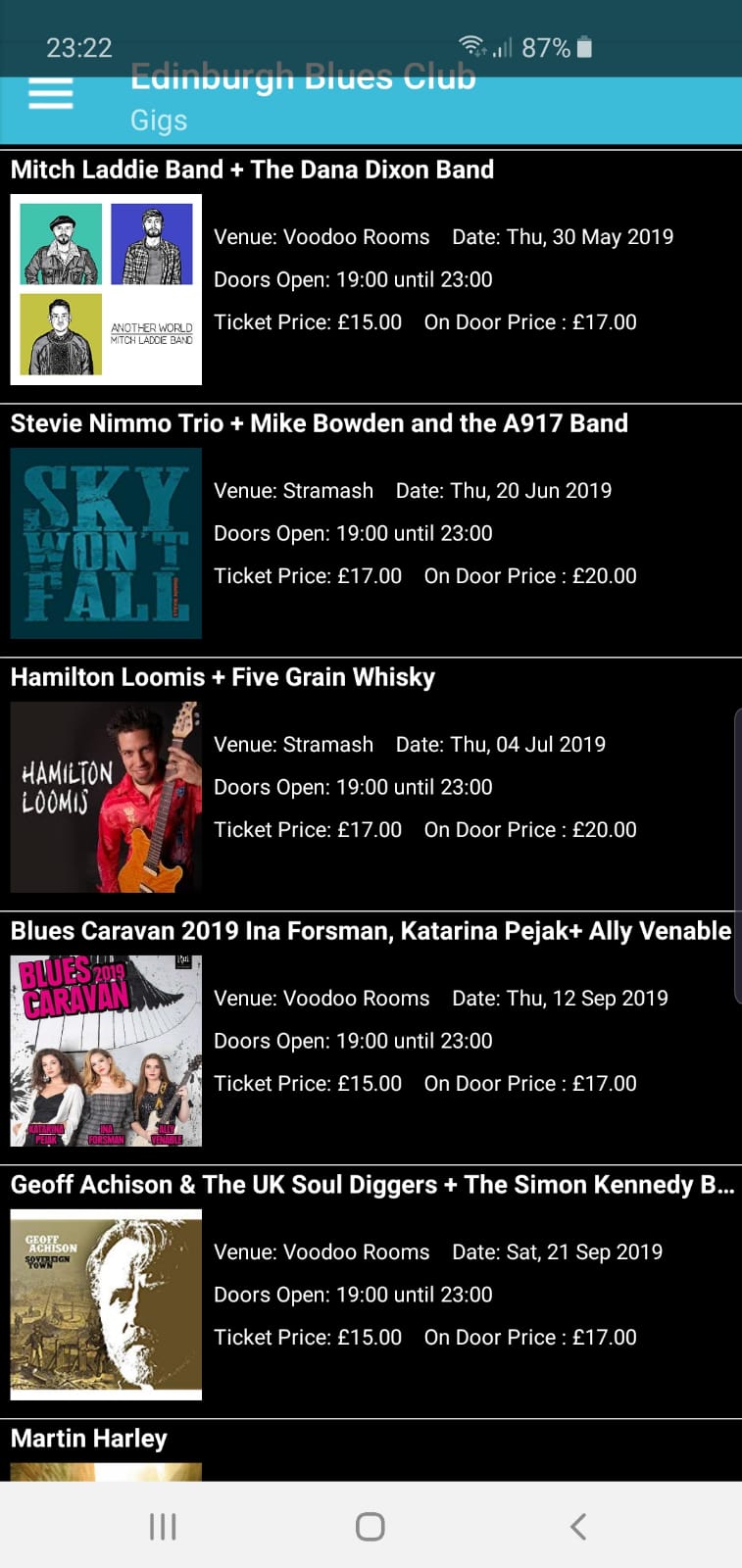

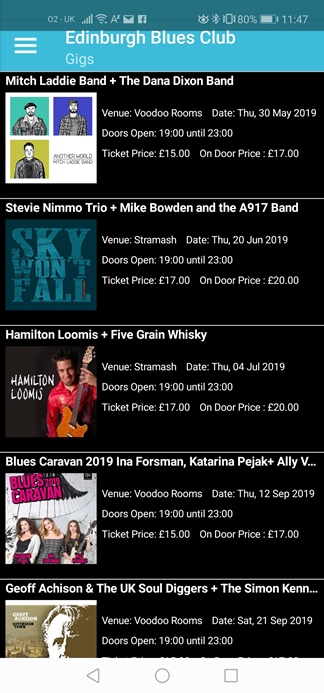

I deleveloped an app wil sliding menu enabled and it works file on my HUAWEI P20 phone. But, a friend of mine installed it onto a Samsung S10. On the Samsung the sliding menu title and hamburger are obscured. Im not sure if there is anything i can do to adjust that . Has anyone come across this? 1st image s from Samsung, 2nd from my phone..
Is there any control over the top notifications and Title bar in terms of height?



[klaus]

Without seeing your layout and code it's almost impossible to give a concrete advice.
It would be better to post a small project showing the problem to get concrete help



[Nick McCulloch]

code is too large to upload. its based on the B4xDrawer sample code. if anyone in forum has a samsung S10 , maybe they could install it onto their phone and validate that I have the same condition that i show in the screenshots shown.



[Erel]

Try to add this to the manifest editor:

AddApplicationText(<meta-data android:name="android.max_aspect"
    android:value="2.1"/>)



[Nick McCulloch]

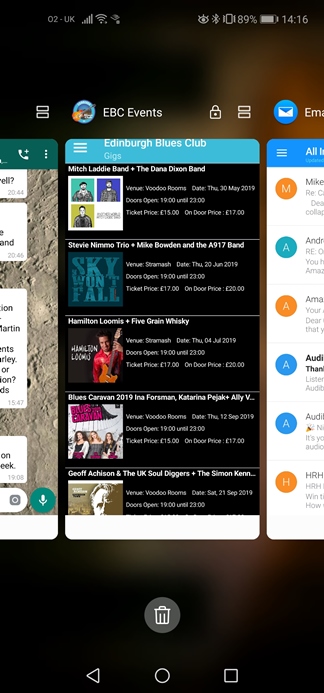

Ok made that change and I am waiting for feedback from my friend with Samsung S10. But, i grabbed this screenshot from my phone and even on mine the positioning seems "off" compared to similar app to the right. See attached. Are there any further adjustments I can make?



[Erel]

You are using AppCompat, right? You can increase the action bar height with the designer.



[Nick McCulloch]

You are using AppCompat, right? You can increase the action bar height with the designer.

Is that the correct way of making that adjustment?



[Erel]

First it is important to understand that this question is not related to B4XDrawer.

I don't know how you implemented it. You can try this example: https://www.b4x.com/android/forum/threads/appcompat-with-toolbar-minimal-example.79896/



[Nick McCulloch]

I think i have it fixed by adjusting height in the designer. I guess i had assumed that the Toolbar area was of a standard height. That was a bad assumption. Thanks again for all your help.



[techknight]

I think i have it fixed by adjusting height in the designer. I guess i had assumed that the Toolbar area was of a standard height. That was a bad assumption. Thanks again for all your help.

Outside of AOSP, there is no such thing as standard, which kills me.
