B4J Tutorial B4xTable: Property Bag Use Case

Hi

I am attempting to use a B4xTable as a property bag. I found B4xTable Inline Editing fit for this as i can set and get any component. You can use that as reference.

The magic is keeping which components use what e.g. e.g B4XPlusMinus1 will have a secondary map of Numbers.
A TextArea will have a secondary map of LongText etc etc.

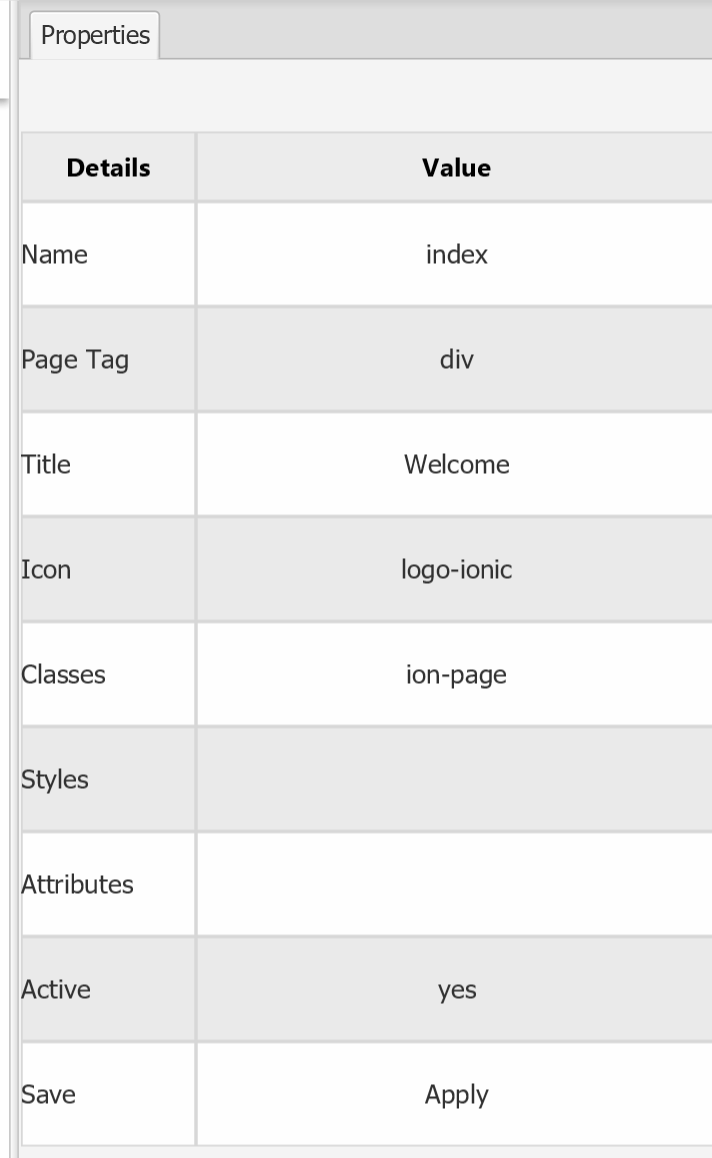

Creating a property bag... propBag is a B4xTable.

Sub PagePropBag As ResumableSub
    Try
    Numbers.Initialize
    Choices.Initialize
    LongText.Initialize
    Sleep(0)
    propBag.Clear
    propBag.lblFirst.Parent.Visible = False
    propBag.SearchVisible = False
    propBag.RowHeight = 60dip

    colDetails = propBag.AddColumn("Details", propBag.COLUMN_TYPE_TEXT)
    colDetails.Sortable = False
    colDetails.Width = 100dip
    colValue = propBag.AddColumn("Value", propBag.COLUMN_TYPE_TEXT)
    colValue.Sortable = False
    '
    propBag.HeaderFont = xui.CreateDefaultBoldFont(12)
    propBag.LabelsFont = xui.CreateDefaultFont(12)
    '
    propBag.MaximumRowsPerPage = 9
    propBag.BuildLayoutsCache(propBag.MaximumRowsPerPage)
    propBag.HighlightSearchResults = False
    '
    SetColumnHorizontalAlignment(colDetails, "left")
    SetColumnHorizontalAlignment(colValue, "center")
    '
    Dim data As List
    data.Initialize

    data.Add(Array("Name", "index"))
    data.Add(Array("Page Tag", "div"))
    data.Add(Array("Title", "Home"))
    data.Add(Array("Icon", "logo-ionic"))
    data.Add(Array("Classes", ""))
    data.Add(Array("Styles", ""))
    data.Add(Array("Attributes", ""))
    'data.Add(Array("Row", 1))
    'data.Add(Array("Column", 1))
    data.Add(Array("Active", "yes"))
    data.Add(Array("Save", "Apply"))
    propBag.SetData(data)
    '
    'define all numeric fields
    'Numbers.Put("Row", "")
    'Numbers.Put("Column", "")
    'define all switches
    Choices.Put("Active", "")
    Choices.Put("Page Tag", "")
    LongText.Put("Classes", "")
    LongText.Put("Styles", "")
    LongText.Put("Attributes", "")
    propBag.RefreshNow
    Return True
    Catch
        Log(LastException)
        Return True
    End Try
End Sub

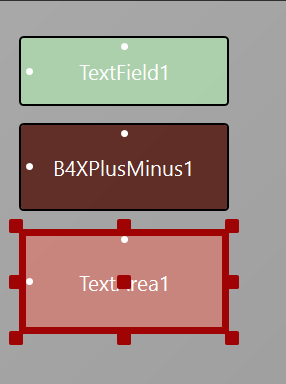

In my controls I have also added a TextArea

Important: On CellClicked, ignore anything that is not on "Value" column.

If ColumnId <> "Value" Then Return

For editing, we detect the row column type based on Numbers, Choices, LongText for example and show the approprivate editor for that XY position.

Private Sub IE_EnterEditMode (FC As FocusedCell)
    Try
        'get the row of data
        Dim rowData As Map = propBag.GetRow(FC.RowId)
        'get the details content
        Dim sDetails As String = rowData.Get("Details")
        'FC.PrevValue holds the current value. It can also be used later to revert changes
        Select FC.ColumnId
        Case "Value"
            'use numeric
            If Numbers.ContainsKey(sDetails) Then
                B4XPlusMinus1.SetNumericRange(0, 100, 1)
                B4XPlusMinus1.SelectedValue = FC.PrevValue
                FC.View = B4XPlusMinus1.mBase
                Return
            End If
            'use switch
            If Choices.ContainsKey(sDetails) Then
                Select Case sDetails
                Case "Page Tag"
                    B4XPlusMinus1.SetStringItems(Array("div", "ion-content"))
                    B4XPlusMinus1.SelectedValue = FC.PrevValue
                    FC.View = B4XPlusMinus1.mBase
                    Return
                Case "Active"
                    B4XPlusMinus1.SetStringItems(Array("yes", "no"))
                    B4XPlusMinus1.SelectedValue = FC.PrevValue
                    FC.View = B4XPlusMinus1.mBase
                    Return
                End Select
            End If
            If LongText.ContainsKey(sDetails) Then
                SetTextArea
                TextArea1.Text = FC.PrevValue
                FC.View = TextArea1
                Return
            End If
            'default to text
            SetTextField
            TextField1.Text = FC.PrevValue
            FC.View = TextField1
        End Select
    Catch

    End Try    'ignore

End Sub

Private Sub IE_GetUpdatedValue (FC As FocusedCell) As Object
    Try
        'get the row of data
        Dim rowData As Map = propBag.GetRow(FC.RowId)
        'get the details content
        Dim sDetails As String = rowData.Get("Details")
        Select FC.ColumnId
        Case "Value"
            If Numbers.ContainsKey(sDetails) Then Return NumberFormat(B4XPlusMinus1.SelectedValue,1,0)
            If Choices.ContainsKey(sDetails) Then Return B4XPlusMinus1.SelectedValue
            If LongText.ContainsKey(sDetails) Then Return TextArea1.Text
            'default to text
            Return TextField1.Text
        End Select
    Catch
        Return Null
    End Try
    Return Null
End Sub

Private Sub SetTextArea
    Try
        TextArea1.SetColorAndBorder(xui.Color_Transparent, 0, 0, 0)
        Dim tf As TextArea = TextArea1
        Sleep(0)
        tf.SelectAll
    Catch

    End Try        'ignore
End Sub


Private Sub SetTextField
    Try
        TextField1.SetColorAndBorder(xui.Color_Transparent, 0, 0, 0)
        Dim tf As TextField = TextField1
        Sleep(0)
        tf.SelectAll
    Catch

    End Try        'ignore
End Sub

Sub TextArea1_Action
    Try
        ie.ExitEditMode
    Catch
    End Try    'ignore
End Sub

Sub TextField1_Action
    Try
        ie.ExitEditMode
    Catch
    End Try    'ignore
End Sub

Sub TextArea1_TextChanged (Old As String, New As String)
'    If ie.IsInEditingState And ie.CurrentlyFocusedCell.ColumnId = "Date" Then
'        Try
'            DateTime.DateParse(New)
'            TextField1.SetColorAndBorder(xui.Color_Transparent, 0, 0, 0)
'        Catch
'            TextField1.SetColorAndBorder(xui.Color_Transparent, 2, xui.Color_Red, 0)
'        End Try
'    End If
End Sub

Sub TextField1_TextChanged (Old As String, New As String)
'    If ie.IsInEditingState And ie.CurrentlyFocusedCell.ColumnId = "Date" Then
'        Try
'            DateTime.DateParse(New)
'            TextField1.SetColorAndBorder(xui.Color_Transparent, 0, 0, 0)
'        Catch
'            TextField1.SetColorAndBorder(xui.Color_Transparent, 2, xui.Color_Red, 0)
'        End Try
'    End If
End Sub

Happy Coding..
