Android Question Change the color of a B4X Table column according to the content of another

Discussion in 'Android Questions' started by Sergio Castellari, May 21, 2019.

  1. Sergio Castellari

    Sergio Castellari Member Licensed User

    Hello,

    I need to change the color of the content of one column, according to the content of another.
    In the example I test, they change the color, if the content has a positive or negative value. In my case, I want the color to change, but if another column contains an "S" or "".
    This code is the current example and it works:

    Code:
    Private Sub CreateCustomFormat (c As B4XTableColumn)

    Dim formatter As B4XFormatter
       formatter.Initialize
       c.Formatter = formatter

    Dim Positive As B4XFormatData = c.Formatter.NewFormatData
       Positive.TextColor = B4XTable1.TextColor
       Positive.FormatFont = xui.CreateDefaultBoldFont(
    16)
       c.Formatter.AddFormatData(Positive,
    0, c.Formatter.MAX_VALUE, True'Inclusive (zero included)
       Dim Negative As B4XFormatData = c.Formatter.CopyFormatData(Positive)
       Negative.TextColor = xui.Color_Red
       Negative.FormatFont = xui.CreateDefaultBoldFont(
    14)
       Negative.Prefix =
    "("
       Negative.Postfix =
    ")"
       c.Formatter.AddFormatData(Negative,c.Formatter.MIN_VALUE,
    0False)
    End Sub
    But I need to change the color according to the content of another column, something like this:

    Col_ENE_si = B4XTable1.AddColumn("ENE_si" , B4XTable1.COLUMN_TYPE_TEXT)
    ...
    Private Sub ENE_Si (c As B4XTableColumn)
    Dim formatter As B4XFormatter
    formatter.Initialize
    c.Formatter = formatter
    Dim Positive As B4XFormatData = c.Formatter.NewFormatData
    Positive.FormatFont = xui.CreateDefaultBoldFont(16)C
    If Col_ENE_si = "S" Then --->>>> HOW DO I OBTAIN THE CONTENT OF THE COLUMN "Col_ENE_si" ???
    Positive.TextColor = B4XTable1.TextColor
    Else
    Positive.TextColor = xui.Color_Gray
    End If
    c.Formatter.AddFormatData(Positive, 0, c.Formatter.MAX_VALUE, True) 'Inclusive (zero included)
    End Sub

    Here he tells me that the TYPES do not MATCH and of course it does not work ...

    Regards,
    Sergio

  2. jimmyF

    jimmyF Active Member Licensed User

    Sergio Castellari likes this.
  3. Sergio Castellari

    Sergio Castellari Member Licensed User

    Thanks @jimmyF,

    I was looking at the Post, but it refers to selected rows.
    What I want is to change the value or content of the cell / column by one color or another depending on the value of another column.
    I want to apply it to columns with numeric content.
    I think it should be applied through FORMATTER, since the format is applied as the rows are displayed, that is, it is applied in real time, even before loading the data B4XTable1.SetData (data)

    Hopefully someone can enlighten us!

    Regards,
    Sergio

    jimmyF likes this.
  4. Erel

    Erel Administrator Staff Member Licensed User

    B4XFormatter will not help here.

    You need to handle the DataUpdated event. Example:
    Code:
    Sub B4XTable1_DataUpdated

    For i = 0 To B4XTable1.VisibleRowIds.Size - 1

    Dim RowId As Long = B4XTable1.VisibleRowIds.Get(i)

    If RowId > 0 Then

    Dim pnl As B4XView = NumberColumn.CellsLayouts.Get(i + 1'+1 because the first cell is the header
               Dim row As Map = B4XTable1.GetRow(RowId)

    Dim clr As Int

    Dim OtherColumnValue As String = row.Get(StateColumn.Id)

    If OtherColumnValue.StartsWith("A"Then clr = xui.Color_Green Else clr = xui.Color_Black
               pnl.GetView(
    0).TextColor = clr

    End If

    Next
    End Sub

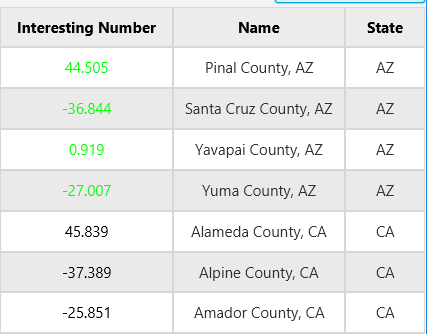

    [​IMG]

  5. Sergio Castellari

    Sergio Castellari Member Licensed User

    Spectacular !, thank you very much @Erel

    I achieved the goal, I even decided to apply more effects (necessary to warn the user)

    Code:
    Sub B4XTable1_DataUpdated
       btnNext.Enabled = B4XTable1.lblNext.Tag
       btnPrev.Enabled = B4XTable1.lblBack.Tag


    'Recorro todas las FILAS visibles...
       For i = 0 To B4XTable1.VisibleRowIds.Size - 1

    Dim RowId As Long = B4XTable1.VisibleRowIds.Get(i)

    If RowId > 0 Then

    Dim pnl  As B4XView = Col_ENE_act.CellsLayouts.Get(i + 1'+1 la primera celda es el Header
               Dim pnl2 As B4XView = Col_AGU_act.CellsLayouts.Get(i + 1'+1 la primera celda es el Header
               Dim pnl3 As B4XView = Col_Nombre.CellsLayouts.Get(i + 1'+1 la primera celda es el Header
               Dim row  As Map = B4XTable1.GetRow(RowId)

    Dim clr  As Int

    Dim clr2 As Int

    Dim clr3 As Int


    'Coloreo el servicio ENERGIA
               Dim cEne As String = row.Get(Col_ENE_si.Id) 'Obtengo el contenido de la Columna/Fila
               If cEne.StartsWith("S"Then
                   clr = xui.Color_Black
                   pnl.GetView(
    0).TextColor = clr
                   pnl.GetView(
    0).TextSize = 18

    Else
                   clr = xui.Color_Gray
                   pnl.GetView(
    0).TextColor = clr
                   pnl.GetView(
    0).TextSize = 14

    End If


    'Coloreo el servicio AGUA
               Dim cAgu As String = row.Get(Col_AGU_si.Id) 'Obtengo el contenido de la Columna/Fila
               If cAgu.StartsWith("S"Then
                   clr2 = xui.Color_Black
                   pnl2.GetView(
    0).TextColor = clr2
                   pnl2.GetView(
    0).TextSize = 18

    Else
                   clr2 = xui.Color_Gray
                   pnl2.GetView(
    0).TextColor = clr2
                   pnl2.GetView(
    0).TextSize = 14

    End If


    'Coloreo NOMBRE de la Cuenta si posee NOTAS...
               Dim cNotas As String = row.Get(Col_Notas.Id) 'Obtengo el contenido de la Columna/Fila
             If cNotas.Length <> 0 Then clr3 = xui.Color_Red Else clr3 = xui.Color_Black
             pnl3.GetView(
    0).TextColor = clr3

    End If

    Next
    End Sub
    Regards,
    Sergio
