B4J Library HMITiles

Purpose
HMITiles is an ISA-101 inspired HMI tile library written in B4X.
It provides reusable, professional-grade HMI tiles for industrial dashboards,
SCADA front-ends, and machine HMIs.

The primary target platform is B4J in full-screen mode.
Most tiles work on B4A (not all tiles supported).
B4i is currently not supported.

The goal of this library is not visual effects, but operator safety,
clarity, and consistency according to ISA-101 guidelines.

Key Features
• ISA-101 compliant defaults
• Unified styling and state model
• Alarm-first color discipline
• Touch-friendly layouts
• No animations or visual noise
• Minimal configuration required

Implemented tiles
Buttons, readouts, sensors, clocks, event viewers, sliders,
image tiles, RGB indicators, and layout helpers.

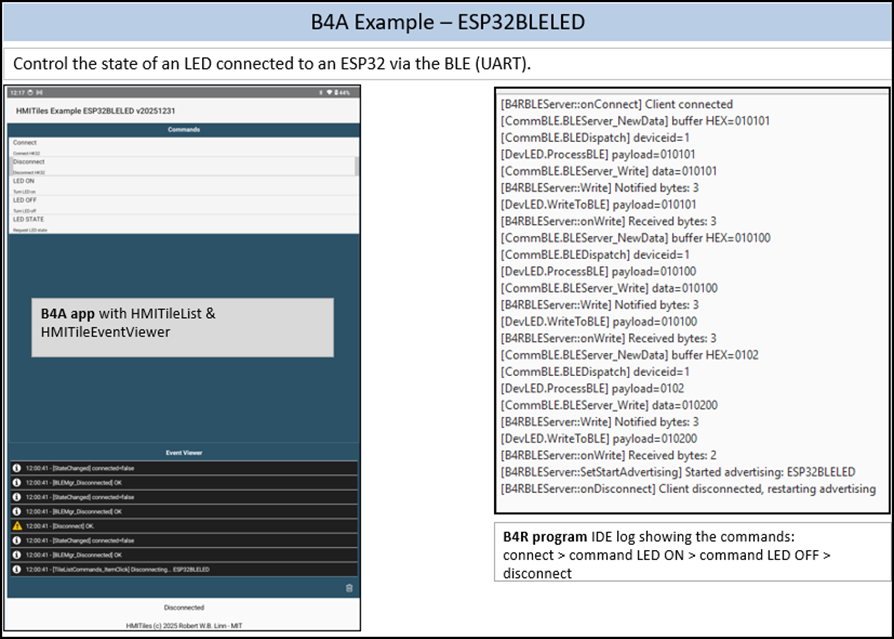

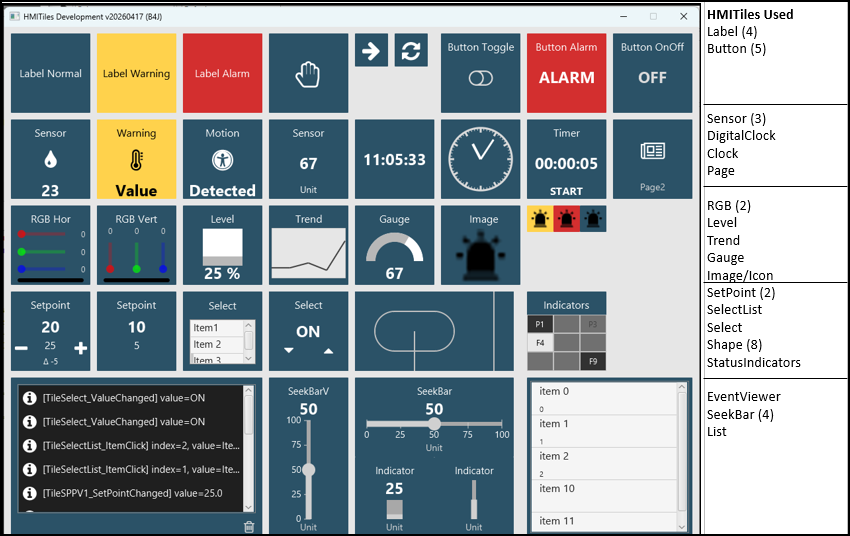

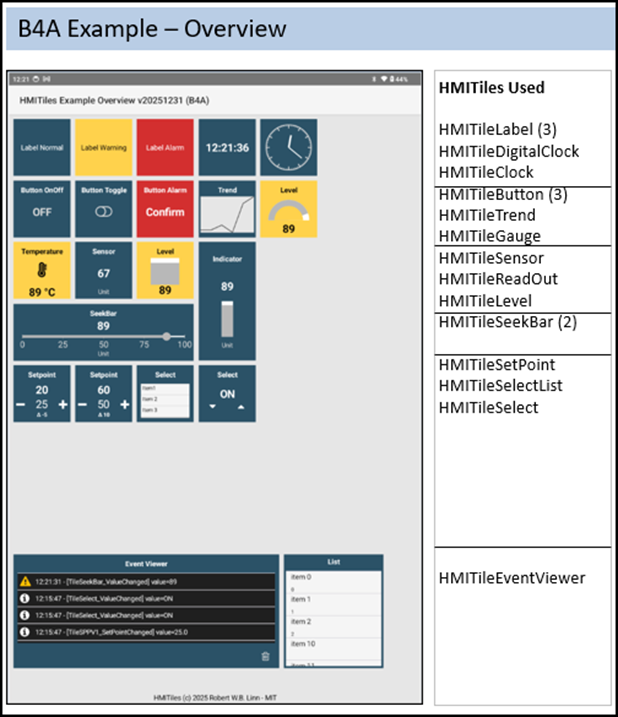

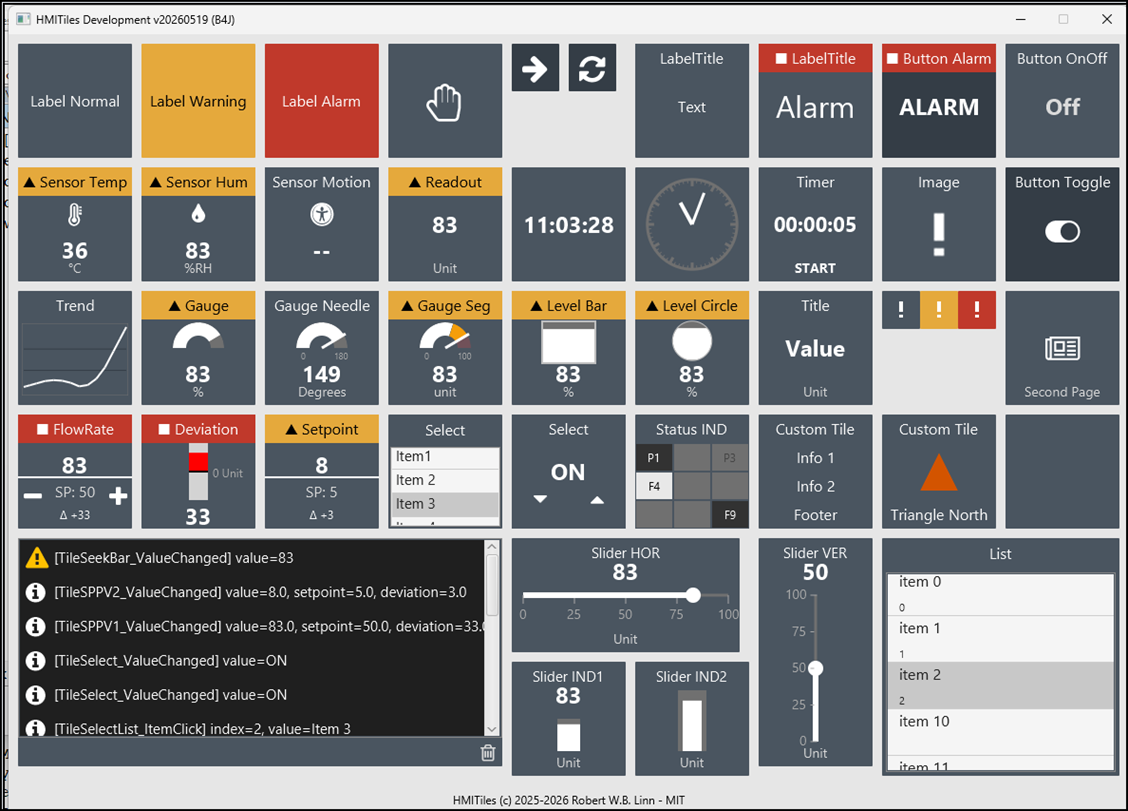

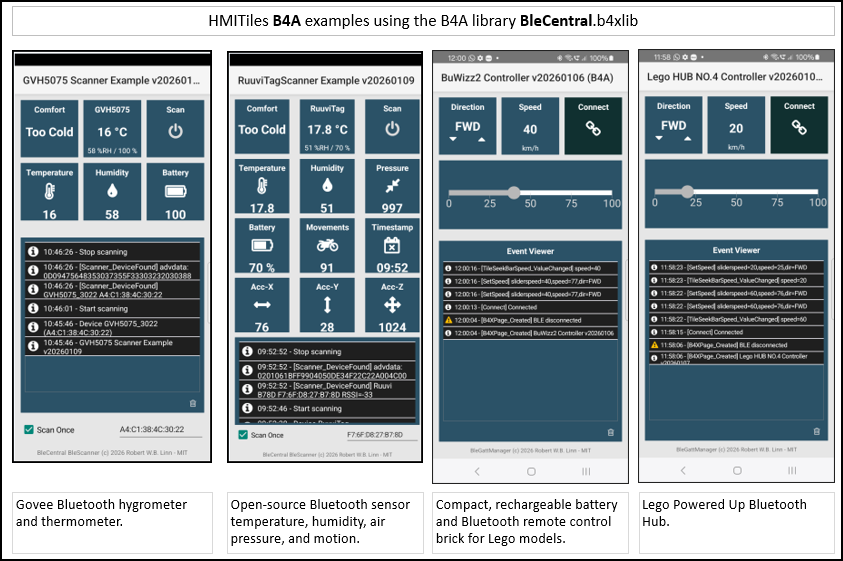

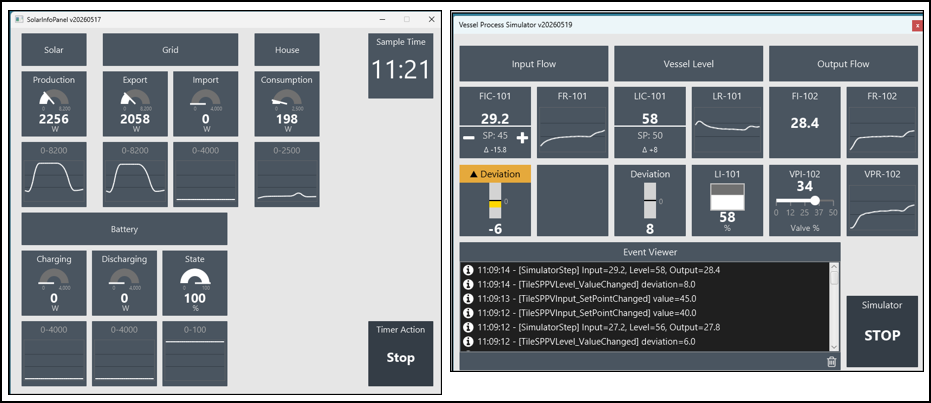

Screenshots

Files
HMITiles.zip archive contains the library and sample project.

Install
From the zip archive, copy the file HMITiles.b4xlib to the B4J additional libraries folder.

Examples

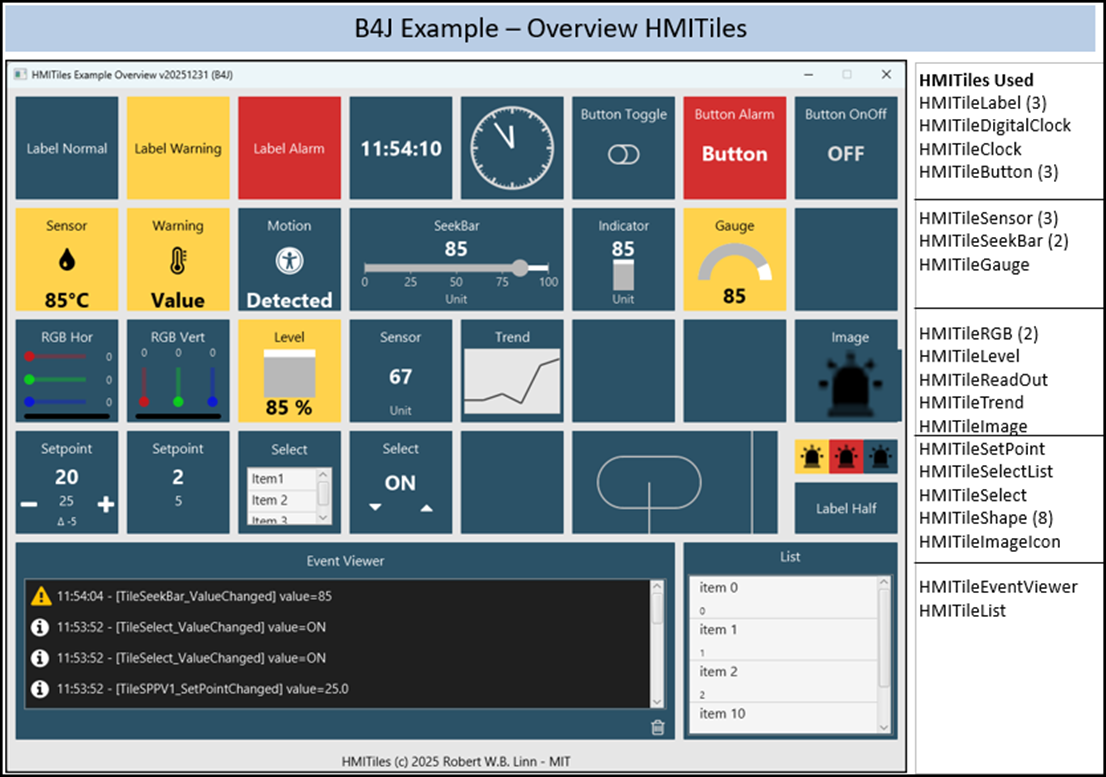

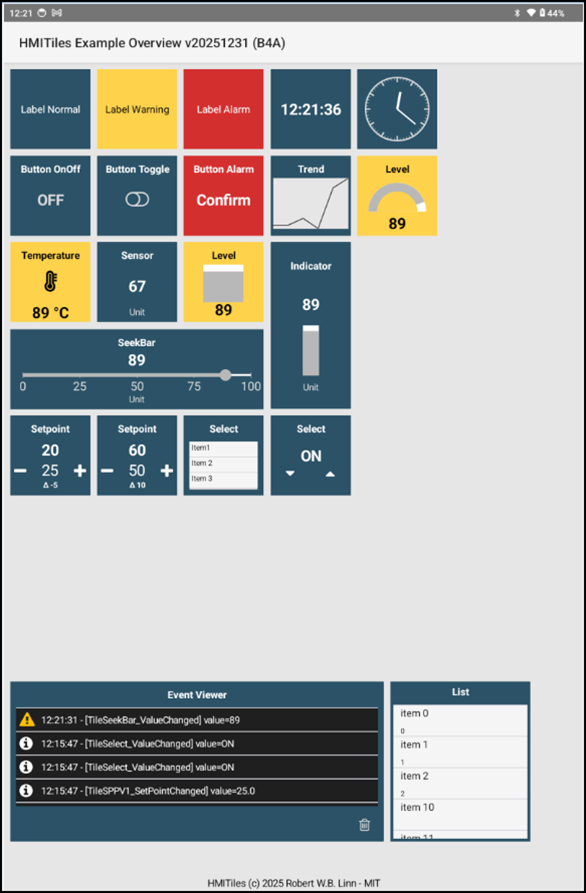

• Overview - Example to start with all HMI tiles.

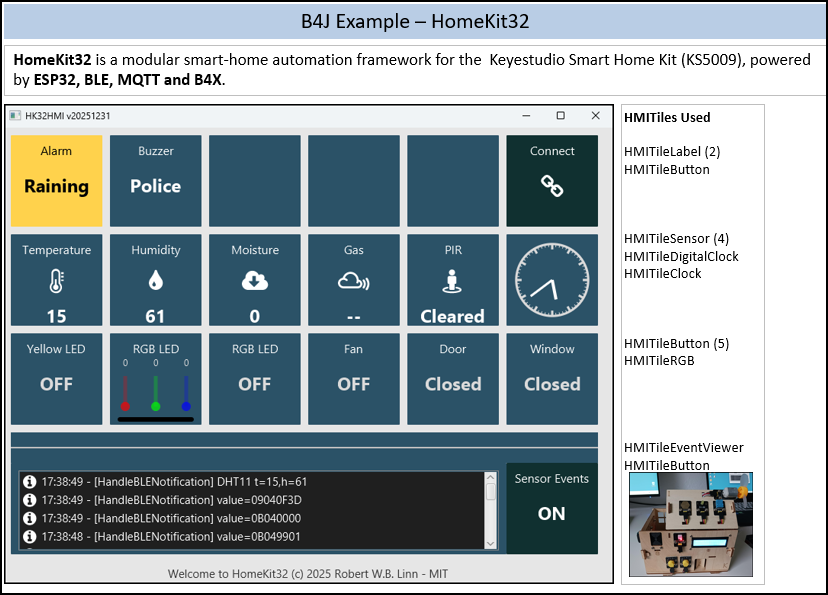

• HomeKit32 - Real example controlling the HomeKit32.

Basic Example
HMITiles are standard B4X CustomViews and can be placed in the Designer.
Example: simple ON / OFF HMITile

Sub Class_Globals
    Private HMITileButtonOnOff As HMITileButton
    ...

Private Sub B4XPage_Created (Root1 As B4XView)
    ...
    ' OnOff Button
    HMITileButtonOnOff.State = False
    ...

Private Sub HMITileButtonOnOff_Click
    HMITileButtonOnOff.SetState(HMITileButtonOnOff.State)
    HMITileButtonOnOff.StateText = IIf(HMITileButtonOnOff.State, "ON", "OFF")
    Log($"[HMITileButtonOnOff] state=${HMITileButtonOnOff.State}"$)
End Sub

To-Do

• Additional HMITiles: HMITileGauge, BarGraph/TrendMini, HMITileStateIndicator, HMITileFormHeader, HMITileMenuButton, HMITileSeparator.
• FarmKit32 - Control the FarmKit32. Similar to HomeKit32 but then using the Keyestudio Smart Farm Kit KS0567.

Licence
MIT - see LICENSE.
