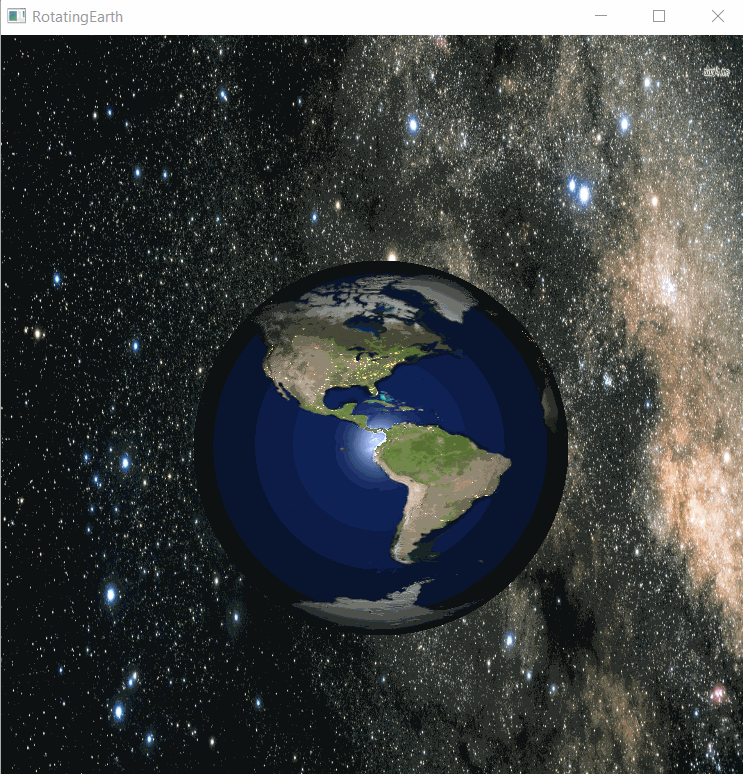

B4J Tutorial JavaFX 3D spinning Earth and Galaxy

Change it to your liking - download it from here:

Main Code:
#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600
#End Region

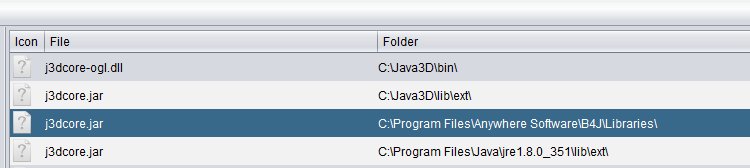

#AdditionalJar: j3dcore
#AdditionalJar: j3dutils
#AdditionalJar: vecmath

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI
    Private Pane1 As Pane
    Dim erth As earth
    Dim bb As JavaObject
    Dim t As Timer
    Private ImageView1 As ImageView
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    t.Initialize("t", 10)

    bb = erth.makethecube
    Pane1.AddNode(bb, MainForm.Width * 0.06, MainForm.Height * 0.1, MainForm.Width * 0.8, MainForm.Height * 0.8)
    Pane1.Visible = True
    t.Enabled = True
End Sub

Sub t_tick
    erth.Rotationspeed = -0.2
End Sub

Earth Class Code:
Sub Class_Globals
    Private fx As JFX
    Dim nativeMe As JavaObject
    Dim ips1, ips2, ips3, ips4 As InputStream
End Sub

'Initializes the object. You can add parameters to this method if needed.
Public Sub Initialize

    nativeMe = Me
    ips1 = File.OpenInput(File.DirAssets, "earth-d.jpg")
    ips2 = File.OpenInput(File.DirAssets, "earth-l.jpg")
    ips3 = File.OpenInput(File.DirAssets, "earth-s.jpg")
    ips4 = File.OpenInput(File.DirAssets, "earth-n.jpg")

End Sub

public Sub makethecube As JavaObject
    Return nativeMe.RunMethod("start1",  Array(ips1, ips2, ips3, ips4))
End Sub

public Sub setRotationspeed (spd As Float)
    nativeMe.RunMethod("rotateEarth", Array(spd))
End Sub

#if Java

import javafx.animation.AnimationTimer;
import javafx.application.Application;
import javafx.beans.property.DoubleProperty;
import javafx.beans.property.SimpleDoubleProperty;
import javafx.scene.Camera;
import javafx.scene.Group;
import javafx.scene.Node;
import javafx.scene.PerspectiveCamera;
import javafx.scene.Scene;
import javafx.scene.image.Image;
import javafx.scene.input.ScrollEvent;
import javafx.scene.paint.Color;
import javafx.scene.paint.PhongMaterial;
import javafx.scene.shape.Sphere;
import javafx.scene.transform.Rotate;
import javafx.stage.Stage;
import java.io.InputStream;

  private static final float WIDTH = 300;
  private static final float HEIGHT = 300;

  private double anchorX, anchorY;
  private double anchorAngleX = 0;
  private double anchorAngleY = 0;
  private final DoubleProperty angleX = new SimpleDoubleProperty(0);
  private final DoubleProperty angleY = new SimpleDoubleProperty(0);

  private final Sphere sphere = new Sphere(150);

  public Group start1(InputStream ips1, InputStream ips2, InputStream ips3, InputStream ips4) {
    Camera camera = new PerspectiveCamera(true);

    Group world = new Group();
    world.getChildren().add(prepareEarth(ips1, ips2, ips3, ips4));

    Scene scene = new Scene(world, WIDTH, HEIGHT, true);

//    initMouseControl(world, scene, primaryStage);

//    prepareAnimation();
    return world;

    public void rotateEarth(float rotspeed) {
        sphere.rotateProperty().set(sphere.getRotate() + rotspeed);

  private void prepareAnimation() {
    AnimationTimer timer = new AnimationTimer() {
      public void handle(long now) {
        sphere.rotateProperty().set(sphere.getRotate() + 0.2);
  }  */

  private Node prepareEarth(InputStream ips1, InputStream ips2, InputStream ips3, InputStream ips4) {
    PhongMaterial earthMaterial = new PhongMaterial();
    earthMaterial.setDiffuseMap(new Image(ips1));
    earthMaterial.setSelfIlluminationMap(new Image(ips2));
    earthMaterial.setSpecularMap(new Image(ips3));
    earthMaterial.setBumpMap(new Image(ips4));

    return sphere;

  private void initMouseControl(Group group, Scene scene, Stage stage) {
    Rotate xRotate;
    Rotate yRotate;
        xRotate = new Rotate(0, Rotate.X_AXIS),
        yRotate = new Rotate(0, Rotate.Y_AXIS)

    scene.setOnMousePressed(event -> {
      anchorX = event.getSceneX();
      anchorY = event.getSceneY();
      anchorAngleX = angleX.get();
      anchorAngleY = angleY.get();

    scene.setOnMouseDragged(event -> {
      angleX.set(anchorAngleX - (anchorY - event.getSceneY()));
      angleY.set(anchorAngleY + anchorX - event.getSceneX());

    stage.addEventHandler(ScrollEvent.SCROLL, event -> {
      double delta = event.getDeltaY();
      group.translateZProperty().set(group.getTranslateZ() + delta);

#End If
