B4J Tutorial Galaxy

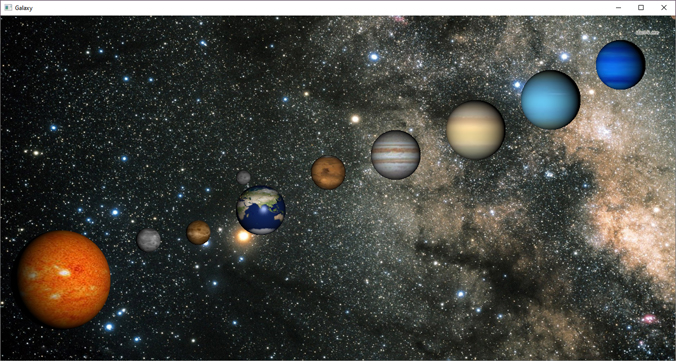

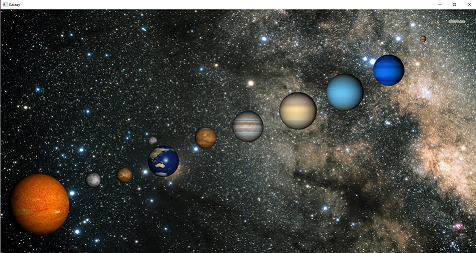

Not to scale but all planets as well as the sun rotating on their respective axis's at the same rate (for now) - a 3D view of all of the planets and the sun (have included Pluto)

Download it from here - too big a zip to upload:




Mostly done with JavaObject - sample code (images used from various places on the web):

B4J:
#Region  Project Attributes
    #MainFormWidth: 800
    #MainFormHeight: 800
#End Region

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Dim ips1, ips2, ips3, ips4 As InputStream
    Dim rotspeed As Double = 0

    Dim earth, sphereEarth As JavaObject
    Dim sun, sphereSun As JavaObject
    Dim mercury, sphereMercury As JavaObject
    Dim venus, sphereVenus As JavaObject
    Dim moon, sphereMoon As JavaObject
    Dim mars, sphereMars As JavaObject
    Dim jupiter, sphereJupiter As JavaObject
    Dim saturn, sphereSaturn As JavaObject
    Dim uranus, sphereUranus As JavaObject
    Dim neptune, sphereNeptune As JavaObject
    Dim pluto, spherePluto As JavaObject

    Dim lft, tp, wdth, hght As Int

    Dim t As Timer

End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1

    t.Initialize("t", 100)

    MainForm.Initialize("frm", fx.PrimaryScreen.MaxX - fx.PrimaryScreen.MinX, fx.PrimaryScreen.MaxY - fx.PrimaryScreen.MinY)
    MainForm.WindowWidth = fx.PrimaryScreen.MaxX - fx.PrimaryScreen.MinX           'set the screen to full width/height
    MainForm.WindowLeft = fx.PrimaryScreen.MinX
    MainForm.WindowHeight = fx.PrimaryScreen.MaxY - fx.PrimaryScreen.MinY
    MainForm.WindowTop = fx.PrimaryScreen.MinY

    MainForm.RootPane.LoadLayout("main")
    MainForm.Show
    Sleep(0)

    addSun
    Sleep(0)
    addMercury
    Sleep(0)
    addVenus
    Sleep(0)
    addEarth
    Sleep(0)
    addMoon
    Sleep(0)
    addMars
    Sleep(0)
    addJupiter
    Sleep(0)
    addSaturn
    Sleep(0)
    addUranus
    Sleep(0)
    addNeptune
    Sleep(0)
    addPluto
    Sleep(0)


    t.Enabled = True

End Sub

Sub t_tick

    rotspeed = -0.84
    Dim pos As Double = sphereSun.RunMethod("getRotate", Null)
    rotspeed = rotspeed + pos
    sphereSun.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereMercury.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereVenus.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereEarth.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereMoon.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereMars.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereJupiter.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereSaturn.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereUranus.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    sphereNeptune.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    spherePluto.RunMethodJO("rotateProperty", Null).RunMethodJO("set", Array(rotspeed))
    Sleep(0)

End Sub

Sub addSun

    Dim diam As Double = 100.0dip

    sphereSun.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    sun.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "sun.jfif")


    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))


    Dim sunMaterial As JavaObject
    sunMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    sunMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereSun.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereSun.RunMethodJO("setMaterial", Array(sunMaterial))

    sun.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereSun))

    lft = 20dip
    tp = MainForm.WindowHeight - (3 * diam)
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(sun, lft,tp, wdth, hght)

End Sub

Sub addMercury

    Dim diam As Double = 25.0dip

    sphereMercury.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    mercury.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "mercury5.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim mercuryMaterial As JavaObject
    mercuryMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    mercuryMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereMercury.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereMercury.RunMethodJO("setMaterial", Array(mercuryMaterial))

    mercury.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereMercury))

    lft = lft + 250dip
    tp = tp - 5dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(mercury, lft, tp, wdth, hght)

End Sub

Sub addVenus

    Dim diam As Double = 25.0dip

    sphereVenus.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    venus.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "venus2.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim venusMaterial As JavaObject
    venusMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    venusMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereVenus.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereVenus.RunMethodJO("setMaterial", Array(venusMaterial))

    venus.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereVenus))

    lft = lft + 100dip
    tp = tp - 15dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(venus, lft, tp, wdth, hght)

End Sub

Sub addEarth

    Dim diam As Double = 50.0dip

    sphereEarth.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    earth.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "earth-d.jpg")
    ips2 = File.OpenInput(File.DirAssets, "earth-l.jpg")
    ips3 = File.OpenInput(File.DirAssets, "earth-s.jpg")
    ips4 = File.OpenInput(File.DirAssets, "earth-n.jpg")


    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))
    Dim image2 As JavaObject
    image2.InitializeNewInstance("javafx.scene.image.Image", Array(ips2))
    Dim image3 As JavaObject
    image3.InitializeNewInstance("javafx.scene.image.Image", Array(ips3))
    Dim image4 As JavaObject
    image4.InitializeNewInstance("javafx.scene.image.Image", Array(ips4))


    Dim earthMaterial As JavaObject
    earthMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    earthMaterial.RunMethodJO("setDiffuseMap", Array(image1))
    earthMaterial.RunMethodJO("setSelfIlluminationMap", Array(image2))
    earthMaterial.RunMethodJO("setSpecularMap", Array(image3))
    earthMaterial.RunMethodJO("setBumpMap", Array(image4))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereEarth.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereEarth.RunMethodJO("setMaterial", Array(earthMaterial))

    earth.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereEarth))

    lft = lft + 100dip
    tp = tp - 70dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(earth, lft, tp, wdth, hght)

End Sub

Sub addMoon

    Dim diam As Double = 15.0dip

    sphereMoon.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    moon.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "moon.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim moonMaterial As JavaObject
    moonMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    moonMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereMoon.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereMoon.RunMethodJO("setMaterial", Array(moonMaterial))

    moon.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereMoon))

    lft = lft + 0dip
    tp = tp - 30dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(moon, lft, tp, wdth, hght)

End Sub

Sub addMars

    Dim diam As Double = 35.0dip

    sphereMars.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    mars.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "mars1.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim marsMaterial As JavaObject
    marsMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    marsMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereMars.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereMars.RunMethodJO("setMaterial", Array(marsMaterial))

    mars.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereMars))

    lft = lft + 150dip
    tp = tp - 30dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(mars, lft, tp, wdth, hght)

End Sub

Sub addJupiter

    Dim diam As Double = 50.0dip

    sphereJupiter.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    jupiter.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "jupiter4.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim jupiterMaterial As JavaObject
    jupiterMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    jupiterMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereJupiter.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereJupiter.RunMethodJO("setMaterial", Array(jupiterMaterial))

    jupiter.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereJupiter))

    lft = lft + 120dip
    tp = tp - 50dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(jupiter, lft, tp, wdth, hght)

End Sub

Sub addSaturn

    Dim diam As Double = 60.0dip

    sphereSaturn.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    saturn.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "saturn3.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim saturnMaterial As JavaObject
    saturnMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    saturnMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereSaturn.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereSaturn.RunMethodJO("setMaterial", Array(saturnMaterial))

    saturn.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereSaturn))

    lft = lft + 150dip
    tp = tp - 60dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(saturn, lft, tp, wdth, hght)

End Sub

Sub addUranus

    Dim diam As Double = 60.0dip

    sphereUranus.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    uranus.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "uranus2.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim uranusMaterial As JavaObject
    uranusMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    uranusMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereUranus.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereUranus.RunMethodJO("setMaterial", Array(uranusMaterial))

    uranus.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereUranus))

    lft = lft + 150dip
    tp = tp - 60dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(uranus, lft, tp, wdth, hght)

End Sub

Sub addNeptune

    Dim diam As Double = 50.0dip

    sphereNeptune.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    neptune.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "neptune2.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim neptuneMaterial As JavaObject
    neptuneMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    neptuneMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    sphereNeptune.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    sphereNeptune.RunMethodJO("setMaterial", Array(neptuneMaterial))

    neptune.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(sphereNeptune))

    lft = lft + 150dip
    tp = tp - 60dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(neptune, lft, tp, wdth, hght)

End Sub

Sub addPluto

    Dim diam As Double = 10.0dip

    spherePluto.InitializeNewInstance("javafx.scene.shape.Sphere", Array(diam))
    pluto.InitializeNewInstance("javafx.scene.Group", Null)

    ips1 = File.OpenInput(File.DirAssets, "pluto.jfif")

    Dim image1 As JavaObject
    image1.InitializeNewInstance("javafx.scene.image.Image", Array(ips1))

    Dim plutoMaterial As JavaObject
    plutoMaterial.InitializeNewInstance("javafx.scene.paint.PhongMaterial", Null)

    plutoMaterial.RunMethodJO("setDiffuseMap", Array(image1))

    Dim rot As JavaObject
    rot.InitializeStatic("javafx.scene.transform.Rotate")

    spherePluto.RunMethodJO("setRotationAxis", Array(rot.GetField("Y_AXIS")))
    spherePluto.RunMethodJO("setMaterial", Array(plutoMaterial))

    pluto.RunMethodJO("getChildren", Null).RunMethodJO("add", Array(spherePluto))

    lft = lft + 150dip
    tp = tp - 60dip
    wdth = diam
    hght = diam

    MainForm.RootPane.AddNode(pluto, lft, tp, wdth, hght)

End Sub

Click to expand...
BlueVision

BlueVision

Active Member
Licensed User
Longtime User
Love it!
But missed pluto... Discovered finally in the upper right corner. It needs some additional scaling somhow...

Last edited:
You must log in or register to reply here.

Similar Threads

Patent
  • Article
B4J Code Snippet Render a Node
Replies
3
Views
981
klaus
klaus
Johan Schoeman
  • Article
B4J Tutorial JavaFX 3D spinning Earth and Galaxy
Replies
7
Views
3K
max123
max123
hatzisn
  • Question
B4J Question [SOLVED] - Javaobject Problem - JWT with RSA256
Replies
1
Views
3K
hatzisn
hatzisn
Erel
  • Article
B4A Library [B4X] Client certificates with OkHttpUtils2 SSLContext-Kickstart
Replies
11
Views
5K
Culjko
Culjko
stevel05
  • Article
B4J Library B4j Print JavaFX8
5 6 7
Replies
137
Views
49K
Peter Simpson
Peter Simpson
Top
