B4J Library jYeelight

Discussion in 'B4J Libraries & Classes' started by Blueforcer, Aug 25, 2018.

  1. Blueforcer

    Blueforcer Active Member Licensed User

    This is a simple library that allows you to control the 15$ Xiaomi´s YeeLight WiFi RGB LED bulbs (real alternative to Phillips Hue) through your LAN.
    So far only tested with the RGB version (v1) but maybe it works also with the white bulb and strips.


    You need to enable “Lan Control” in the App.

    Yeelight
    • setPower (state As Boolean, transistion As Int)
      Set the Bulbs state
      state: switch the Bulb On or Off
      trasition: Fading time
    • sendCommand (cmd As String)
      Send the Raw Command
      cmd: JSON string
    • setBrightness (value As Int, transistion As Int)
      This method is used to change the brightness
      value: target brightness from 0 to 100
      trasition: Fading time
    • setRGB (color As Int, transistion As Int)
      This method is used to change the color
      color: target color from 0 to 16777215
      trasition: Fading time
    • setColorFlow (count As Int, action As Int, expression As String)
      This method is used to o start a color flow
      count: total number of visible state changing before color flow stopped. 0 means infinite Loop.
      action: is the action takenafter the flow Is stopped.
      0 = State before the color flow started.
      1 = Stay at the state when the flow Is stopped.
      2 = turn off after the flow Is stopped.
      expression: expression of the state changing series
      Every state contains Duration, Mode, Value, Brightness
      Duration = Gradual change time Or Sleep time, in milliseconds, minimum value 50.
      Mode = 1 –color, 2 –color temperature, 7–Sleep.
      Value = RGB value when mode is 1, CT value when mode is 2, Ignored when mode 7
      Brightness= Brightness value, -1 Or 1 ~ 100.Ignored when mode Is 7.
      When this value Is -1, brightness in this tuple Is ignored
      (only color Or CT change takes effect)
    • stopColorFlow()
      This method is used to stop a running color flow.
    • setDefault()
      This method is used to save current state of smart LED in persistent memory.
      So If user powers off And Then powers on the Bulb again (hard Power reset),
      the Bulb will show last saved state.
    • Toggle()
      This method is used to toggle the Bulbs power state.
    • setSleep (minutes As Int)
      Switch the bulb off after X minutes.
    • setName (name As String)
      This method is used to name the device.
      The name will be stored on the device and
      reported in discovering response.
    • stopSleep()
      Stops the Sleeptimer
    • setKelvin (kelvin As Int, transistion As Int)
      This method is used to change the color temperature
      kelvin: target color temperature. Range Is 1700 ~ 6500 (k)
      trasition: Fading time
    • setHSV (hue As Int, sat As Int, transistion As Int)
      This method is used to change the color
      hue: ranges from 0 to 359
      sat: ranges from 0 to 100
      trasition: Fading time
    • setMusicMode (active As Boolean)
      This Mode puts the Bulb in Client mode and connects to the library TCP Serversocket
      In this Mode no property will be reported and no message quota Is checked.
      In Servermode(Musicmode Off) the bulb only accepts 144 comands per Minute (4 x 60 x 60%)
      After set the Musicmode to True you can send any Command as usual.
    • Disconnect
      Disconnects from the Bulb
    • Discover
      Discover all Yeelights in your network
      'he "discoverComplete" event will be raised when discover is finished

    More Features will be added soon!

    The following code turns on the lamp and starts a custom colorflow

    Code:
    Sub Process_Globals

    Private fx As JFX

    Private MainForm As Form

    Dim light As Yeelight
    End Sub

    Sub AppStart (Form1 As Form, Args() As String)
        MainForm = Form1
        MainForm.RootPane.LoadLayout(
    "main"'Load the layout file.
        MainForm.Show

        light.Initialize(Me,
    "yee")
        light.Connect(
    "192.168.178.20")

    End Sub

    'Return true to allow the default exceptions handler to handle the uncaught exception.
    Sub Application_Error (Error As Exception, StackTrace As StringAs Boolean

    Return True
    End Sub

    Sub yee_Connected(Successful As Boolean)

    If Successful then
            light.setPower(
    True,500)
            light.setColorFlow(
    0,1,"1000,2,2700,100,500,1,255,10,5000,7,0,0,500,2,5000,1")

    end if
    End Sub

    Sub yee_Response(Message As String)

    Log(Message)
    End Sub

    Version 1.0
    First Upload
    Version 1.2
    added MusicMode
    Version 1.3
    control multiple Bulbs
    Version 1.4
    small improvements
    Discover all Yeelight based Lights such Color, Mono (White), Strip, Bedside Lamp


    Attached Files:

    Last edited: Aug 30, 2018
    JOSE GOMES, sz4t4n, jmon and 4 others like this.
  2. Blueforcer

    Blueforcer Active Member Licensed User

    Version 1.2
    MusicMode added

    With MusicMode it is possible to send unlimited Commands to the Bulb.
    So you can change the Colors pretty fast. In Regular mode the bulb only accepts 144 comands per Minute (4 x 60 x 60%). In the following Video I read the Pixelcolor of the Mouseposition and send the RGB Value to both Bulbs.
    Because i only use RGB Values instead of HSB (dont know how) i cannot change the Brightness (For Black etc) . You can find this Demo in the Attachment



    Next Step is a Ambilight Server written in B4J


    Attached Files:

    sz4t4n, jmon, Erel and 2 others like this.
  3. Blueforcer

    Blueforcer Active Member Licensed User

    Version 1.3
    Now it is possible to control different Bulbs with different Commands.
    This gives huge possibilities such a awesome Ambilight Server ;) .
    This Server control 2 seperate Bulbs from the given Capture Areas.
    I will publish the Ambilight Server if its finished.
    For more information take a look at "Share my Creation"

    p.s: it was unpossible to find a great and colorful 32:9 Video. So i use an 16:9 Video.
    Since you can change the both capture areas via Drag&Drop, it is easy get the Areas you want.


    Last edited: Aug 27, 2018
    Erel and amaxco like this.
  4. sz4t4n

    sz4t4n Member Licensed User

    I try to connect to my yeelight bulb (no RGB just white) but not success.

  5. Blueforcer

    Blueforcer Active Member Licensed User

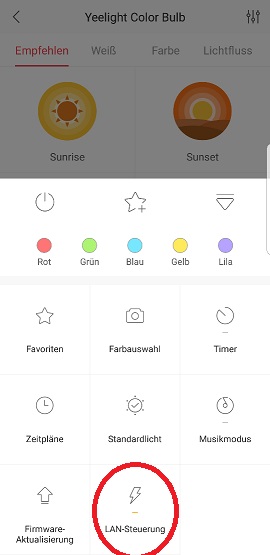

    Do you activate the LAN control function in the Yeelight App?

    [​IMG]
    [​IMG]

    Last edited: Aug 27, 2018
    sz4t4n likes this.
  6. sz4t4n

    sz4t4n Member Licensed User

    i cant find that option. I search in yeelight app and in "mi home" app

    edit: Ok it works fine now but after i connect this bulb again to Mi home app this setting is false again and i cant connect. So it can be used only with BJA or Mi home not together.

    Anyway your lib works good with normal white yeelight bulb.

    thanks

    Last edited: Aug 27, 2018
  7. sz4t4n

    sz4t4n Member Licensed User

    ok i was my mistake. It is possible to use this bulb in Mi home app and B4J app in the same time :)

    Now its time to make some app with your lib :)

    one again thanks :)

    amaxco and Blueforcer like this.
  8. sz4t4n

    sz4t4n Member Licensed User

    Small app that helps you to find all yeelight bulbs IP's in yours network
    Can someone check if it works with rgb bulb?


    Attached Files:

  9. sz4t4n

    sz4t4n Member Licensed User

    hmm strange. Can you tell me whats MAC address of yours bulbs?

    I use "arp - a" in shell to find all devices in network and then i'm looking for MAC address which starts "34-ce-00-88" because all my bulbs starts witch this numbers ( i thought all bulbs starts with it...)

  10. sz4t4n

    sz4t4n Member Licensed User

    now it should works with RGB too. I'll read this specification.


    Attached Files:

  11. Blueforcer

    Blueforcer Active Member Licensed User

    Now it works but I dont think its always the same MAC. because i have 3 similar RGB bulbs with 2 different MAC. Maybe the strips also have another Mac
    With SSDP we could discover all informations about the devices. Can you try my code above? Maybe my router block this broadcast message

  12. Blueforcer

    Blueforcer Active Member Licensed User

    Version 1.4

    -small improvements
    -Discover all Yeelight based Lights such Color, Mono (White), Strip, Bedside Lamp in your Network

    Start a Discover as follows, The "discoverComplete" event will be raised when discover is finished and returns a Map with all discovered Lights.

    Note:
    Due Broadcast behavior its only possible to find the Lights if you connected via WiFi or your Router supports Multicast


    Code:
    Sub Process_Globals

    Private fx As JFX

    Private MainForm As Form

    Dim yee As Yeelight
    End Sub

    Sub AppStart (Form1 As Form, Args() As String)
        MainForm = Form1
        MainForm.RootPane.LoadLayout(
    "main"'Load the layout file.
        MainForm.Show

        yee.Initialize(Me,
    "yee",1)
        yee.Discover
        yee.Connect(
    "192.168.178.20")
    End Sub

    Sub yee_Connected(Successful As Boolean)
        yee.setPower(
    True,5000)
    End Sub

    Sub yee_discoverComplete(Lights As Map)

    For Each k As String In Lights.Keys

    Log(k & " : " & Lights.Get(k))

    Next
    End Sub
    Code:
    192.168.178.20 : Color
    192.168.178.26 : Color
    192.168.178.30 : Color
    192.168.178.34 : White

    Last edited: Aug 29, 2018
    amaxco likes this.
  13. CGP

    CGP Member Licensed User

    Thanks @Blueforcer for this lib!

    I'm trying to add to my project but I found an incompatibility with jOkHttpUtils2_NONUI and OkHttp library.

    Can you check it?

    Thanks


    Attached Files:

  14. Blueforcer

    Blueforcer Active Member Licensed User

    I think its because the Yeelight Library already use jHttpUtils2 ?
