New feature: Resumable Subs - simpler asynchronous programming

Erel · Mar 28, 2017

LucaMs said:
What if you use WaitFor and the event will never raise? If you cannot set a timeout I think the project will be locked there

The project will never be locked. The code after the WaitFor (in the relevant sub call) will not run.
Other code will run as usual.

The timeout should be handled inside the asynchronous method.

ilan · Mar 28, 2017

old boring way:

B4X:

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.Show
    csu.Initialize

    For i = 0 To btn.Length-1
        btn(i).Initialize("btn")
        btn(i).Text = "Button " & i
        MainForm.RootPane.AddNode(btn(i),0,0,100,50)
    Next
End Sub

Sub btn_Action
   Dim b As Button = Sender
   b.SetLayoutAnimated(600, 10, 300, b.Width, b.Height)
   csu.CallSubPlus2(Me,"hidebtn",600,Array(b))
End Sub

Sub hidebtn(obj() As Object)
    If obj(0) Is Button Then
        Dim b As Button = obj(0)
        b.SetAlphaAnimated(500,0)
    End If
End Sub

new awesome way:

B4X:

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.Show
    csu.Initialize

    For i = 0 To btn.Length-1
        btn(i).Initialize("btn")
        btn(i).Text = "Button " & i
        MainForm.RootPane.AddNode(btn(i),0,0,100,50)
    Next
End Sub

Sub btn_Action
   Dim b As Button = Sender
   b.SetLayoutAnimated(600, 10, 300, b.Width, b.Height)
   Sleep(600)
   b.SetAlphaAnimated(500,0)
End Sub

Erel · Mar 28, 2017

ilan said:
instead of using CallSubUtils i can use this feature

Only the simplest cases can be implemented with CallSubUtils.
In most cases you will need to manage the state with global variables (preferably in a class).
You can try as an example to implement the code from post #19.

Also remember that resumable subs can wait for events not just sleep for a specific interval.

LucaMs · Mar 28, 2017

Erel said:
The project will never be locked. The code after the WaitFor (in the relevant sub call) will not run.
Other code will run as usual.

The timeout should be handled inside the asynchronous method.

I wrote badly the question, I meant "that resumable-sub will be locked" or, as you wrote better: the code after Waitfor will not run.

Very likely I have to understand better this new feature, because at the moment I cannot figure out the example with JobDone.

Thank you

ilan · Mar 28, 2017

Erel said:
You can try as an example to implement the code from post #19.

~~its not the same, you can do 1 button after 1 and not all 3 together but i must go so had not much time to do the same as your example and~~ of course @Erel yours is for sure simpler and better!!! i just took your challenge

EDIT: now it behaves exactly as your example

B4X:

Sub Process_Globals
    Type Action(b As Button, interval As Int, left As Float, top As Float)
    Private fx As JFX
    Private MainForm As Form
    Private csu As CallSubUtils
    Private btn(3) As Button
    Private ActionList(btn.Length) As List
    Private pos(4) As Float = Array As Float(300,200,400,0)
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.Show
    csu.Initialize

    For i = 0 To btn.Length-1
        ActionList(i).Initialize
        btn(i).Initialize("btn")
        btn(i).Text = i+1
        btn(i).Tag = i
        MainForm.RootPane.AddNode(btn(i),i*150,0,100,50)
    Next
End Sub

Sub btn_Action
   Dim b As Button = Sender
   If b.Top <> pos(3) Then Return

   Dim count As Int = b.Text
   ActionList(b.Tag).Add(newaction(b,0,500,pos(0)))
   For i = 0 To count-1
       ActionList(b.Tag).Add(newaction(b,i,400,pos(1)))
       ActionList(b.Tag).Add(newaction(b,i,400,pos(2)))
   Next
   ActionList(b.Tag).Add(newaction(b,count,500,pos(3)))
   animateNow(0, b.Tag)
End Sub

Sub animateNow(animpos As Int, listInt As Int)
    Dim act As Action = ActionList(listInt).Get(animpos)
    act.b.SetLayoutAnimated(act.interval, act.b.Left, act.top, act.b.Width, act.b.Height)
    csu.CallSubPlus2(Me,"checkAnimFin",act.interval,Array(listInt))
End Sub

Sub checkAnimFin(obj() As Object)
    Dim listInt As Int = obj(0)
    ActionList(listInt).RemoveAt(0)
    If ActionList(listInt).Size > 0 Then
        animateNow(0,listInt)
    End If
End Sub

Sub newaction(myBtn As Button, myid As Int, interval As Int, top As Float) As Action
    Dim newact As Action
    newact.Initialize
    newact.top = top
    newact.interval = interval
    newact.b = myBtn
    Return newact
End Sub

freedom2000 · Mar 28, 2017

Whaou

It really seems to be a very powerful feature.
Can't wait until june to test it

Beja · Mar 28, 2017

Erel said:

Last example for today, this time with some logic:

The number of movements is based on the button's text:

B4X:

Sub b_Action
   Dim b As Button = Sender
   Dim count As Int = b.Text
   b.SetLayoutAnimated(500, b.Left, 300, b.Width, b.Height)
   Sleep(500)
   Dim i As Int = 0
   Do While i < count
     b.Text = i
     b.SetLayoutAnimated(400, b.Left, 200, b.Width, b.Height)
     Sleep(400)
     b.SetLayoutAnimated(400, b.Left, 400, b.Width, b.Height)
     Sleep(400)
     i = i + 1
   Loop
   b.Text = count
   b.SetLayoutAnimated(500, b.Left, 10, b.Width, b.Height)
End Sub

The button should have a catch event.
Button1_Catch

Widget · Mar 28, 2017

Erel said:
It will take some time.
It will be first implemented in B4J and probably be available in May or June (many vacations here in April).

Let me be the first to say:

Zzzzzzzzzzz

I really like the concept. It makes our work a lot easier.
When it gets ported to B4A and B4i, will it work on all (most?) versions of Android or iOS?

TIA

JordiCP · Mar 29, 2017

How do/will they work internally? Runnables with semaphores?

Just trying to figure it, I made another approach to post #19 in B4A, with a little help of inline Java. It can be useful for synchronized animations which do not depend on Callsub timers, but on events raised by the same animation when finished

The myAnimatorB4a Sub acts as a state machine, and calls a simple view animator in Java which invoques back that same B4A function when it is finished. Then executes the next step, and so on.... No recorded states, all of them are passed back and forth as parameters.

B4X:

Sub myanimatorb4a(bb As Object, nStep As Int, nCount As Int)
   Dim jo As JavaObject
   jo.InitializeContext
   Dim b As Button=bb
   If nStep<=2*nCount Then
     If nStep=0 Then
       jo.RunMethod("myAnimatorJava",Array(b,500,600,1,nCount))
     Else
       If nStep Mod 2 =1 Then b.Text=Bit.ShiftRight(nStep-1,1)
       jo.RunMethod("myAnimatorJava",Array(b,400,800-400*(nStep Mod 2),nStep+1,nCount))
     End If
   Else    'Final Step
     b.Text=nCount
     jo.RunMethod("myAnimatorJava",Array(b,400,10,-1,nCount))   ' -1: no more callbacks
   End If
End Sub

Sub b_CLick
   Dim b As Button =Sender
   myanimatorb4a(b,0,b.Text)     'First step
End Sub

#if JAVA
import java.lang.Runnable;
import android.view.View;
public void myAnimatorJava(final Object v, int duration, int posY, final int nStep,final int nCount){
   ((View)v).animate().y((float)posY).setDuration((long)duration).withEndAction( new Runnable()
   {     public void   run(){ if (nStep>=0) processBA.raiseEvent(null,"myanimatorb4a",v, nStep,nCount); }   });
}
#End If

Erel · Mar 29, 2017

Widget said:
When it gets ported to B4A and B4i, will it work on all (most?) versions of Android or iOS?

It will work on all versions.

JordiCP said:
Runnables with semaphores?

No. There are no additional threads here (only the main thread is allowed to call UI methods).

The compiler converts the resumable sub into a state machine object. The state machine can be paused and resumed.

Erel · Mar 29, 2017

Quiz:
What is the output of this code:

B4X:

Sub AppStart (Form1 As Form, Args() As String)
   PrintNumber(1)
   PrintNumber(2)
   PrintNumber(3)
   Log("After")
End Sub

Sub PrintNumber(i As Int)
   Sleep(10)
   Log(i)
End Sub

And this one:

B4X:

Sub AppStart (Form1 As Form, Args() As String)
   PrintNumber(3)
   PrintNumber(2)
   PrintNumber(1)
   Log("After")
End Sub

Sub PrintNumber(i As Int)
   Sleep(i) '<--------------
   Log(i)
End Sub

???

JordiCP · Mar 29, 2017

Erel said:

Quiz:
What is the output of this code:

B4X:

Sub AppStart (Form1 As Form, Args() As String)
   PrintNumber(1)
   PrintNumber(2)
   PrintNumber(3)
   Log("After")
End Sub

Sub PrintNumber(i As Int)
   Sleep(10)
   Log(i)
End Sub

And this one:

B4X:

Sub AppStart (Form1 As Form, Args() As String)
   PrintNumber(3)
   PrintNumber(2)
   PrintNumber(1)
   Log("After")
End Sub

Sub PrintNumber(i As Int)
   Sleep(i) '<--------------
   Log(i)
End Sub

???

"After","1","2","3", for the first, and
"After","1","2","3" for the second ?

Deleted member 103 · Mar 29, 2017

Maybe that?

"After"
"1" (waiting 10 sec)
"2" (waiting 10 sec)
"3" (waiting 10 sec)

"After"
"3" (waiting 3 sec)
"2" (waiting 2 sec)
"1" (waiting 1 sec)

Erel · Mar 29, 2017

@JordiCP is correct.

Note that the interval is in milliseconds.
There is no relation between different calls to PrintNumber.

moster67 · Mar 29, 2017

Is this post on SO relevant?

http://stackoverflow.com/questions/16539245/java-equivalent-of-c-sharp-async-await

narek adonts · Mar 29, 2017

I think that the WaitFor is something like CompletionHandler in OBJC

Erel · Mar 29, 2017

moster67 said:
Is this post on SO relevant?

Resumable subs are similar to .Net async / await feature.

narek adonts said:
I think that the WaitFor is something like CompletionHandler in OBJC

It is more powerful than OBJC blocks (in relation to asynchronous programming).
Check the code in this post: https://www.b4x.com/android/forum/t...r-asynchronous-programming.77867/#post-493266
It is not possible to implement this logic with blocks.

narek adonts · Mar 29, 2017

Erel said:
Resumable subs are similar to .Net async / await feature.

It is more powerful than OBJC blocks (in relation to asynchronous programming).
Check the code in this post: https://www.b4x.com/android/forum/t...r-asynchronous-programming.77867/#post-493266
It is not possible to implement this logic with blocks.

Could be something like this )))

B4X:

Sub b_Action
   Dim b As Button = Sender
   Dim count As Int = b.Text
   b.SetLayoutAnimated(500, b.Left, 300, b.Width, b.Height)
   WaitFor AnimComplete.. '''
   Dim i As Int = 0
   Do While i < count
     b.Text = i
     b.SetLayoutAnimated(400, b.Left, 200, b.Width, b.Height)
     WaitFor AnimComplete..'''
     b.SetLayoutAnimated(400, b.Left, 400, b.Width, b.Height)
     WaitFor AnimComplete..'''
     i = i + 1
   Loop
   b.Text = count
   b.SetLayoutAnimated(500, b.Left, 10, b.Width, b.Height)
End Sub

alwaysbusy · Mar 30, 2017

Waw, how did I miss this topic? Watching this thread immediately, this is fantastic!

Erel · Mar 30, 2017

Good progress so far.

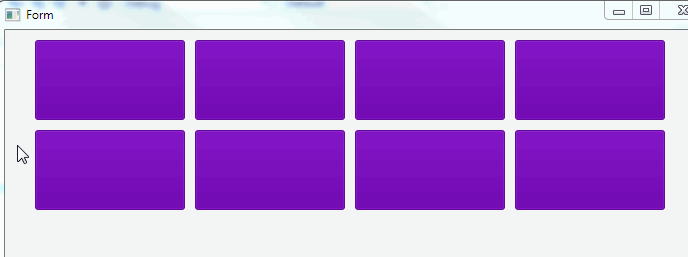

Here is another little example. It is already running with the debugger now:

B4X:

Sub Btn_Action
   Dim b As Button = Sender
   For Each s As String In Array("Ten", "Nine", "Eight", "Seven", "Six", "Five", _
     "Four", "Three", "Two", "One", "TAKEOFF!!!")
     If s = "Eight" Then Continue
     b.Text = s
     Sleep(500)
   Next
End Sub
