Android Question Progress bar in 45 Degree angle

[rhydo]

Hi Team,

i would like to know , how can we make simple progress bar,not horizontal or vertical , but in different angles like 45 degree UP and Down. It is to be used to draw the oven temperature progress with respect to time as attached image.



[Erel]

You can use this code to rotate a view:

Sub RotateView(v As View, Degrees As Float)
   Dim jo As JavaObject = v
   jo.RunMethod("setRotation", Array(Degrees))
End Sub

Supported by Android 4+



[klaus]

What exactly do you want to do?
How is the diagram generated?
Is the diagram in your picture the target temperature and you want to superimpose the current temperature?
Etc.?
This could be done with a canvas.
But with a more detailed explanation on what exactly you want to do we could give more precise advices.



[MarcoRome]

Do you see also THIS wrapper by @Johan Schoeman ?



[rhydo]

Hi Team,

I want to make the progress bar same as in the image attached. Since there are 5 segments , i can use 5 progress bars. As of now i had implemented this using 5 progress bar in horizontal direction, but the client needed it as per the image. So have to rotate the progress bar as suggested by EREL. will try and let you know .Thank you very much for your time..



[rhydo]

You can use this code to rotate a view:

Sub RotateView(v As View, Degrees As Float)
   Dim jo As JavaObject = v
   jo.RunMethod("setRotation", Array(Degrees))
End Sub

Supported by Android 4+

Hi,

I could be able to rotate the Progress bar as suggested , but would like to know how can i align the horizontal progress bar "end" to Angled (rotated) progress bar "start" so as to look like a line. Since i used the designer script to optimize the views layout, and code to rotate the view, i could not do the alignment properly. Could you please guide me to align it..



[klaus]

I am coming back to my post #3.
I would do all this with one or more canvases.
But, as you didn't answer my questions in post #3 I cannot give a concrete answer.
For me, using progressbars, is not the good way.



[DonManfred]

For the wanted result i guess it would be better to use a Charts-Lib
For ex: https://www.b4x.com/android/forum/t...-library-files-in-post-238.58017/#post-366708

Or using Google Charts inside a webview
https://developers.google.com/chart/interactive/docs/gallery/linechart



[rhydo]

What exactly do you want to do?
How is the diagram generated?
Is this the diagram in your picture the target temperature and you want to superimpose the current temperature?
Etc.?
This could be done with a canvas.
But with a more detailed explanation on what exactly you want to do we could more precise advices.

Yes, Initialy we have to show a predifined diagram ( Temprature Vs Time ) as in the attache image .Then we have to superimpose the live temparature ( Different Color) on it with respect to time. (Presently doing this with 4 separate progress bar in horizontal direction) .Time scale for each segment may vary based on the user settings.

Also would like to know, is there any option to get the co-ordinates of the views and align it while executing code.

It will be really helpfull if you can guide me in right direction.



[klaus]

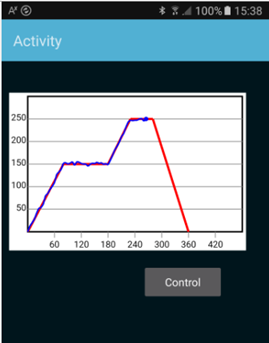

I would do it like this:

It uses 3 panels and 3 canvases.
One for the reference diagram.
One for real dynamic temperature diagram
One for the dot.

A click on the control button starts a new sequence.
A Timer generates the time steps and a temperature close to the red one with a random error.

Advantage no external library, complete control of the code and customizable to your needs.

This is a skeleton, based on your diagram, up to you to adapt it to your needs.
It can be improved to make it more universal.



[rhydo]

I would do it like this:

View attachment 52683

It uses 3 panels and 3 canvases.
One for the reference diagram.
One for real dynamic temperature diagram
One for the dot.

A click on the control button starts a new sequence.
A Timer generates the time steps and a temperature close to the red one with a random error.

Advantage no external library, complete control of the code and customizable to your needs.

This is a skeleton, based on your diagram, up to you to adapt it to your needs.
It can be improved to make it more universal.

Hi klaus,

Thank you very much for your kind support.
i will try your code ...
