B4J Library [B4X] [XUI] SD XUIView

Discussion in 'B4J Libraries & Classes' started by Star-Dust, Aug 15, 2018.

  1. Star-Dust

    Star-Dust Expert Licensed User

    I'm happy to announce the publication of my new B4XView library.
    This library adds to the XUi Views the native views of the three platforms (Android / IOS / Desktop) so that they can be managed by Design, using them as XUI views without having to change its type in the Globals Sub.
    With this Library the views have the same properties and identical events, and you can also access the original view and more properties, method and animation not included natively.
    This will allow you to reuse the code written for a platform on the others without any changes.

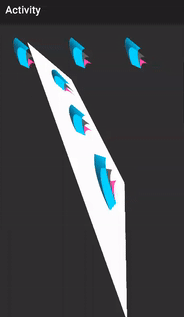

    Also I'm adding custom views and animations not included natively.

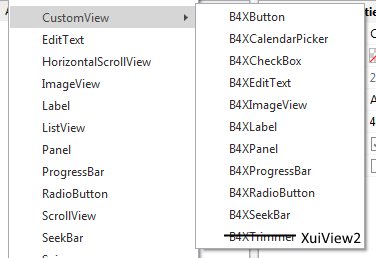

    Included this view
    [​IMG] [​IMG]

    Other views not included in this list (such as XCustomListView or XComboBox, B4XComboBox, LoadingIndicator, CicularProgressBar, RadarProgressView, GaugeView, RulerPicker, RoundSlider, CaptchaView, etc.. ) will not be included in the future because they already exist. Many sources have been made available just search the forum.

    NOTICE. Unfortunately in the IOS version it occupies more than 500Kb, so I compressed with RAR and then with ZIP. to decompress it, you must use WinRar

    SD_XUIView

    Author: Star-Dust
    Version: 0.04
    • B4XButton
      • Events:
        • DoubleOrLongClick
        • OneClick
        • Touch (Action As Int, Coordinate() As Tp_Coordinate)
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
        • MinMoveAccept As Int
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • B4XObject As B4XView
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • NativeObject As Button
        • RemoveAllViews As String
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Color As Int
        • Enable As Boolean
        • Font
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Visible As Boolean
        • Width As Int

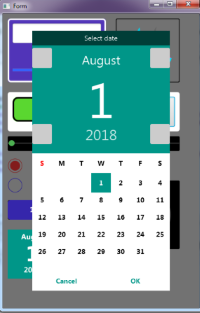

    • B4XCalendarPicker
      • Events:
        • Click
      • Fields:
        • Color As Int
        • Square As Boolean
        • TextColor As Int
        • TextSize As Int
        • Title As String
      • Functions:
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (CallBack As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Date As Long
        • Enable As Boolean
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Visible As Boolean
        • Width As Int
    • B4XCheckBox
      • Events:
        • Click
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
        • MinMoveAccept As Int
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • RemoveAllViews As String
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Check As Boolean
        • Color As Int
        • Enable As Boolean
        • Font
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Visible As Boolean
        • Width As Int
    • B4XEditText
      • Events:
        • DoubleOrLongClick
        • EnterPressed
        • FocusChanged
        • OneClick
        • TextChanged (Old As String, New As String)
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • B4XObject As B4XView
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • NativeObjct As EditText
        • RemoveAllViews As String
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • setSelection (StartIndex As Int, EndIndex As Int) As String
        • Snapshot As B4XView
      • Properties:
        • Color As Int
        • CursorVisible
        • Ellipsize As String
        • Enable As Boolean
        • Font
        • ForceDoneButton
        • Height As Int
        • Left As Int
        • SelectionEnd As Int [read only]
        • SelectionStart As Int [read only]
        • Tag As Object
        • TextIsEditable
        • TextIsSelectable
        • Top As Int
        • Typeface
        • Visible As Boolean
        • Width As Int
    • B4XImageView
      • Events:
        • DoubleOrLongClick
        • OneClick
        • Touch (Action As Int, Coordinate() As Tp_Coordinate)
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
        • MinMoveAccept As Int
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • B4XObject As B4XView
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • NativeObject As ImageView
        • RemoveAllViews As String
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • B4XBitmap As B4XBitmap
        • Enable As Boolean
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Visible As Boolean
        • Width As Int
    • B4XLabel
      • Events:
        • DoubleOrLongClick
        • OneClick
        • Touch (Action As Int, Coordinate() As Tp_Coordinate)
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
        • MinMoveAccept As Int
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • B4XObject As B4XView
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • NativeObject As Label
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Color As Int
        • Enable As Boolean
        • Font
        • Height As Int
        • Left As Int
        • Tag As Object
        • TextAppear
        • TextFind
        • TextRoll
        • TextScroll
        • Top As Int
        • Visible As Boolean
        • Width As Int
    • B4XPanel
      • Events:
        • DoubleOrLongClick
        • OneClick
        • Touch (Action As Int, Coordinate() As Tp_Coordinate)
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
        • MinMoveAccept As Int
        • Movible As Boolean
        • Resizable As Boolean
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • AddView (View As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • B4XObject As B4XView
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • EmbedView (View As B4XView) As String
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • NativeObject As Panel
        • RemoveAllViews As String
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Enable As Boolean
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Visible As Boolean
        • Width As Int
    • B4XProgressBar
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • BackgroundColor
        • BarColor
        • Enable As Boolean
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Value As Float
        • Visible As Boolean
        • Width As Int
    • B4XRadioButton
      • Events:
        • Click
      • Fields:
        • Action_Click As Int
        • Action_DoubleClick As Int
        • Action_Down As Int
        • Action_Drag As Int
        • Action_LongClick As Int
        • Action_LoseTouch As Int
        • Action_Up As Int
        • MinMoveAccept As Int
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetAllViewsRecursive As List
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • RemoveAllViews As String
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Check As Boolean
        • Color As Int
        • Enable As Boolean
        • Font
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Visible As Boolean
        • Width As Int
    • B4XSeekBar
      • Events:
        • ChangeValue (Value As Float)
      • Functions:
        • AddToParent (PanelToAdd As B4XView, Left As Int, Top As Int, Width As Int, Height As Int) As String
        • BringToFront As String
        • Class_Globals As String
        • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
          Base type must be Object
        • GetBase As Panel
        • GetView (Index As Int) As B4XView
        • Initialize (Callback As Object, EventName As String) As String
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • RemoveViewFromParent As String
        • RequestFocus As String
        • ReSetEvent (Callback As Object, EventName As String) As String
        • Rotate (AngleX As Float, AngleY As Float, AngleZ As Float) As String
        • SendToBack As String
        • Snapshot As B4XView
      • Properties:
        • Enable As Boolean
        • Height As Int
        • Left As Int
        • Tag As Object
        • Top As Int
        • Value As Float
        • Visible As Boolean
        • Width As Int
    • Tp_Coordinate
      • Fields:
        • IsInitialized As Boolean
          Verifica se l'oggetto sia stato inizializzato.
        • x As Int
        • y As Int
      • Functions:
        • Initialize
          Inizializza i campi al loro valore predefinito.


    Attached Files:

    Last edited: Oct 4, 2018
  2. Star-Dust

    Star-Dust Expert Licensed User

    With this library you can add the B4X XUi Views directly from Design.
    It also adds new functions and methods that are not present basic to native views


    Now the Trimmer class is in the XUIView2 library


    Attached Files:

    Last edited: Oct 4, 2018
  3. Erel

    Erel Administrator Staff Member Licensed User

    To avoid confusion to developers new to XUI, XUI is designed to work with the native views. You can add regular buttons, labels and any other view you like with the designer. You can then change its type in the Globals sub to B4XView and it will just work.

  4. Star-Dust

    Star-Dust Expert Licensed User

    Preview

    B4A

    BAI
    IMG_0012.PNG File 16-08-18, 21 19 52.jpeg
    B4J

    Last edited: Aug 16, 2018
  5. Star-Dust

    Star-Dust Expert Licensed User

    From version 0.02 it will be possible to set again after the initialization of the view the name of the event that will be raised and also the module to which the sub is related to the event. (method ReSetEvent (Callback As Object, EventName As String))
    In addition I will add Ellipsize (currently only present in the Design of Android) that also effects also to IOS View.

    These functions do not exist with native views, so it adds something thatcan not be done normally with native views.

    Last edited: Aug 18, 2018
    amaxco and Johan Hormaza like this.
  6. Star-Dust

    Star-Dust Expert Licensed User

    Update to 0.02 release

    In post#1 you will find the library, from post#2 you can download examples.

    Last edited: Aug 24, 2018
  7. Star-Dust

    Star-Dust Expert Licensed User

    Available update to version 0.03

    • Add to EditText
      • TextIsEditable As Boolean
      • CursorVisible As Boolean
      • TextIsSelectable As Boolean
      • setSelection(StartIndex As Int, EndIndex As Int)
      • SelectionStart As Int
      • SelectionEnd As Int
    • Add funciton 3d for View (B4A & B4I)
      • Rotate(AngleX As Float, AngleY As Float , AngleZ As Float)

    ezgif.com-crop.gif Video3.gif

    Last edited: Aug 25, 2018
  8. Star-Dust

    Star-Dust Expert Licensed User

    New EmbedView(View As B4XView) method in B4XPanel.

    In the design it is not possible to attach other views to the B4XPanel because there is no such function in the design.
    I found a way around the obstacle.

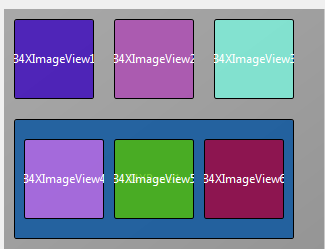

    You draw the views above the panel to which you want to attach as in the image

    Write this as a code

    Code:
    B4XPanel1.EmbedView(B4XImageView4.GetBase)
    B4XPanel1.EmbedView(B4XImageView5.GetBase)
    B4XPanel1.EmbedView(B4XImageView6.GetBase)
    And the method automatically hooks the views to the panel in the position you have put them in the design.

    mindful likes this.
  9. Erel

    Erel Administrator Staff Member Licensed User

    There is a simpler solution. Use the native Panel and all other native views. Then convert their type to B4XView.

    It is good to add cross platform controls that do not exist as native controls.
    It is a mistake to wrap existing native views. It only makes things more complicated.

  10. Star-Dust

    Star-Dust Expert Licensed User

    Dear @Erel,
    as you can see, this library contains several Custom Views (CalendarPicker, SeekBar, Trimmer, RadioButton).
    You are pausing to look only at the native ones, not seeing the library as a whole.
    Moreover, the Native Views are not just an envelope, which adds nothing to the existing ones. But they add new features and methods.

    For example, think of the View FloatLabeledEditText, which you made, you can not say that it is a simple label and therefore useless, because it adds new features not available natively. Besides the fact, not negligible, that it is possible to manage everything from Design without having to intervene from code and in any case have views with Events and Methods that correspond on all platforms.

    This has required a lot of work, in fact the librery is full-bodied in Kb, it would not be so if it were just a shell of already existing Views.

    Probably on this point we have different views, but I hope that in the future you can see it from my own point of view.

  11. Erel

    Erel Administrator Staff Member Licensed User

    These are great cross platform views.

    It is the native views such as panel and label that I think should not have been wrapped.

  12. Star-Dust

    Star-Dust Expert Licensed User

    I take note of your thought. And I understand what you mean because at the moment they only partially offer the Personalizations I have in mind. I have not implemented everything yet.

    I hope I can change your mind as I implement everything I have in mind.

    Cableguy likes this.
  13. Cableguy

    Cableguy Expert Licensed User

    I can imagine you going for an extensive XUI views set, to ease the creation of cross platform apps.
    Still, keep in mind that some devs like to have platform specific projects and may need a "one from the pack" view...

  14. Star-Dust

    Star-Dust Expert Licensed User

    It's true, even I still create platform-specific libraries.
    These same Classes that you find in this XUI library can be found in my other specific libraries for Android. Oriented precisely to the developers you're referring to who want "one from the pack"

    This library instead is addressed to other developers, and is based on XUI, so it has the goal of having View that work identically on the three platforms and have the same properties and events.

    I tried to develop libraries on both the specific ways to cover every need.

    Mainly I created them for me, but I hope that they can be useful to others too

    moster67 and inakigarm like this.
  15. Star-Dust

    Star-Dust Expert Licensed User

    A preview of new transition effects for labels. :D

    Code:
    B4XLabel2.Text="Scrolling Text"
    B4XLabel2.TextScroll=
    "New Text"
    B4XLabel2.TextRoll=
    "Other Text"

    Last edited: Sep 5, 2018
  16. Michael99k

    Michael99k Member Licensed User

    Hello,
    I´m new to B4A and I´ve troubles getting things to work. I aim at multiple platforms.
    My code tries to create B4XImageViews (which are not generated in the VisualDesigner) because I need a flexible amount of views.
    XUI (Version 1.70) and SD_XUIView (Version 0.03) are loaded.

    I miss the .Initialize method as with normal ImageViews (produces an error here).

    The 2nd problem: The panel "panRaum" doesn´t allow the .AddView - it says that the B4XImageview cannot be converted to Imageview (see the attached screenshot)
    I really get confused and the sample1.zip hasn´t an B4XImageview but just other Views to look at.

    Can anyone please give advice?

    Code:
    Sub Globals


    Private B4XImageView1 As B4XImageView
    End Sub
    Sub Activity_Create(FirstTime As Boolean)
    Dim imgPlatz As B4XImageView

    'imgPlatz.Initialize ("imgPlatz") 'All buttons share the same event sub; now error with B4XImageView
                FillImageToView(b, imgPlatz) 'Sub from Erel from https://www.b4x.com/android/forum/threads/b4x-xui-fill-and-fit-images-without-distortion.86627/
    '            imgPlatz.setBitmap(b) 'b is a bitmap-object with loaded image
    '            imgPlatz.SetBackgroundImage(b).Gravity = Gravity.CENTER
                panRaum.AddView(imgPlatz,0 + x * (breite + 0dip), 0 + y * (tiefe + 0dip), breite, tiefe)
    End Sub
    Thanks in advance,
    Michael

  17. Star-Dust

    Star-Dust Expert Licensed User

    If you want to initialize from code then you have to use ImageView as already suggested by Erel and then assign from code to a B4XView variable.
    This library is specific for those who use design.

  18. Erel

    Erel Administrator Staff Member Licensed User

    My suggestion is to use the visual designer and add a regular ImageView. You can then optionally change the type of the generated variable to B4XView. I don't see any reason to add a custom view that wraps ImageView. It goes against the design of XUI framework and custom views are less flexible than native views.

    There is a place for custom views. They are very useful when you want to add a control that is not covered by B4XView. ImageView like many other controls is already covered.

  19. Erel

    Erel Administrator Staff Member Licensed User

    I'll explain why I'm a bit obsessed here.
    Lets start with an example. You want to add a Panel to your layout. However in B4A and B4i the type is named Panel and in B4J it is named Pane. If you generate the variable declaration you will get a non-cross platform type.
    So a developer might think that they need to wrap it with a custom view named B4XPanel. This is the wrong conclusion.
    The correct solution is to add a Pane in B4J and a Panel in B4A / B4i and then go to the declared global variable and change its type to B4XView. Everything will just work.

    Another important design choice behind XUI is to never limit the developer to the cross platform features. You can always cast B4XView to the native type and access all the available features.
    You can use conditional compilation for this:
    Code:
    #If B4i
    Dim iv As ImageView = ImageView1 'a B4XView
    iv.SetShadow(...)
    #End If
    It is nice when it is not needed but it is nicer to be able to access all the features.

    There are all kinds of drawbacks with custom views. For example you cannot get a custom view directly from the views tree.

    amaxco and klaus like this.
  20. Star-Dust

    Star-Dust Expert Licensed User

    I do not see it as you, I would argue that by reasoning that xui contains the xui.CreatePanel method

    But I do not want to turn this library thread into something else. And I do not even want to argue with you because I have much esteem for your work.

    So I refer this conversation to another more suitable place. Maybe I can even explain my obsession with this library.

    Regard StarDust

Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
