B4J Tutorial PropertySheet

jControlsFX library v1.20 includes a control named PropertySheet. With this control it is very simple to create forms with many fields.

The data for these fields comes from a custom type instance.
The editor type used by each field is determined from the field type.



The PropertySheet Set method expects two parameters: the type instance and a metadata map that describes the fields.

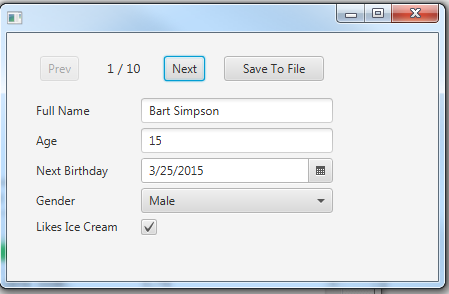

The above screenshot was taken from this program:
B4X:
Sub Process_Globals
   Private fx As JFX
   Private MainForm As Form
   Private sheet As PropertySheet
   Type Record(Text As String, Number As Double, _
     Color As Paint, Fnt As Font, Choices As String, YesNo As Boolean)
   Private cutils As ControlsUtils
End Sub

Sub AppStart (Form1 As Form, Args() As String)
   cutils.DisableCssWarnings
   MainForm = Form1
   MainForm.Show
   sheet.Initialize("sheet")
   MainForm.RootPane.AddNode(sheet, 0, 0, 400, 400)
   Dim rec As Record
   rec.Initialize
   Dim meta As Map = CreateMap("Text": sheet.CreateMeta("Text", "Category1", "Text Text"), _
     "Number": sheet.CreateMeta("Some Number", "Category1", "Number Number"), _
     "Color": sheet.CreateMeta("Nice Color", "Category2", "Nice color"), _
     "Fnt": sheet.CreateMeta("Favorite Font", "Category2", ""), _
     "YesNo": sheet.CreateMeta("Yes?", "Category2", ""), _
     "Choices": sheet.CreateMeta("Choose one", "Category3", _
       "choose one from the list").SetChoices(Array("Choice 1", "Choice 2", "Choice 3")))
   sheet.Set(rec, meta)
End Sub

Editors

The property editor is derived from the field type:

String - Text field.
Numbers (other than Long) - Numbers field.
Paint - Color picker.
Long - Date picker.
Font - Font picker.

You can also set the possible values by calling PropertyMetaData.SetChoices.

Metadata

The metadata map, maps between the fields names, which are case sensitive, and PropertyMetaData objects which are created with PropertySheet.CreateMeta.

The metadata includes:
Name - The text that appears at the left side of the property.
Category - The property category. This is used when the sheet is in category mode to categorize the properties.
Description - The property tooltip.
You can also call SetChoices to define the possible values.

Data

Whenever the user modifies a value, the value is automatically updated in the type instance.

Example



The attached short example creates 10 records and uses RandomAccessFile.WriteB4XObject to save and later load the data from a file.

Tip: switch jControlsFX with jControlsFX9 if using Java 9+.


Attachments

  • PropertySheetExample.zip
    2.2 KB · Views: 886
Last edited:

alwaysbusy

Expert
Licensed User
Longtime User
Is there some kind of way to send a Map instead of a Type object in sheet.Set(rec, meta)?

I have a bunch of propertysheets to make and it would be a lot easier if I could just load the structure from a JSON file and dynamically create the PropertySheet from it.

e.g. the JSON would look something like this:

B4X:
{"view": {
  "properties": {
    "property": [
      {"name": "ID", "type": "text", "value": "",
        "choices": [
        ]
      },
      {"name": "Parent", "type": "text", "value": "Page",
        "choices": [
        ]
      },
      {"name": "ButtonType", "type": "combo", "value": "RAISED",
        "choices": [
            "RAISED",
            "FLOATING",
            "FLAT"
        ]
      },
      {"name": "Enabled", "type": "checkbox", "value": "TRUE",
        "choices": [
            "TRUE",
            "FALSE"
        ]
      },
      {"name": "IconName", "type": "text", "value": "",
        "choices": []
      },
      {"name": "IconAlign", "type": "combo", "value": "ICONALIGN_LEFT",
        "choices": [
            "ICONALIGN_LEFT",
            "ICONALIGN_RIGHT"
        ]
      },
      {"name": "Size", "type": "combo", "value": "BUTTONSIZE_NORMAL",
        "choices": [
            "BUTTONSIZE_SMALL",
            "BUTTONSIZE_NORMAL",
            "BUTTONSIZE_LARGE"
        ]
      },
      {"name": "Text", "type": "text", "value": "",
        "choices": []
      },
      {"name": "ThemeName", "type": "text", "value": "",
        "choices": []
      }
    ]
  }
}


Or can I somehow create a Type object at runtime?


alwaysbusy

Expert
Licensed User
Longtime User
Thanks for the offer @Erel! I'm checking out several possible ways to write the tool (B4J, Javascript). However, it may be usefull to be able to use sheet.Set(rec, meta) somewhat more flexible instead of using a Type like with a Map. I do love your implementation with the 'record' Type as it is very easy to use (setting, getting values). It's just in my situation, it means a lot of typing :)

Just a thought:

Expanding meta so it can hold the 'field type'
Then a Map with the key being the 'field name' (maybe concatenated with the category e.g. category_fieldname), value is the actual value.

So I could use: sheet.set(Mapwithvalues, metawithfieldtype).

On a side note (not sure it is possible). Maybe an event that is raised if a property is changed. Now I have to run a timer (300ms) that checks if anything is changed.

But if you have another idea that can do the same, please implement it your way!


Erel

B4X founder
Staff member
Licensed User
Longtime User

m4.s

Member
Licensed User
Longtime User
@Erel or @alwaysbusy

Was B4J support ever implemented for the functionality requests discussed in this very old thread (i.e. using [JSON] Map and/or trapping property change event)? Or maybe now there is a better alternative to Property Sheets, possibly via some available user/custom controls?


Erel

B4X founder
Staff member
Licensed User
Longtime User
Was B4J support ever implemented for the functionality requests discussed in this very old thread
No.

Or maybe now there is a better alternative to Property Sheets, possibly via some available user/custom controls
You can dynamically build a similar layout with the standard controls.


hatzisn

Expert
Licensed User
Longtime User
This no longer works with Java jdk-11.0.1.


agraham

Expert
Licensed User
Longtime User
Tip: switch jControlsFX with jControlsFX9 if using Java 9+.
Did you not see the above in the first post?


hatzisn

Expert
Licensed User
Longtime User
Hi Agraham, actually I did not see it. Actually I still do not see it. In the first post of this thread. I may be tired though and I cannot spot it. But thanks anyway. I download it from your link and it works.

Edit: Duhhh - in the last line... Ha ha ha... :)
