Android Question [Solved] [B4X] XUI Views assistance required: "Dialog.ShowCustom(..."

fredo

Well-Known Member
Licensed User
Longtime User
In a certain project, all "outdated" CustomLayoutDialogs are to be converted to "[B4X] XUI Views".

After looking at some examples the creation of a custom dialog is basically no problem.

Nevertheless, I still don't seem to do everything right, because the following display errors occur in the enclosed example project:

1.) At the first call of the dialog the "B4XFloatTextField" is not displayed, at the second call it is.

2.) The height of the "B4XFloatTextField" is not displayed as intended.​


B4X:
#Region  Project Attributes
    #ApplicationLabel: B4A Example
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: unspecified
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: true
    #IncludeTitle: false
#End Region

Sub Process_Globals
End Sub

Sub Globals
    Private Base As B4XView
    Private xuiDialog As B4XDialog
    Private xuiDialogPanel2 As B4XView

    Private B4XFloatTextField1 As B4XFloatTextField

End Sub

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("1")
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub

Sub XuiInits As ResumableSub
    ' [B4X] XUI Views - Cross platform views and dialogs
    '         Erel --> https://www.b4x.com/android/forum/threads/b4x-xui-views-cross-platform-views-and-dialogs.100836/
    '         Erel --> https://www.b4x.com/android/forum/threads/b4x-input-dialogs-with-xui-views.101197/#content
    Base = Activity

    xuiDialog.Initialize (Base)
    xuiDialog.BackgroundColor = Colors.White
    xuiDialog.BlurBackground = True
    xuiDialog.BorderColor = Colors.ARGB(11,11,11,11)
    xuiDialog.ButtonsColor = Colors.Transparent
    xuiDialog.TitleBarColor = Starter.intColorPrimaryLight
    xuiDialog.ButtonsTextColor = Starter.intColorAccent
    xuiDialog.ButtonsOrder = Array As Int(Starter.XUI.DialogResponse_Negative, Starter.XUI.DialogResponse_Cancel, Starter.XUI.DialogResponse_Positive)

    xuiDialogPanel2 = Starter.XUI.CreatePanel("")

    Return Null
End Sub


Sub Button1_Click As ResumableSub
    ' Custom dialog

    If Not(xuiDialog.IsInitialized) Then
        wait for(XuiInits) complete(x As Object)
    End If

    Dim InputFieldHeight As Int = 48dip *3

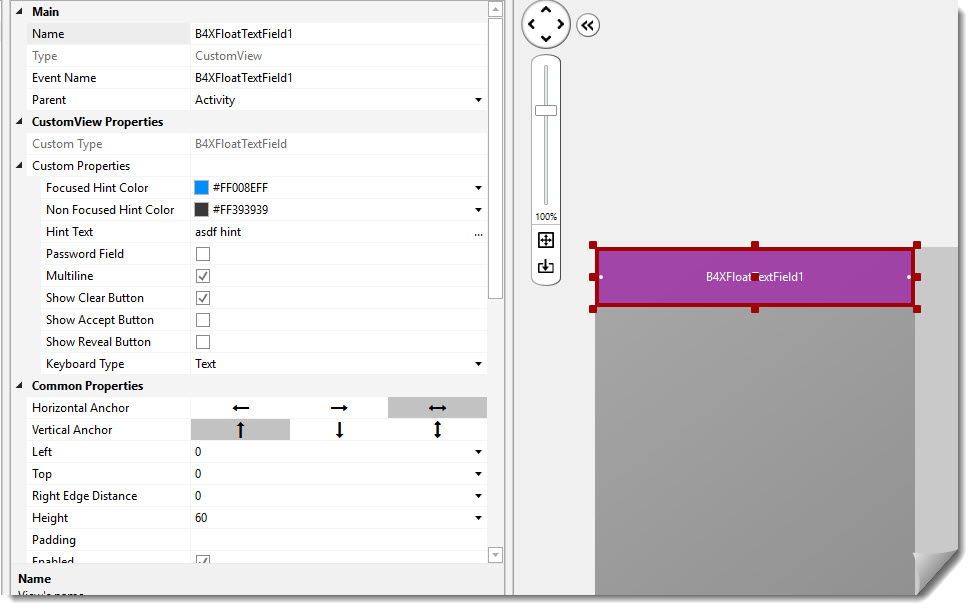

    xuiDialogPanel2.LoadLayout("B4XFloatTextField")
    xuiDialogPanel2.SetLayoutAnimated(0, 0, 0, 98%x, InputFieldHeight)

    xuiDialog.Title = "yyy title"
    xuiDialog.PutAtTop = True

    Dim rs As ResumableSub = xuiDialog.ShowCustom(xuiDialogPanel2, "OK", "", "Cancel")

    Dim ok As B4XView = xuiDialog.GetButton(Starter.XUI.DialogResponse_Positive)
    Dim cancel As B4XView = xuiDialog.GetButton(Starter.XUI.DialogResponse_Cancel)
    ok.SetLayoutAnimated(0, ok.Parent.Width / 2 + 2dip, ok.Top, ok.Parent.Width / 2 - 4dip, ok.Height)
    cancel.SetLayoutAnimated(0, 2dip, cancel.Top, cancel.Parent.Width / 2 - 4dip, cancel.Height)

    B4XFloatTextField1.mBase.Height = InputFieldHeight

    B4XFloatTextField1.mBase.Color = Colors.DarkGray ' .White
    B4XFloatTextField1.HintColor = Colors.Yellow
    B4XFloatTextField1.Focused = True
    B4XFloatTextField1.HintText = "yyy hinttext"
    B4XFloatTextField1.Text = "This is a preset text"

    Wait For (rs) Complete (Result As Int)
    If Result = Starter.XUI.DialogResponse_Positive Then
        Log("#-  x2188,  B4XFloatTextField1.Text=" &  B4XFloatTextField1.Text)
    End If

    Return Null

End Sub

What am I doing wrong?


Attachments

  • xui_test_01.zip
    11 KB · Views: 205

fredo

Well-Known Member
Licensed User
Longtime User
Why aren't you using B4XInputTemplate?
The layout used here should be as simple as possible for getting started with ShowCustom() before using more complex layouts.​

No reason for XuiInits to be a resumable sub.
This is a leftover from several awkward sleep() attempts.​

Don't ignore this very important warning:
Panel size is unknown. Layout may not be loaded correctly.
That's for sure. Age-related temporary technician arrogance to harmless looking hints often leads unnecessarily to time-consuming loss of productivity.​

Load the layout after you call xuiDialogPanel2.SetLayoutAnimated
That was it. Thank you.​
