Android Question [SOLVED] - Changing the text property of a label view in an xCLV at a specific index

rleiman

Well-Known Member
Licensed User
Greetings,

I built a CLV using this coding:

B4X:
    Activity.LoadLayout("SongList") ' This layout also contains a custom list view.

    CSelections.Initialize(clvSongList)
    CSelections.Mode = CSelections.MODE_SINGLE_ITEM_PERMANENT

    ' Make panel slide down out of site.
    '-----------------------------------
    PanelMenu.SetLayoutAnimated(300, 0, Activity.Height, Activity.Width, _
        Activity.Height)

    ' Add 10 items to the list view.
    '-------------------------------
    For intIndex = 0 To 9

        ' typValues will be used to store values into the Type elements for the list views.
        '----------------------------------------------------------------------------------
        Dim typValues As typListItemValues

        ' Adding items to the list view requires a Panel created in code.
        '----------------------------------------------------------------
        Dim p As B4XView = xui.CreatePanel("")

        ' This is the size for the panel and it will be animated.
        '--------------------------------------------------------
        p.SetLayoutAnimated(100, 0, 0, PanelSongList.Width, 200dip)

        p.LoadLayout("SongListCard")

        ' Populate the views with values from the database.
        '--------------------------------------------------
        Select intIndex
            Case 0
                LabelSongTitle.Text = kvs.Get("Song1Title")
                LabelSchedule.Text = kvs.Get("Song1Schedule")

                If kvs.Get("Song1ScheduleIsActivated") Then
                    ImageViewSongIsActivated.Bitmap = _
                        LoadBitmap(File.DirAssets, "light-on-icon.png")
                Else
                    ImageViewSongIsActivated.Bitmap = _
                        LoadBitmap(File.DirAssets, "light-off-icon.png")
                End If

                typValues.strSomeMoreText = "One"

            Case 1
                LabelSongTitle.Text = kvs.Get("Song2Title")
                LabelSchedule.Text = kvs.Get("Song2Schedule")

                If kvs.Get("Song2ScheduleIsActivated") Then
                    ImageViewSongIsActivated.Bitmap = _
                        LoadBitmap(File.DirAssets, "light-on-icon.png")
                Else
                    ImageViewSongIsActivated.Bitmap = _
                        LoadBitmap(File.DirAssets, "light-off-icon.png")
                End If

                typValues.strSomeMoreText = "Two"

            Case 2
                LabelSongTitle.Text = kvs.Get("Song3Title")
                LabelSchedule.Text = kvs.Get("Song3Schedule")

                If kvs.Get("Song3ScheduleIsActivated") Then
                    ImageViewSongIsActivated.Bitmap = _
                        LoadBitmap(File.DirAssets, "light-on-icon.png")
                Else
                    ImageViewSongIsActivated.Bitmap = _
                        LoadBitmap(File.DirAssets, "light-off-icon.png")
                End If

                typValues.strSomeMoreText = "Three"
        End Select

        typValues.LabelSongTitle = LabelSongTitle.Text
        ImageViewPlayPauseSong.Tag = intIndex

        ' This is where the item row is added to the list view.
        ' Each list item has a set of Type structure elements associated with it.
        '------------------------------------------------------------------------
        clvSongList.Add(p,typValues)
    Next
One of the views in the CLV item is called LabelSchedule. Elsewhere in my coding, the label will need to be changed to reflect a change in the schedule. I would like to change the text property of that label which happens to be at index number 3. For example I would like to change the text to "This is the new schedule...". I only want to change the text at that index. Can this be done without rebuilding the CLV?

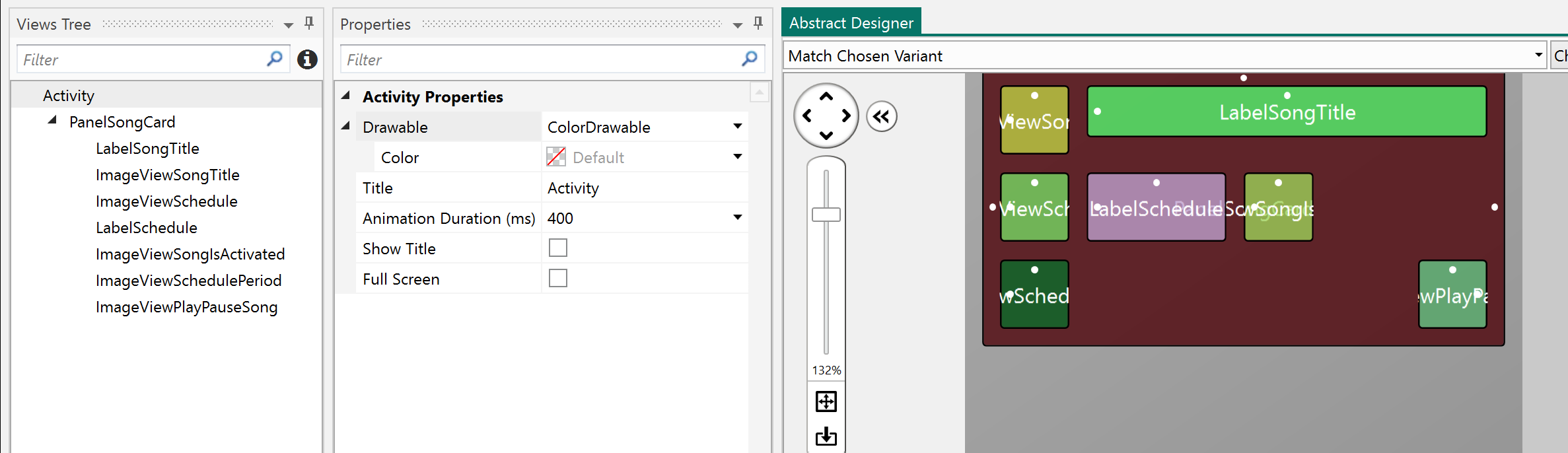

The file attachment shows LabelSchedule in the Designer.

Thanks.

Screenshot 2020-11-16 at 20.31.47.png


mangojack

Well-Known Member
Licensed User
Elsewhere in my coding, the label will need to be changed ...

Knowing the CLV row index you want to change, it would just be a matter of ...
B4X:
Dim pnl As B4XView = clvSongList.GetPanel(index)
pnl.GetView(3).Text = "This is the new schedule..."  'View/Index 3 = LabelSchedule

If this needed change is a result of clicking another Item/row View then you would have to get the index first with ...
B4X:
Dim index As Int = clvSongList.GetItemFromView(Sender)
   '.........


rleiman

Well-Known Member
Licensed User
Knowing the CLV row index you want to change, it would just be a matter of ...
B4X:
Dim pnl As B4XView = clvSongList.GetPanel(index)
pnl.GetView(3).Text = "This is the new schedule..."  'View/Index 3 = LabelSchedule

If this needed change is a result of clicking another Item/row View then you would have to get the index first with ...
B4X:
Dim index As Int = clvSongList.GetItemFromView(Sender)
   '.........
Thanks for the reply. I tried it, but the logs tell me the view is not initialised. I thought that having the views in the layout like I have it in the designer makes all of the views initialised. How do I initialise it?

B4X:
main_imageviewplaypausesong_click (java line: 688)
java.lang.RuntimeException: Object should first be initialized (View).
    at anywheresoftware.b4a.AbsObjectWrapper.getObject(AbsObjectWrapper.java:67)
    at anywheresoftware.b4a.objects.B4XViewWrapper.GetView(B4XViewWrapper.java:317)
    at b4a.natures.song.main._imageviewplaypausesong_click(main.java:688)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:213)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:197)
    at anywheresoftware.b4a.BA.raiseEvent(BA.java:193)
    at anywheresoftware.b4a.objects.ViewWrapper$1.onClick(ViewWrapper.java:80)
    at android.view.View.performClick(View.java:7869)
    at android.view.View.performClickInternal(View.java:7838)
    at android.view.View.access$3600(View.java:886)
    at android.view.View$PerformClick.run(View.java:29362)
    at android.os.Handler.handleCallback(Handler.java:883)
    at android.os.Handler.dispatchMessage(Handler.java:100)
    at android.os.Looper.loop(Looper.java:237)
    at android.app.ActivityThread.main(ActivityThread.java:8125)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:496)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1100)
I tried a log statement and discovered only the panel at view index 0 from the designer was initialised. All the other views such as the label at 3 were not initialised.

B4X:
Log("Is it initialised? " & pnl.GetView(0).IsInitialized)
Thanks in advance.

Last edited:

rleiman

Well-Known Member
Licensed User
B4X:
pnl.GetView(3).Text = "This is the new schedule..."
should be since you have a child panel on the base panel:
B4X:
pnl.GetView(0).GetView(3).Text = "This is the new schedule..."
Nailed it! 👏

Thanks so much. That was tricky to get my head around. I would have never figured that one out. With your help now I know how to do it because all my xCLV's will have panels like that to simulate cards. You were very helpful.
