iOS Question [SOLVED]ible:problem with writeData

[Blu Blu]

Dear everyone,

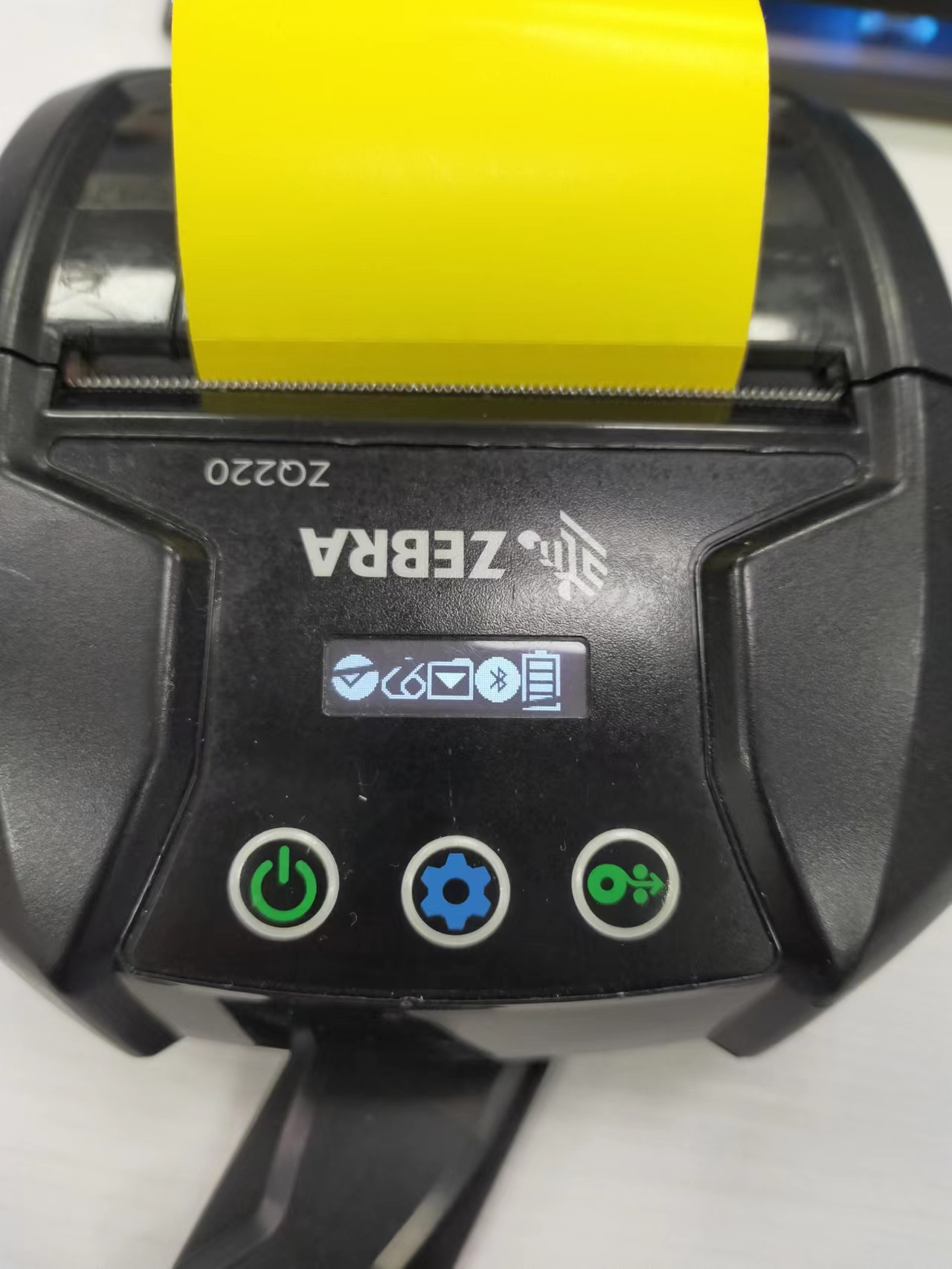

i try to make an app that can send data to my zebra zq220 printer and im using ible library

Sub Manager_DataAvailable (ServiceId As String, Characteristics As Map)
'    clv.Add(CreateServiceItem(ServiceId), "")
'    For Each id As String In Characteristics.Keys
'        clv.Add(CreateCharacteristicItem(id, Characteristics.Get(id)), "")
'    Next


    manager.SetNotify(ServiceId, ReadChar, True)
    Log("ServiceId"&ServiceId)
    SerId=ServiceId
    Log("Characteristics"&Characteristics)
    Dim  bc As ByteConverter
    For Each id As String In Characteristics.Keys
        Log("ID="&id)
        Log("**********")
        Log(Characteristics.Get(SerId))
        Log("**********")
        Log("get(id)"&Characteristics.Get(id))
        Log(UUID(Characteristics.Get(id)))

'        WriteChar=UUID(getHexFromChara(Characteristics.Get(id)))

    Next


End Sub



Sub Manager_Disconnected
    l2.Clear
    connected = False
    StateChanged
    StartScan

End Sub

Sub Manager_Connected (services As List)

    connected = True
    For i=0 To services.Size-1
        Log("***************")
        Log(services.Get(i))
        SerId=services.Get(i)
    Next
    hd.ProgressDialogHide
    manager.ReadData(SerId)
    StateChanged

End Sub




Private Sub b_stampa_Click
    PrintDocument
End Sub



Public Sub SendMessage(msg() As Byte)
    messageToSend.Add(msg)
    If messageToSend.Size = 1 Then
        manager.WriteDataWithResponse(SerId, WriteChar, msg)
    End If
End Sub





Private Sub Manager_WriteComplete (Characteristic As String, Status As Int)
    If connected = False  Then Return
    If messageToSend.Size > 0 Then
        Try
            manager.WriteDataWithResponse(SerId, WriteChar, messageToSend.Get(0))
        Catch
            Log(LastException)
        End Try
    End If
End Sub








Sub PrintDocument

    messageToSend.Clear
    If l_id.Text="" Then Return
    If t_sl.Text="" Then
        t_sl.RequestFocus
        Return
    End If
    If l_id.Text="" Then
        t_code.RequestFocus
        t_code.SelectAll
        Return
    End If
    If t_sl.Text.Length>2 Then
        hd.ToastMessageShow(y(lg,24),True)
        t_sl.RequestFocus
        t_sl.SelectAll
        Return
    End If
    If connected = False Then
        hd.ToastMessageShow(y(lg,23),True)
        Return
    End If

    DateTime.DateFormat = "dd/MM/yy"
    Dim lst As List
    lst.Initialize
    lst.Add("! 0 200 200 380 "& t_sl.Text  &"")'初始化  380 纸张高度
    lst.Add("SETBOLD 1")'粗体
    lst.Add("TEXT 7 1 100 0 "&pub.Left(l_mc.Text.Trim,32)  &"")
    If l_mc.Text.Trim.Length>32 Then
        lst.Add("TEXT 7 1 100 40 "&pub.Left(l_mc.Text.SubString(32).Trim,32)  &"")
    End If

    lst.Add("SETBOLD 0")'取消粗体

    If l_jg_of_fine.Text="" Then
        'lst.Add("SETMAG 2 2")'字体放大
        lst.Add("CENTER")'居中
        lst.Add("SETMAG 1 1")'字体放大
        lst.Add("TEXT 4 2 0 80 € "& l_jg.Text.Replace(".",",") &"")
        lst.Add("SETMAG 0 0")'取消放大
        lst.Add("LEFT")'恢复左对齐
    Else'有活动价格
        lst.Add("SETMAG 1 1")'字体放大
        lst.Add("TEXT 4 0 110 80 "& l_jgyj.Text.Replace(".",",") &"")
        lst.Add("LINE 100 100 220 100 1")
        lst.Add("TEXT 4 0 100 125 - "&  NumberFormat((l_jgyj.Text - l_jg.Text) / l_jgyj.Text * 100, 0,0) & "%")
        lst.Add("SETMAG 1 2")'字体放大
        lst.Add("SETBOLD 2")'粗体
        lst.Add("SETSP 6")'字间距
        lst.Add("TEXT 4 0 300 70 € "& l_jg.Text.Replace(".",",") &"")
        lst.Add("SETSP 0")'字间距
        lst.Add("SETBOLD 0")'取消粗体
        lst.Add("SETMAG 0 0")'取消放大
        lst.Add("TEXT 7 0 280 155 FINE: "& l_jg_of_fine.Text )
    End If

    lst.Add("BARCODE-TEXT 7 0 5")
    lst.Add("BARCODE EAN13 1 1 50 130 180 "& t_code.Text  &"")
    lst.Add("TEXT 7 0 350 180 "& l_id.Text   &"")
    lst.Add("TEXT 7 0 350 200 "& l_sj.Text   &"")
    lst.Add("TEXT 7 0 350 220 "& DateTime.Date(DateTime.Now)   &"")
    lst.Add("FORM")
    lst.Add("PRINT")

    Dim i As Int
    For i = 0 To lst.Size - 1
        Dim s As String = lst.Get(i)
        Dim msg() As Byte=s.GetBytes("GB2312")
        SendMessage(msg)
'        Peripheral_NewData(msg)
        Sleep(10)
    Next
    rest
'
End Sub

Above are my codes copied from the exemple of tutorial
and i try to send ,but it gives me this error:

Error occurred on line: 677 (B4XMainPage)
Characteristic not found:
Stack Trace: (
  CoreFoundation       5198FB57-5645-3B34-A49F-F32B52256CF3 + 627356
  libobjc.A.dylib      objc_exception_throw + 60
  CoreFoundation       5198FB57-5645-3B34-A49F-F32B52256CF3 + 983952
  B4i Example          -[BleManager getChar::] + 568
  B4i Example          -[BleManager writeData::::] + 268
  B4i Example          -[BleManager WriteDataWithResponse:::] + 84
  B4i Example          -[b4i_b4xmainpage _sendmessage::] + 608
  B4i Example          -[ResumableSub_b4xmainpage_PrintDocument resume::] + 9344
  B4i Example          -[b4i_b4xmainpage _printdocument:] + 312
  B4i Example          -[b4i_b4xmainpage _b_stampa_click:] + 304
 CoreFoundation       5198FB57-5645-3B34-A49F-F32B52256CF3 + 138020
 CoreFoundation       5198FB57-5645-3B34-A49F-F32B52256CF3 + 259600
 B4i Example          +[B4I runDynamicMethod:method:throwErrorIfMissing:args:] + 1300
 B4i Example          -[B4IShell runMethod:] + 416
 B4i Example          -[B4IShell raiseEventImpl:method:args::] + 1488
 B4i Example          -[B4IShellBI raiseEvent:event:params:] + 1580
 B4i Example          __33-[B4I raiseUIEvent:event:params:]_block_invoke + 52
 libdispatch.dylib    355ACCF4-3917-3730-BC55-EF7003887ABE + 7788
 libdispatch.dylib    355ACCF4-3917-3730-BC55-EF7003887ABE + 14896
 libdispatch.dylib    355ACCF4-3917-3730-BC55-EF7003887ABE + 73544
 libdispatch.dylib    _dispatch_main_queue_callback_4CF + 44
 CoreFoundation       5198FB57-5645-3B34-A49F-F32B52256CF3 + 333824
 CoreFoundation       5198FB57-5645-3B34-A49F-F32B52256CF3 + 46852
 CoreFoundation       CFRunLoopRunSpecific + 600
 GraphicsServices     GSEventRunModal + 164
 UIKitCore            3ED35565-456D-33CB-B554-6C567FA81585 + 5326408
 UIKitCore            UIApplicationMain + 364
 B4i Example          main + 104
 dyld                 start + 520
)
Class (b4i_httpjob) instance released.

maybe i have found the exact characteristic, and i see that my printer get some data from my app, but it doesn't print like it used do in my b4a app

Thanks very very much in advance
Best regards



[Erel]

Where are the full logs? What is the value of WriteChar?



[Blu Blu]

Where are the full logs? What is the value of WriteChar?

Thanks very much Erel , maybe i find the problem ,because i have restarted my printer and then it print normaly.So i think the problem is that i have sended wrong commands that block printer , and then every commands i sended didn't work because the printer is blocked


Now the last problem is only to print euro currency symbol with the cpcl commands i have in above ,it works with b4a and not with b4i so i need to find another solution

Thanks very much
Best regards
