B4R Question wifi signal stength

[mtd]

Hi;

How can I read wifi signal stength level on wemos ESP8266. (70db 8db...)
I need this value, some location has problem for connection.



[Erel]

Call WiFi.Scan and then check WiFi.ScannedRSSI.



[mtd]

Call WiFi.Scan and then check WiFi.ScannedRSSI.

ok Thanks

For i=0 To wifi.Scan-1
Log(wifi.ScannedSSID(i),wifi.ScannedRSSI(i))
Next

I cheked wifi strange all wifi router. And Wemos connect 65db, but disconnect 75db and up

Have a suggestion that other than to wifi booster/router?



[thetahsk]

Soldering an external antenna on your esp8266 may solve your wifi problems.
If you can do your job on the esp without Wifi you can use an ethernet shield with a Wiznet W5500.



[mtd]

Soldering an external antenna on your esp8266 may solve your wifi problems.
If you can do your job on the esp without Wifi you can use an ethernet shield with a Wiznet W5500.

Thank you for advice;

I tried your advice; But, result is same , not change.
I think maybe my foulty. I used a some cable. Iaccording to video on YOUTUBE
And I don't really understand electronics. Maybe I wrong . What is your advice?



[tigrot]

Buy a simple dipole. They are cheap. Also an old antenna from a broken modem is good...



[mtd]

Soldering an external antenna on your esp8266 may solve your wifi problems.
If you can do your job on the esp without Wifi you can use an ethernet shield with a Wiznet W5500.

I apply soldering and add external antenna;
But;
It wifi strange not change generally;
This method is not applicable.



[mtd]

Buy a simple dipole. They are cheap. Also an old antenna from a broken modem is good...

I tested like pre. article and I must use wifi range extender.



[thetahsk]

I apply soldering and add external antenna;
But;
It wifi strange not change generally;
This method is not applicable.

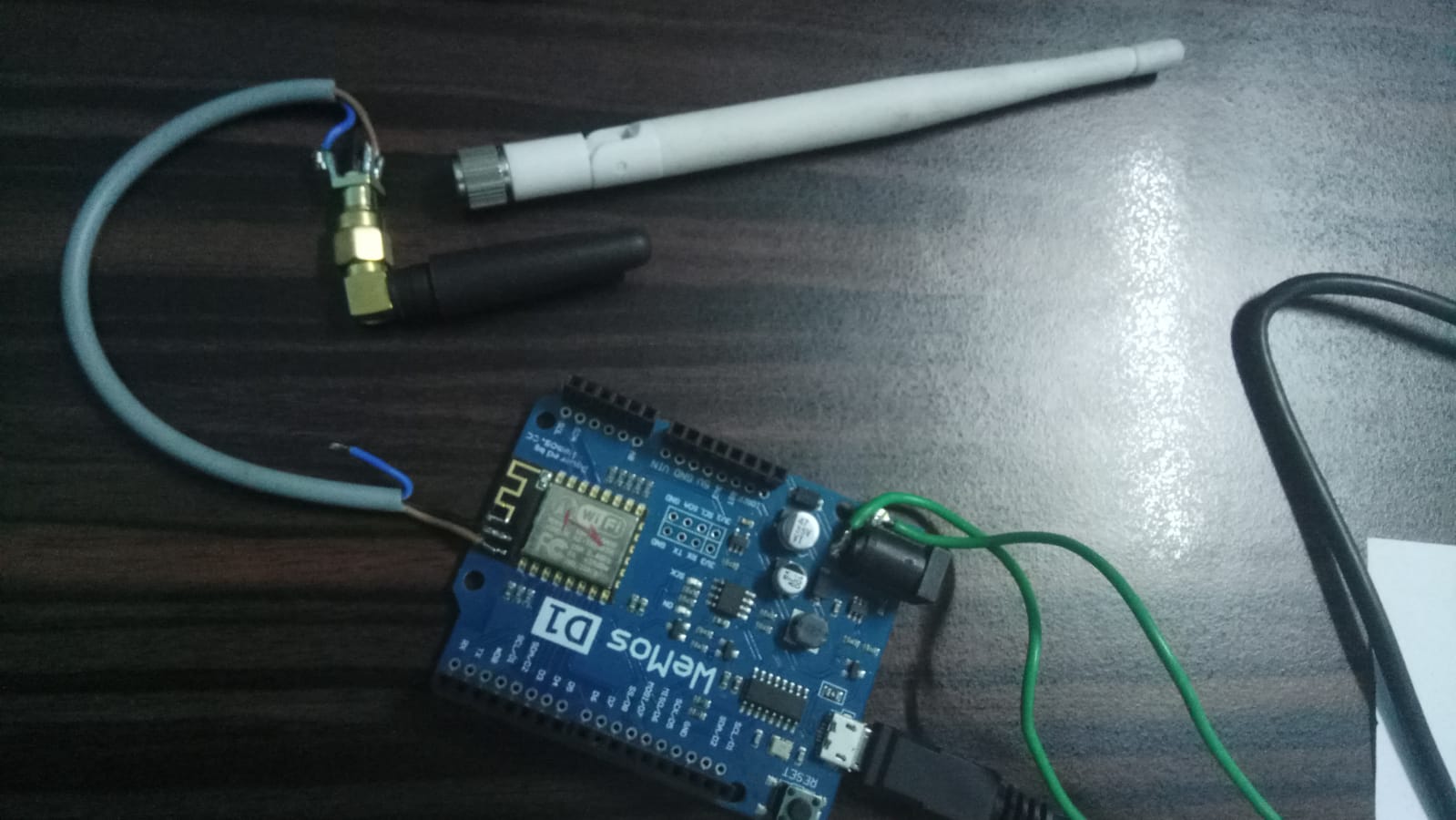

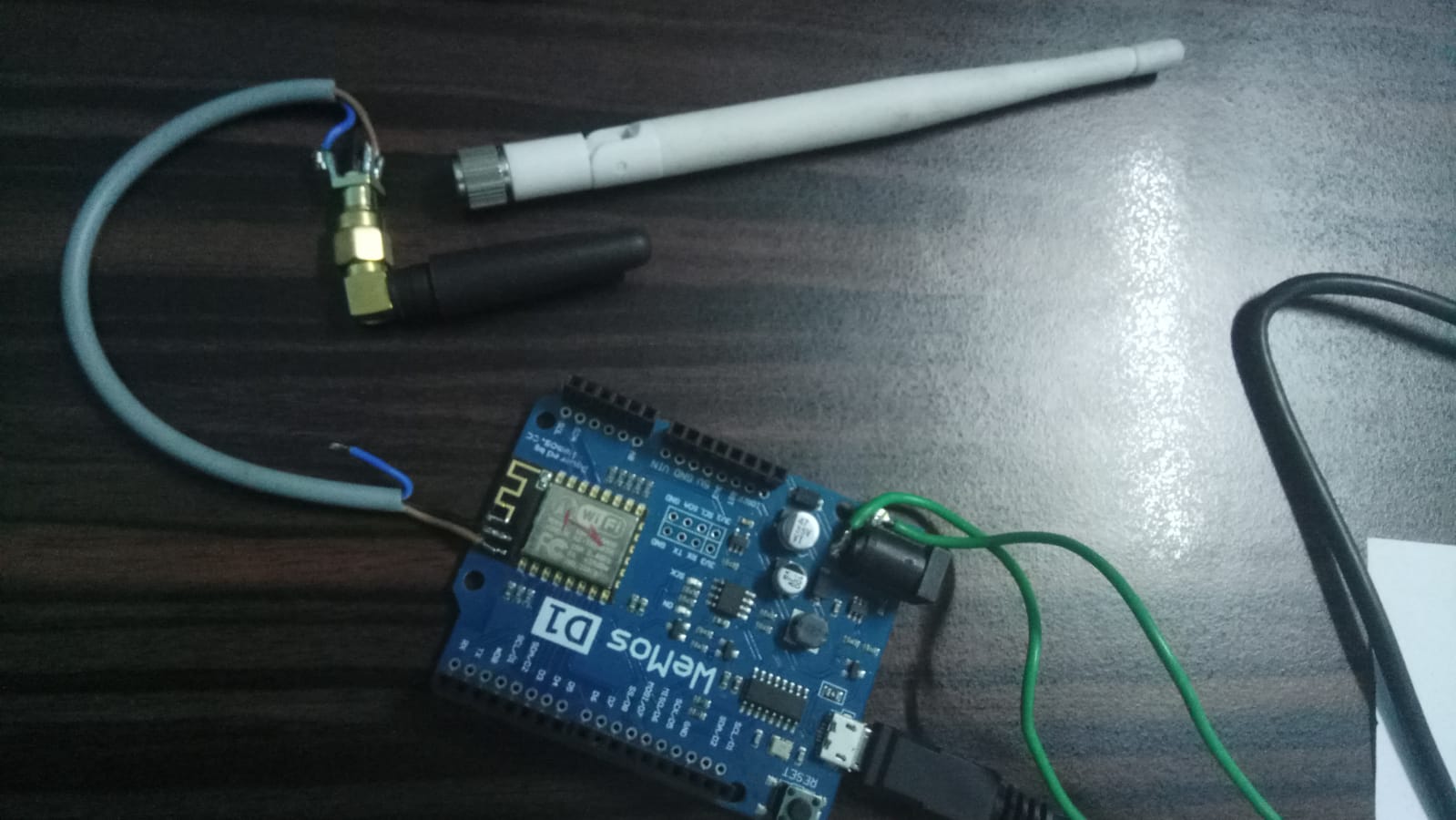

View attachment 78934

You soldered a wrong cable. It MUST BE a coxial cable with shielding



[mtd]

You soldered a wrong cable. It MUST BE a coxial cable with shielding

I'm not electronic tech. I research your advice. Maybe I will solder without cable (direct anttenna) I will test.
Thank you @thetahsk



[thetahsk]

I'm not electronic tech. I research your advice. Maybe I will solder without cable (direct anttenna) I will test.
Thank you @thetahsk

also check your Wi-Fi network with a diagnostic tool like INSSIDER. It's a free wifi scanner for Android/Windows so you can check the "black holes" in your Wi-Wifi network.

https://www.metageek.com/products/inssider/



[mtd]

also check your Wi-Fi network with a diagnostic tool like INSSIDER. It's a free wifi scanner for Android/Windows so you can check the "black holes" in your Wi-Wifi network.

I tested wifi scanner with wifi analyzer on android phone. After I opened first topic.



[mtd]

also check your Wi-Fi network with a diagnostic tool like INSSIDER. It's a free wifi scanner for Android/Windows so you can check the "black holes" in your Wi-Wifi network.

https://www.metageek.com/products/inssider/

Wemos connect RED range lines;
not connect BLUE range lines.



[thetahsk]

Wemos connect RED range lines;
not connect BLUE range lines.

A good working stable range -40dBm to -60 dBm. So your Red Range line looks good.



[embedded]

I'm not electronic tech. I research your advice. Maybe I will solder without cable (direct anttenna) I will test.
Thank you @thetahsk[/QUOT
There should be proper Impedence matching for maximum power transfer....to increase the strength of signal....it is very difficult to do it manually....Please look for such module having inbuilt antenna system...



[mtd]

A good working stable range -40dBm to -60 dBm. So your Red Range line looks good.

My target wifi is Blue range; My phone connectted BLUE;
But wemos not coonnect BLUE. I will test re-soldering antennea.



[mtd]

i will try the last time.If not, I'll use the onboard antenna.
thanks for info
