Android Question [XUI] AS Popup Menu Border

[Mike1970]

Hi everyone!
I'm using this awesome library made be @Alexander Stolte

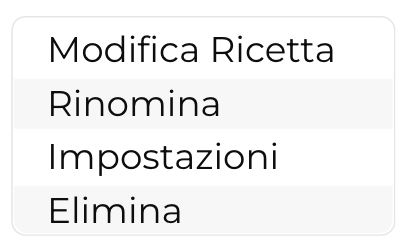

However, I need to add a border to the menu like in the following image, but I do not know if it's possible.
I tried to add it to the .MenuPanel but it didn't work.

(Could also be my fault)

(P.S. I already styled everything else, I only need to understand how to add the border)

Thanks in advance



[Alexander Stolte]

You have 2 options.

Option 1:
Make divider visible

    aspm_main.DividerEnabled = True
    aspm_main.DividerHeight = 2dip
    aspm_main.DividerColor = xui.Color_ARGB(152,0,0,0)

Option 2:
Color every 2nd item

    aspm_main.ItemLabelProperties.TextColor = xui.Color_Black

    For i = 0 To 4 -1

        If i Mod 2 = 0 Then
            aspm_main.ItemLabelProperties.ItemBackgroundColor = xui.Color_ARGB(255,233, 233, 233)
            Else
            aspm_main.ItemLabelProperties.ItemBackgroundColor = xui.Color_White
        End If


        aspm_main.AddMenuItem("Test_" & (i +1),"item_" & i)
    Next



[Alexander Stolte]

Oh sooo, I misunderstood, you want to change the corner radius...

aspm_main.MenuCornerRadius = 10dip



[Alexander Stolte]

and unfortunately you can't change the border color, it has no effect, probably because the child items cover it up. I don't have time to go into this in depth, sorry.



[Mike1970]

Oh sooo, I misunderstood, you want to change the corner radius...

Hi Alexander!
Nono, for the radius it is ok! it works already.

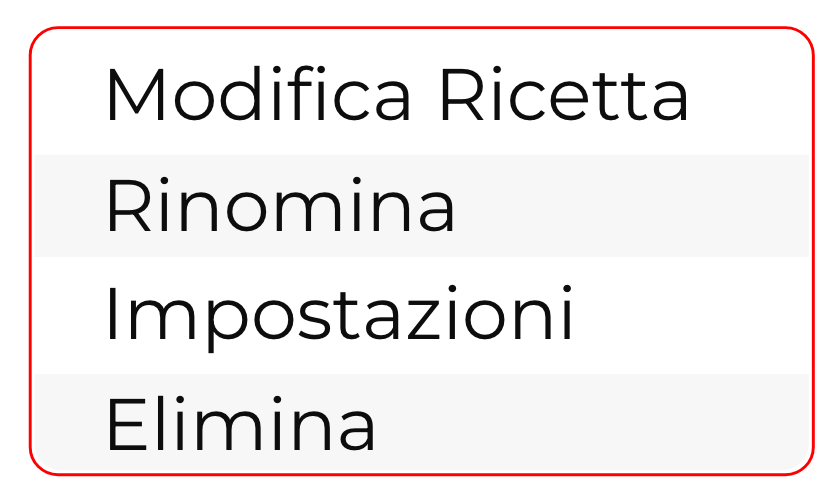

What I need is to add the border to the menu (I marked it red now to be more understable).
For this reason I tried popupMenu.MenuPanel.SetColorAndBorder(...) but it is readonly (and I think it can mess up with .MenuCornerRadius attribute).

Is there a way to do it?

(If it is not possible I will try to modify by myself. If I succeed I will post the updated library)



[Alexander Stolte]

If it is not possible I will try to modify by myself

unfortunately you can't change the border color, it has no effect, probably because the child items cover it up.

i just don't know why, but you can't see the border color, i had already added 2 new eproperties this morning, but no effect.



[Mike1970]

i just don't know why, but you can't see the border color, i had already added 2 new eproperties this morning, but no effect.

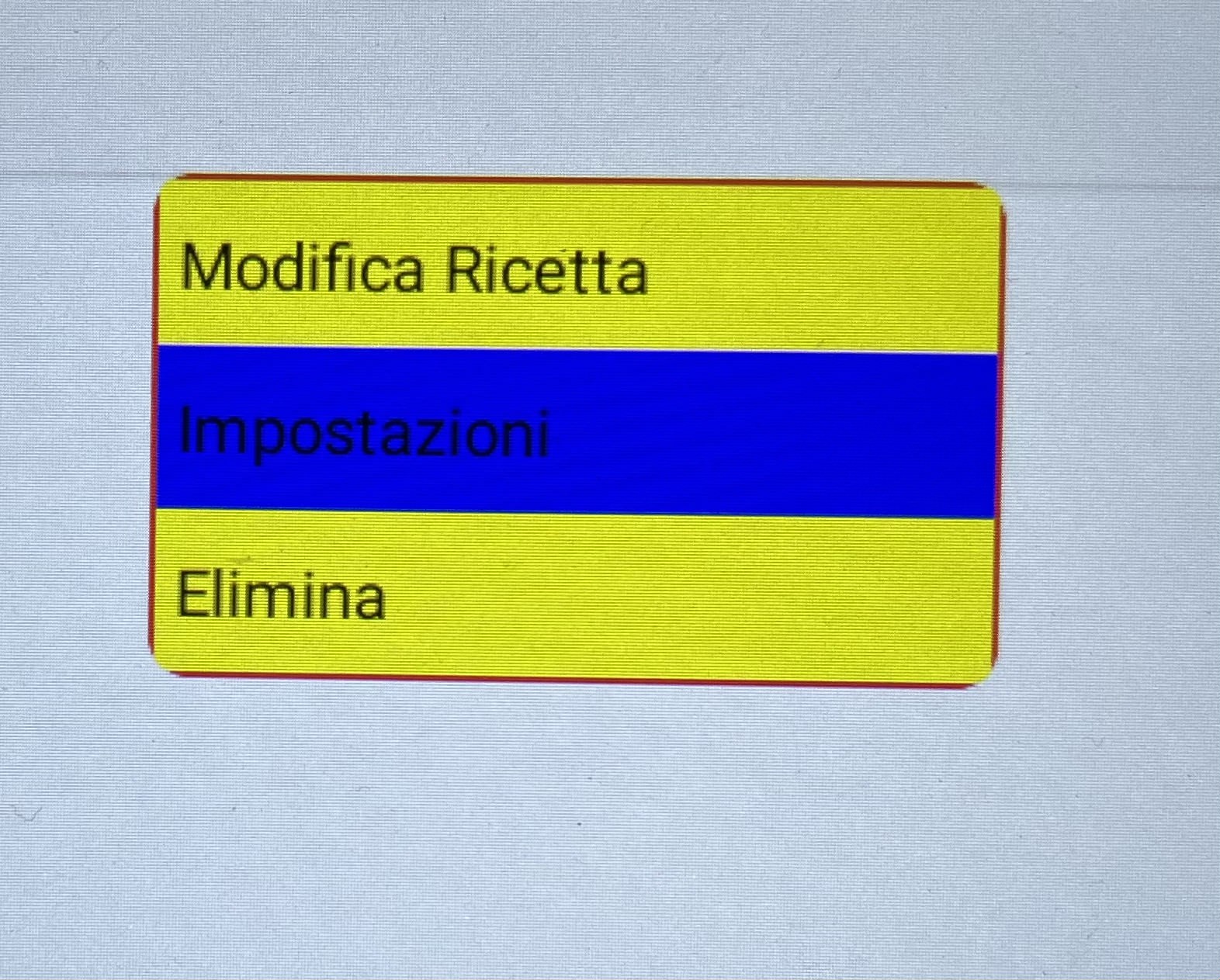

I took a look to the library and I managed to obtain something... however I reached an Android limitation
If you have a rounded panel with setClipToOutilne it will mask out also the border...

To show the border I added two methods (setMenuBorderColor and setMenuBorderWidth) and then tweaked the OpenMenu method to add a padding to the elements inside the menu's panel (because they cover the border otherwise).

However, by looking on the internet, it seems that is solvable by using a panel just to draw the border, but I do not know if I want to mess up the library now ...

Thanks for your time Alexander , in case I edit the library you will know

I attach the example project
