B4A Library [B4X] B4XFormatter - Advanced number formatter

Discussion in 'Additional libraries, classes and official updates' started by Erel, Jan 29, 2019.

  1. Erel

    Erel Administrator Staff Member Licensed User

    B4XFormatter is an alternative to NumberFormat / NumberFormat2 keywords. It is implemented in B4X and it is cross platform.

    There are two types in the library:

    B4XFormatter - The main class.
    B4XFormatData - A type with various configurable fields.

    The formatter holds a list of format data objects. A new formatter starts with a single format data which acts as the default format.

    Code:
    formatter.Initialize
    formatter.GetDefaultFormat.MaximumFractions =
    3
    formatter.GetDefaultFormat.MinimumFractions =
    3
    Log(formatter.Format(12.34))
    Output: 12.340

    You can add more formats to the formatter. Each format except of the default format has a specific range. You can for example add a format for negative numbers:

    Code:
    formatter.Initialize
    Dim DefaultFormat As B4XFormatData = formatter.GetDefaultFormat
    DefaultFormat.MaximumFractions =
    2
    DefaultFormat.MinimumFractions =
    2
    DefaultFormat.Prefix =
    "$ "
    Dim NegativeFormat As B4XFormatData = formatter.CopyFormatData(DefaultFormat)
    NegativeFormat.TextColor = xui.Color_Red
    NegativeFormat.Prefix =
    "$ ("
    NegativeFormat.Postfix =
    ")"
    NegativeFormat.FormatFont = xui.CreateDefaultBoldFont(
    15)
    formatter.AddFormatData(NegativeFormat, formatter.MIN_VALUE,
    0False'from MIN_VALUE to 0 not including the edges

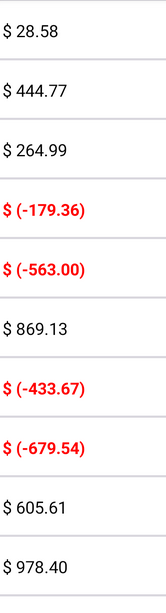

    Result:
    [​IMG]

    The idea is to configure the formatter once and later use it to format numbers in different ranges.

    There are two 'format' methods:
    Format - Formats a number and returns a string.
    FormatLabel - Formats a number and sets it as the label's Text property. This method respects the format data TextColor and FormatFont fields.

    As you can see in the above code the negative format is created by copying the default format. You can add as many formats as you need. When a number is formatted it goes over the list of formats, starting from the last one added, until it finds a format with a range that contains the number.

    B4XFormatData fields:
    • Prefix - Arbitrary string that is added before the number.
    • Postfix - Arbitrary string that is added after the number.
    • MinimumIntegers - Minimum number of integers. Will pad the number with 0s when needed.
    • MinimumFractions - Minimum number of fraction digits. Will pad the number with 0s when needed.
    • MaximumFractions - Maximum number of fraction digits.
    • GroupingCharacter - Thousands separator. Default value is comma. Set to empty string if not needed.
    • DecimalPoint - Decimal point character. Default value is dot.
    • TextColor / FormatFont - Relevant when calling FormatLabel.
    • RemoveMinusSign - Set to True to remove the minus sign for negative numbers.

    Updates

    V1.03 - Adds support for B4J non-ui projects.
    V1.02 - NewFormatData method: creates a copy of the default format.
    - Bug fix related to format data copies.

    - V1.01 - B4XFormatData new fields: IntegerPaddingChar and FractionPaddingChar. Default values are "0".
    Example:
    Code:
    formatter.GetDefaultFormat.FractionPaddingChar = "X"
    formatter.GetDefaultFormat.IntegerPaddingChar =
    "B"
    Log(formatter.Format(12.34)) 'output: B12.34XX
    The library and a small example are attached.
    B4XFormatter is an internal library. Make sure to copy it to the internal libraries folder.


    Attached Files:

    Last edited: Jun 25, 2019
  2. klaus

    klaus Expert Licensed User

    Do you intend to add also scientific notation?

  3. udg

    udg Expert Licensed User

    May I suggest the adding of a PaddingChar field so to be able to pad using any char, non necessarily zeroes?

    amaxco likes this.
  4. Erel

    Erel Administrator Staff Member Licensed User

    I'll start with the simpler request... V1.01 allows you to set different padding characters.

    amaxco, Pencil3, DonManfred and 2 others like this.
  5. Erel

    Erel Administrator Staff Member Licensed User

    V1.02 - NewFormatData method: creates a copy of the default format.
    - Bug fix related to format data copies.

    Johan Schoeman likes this.
  6. XbNnX_507

    XbNnX_507 Active Member Licensed User

    May i suggest adding a NON UI version..

  7. Erel

    Erel Administrator Staff Member Licensed User

    Done.

    V1.03 - Adds support for B4J non-ui projects.

    XbNnX_507 likes this.
