B4J Library [B4X] [B4XLib] SD SwitchAdv (3 states)

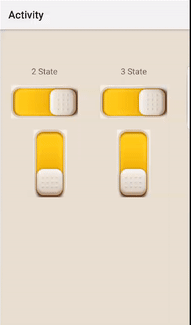

Switch with 2 or 3 states. Horizontal or vertical. You can choose the style. All selectable from Design

Note: Even if it is a B4XLib library, it is not allowed to decompress it, read and / or modify the sources. It is also not allowed to rename the library. Unless you are explicitly authorized by the author.

SD_SwitchAdv

Author: Star-Dust
Version: 0.03

• SD_SwitchAdv
  • Events:
    • ChangeNumericValue (Value As Int, UsersChange As Boolean) ' 3 State - 0-off; 1-middle; 2-on
    • ChangeValue (Value As Boolean, UsersChange As Boolean) ' Only 2 state - False-off; True-on
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • GetBase As B4XView
    • Initialize (Callback As Object, EventName As String)
  • Properties:
    • intValue As Int
      0-off; 1-middle; 2-on
    • ThirdstateValue As Boolean
    • Value As Boolean



[Unobtainius]

just out of interest, I thought I would ask instead of downloading and finding out. (I am very lazy yes)
is it a fixed size, eg no matter what size I drag its container in the designer, it will always have the same dimensions?
Or does it resize proportionally to the container size? (keeping its aspect ratio of course)



[Star-Dust]

just out of interest, I thought I would ask instead of downloading and finding out. (I am very lazy yes)
is it a fixed size, eg no matter what size I drag its container in the designer, it will always have the same dimensions?
Or does it resize proportionally to the container size? (keeping its aspect ratio of course)

Yes



[Star-Dust]

Update 0.02

• Add new style



[Unobtainius]

Beautiful as always. I love the three states. Really good for database fields that are either; initially null, then true, or false. Thanks



[Enrico Fuoti]

Hello SD,
this view is really useful and beautiful. As far as i know is the only one that can handle 3 states,
but i have 2 issues.
1. i'm not able to trap the values within a customlistview it throws an error either using
getitemfromview(switch) or getitemfromview(switch.mbase) can you help on this ?
2. "UsersChange" parameter seems to always return true.



[Star-Dust]

Hi Enrico, please attach a small example that I can examine.



[Enrico Fuoti]

Thank you SD,
I prepared the small attached example.
to get the error you have to unremark the "SD_SwitchAdv1_ChangeNumericValue" sub.



[Star-Dust]

There was a bug in the library and an error in your code. Download version 0.03 and see the example code I attached



[Star-Dust]

Update 0.03

• Fix bug



[Enrico Fuoti]

Super, thank you very much SD.
