B4J Library [B4X] [XUI] [B4xLib] SD LoadingIndicator

This library is an update of this source based on @Erel's code (here)

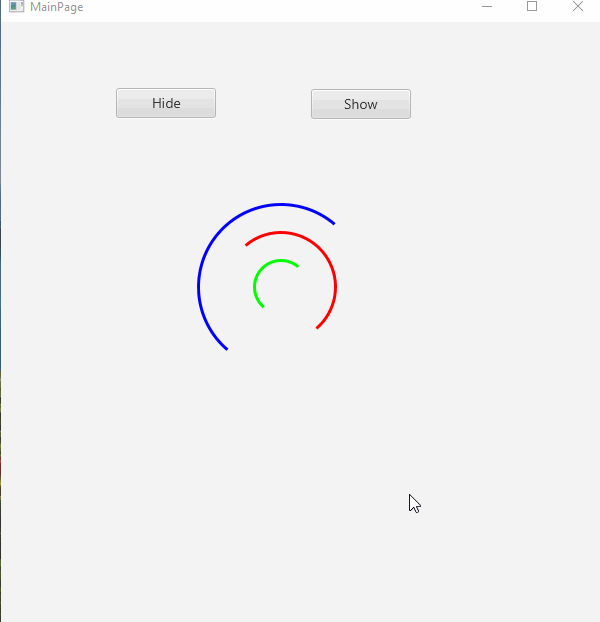

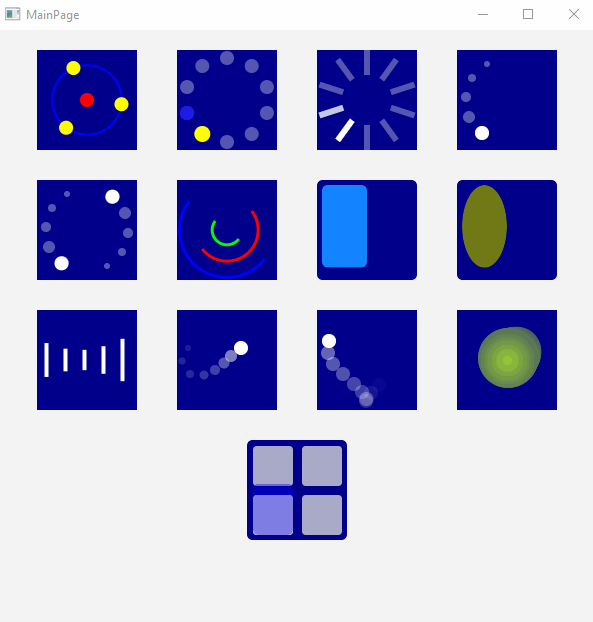

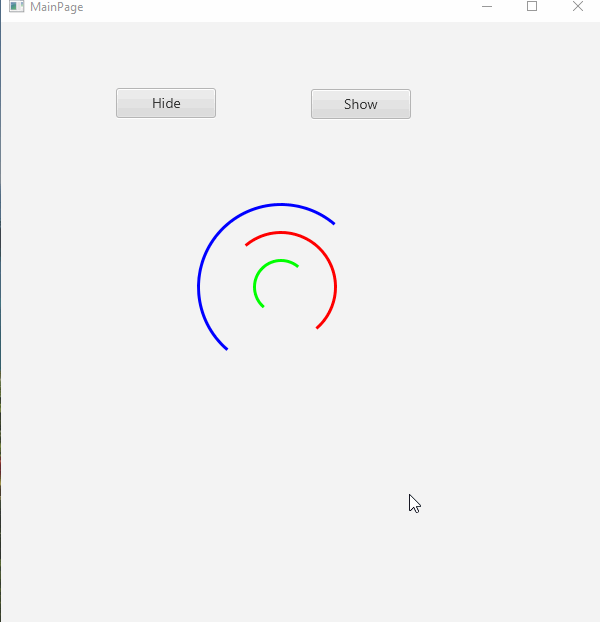

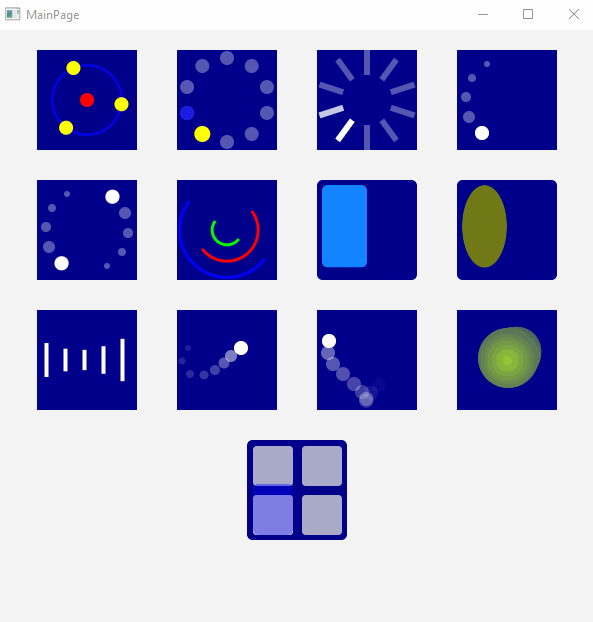

New indicators in the shape of Heart, Infinity, Bubble have been added and some bugs have been fixed.

NOTE: You can use this library for personal and commercial use. Include it in your projects. Attention, even if it is a B4XLib library, it is not allowed to decompress it, modify it, change its name or redistribute it without the permission. If you want to study the code, a part of it can be found in the links above. Those are public and you can use them.

SD_LoadingIndicator

Author: Star-Dust
Version: 0.04

• SD_LoadingIndicator
  • Functions:
    • BringToFront
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • Hide
    • Initialize (Callback As Object, EventName As String)
    • RemoveViewFromParent
    • RequestFocus
    • SendToBack
    • Show
    • Snapshot As B4XView
  • Properties:
    • Height As Int
    • Left As Int
    • Top As Int
    • Visible As Boolean
    • Width As Int



[LucaMs]

Very nice. Especially the heart, although it is known that "you" (people) loves with the liver ?



[Harris]

Very nice. Especially the heart, although it is known that "you" (people) loves with the liver ?

??? - what peeps?



[LucaMs]

??? - what peeps?

Who said that feelings reside in the heart? In my opinion they are in the liver ?



[Harris]

I guess so... since mine is so busy processing my wine consumption...



[Star-Dust]

Update rel. 0.02


Add new Indicator



[LucaMs]

Perché (why) tre progetti d'esempio (three sample projects)? [teaching Italian ? ]

Take this one (B4XPages), "create" the B4i layout (just copy & past views & script) and add it (since, as you know, I don't have B4i) and remove those samples.



[Star-Dust]

Perché (why) tre progetti d'esempio (three sample projects)?

Take this one (B4XPages), "create" the B4i layout (just copy & past views & script), since, as you know, I don't have B4i, and remove those samples.

Good idea. In the future I will do the B4Xlib examples like this.



[LucaMs]

Prendi quello; poi eliminiamo questi ultimi 3 post.



[TILogistic]

very pretty.

And with more color parameters.



[Star-Dust]

very pretty.

And with more color parameters.

The idea is interesting, but since all the indicators have the same parameters, only the Style changes.

To get what you want I should include the ability to select multiple colors for all styles. But not all styles need it.

If I find a solution, I enter it



[Star-Dust]

Perché (why) tre progetti d'esempio (three sample projects)? [teaching Italian ? ]

Take this one (B4XPages), "create" the B4i layout (just copy & past views & script) and add it (since, as you know, I don't have B4i) and remove those samples.

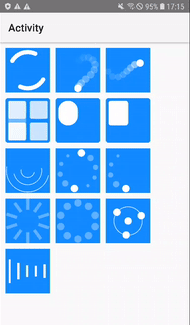

I tweaked to make it work on the B4i and also put in a necessary change for android when the app pauses and then resumes



[TILogistic]

I tweaked to make it work on the B4i and also put in a necessary change for android when the app pauses and then resumes

View or B4XView

For Each v As B4XView In Root.GetAllViewsRecursive



[Star-Dust]

View or B4XView

It is actually more correct this way, because it is only for B4A

Private Sub B4XPage_Appear
    #IF B4A
    For Each v As View In Root.GetAllViewsRecursive
        If v.Tag Is SD_LoadingIndicator And v.Visible = True Then
            Dim x As SD_LoadingIndicator = v.Tag
            x.Show
        End If
    Next
    #END IF
End Sub

or

Private Sub B4XPage_Appear
    #IF B4A
    For Each v As B4XView In Root.GetAllViewsRecursive
        If v.Tag Is SD_LoadingIndicator And v.Visible = True Then
            Dim x As SD_LoadingIndicator = v.Tag
            x.Show
        End If
    Next
    #END IF
End Sub



[TILogistic]

Only playing with three basic colors



[Star-Dust]

Only playing with three basic colors

In the majority it is not needed. If I find a sensible way I will insert it.

Please do not open or access the sources of my libraries. Even if it is a B4XLib library, it is not allowed to decompress it, modify it, change its name or redistribute it without the permission.



[TILogistic]

In the majority it is not needed. If I find a sensible way I will insert it.

Please do not open or access the sources of my libraries. Even if it is a B4XLib library, it is not allowed to decompress it, modify it, change its name or redistribute it without the permission.

Only playing!!



[LucaMs]

Please do not open or access the sources of my libraries. Even if it is a B4XLib library, it is not allowed to decompress it, modify it, change its name or redistribute it without the permission.

Only playing!!

I think we need to discuss this point (not here - will anyone open a thread about this? - but for the moment I want to comment on these two posts).

My opinion is that if a developer publishes a b4xlib library he must consider it as all the example projects published on the site (they too are zip files), that is freely usable and modifiable by anyone; otherwise he would have to compile his libraries the "classic way" and publish these.



[Star-Dust]

I think we need to discuss this point (not here - will anyone open a thread about this? - but for the moment I want to comment on these two posts).

My opinion is that if a developer publishes a b4xlib library he must consider it as all the example projects published on the site (they too are zip files), that is freely usable and modifiable by anyone; otherwise he would have to compile his libraries the "classic way" and publish these.

Already discussed with Erel, and not allowed. Otherwise we would have published the bas files.

B4xlib is published for these reasons:
1. Best for the compiler. Changing compiler version to older libraries versions may have problems. So there are no problems
2. You use only one file for all platforms and not one for single platform
3. In the case of B4i, if you use the Builder, you need to ask for permission from erel to build a library. With B4xLib it is not necessary

The latter reason is the main reason why I use the B4xLib.

P.S. It is clear that there is a risk, but going to publish changes as Oparra did seems excessive to me.
It's like stealing a neighbor's bike and walking in front of the window with the stolen bike .... At least hide ... Then if the neighbor calls the police, don't complain



[LucaMs]

Orrenda! Horrible

I was trying to imitate one I saw. I'll fix it. It does not use your library ? (nor the canvases, at the moment, just 3 Labels, but I will have to do it, so it doesn't work).

I would like to show you what I saw but underneath there is a well-known brand
